          MRCOOL DIY Mini Split - 30,000 BTU 2 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 16 and 35 ft. Install Kit, DIYM236HPC00C02
          • MRCOOL DIY Mini Split - 30,000 BTU 2 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 16 and 35 ft. Install Kit, DIYM236HPC00C02
          1 / 1

          MRCOOL DIY Mini Split - 30,000 BTU 2 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 16 and 35 ft. Install Kit, DIYM236HPC00C02

          $169.00 USD
          Shipping fees will be calculated at checkout.

          • Free worldwide shipping

          • Free returns

          • Carbon neutral

          • Secure payments

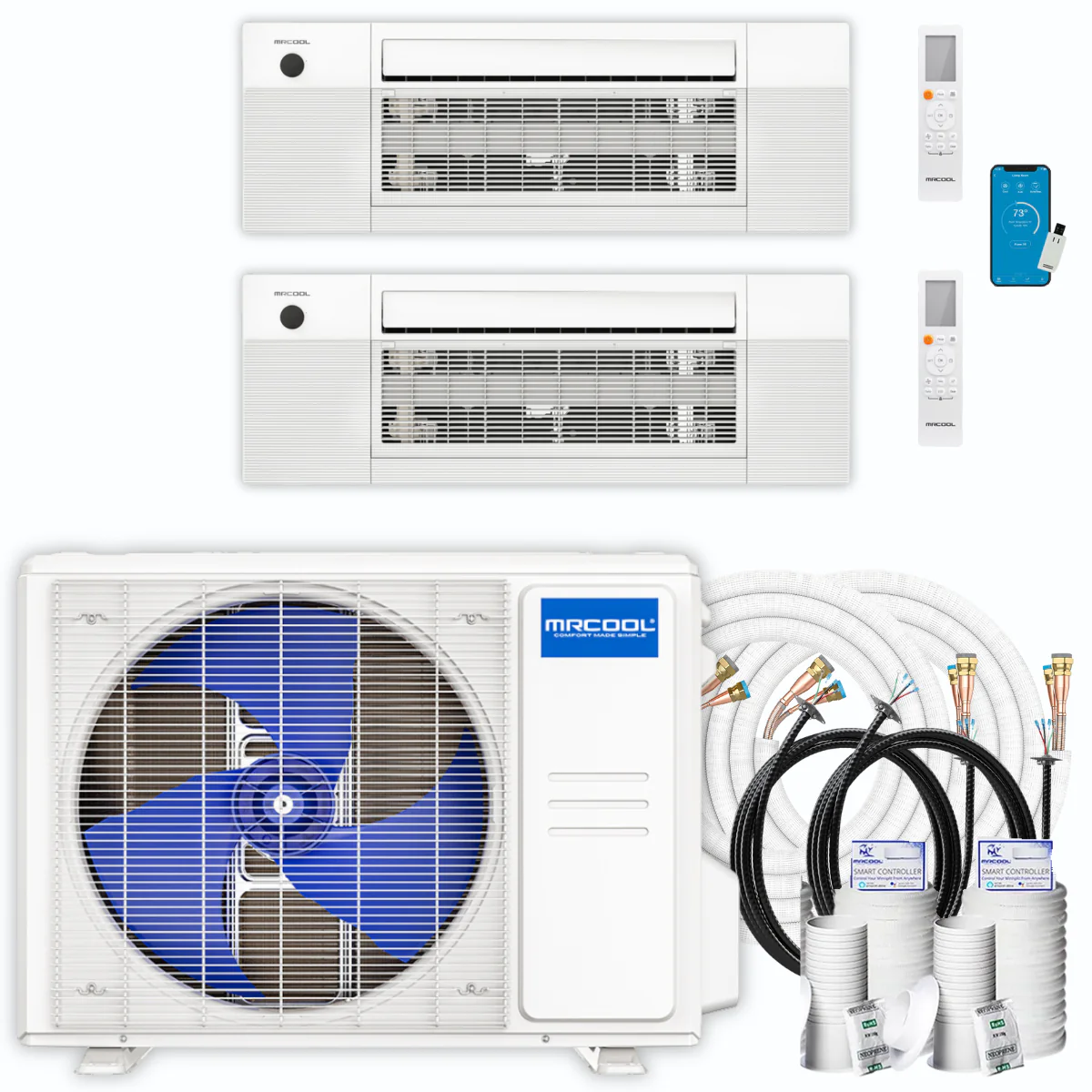

          This 4th Generation MRCOOL DIY Mini Split includes everything you need to cool and heat your home, office or more. You'll be sent: 36K BTU Multi-Zone Condenser, 12K and 18K BTU Ceiling Cassette Air Handlers and a remote, lineset, communication wire for each air handler. The best part about all of this is that you can install it yourself! The MRCOOL DIY Mini Split is flexible enough to be installed virtually anywhere without hiring an expensive HVAC technician or the need to use expensive, specialized equipment.

          Mini Split System Includes
          • MRCOOL DIY Multi-Zone 4-Zone 36K BTU Condenser, 4th Gen Series, DIY-MULTI4-36HP230C
          • MRCOOL DIY Series 12K BTU Ceiling Cassette, DIYCASSETTE12HP-230C25
          • MRCOOL DIY Series 18K BTU Ceiling Cassette, DIYCASSETTE18HP-230C25
          • MRCOOL 16ft 1/4 x 1/2 Pre-Charged Lineset for DIY 9K, 12K & 18K Indoor, DIY16-1412
          • MRCOOL 35ft 1/4 x 1/2 Pre-Charged Lineset for DIY 9K, 12K & 18K Indoor, 4th Generation, DIY35-1412C

          Condenser 36K BTU

          • Energy Efficient. This 36K BTU condenser is capable of producing up to an impressive 21.5 SEER2 efficiency rating. And yes... this qualifies for major savings using energy or tax rebates!
          • Works In Extreme Temperature. The ability to heat even when temperatures drop to -13°F.
          • Cool and Heat Worry-Free. The condenser comes with a 7 year compressor and 5 year parts warranty. Want lifetime coverage on the compressor? Simply register into the MRCOOL Care Program to get the lifetime warranty!

          Air Handler 12K BTU

          • Vast Coverage Area. The cassette covers an area between 250 to 500 sq. ft.
          • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.
          • Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.
          • Worry-Free Installation. Easily install between all types of joists on 16' center - including pre-manufactured I-joists
          • Easy Air Filter Access. By activating the Elevation function, the filter panel will lower for easy air filter maintenance.

          Air Handler 18K BTU

          • Vast Coverage Area. The cassette covers an area between 375 to 750 sq. ft.
          • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.
          • Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.
          • Worry-Free Installation. Easily install between all types of joists on 16' center - including pre-manufactured I-joists
          • Easy Air Filter Access. By activating the Elevation function, the filter panel will lower for easy air filter maintenance.

            Line Set

            • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
            • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

                PRODUCT SPECIFICATIONS:
                Condenser

                Product Dimensions 37.24'W x 16.14'D x 31.89'H
                Cooling Capacity36,000 BTU
                Heating Capacity36,000 BTU
                Zone CapacityUp to 4
                Cool Mode - Outdoor Operating Temperature Range5°F ~ 122°F
                Heat Mode - Outdoor Operating Temperature Range-13°F ~ 75.2°F
                SEER221.5
                EER210.5
                HSPF28.8
                Voltage Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase)
                Registered Warranty7 Years Replacement on Compressor, 5 Years Parts


                Air Handler 12K BTU

                Product Dimensions50.31'W x 13.19'D x 8.98'H
                Mount TypeCeiling Cassette
                Cooling Capacity 12,000 BTU
                Heating Capacity12,000 BTU
                Registered Warranty5 Years Parts
                ModesAuto (Auto selects Cool, Heat or Fan-Only)
                Cool
                Heat
                Dry
                Fan Only
                Sleep


                Air Handler 18K BTU

                Product Dimensions50.31'W x 13.19'D x 8.98'H
                Mount TypeCeiling Cassette
                Cooling Capacity 18,000 BTU
                Heating Capacity18,000 BTU
                Registered Warranty5 Years Parts
                ModesAuto (Auto selects Cool, Heat or Fan-Only)
                Cool
                Heat
                Dry
                Fan Only
                Sleep


                Line Set

                Length16 feet
                Liquid Line Size1/4'
                Suction Line Size1/2'


                Line Set

                Length35 feet
                Liquid Line Size1/4'
                Suction Line Size1/2'
                Installation Manual
                Product Brochure
                Performance Specifications
                Warranty
                Energy Guide
                AHRI Certificate
