          MRCOOL DIY Mini Split - 48,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM448HPC04C84
          • MRCOOL DIY Mini Split - 48,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM448HPC04C84
          1 / 1

          MRCOOL DIY Mini Split - 48,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM448HPC04C84

          $192.00 USD
          Shipping fees will be calculated at checkout.

          • Free worldwide shipping

          • Free returns

          • Carbon neutral

          • Secure payments

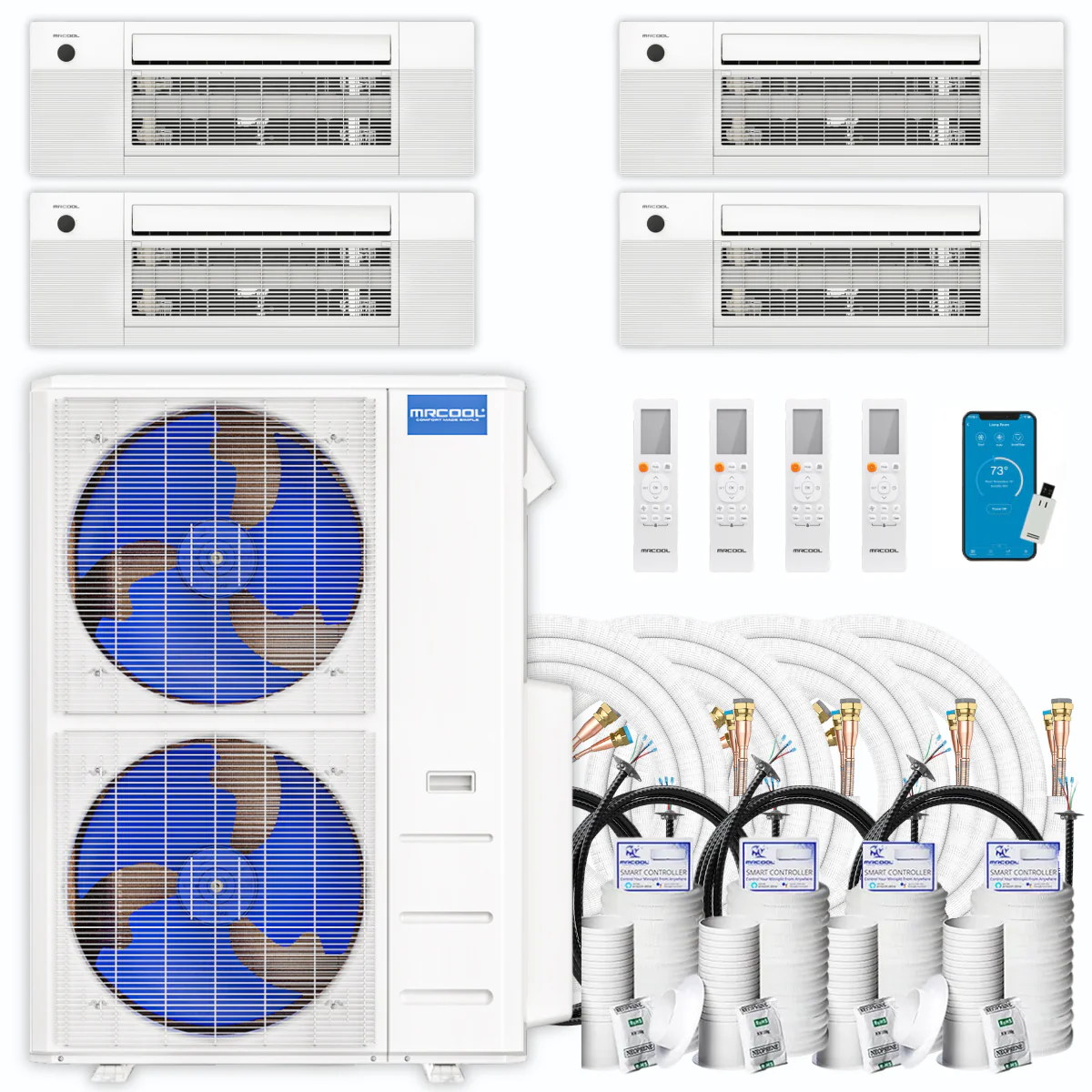

          This 4th Generation MRCOOL Mini Split includes a DIY 48,000 BTU Multi-Zone Condenser, four 12,000 BTU Ceiling Cassette Air Handlers, 25' Linesets, and four Remotes. The best part about all of this is that you can install it yourself!

          Package Includes
          • MRCOOL DIY Multi Zone 5-Zone 48K BTU Condenser, 4th Gen Series, DIY-MULTI5-48HP230C
          • MRCOOL DIY Series 12K BTU Ceiling Cassette, DIYCASSETTE12HP-230C25 (x4)
          • MRCOOL 25ft 1/4 x 1/2 Pre-Charged Lineset for DIY 9K, 12K & 18K Indoor, DIY25-1412 (x4)

          Condenser

          • Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 20.5 SEER efficiency rating.
          • Works In All Environments. The capability to continue to deliver heating performance when temperatures reach 5°F
          • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

            Air Handler, 12K BTU, Quantity 4

            • Large Coverage Area. Handler covers an area up to 500 sq. ft.
            • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
            • Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.
            • Worry-Free Installation. Easily install between all types of joists on 16' center - including pre-manufactured I-joists
            • Easy Air Filter Access. By activating the Elevation function on the remote controller (or smart controller), the filter panel will lower for easy air filter maintenance.

            Line Set 25 ft., Quantity 4

            • Pre-Charged. These copper line sets come pre-charged with the precise amount of R-410A refrigerant.
            • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

              PRODUCT SPECIFICATIONS:
              Condenser

              Product Dimensions 37.48'W x 16.34'D x 52.48'H
              Cooling Capacity48,000 BTU
              Heating Capacity48,000 BTU
              Zone Capacity5
              Cool Mode - Outdoor Operating Temperature Range5F ~ 122F
              Heat Mode - Outdoor Operating Temperature Range 5F ~ 75.2F
              SEER 20.5
              EER11
              VoltageRequires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
              Registered Warranty 7 Years Replacement on Compressor, 5 Years Parts


              Air Handler 12K BTU

              Product Dimensions 50.31'W x 13.19'D x 8.98'H
              Mount TypeCeiling Cassette
              Cooling Capacity12,000 BTU
              Heating Capacity12,000 BTU
              Registered Warranty 5 Years Parts
              ModesAuto - Auto selects from Cool, Heat or Fan-Only
              Dry - dehumidify
              Cool
              Heat
              Fan Only
              Quiet
              Sleep

              Line Set

              Length
              25 Feet
              Liquid Line Size1/4'
              Suction Line Size1/2'
              Installation Manual
              Product Brochure
              Performance Specifications
              Warranty
              Energy Guide
              AHRI Certificate
