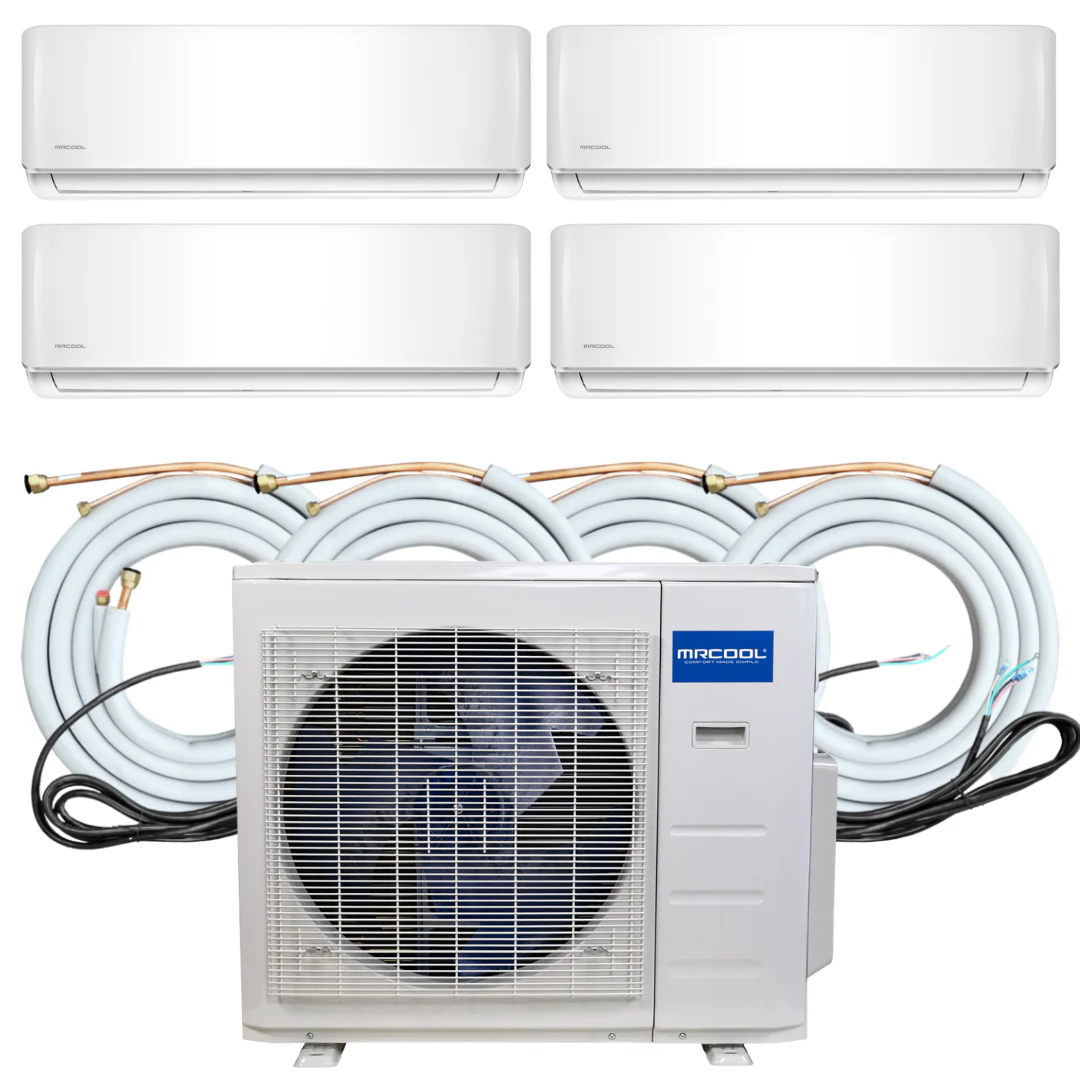

System Includes
- MRCOOL Olympus 36,000 BTU Ductless Mini-Split Condenser, MULTI4-36HP230V1
- MRCOOL Olympus ENERGY STAR 9,000 BTU 3/4 Ton Ductless Mini-Split Air Conditioner and Heat Pump Air Handler, O-09-HP-WMAH-230A (x4)
- MRCOOL 16FT 1/4' x 3/8' Flared Line Set Kit for 9K Mini Split, MC16-1438 (x4)
Condenser
- Flexible Control. One House, One Solution. Multi-zone technology gives you flexibility and control whenever and wherever you want it.
- Environmentally Friendly. R-410A environmentally friendly refrigerant
- Gold Fin® condenser: corrosion resistant. Live on the coast? don't worry, our condenser is built to resist long term corrosion
- High Performance. High efficient 22.5 SEER 11.5 HSPF performance
- Warranty. 7-Year Compressor, 5-Year Parts and 1-Year Remote warranty when registered and when installed by a licensed professional
Air Handler, Quantity 4
- Energy Efficient. 22.5 SEER energy efficient performance makes a MRCOOL Olympus both effective and affordable
- Energy Star Certified. The estimated national average annual operating cooling cost is 101 dollars based on AHRI certificate #8977707
- SmartHVAC WiFi Control. The new Olympus Energy Star systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.
- Multiple Modes. Includes features such as timer mode, auto swing, sleep mode, turbo mode, auto restart, refrigerant leakage detection, and more
- Warranty. 5-Year Parts and 1-Year Remote warranty when registered and when installed by a licensed professional
Line Set 16 ft., Quantity 4
PRODUCT SPECIFICATIONS:
Condenser
| Product Dimensions | 37.24'W x 16.14'D x 31.89'H |
| Cooling Capacity | 36,000 BTU |
| Heating Capacity | 36,000 BTU |
| Compressor | Inverter |
| SEER | 22.5 |
Warranty
| 5-year Parts/7-year Compressor
|
| Electrical Requirements | Requires a minimum of 208V-230V/60HZ/30-45A (please check your home meets this electrical requirement prior to purchase) |
Air Handler
| Product Dimensions | 32.87'W x 7.80'D x 11.02'H |
| Coverage Area | 350 square feet
|
| Warranty | 5-year Parts/1-year Remote
|
Line Set
| Length | 16 Feet |
| Liquid Line Size | 1/4' |
| Suction Line Size | 3/8'
|
