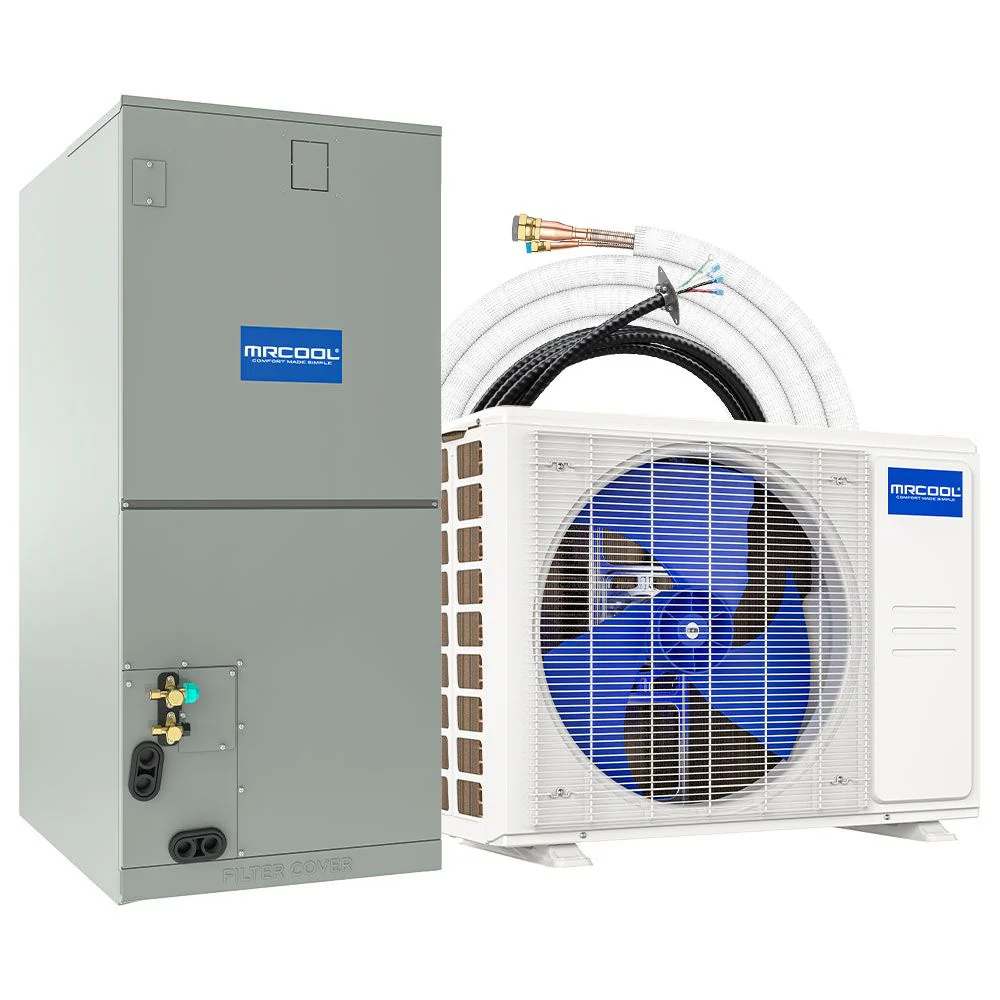

Feeling uncomfortable in your own home can be frustrating, especially when considering the costs and time commitments required for HVAC upgrades. Fortunately, the 1.5 Ton MRCOOL® VersaPro Central Ducted Heat Pump Split System with a 25ft. Line Set offers a convenient and efficient solution to all your home comfort needs.
- High Efficiency: This 1.5 Ton, 18k unit has a SEER2 rating of 16.6 and an HSPF4 of 10.2, ensuring high performance and energy efficiency.
- Cost-Effective Operation: Equipped with a DC inverter for excellent operation and reduced utility costs.
- Easy Installation: Comes with a 25-foot MRCOOL® Quick Connect® precharged line set for swift and trouble-free setup, eliminating the need for vacuuming.
- Eco-Friendly: Precharged with eco-friendly R-410A refrigerant for a seamless and environmentally friendly installation.
- Durable Construction: Made with painted galvanized steel for long-lasting durability.
- Simple Maintenance: Includes self-diagnostic capabilities to make maintenance easier.
- Efficient Coverage: Ideal for spaces between 501 to 750 square feet.
- Flexible Installation: Air handler can be installed in various configurations, including upflow, downflow, and horizontal orientations on both sides.
- Optional Heat Kit: Available for enhanced functionality and year-round use.
- Convenient Controls: Includes a wireless remote with Follow Me function, adjusting airflow temperature based on the remote’s location for consistent comfort. Also comes with a wired thermostat for reliable temperature control.
- Peace of Mind: Backed by MRCOOL®'s 10-year parts and compressor warranty, providing comprehensive coverage and ease of ownership.
PRODUCT SPECIFICATIONS:
Condenser
| Dimensions | 35.04' W x 13.46' D x 26.50' H |
| Weight | 94.36 lbs |
| Electrical Requirements | Requires a minimum of 208-230V/60Hz/18-30A (please check your home meets this electrical requirement prior to purchase) |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 18,000 BTU |
| Outdoor Operating Temperature Range | 5°F - 120°F |
| SEER2 | 16.6 |
| EER2 | 11.7 |
| HSPF4 | 10.2 |
| HSPF5 | 7.9 |
| Noise Level (Hi/Mi/Lo) | 58 dB(A) |
| Refrigerant | R410A / 56.44 oz |
| Liquid Line Size | 1/4' |
| Suction Line Size | 1/2' |
| Warranty | 10 Years Compressor, 10 Years Parts |
Air Handler
| Dimensions | 21.02' W x 17.52' D x 45.00' H |
| Weight | 106.48 lbs |
| Electrical Requirements | Requires a minimum of 208-230V/60Hz/2.5-15A (please check your home meets this electrical requirement prior to purchase) |
| Mount Type | Vertical (Downflow or Upflow)
Horizontal (Right or Left) |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 18,000 BTU |
| Coverage Area | 501-750 square feet |
| SEER2 | 16.6 |
| EER2 | 11.7 |
| HSPF4 | 10.2 |
| HSPF5 | 7.9 |
| Noise Level (Hi/Mi/Lo) | 39.5 / 38.5 / 35.5 dB(A) |
| Airflow (TURBO/Hi/Mi/Lo) | 617.65 / 576.47 / 529.41 / 494.12 CFM |
| Refrigerant | R410A / 56.44 oz |
| Liquid Line Size | 1/4' |
| Suction Line Size | 1/2' |
| Compatible Heat Kits | 5kW - CENTRALHK05
8kW - CENTRALHK08
10kW - CENTRALHK10 |
| Warranty | 10 Years Parts |
