AUTOMATICALLY adapts to 10 Mbit/s, 100 Mbit/s (Fast Ethernet) or 1000 Mbit/s (Gigabit) Speed And Extends in over Multi Mode Fiber to up to 550 m – 0.34 miles - (Transmission Wavelength -– 850 nm, ST connector)

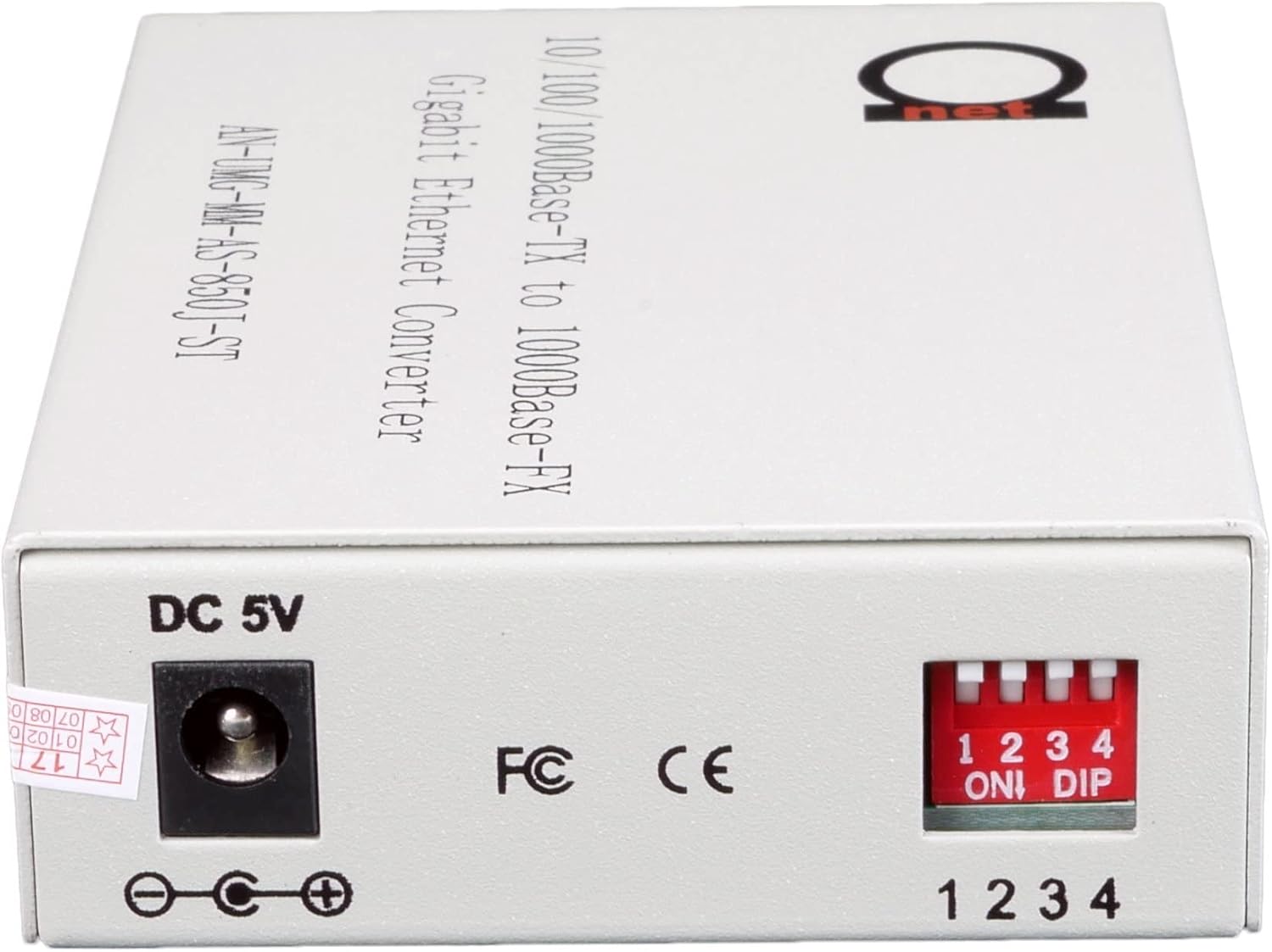

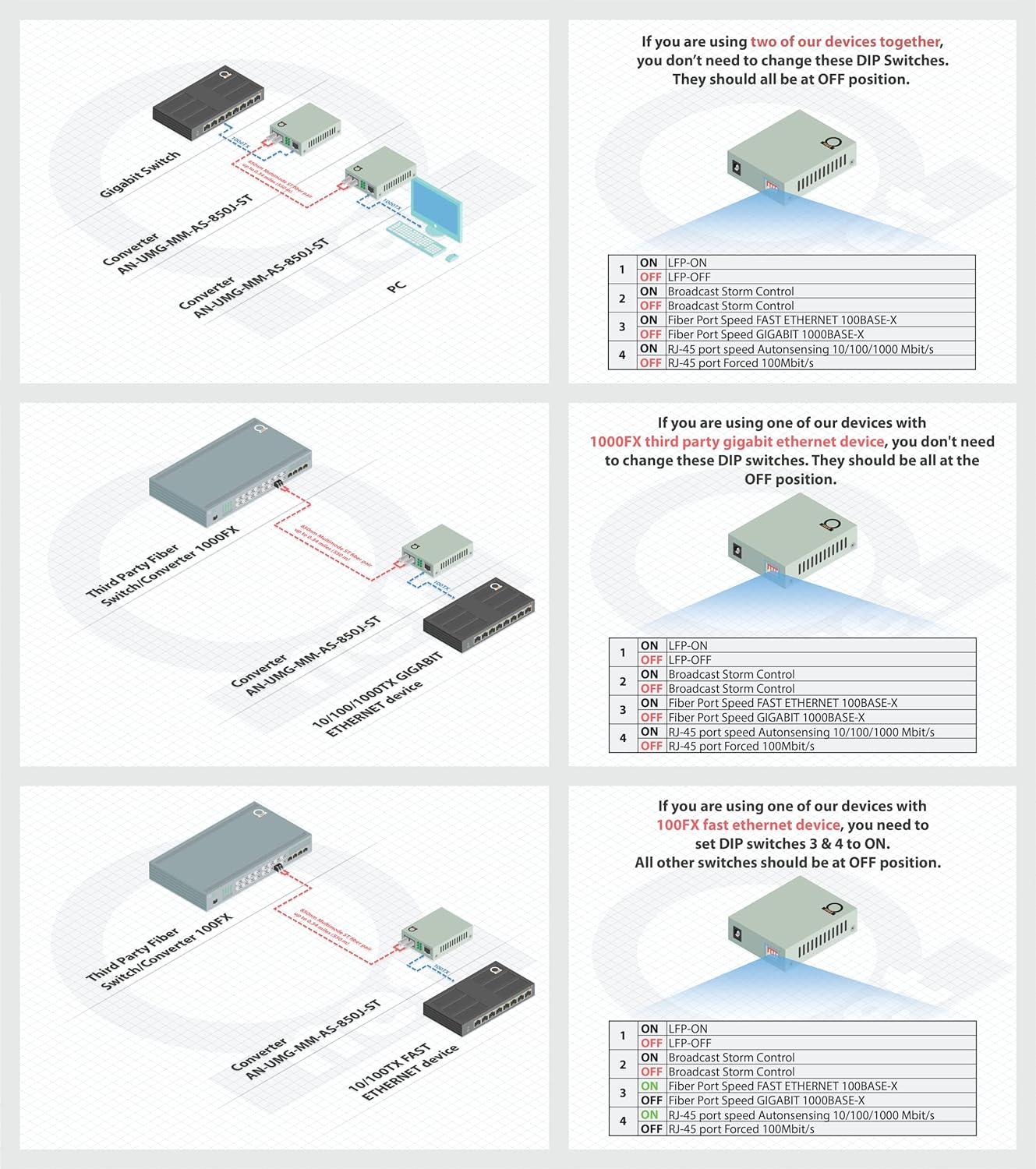

Supports Dual Speed Fiber Mode (configurable by dip switch) – Select 1000Base-SX or 100Base-SX – interconnecting with existing fiber nodes is easy with this media converter. Wavelength – 850nm, Use it with Multimode Fiber Only.
SUPPORTS Jumbo Frame & LLF feature - for increased end-to-end TCP performance

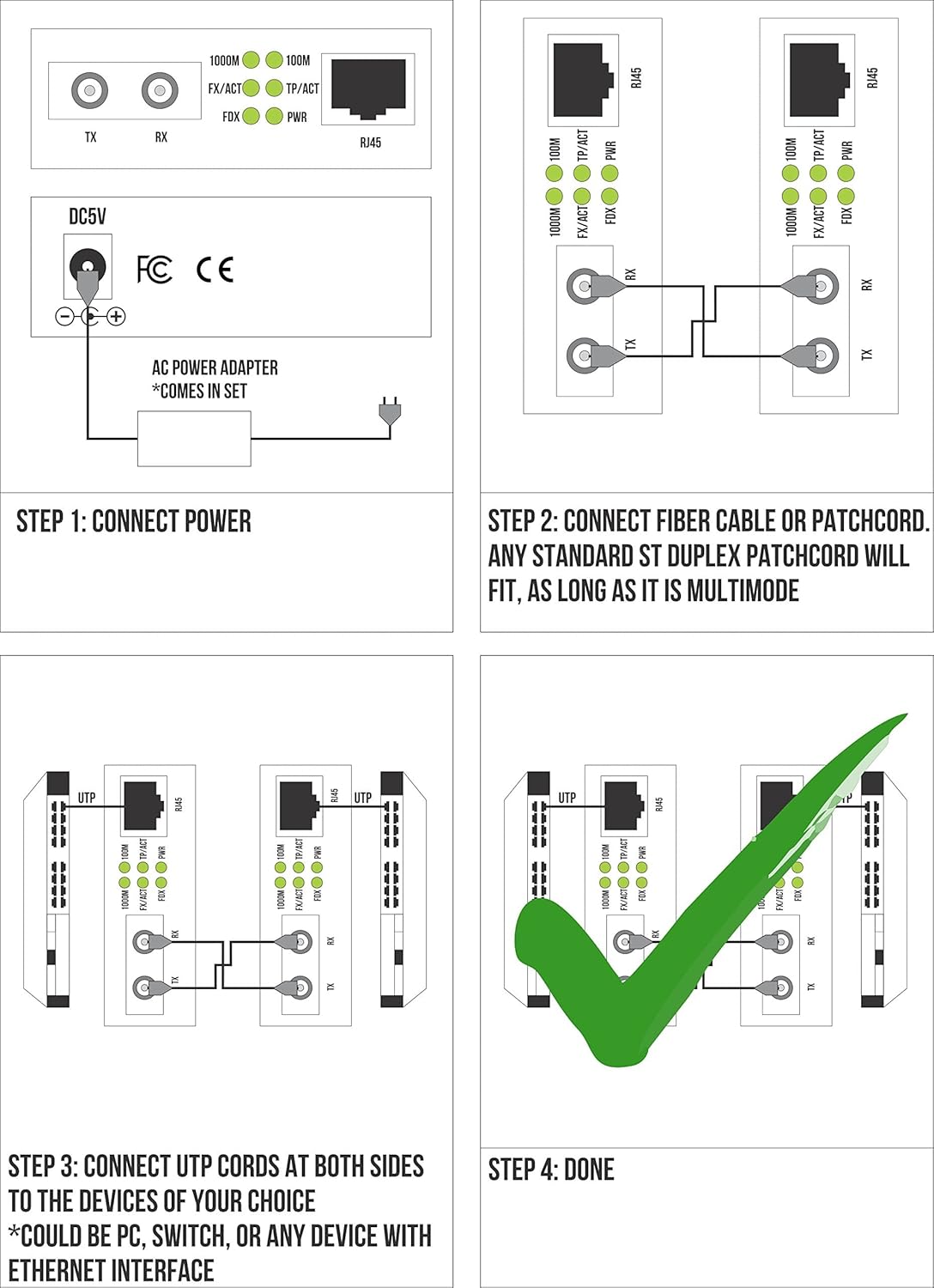

PLUG & PLAY - Simply plug in an ST optical port and UTP RJ-45 port, and it will work immediately

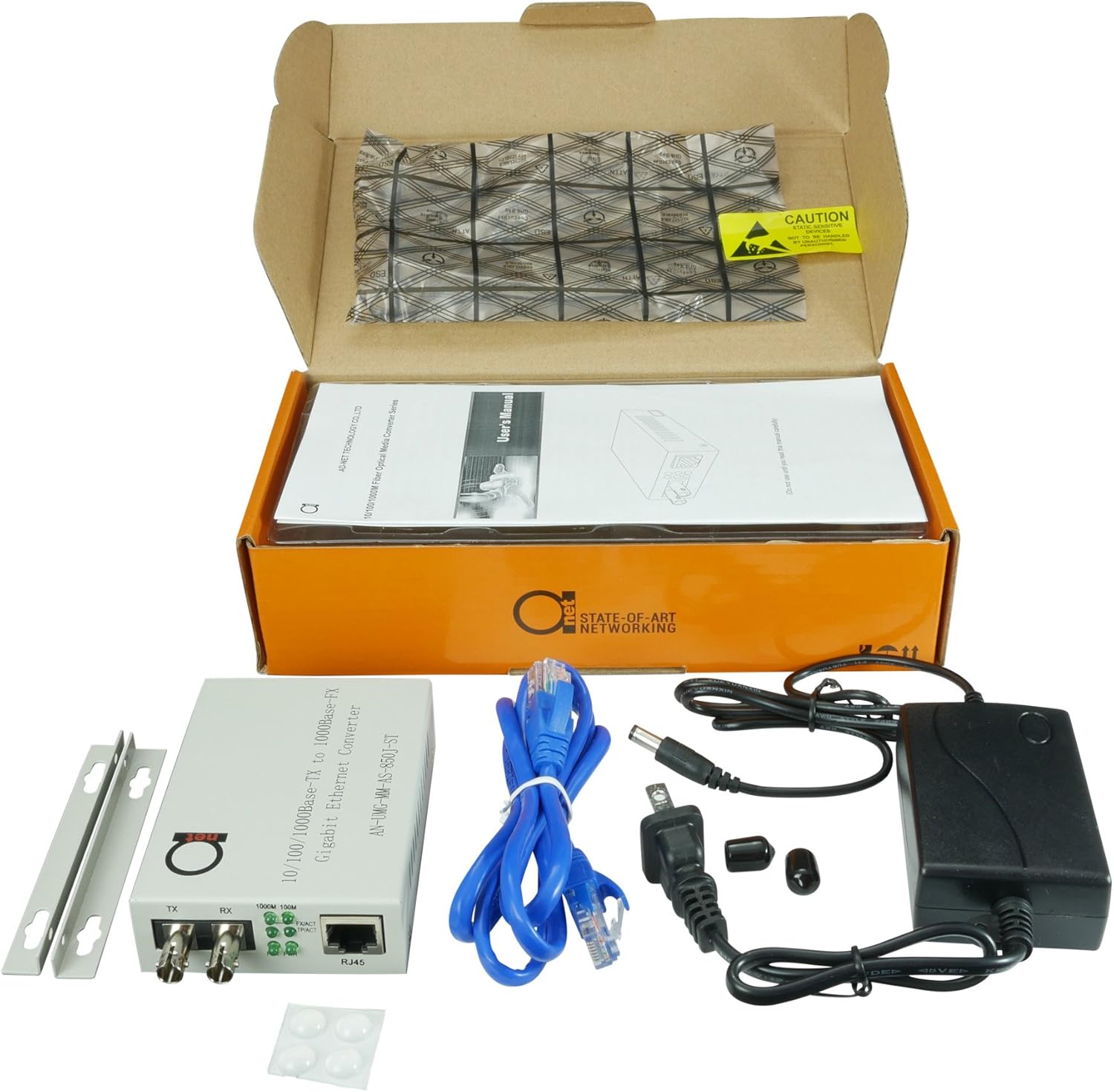

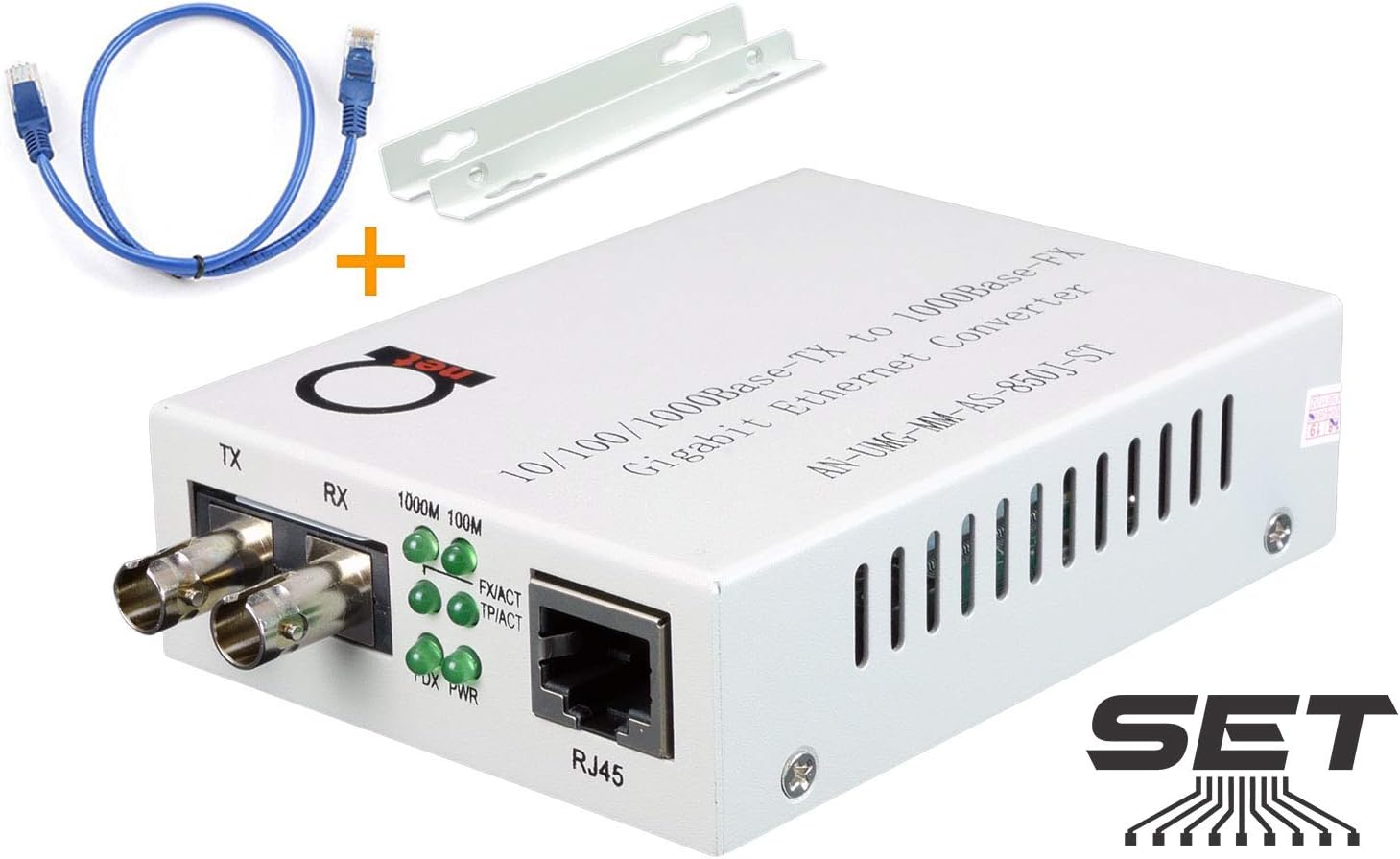

FREE UTP Cat5e Patch Cable (1m - 39in) Comes In The Set With Every Unit! - Colors May Vary Depending on Stock;
|
| ST Multimode Gigabit 550m (0.34 mi) Built-In Fiber Module Media Converter | LC Multimode Gigabit 550m (0.34 mi) LC Fiber Module Media Converter | SC Multimode Gigabit 2 km (1.24 mi) Built-In Fiber Module Media Converter | DIN Rail Industrial Multimode ST 850nm Fiber Media Converter | ST Single Mode Gigabit 20km (12.24 mi) Built-In Fiber Module Media Converter | Dual Power Multimode ST 550m (0.34 mi) Built-In Fiber Module Media Converter |
| Speed | Gigabit | Gigabit | Gigabit | Universal: Gigabit / Fast Ethernet | Gigabit | Gigabit |
| Autosensing to 10 / 100 / 1000 Mbit/s | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Fiber Type | Multi Mode | Multi Mode | Multi Mode | Multi Mode | Single Mode | Multi Mode |
| Fiber Connector | ST | LC | SC | ST | ST | ST |
| Wavelength | 850 nm | 850 nm | 1300/1310nm | 850 nm | 1310nm | 850nm |
| Power Supply | AC adapter in set | AC adapter in set | AC adapter in set | 9 - 55 VDC (AC adapter in set) | AC adapter in set | AC + DC Dual Input |
| Maximum Reach | 0.34 miles (550 m) | 0.34 miles (550 m) | 1.24 miles (2 km) | 0.34 miles (550 m) | 12.42 miles (20 km) | 0.34 miles (550 m) |
| Size | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 60* 50* 35 mm (2.36* 1.96* 1.37in) (L*W*H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 30mm (H) * 110mm (D) * 140 mm (W) / 1.18 in (H) * 4.33 in (D) * 5.51 in (W) |
| LFP & Jumbo Frame Support | ✓ | ✓ | ✓ | ✓ | ✓ | |
| UTP cable & Wall Mount Ears in Set | ✓ | ✓ | ✓ | no | ✓ | |
