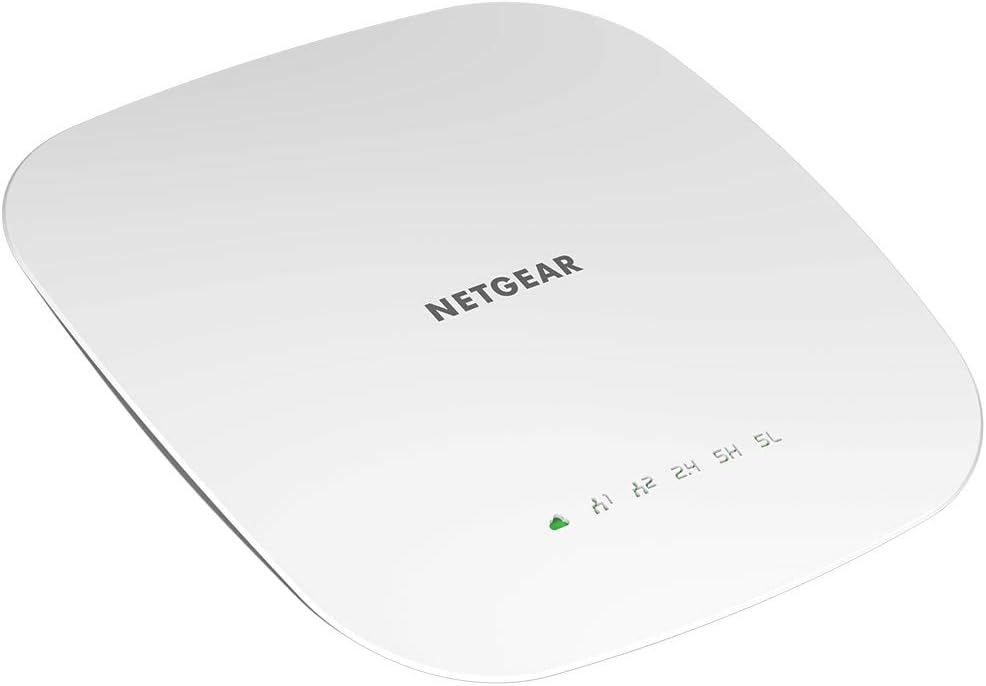

NETGEAR Wireless Access Point (WAC540PA)

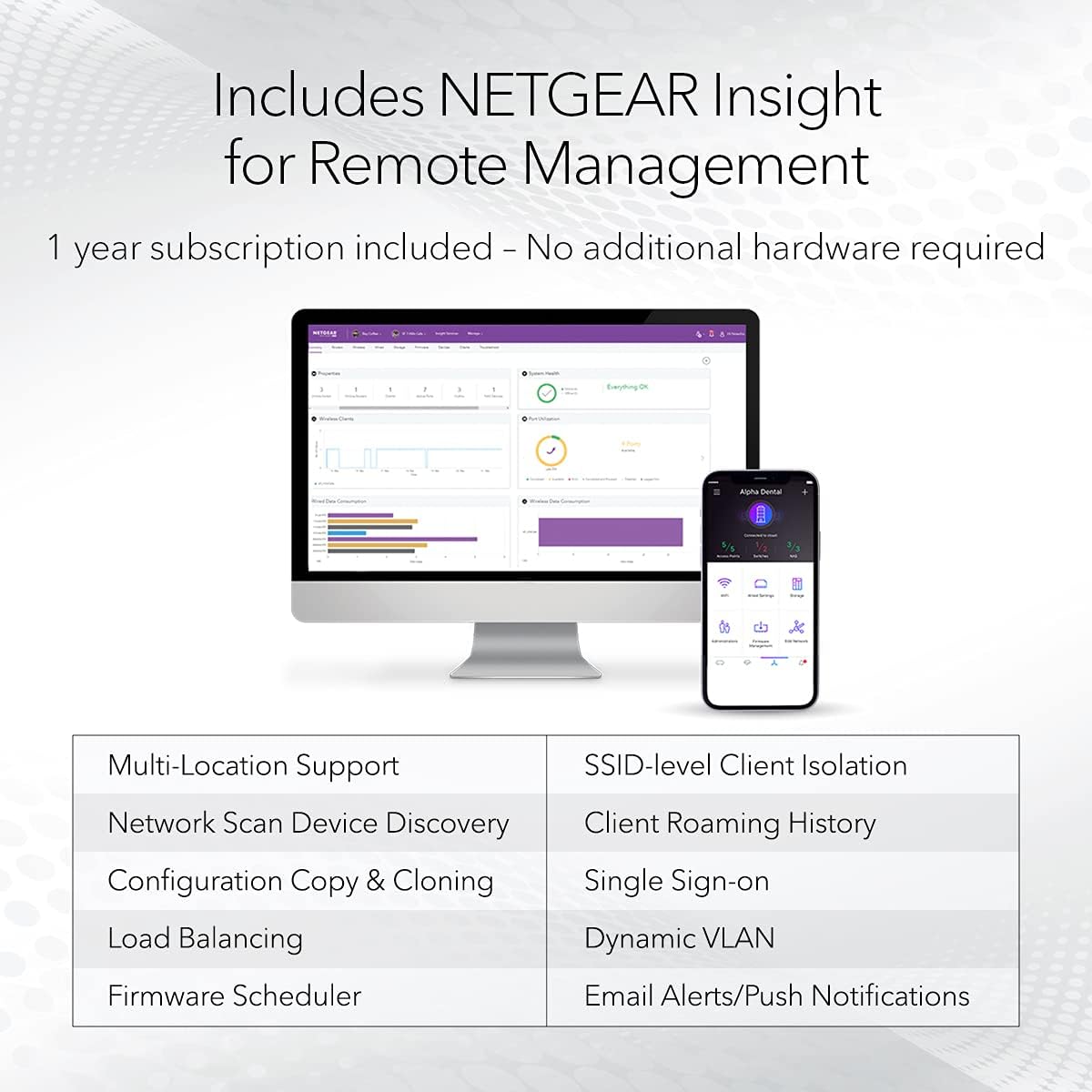

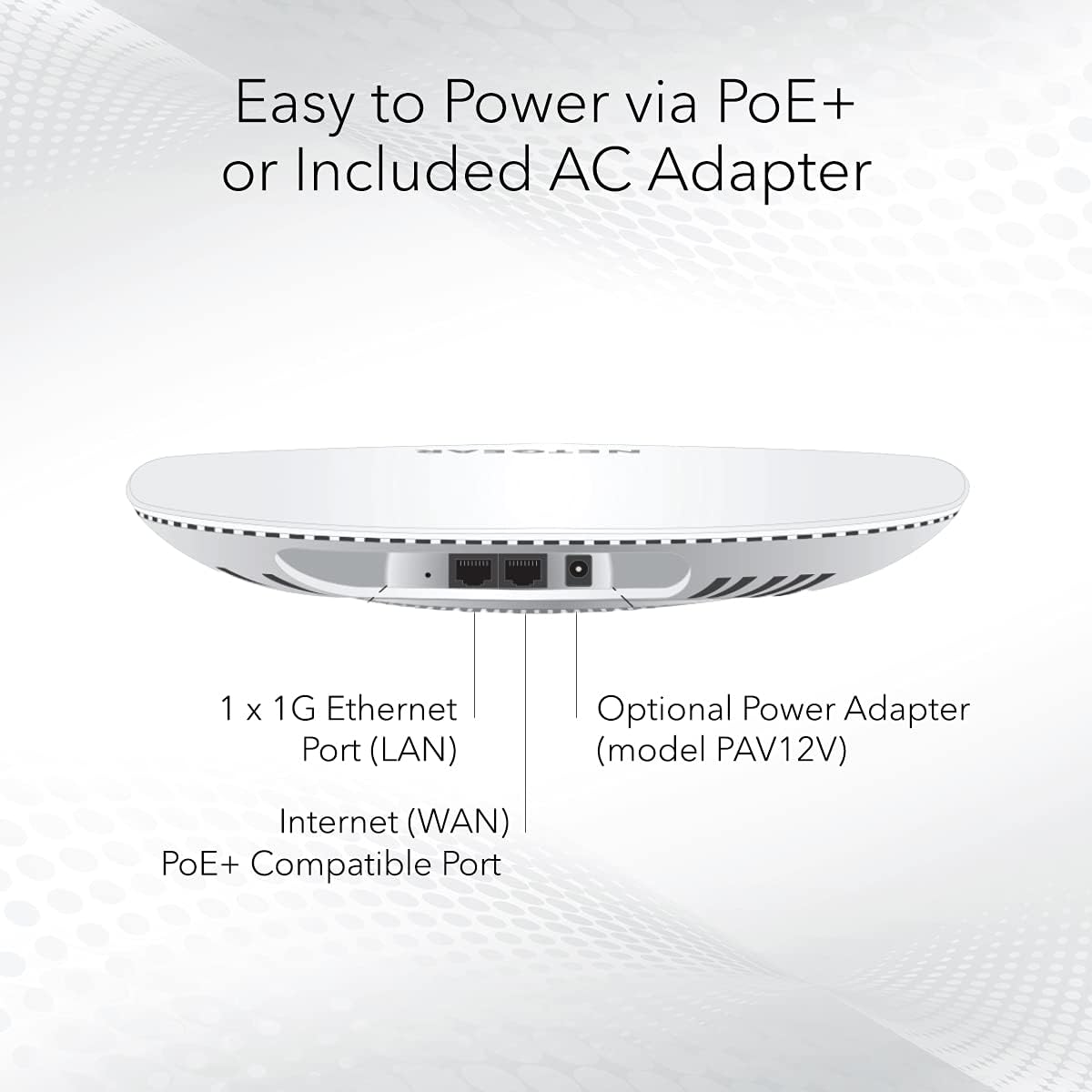

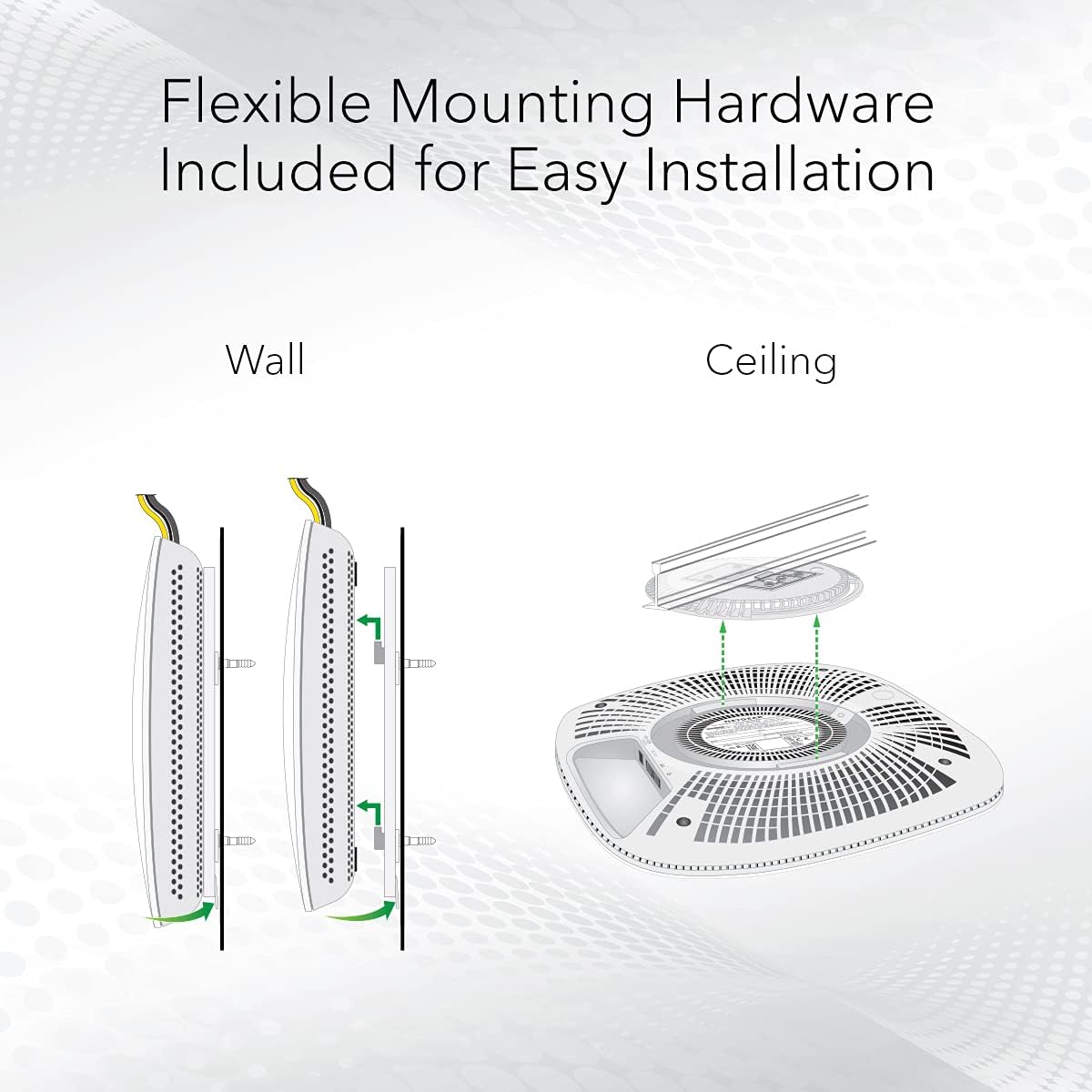

Tri-Band AC3000 speed, coupled with MU-MIMO technology, significantly improves WiFI performance for up to 600 client devices and 2,500 sq. ft. of coverage.Plug in a printer, storage, or other nearby wired devices into the extra 1 Gigabit port for maximum speed.Simplified deployment with PoE+, or power using the included PAV12V power adapter.Includes 1 year FREE Insight subscription for remote management from anywhere, and no additional hardware or cloud key required. Setup, configure, and manage with the Insight app.Easy to securely install on the wall or a suspended ceiling with included hardware.Supports WPA, WPA2, and rogue AP detection.Supports load balancing, band steering, and assisted roaming.

The NETGEAR Insight Managed Smart Cloud tri-band 4x4 Wireless access point WAC540 delivers superior performance Wi-Fi and ultra-high client density for enterprises requiring ubiquitous and Reliable wireless for all business applications. The WAC540 is managed by NETGEAR Insight, for a fully centralized cloud real-time monitoring, with no need for extra management hardware. The WAC540 features 4x4 multi-user MIMO (MU-MIMO) to achieve aggregate speeds up to 3 Gbps, superior Wi-Fi roaming and comes with 2 Power-over-Ethernet (PoE) 1GB LAN ports. The WAC540 comes with market leading 5-year.；The product is multiple voltage compatible, that voltage arrange is 100-240V

	WAC540PA	WAC510PA	WAX620PA	WAX630PA	WAX610Y
Recommended For	For heavy internet traffic, video conferencing, and many simultaneous users	Average internet traffic, video conferencing, and number of users	For heavy internet traffic, video conferencing, and many simultaneous users	For heavy internet traffic, video conferencing, and many simultaneous users	For outdoor users
WiFi Speed	AC3000 (up to 3000Mbps) 2.4GHz: 400Mbps 5GHz Low: 867Mbps 5GHz High: 1733Mbps	AC1300 (up to 1300Mbps) 2.4GHz: 400Mbps 5GHz: 867Mbps	AX3600 (up to 3.6Gbps) 2.4GHz: 1200Mbps 5GHz: 2400Mbps	AX6000 (up to 6Gbps) 2.4GHz: 1200Mbps 5GHz Low: 2400Mbps 5GHz High: 2400Mbps	AX1800 (up to 1800Mbps) 2.4GHz: 600Mbps 5GHz: 1200Mbps
WiFi Bands	Tri-Band	Dual-Band	Dual-Band	Tri-Band	Dual-Band
Max # Client Devices	600	200	256	600	200
Power Options	1 x PoE+, Included power adapter	1 x PoE, Included power adapter	1 x PoE+, Included power adapter	1 x PoE++, Included power adapter	1 x PoE+ Power adapter sold separately
Ethernet Port (LAN)	1 x 1G	1 x 1G	1 x 2.5G	1 x 2.5G, 1 x 1G	1 x 2.5G
Insight Management	Local included; Remote free 1 yr premium subscription	Local included; Remote free 1 yr premium subscription	Local included; Remote free 1 yr premium subscription	Local included; Remote free 1 yr premium subscription	Local included; Remote free 1 yr premium subscription
Mesh WiFi Network	With WAX610, WAX610Y, WAX620, WAX630, WAC540	---	With WAX610, WAX610Y, WAX620, WAX630, WAC540	With WAX610, WAX610Y, WAX620, WAX630, WAC540	With WAX610, WAX610Y, WAX620, WAX630, WAC540
Additional Features	Up to 8 SSIDs, WPA2, MU-MIMO, P2P/P2MP Bridge mode, Load balancing, Band steering, Assisted roaming	Up to 8 SSIDs, WPA2, MU-MIMO, P2P/P2MP Bridge mode, Load balancing, Band steering, Assisted roaming	Up to 8 SSIDs, WPA3, MU-MIMO, Beamforming+, OFDMA, Bandsteering, Ceiling or Wall Mount	Up to 8 SSIDs, WPA3, MU-MIMO, Beamforming+, OFDMA, Wall or ceiling mount	Up to 8 SSIDs, WPA3, MU-MIMO, Load balancing, Band steering, Assisted roaming, Ceiling or Wall Mount
Product Dimensions	9.51 x 9.51 x 1.58 in	7.75 x 7.75 x 1.45in	8.09 x 8.09 x 1.35 in	10.63 x 10.63 x 1.57 in	7.12 x 12.0 x 1.33 in
