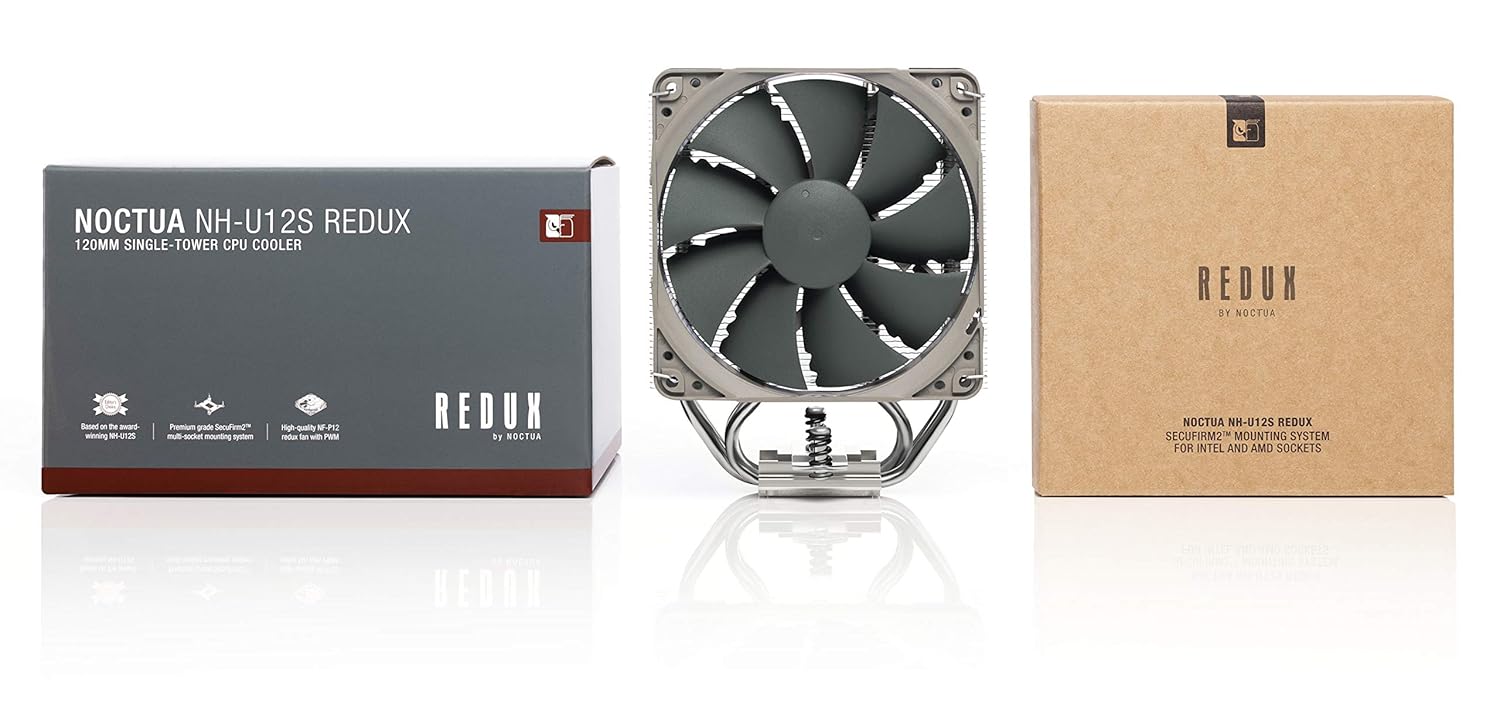

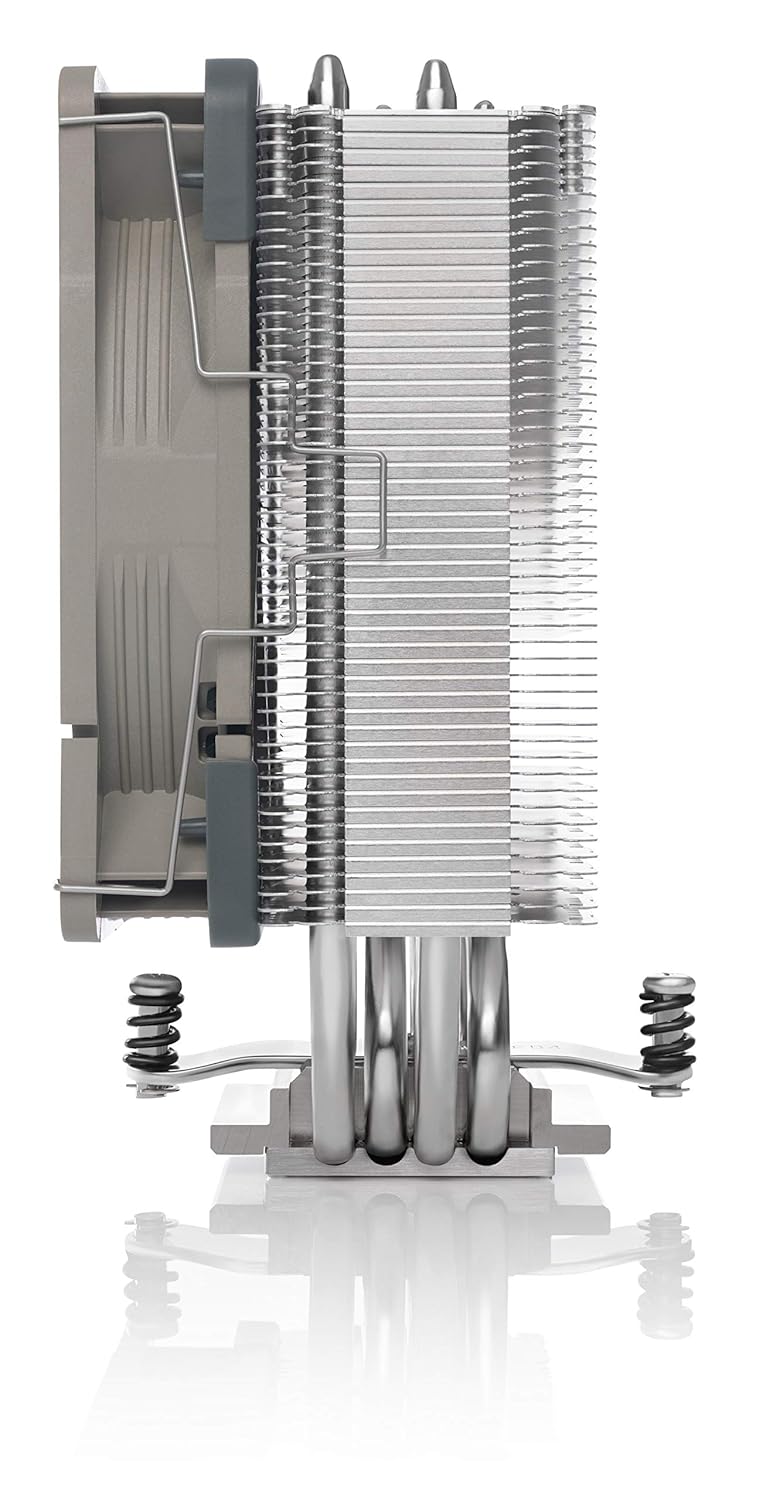

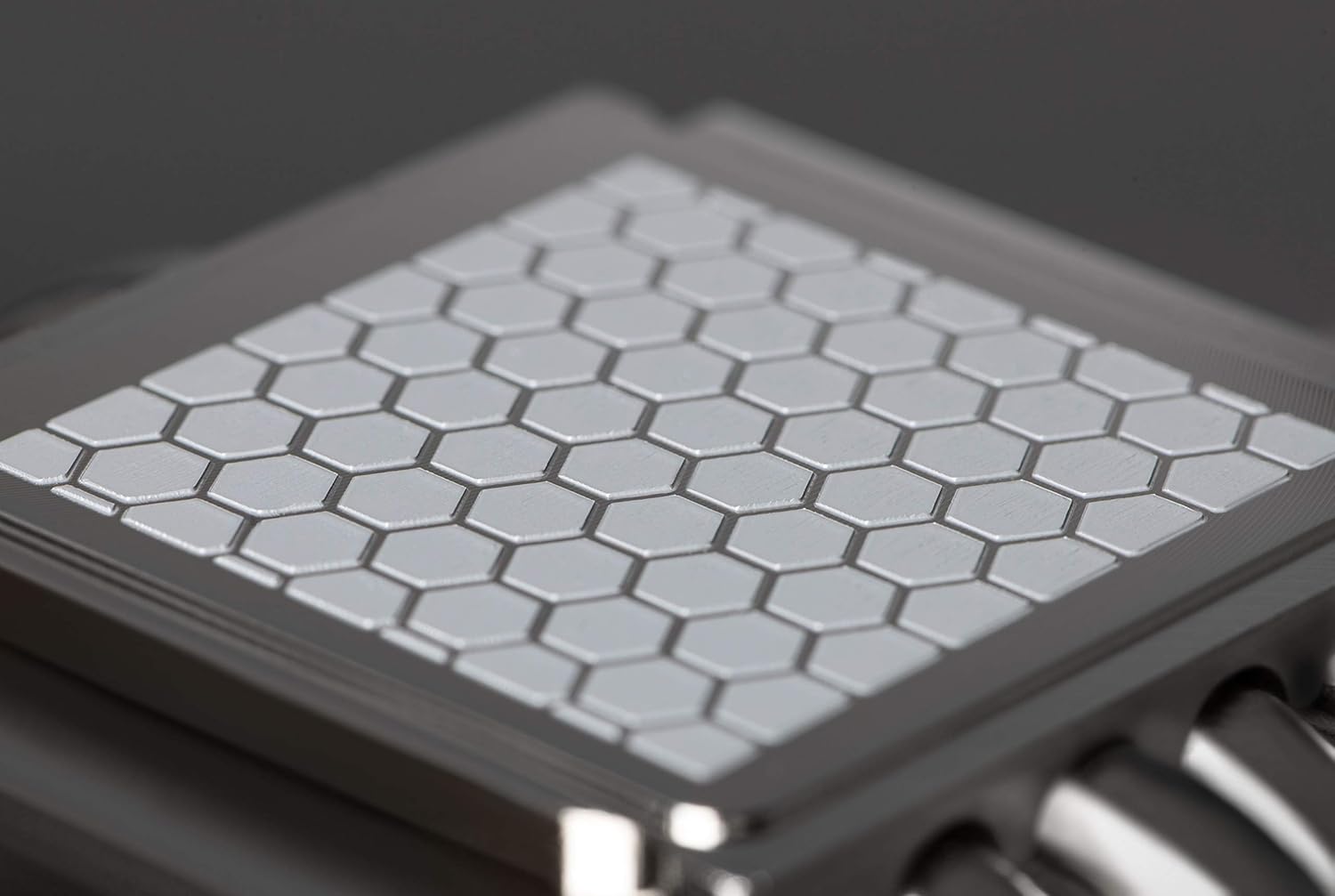

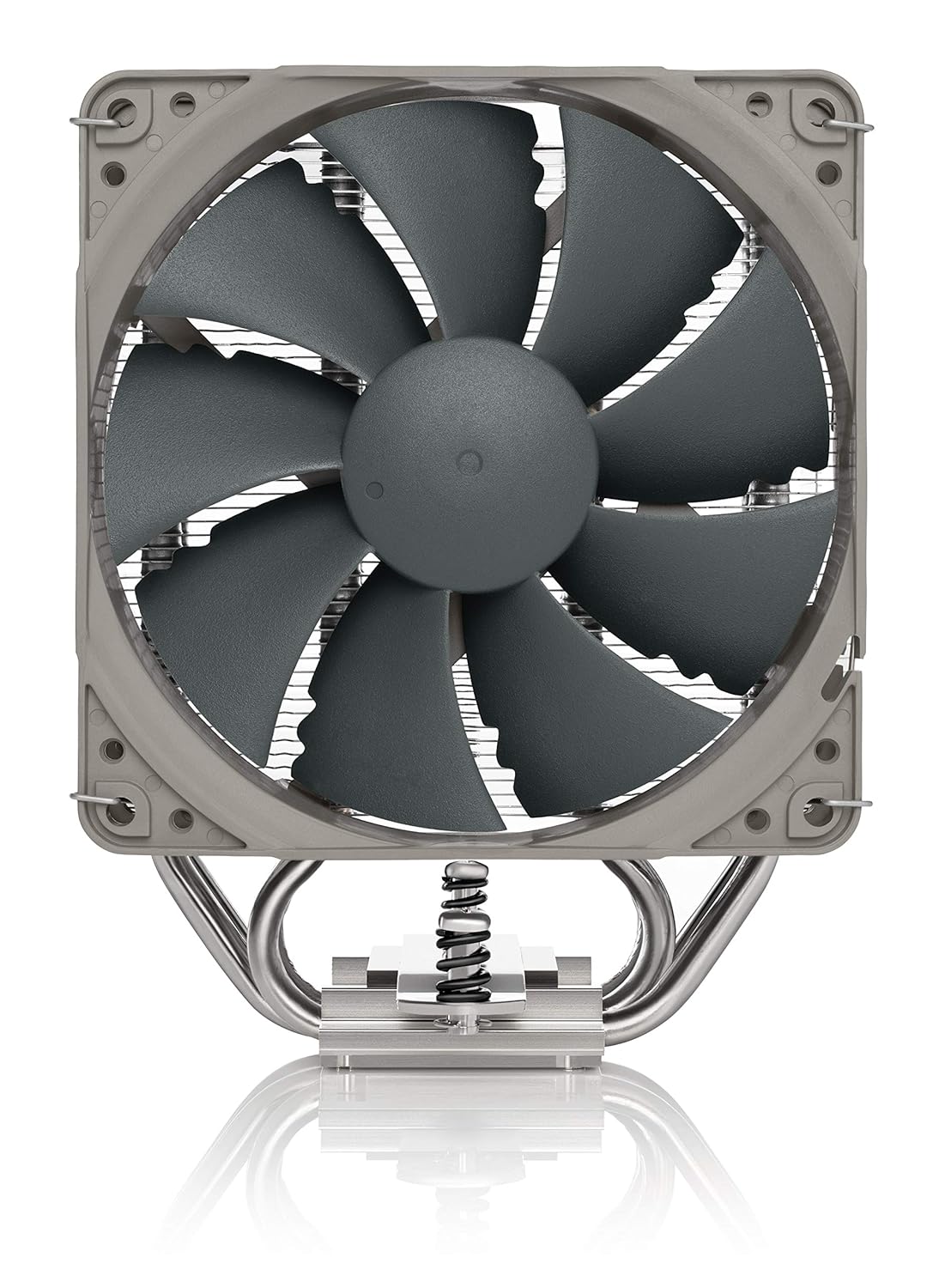

Streamlined, more affordable redux line version of the award-winning NH-U12S heatsinkSlim 120mm size for excellent case, RAM and PCIe compatibility: fits most tower cases (158mm height), doesn’t overhang the RAM slots, doesn’t block the PCIe on most ATX and Micro-ATX motherboardsQuiet NF-P12 redux-1700 120mm fan with PWM for automatic speed control: full cooling performance under load, near silent at idle!Pre-applied high-quality NT-H1 thermal paste & SecuFirm2 mounting system for easy installation on Intel LGA1700, LGA1200, LGA1150, LGA1151, LGA1155, LGA1156, LGA2011, LGA2066 and AMD AM4 & AM5Renowned Noctua quality at an attractive price, smart choice for Intel Core i9, i7, i5, i3 (e.g. 12900K, 12700K, 12600K) and AMD Ryzen (e.g. 5800X3D, 5700X, 5600, 5500)
|
| NH-U12S | NH-U12S TR4-SP3 | NH-U12S DX-4189 | NH-U12S redux | NH-U12S chromax.black | NH-U12A |
| LGA2066, LGA2011-0 & LGA2011-3 | ✓ | X | X | ✓ | ✓ | ✓ |
| LGA1700 | ✓ | X | X | ✓ | ✓ | ✓ |
| LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) | ✓ | X | X | ✓ | ✓ | ✓ |
| LGA775 & LGA1366 | with NM-I3 | X | X | with NM-I3 | with NM-I3 | with NM-I3 |
| Xeon LGA2011 Narrow ILM / Xeon LGA1366 & LGA1356 | X | X | X | X | X | X |
| Xeon LGA3647 | X | X | X | X | X | X |
| Xeon LGA4189 | X | with NM-i4189 | ✓ | X | X | X |
| AM5 | ✓ | X | X | ✓ | ✓ | ✓ |
| AM4 | ✓ | X | X | ✓ | ✓ | ✓ |
| sTRx4, sWRX8, TR4, SP3 | X | ✓ | X | X | X | X |
