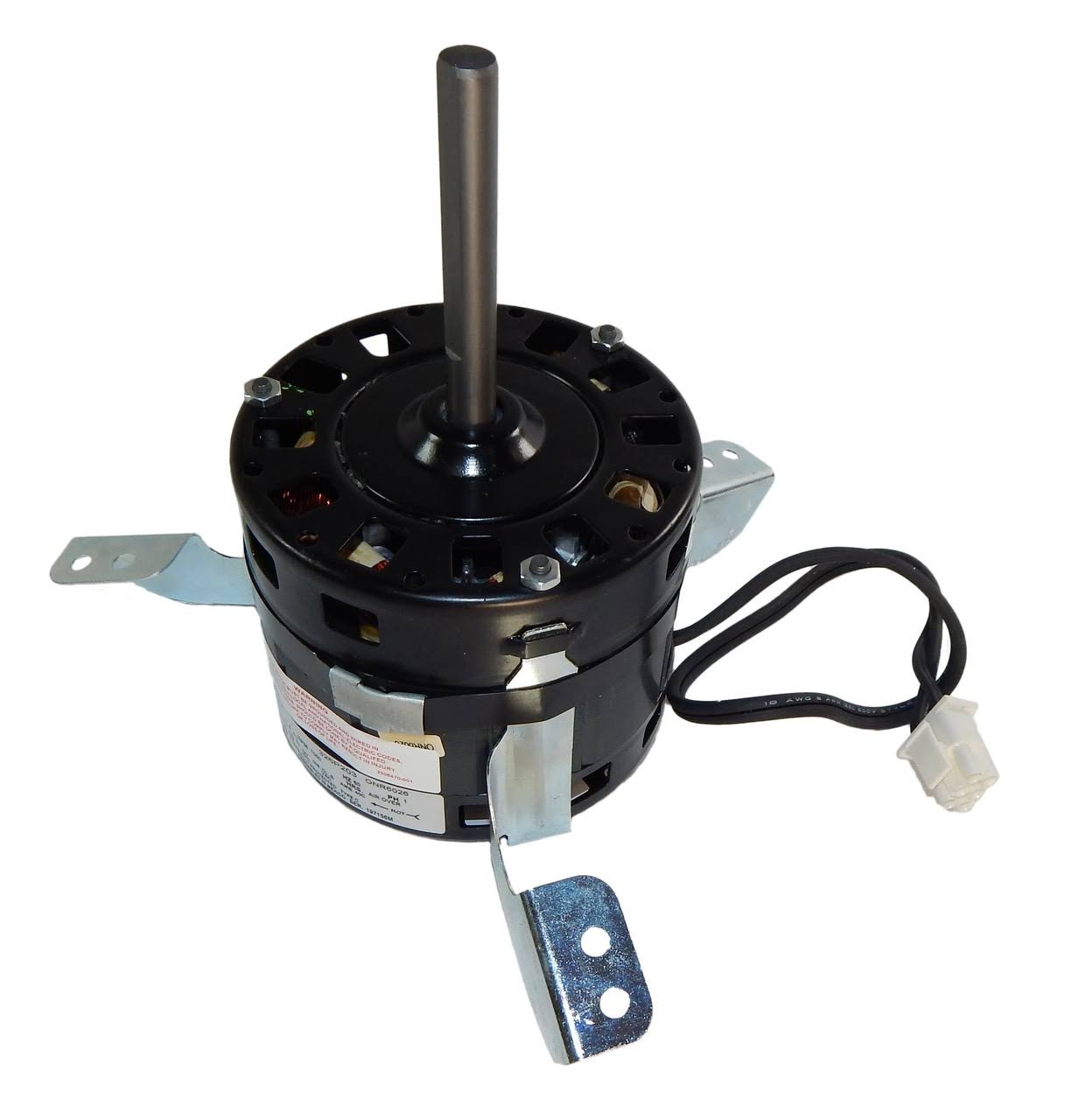

Price For: Each Body Dia.: 5" Hz: 60 Motor Service Factor: 1.00 Motor Bearings: Sleeve Phase: 1 Capacitor Required: No Max. Ambient Temp.: 40 Degrees C Motor Sub Application: Direct Dr Fan/Blower Motor Application: HVAC/R Motor Enclosure Design: Open Air-Over Item: Direct Drive Blower Motor HP: 1/5 Motor Thermal Protection: Auto Motor Design: Shaded Pole Shaft Dia.: 1/2" Duty: Continuous Standards: UL Recognized, CSA Certified Voltage: 115 Motor Mounting Position: Horizontal Shaft Length: 3-3/4" Motor Mounting Type: T-Flex Nameplate RPM: 1050 No. of Speeds: 1 Full Load Amps: 6.5 Application: Blowers, Fans and Air Circulators Length Less Shaft: 4-5/8" Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240 Ins. Class: B Frame: 42Y Motor Shaft Rotation: CWSE Country of Origin (subject to change): Mexico ' Direct Drive Blower Motor, Shaded Pole Motor Type, Open Air-Over Enclosure, 1/5 HP, 1050 Nameplate RPM, Voltage 115, 6.5 Full Load Amps, 60 Hz, 1 Phase, 42Y Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 1, Mounting Torsion Flex Bracket, Shaft Orientation Horizontal, Bearings Sleeve, Thermal Protection Auto, Rotation CWSE, Body Dia. 5 In., Length Less Shaft 4-5/8 In., Shaft Dia. 1/2 In., Shaft Length 3-3/4 In. '
