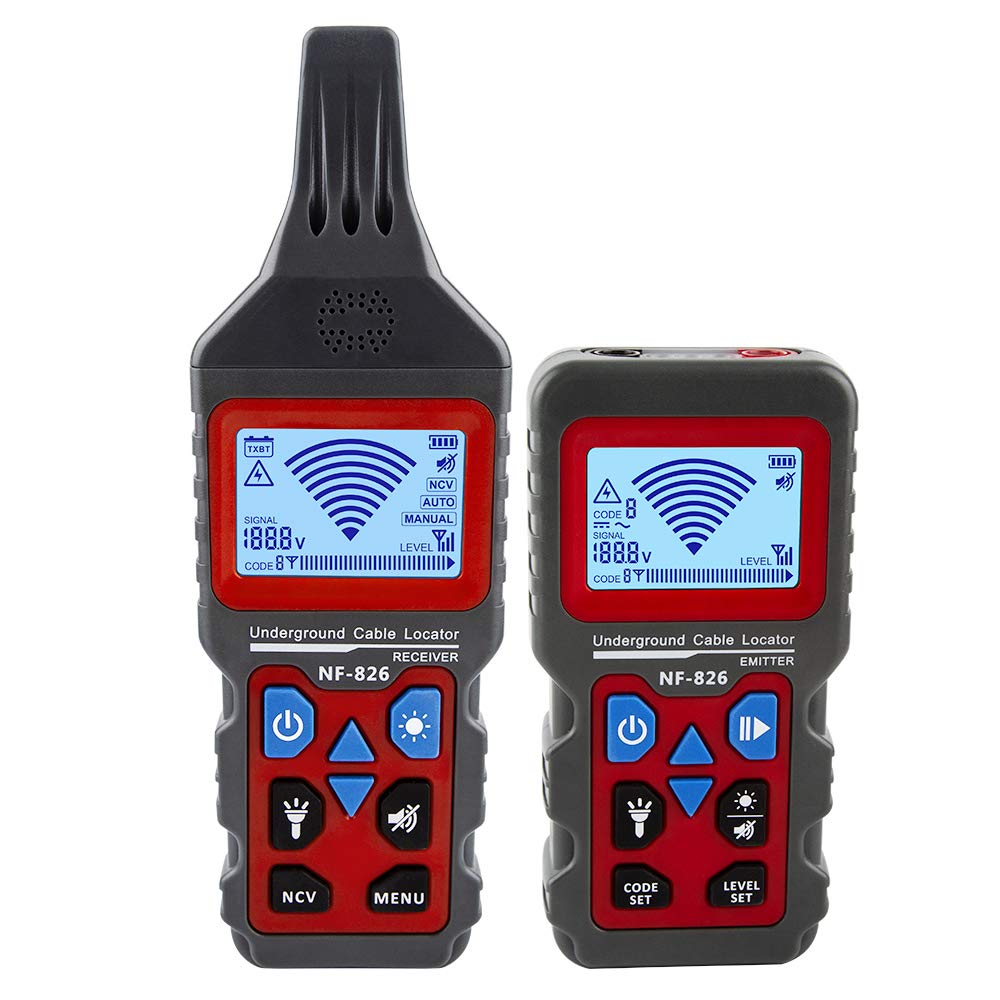

Main features:
Detecting cables, electrical lines-water/gas supply pipelines buried in wall or earth
Detecting interruptions and short circuit in cables and electrical lines buried in wall or earth
Detecting fuses and assigning current circuits.
Both transmitter and receiver display power level, code, battery, detected voltage type and value, and high-voltage alert.
Transmitter built in DC/AC voltage meter for linear measurement of 12-400V DC/AC voltage
Specification

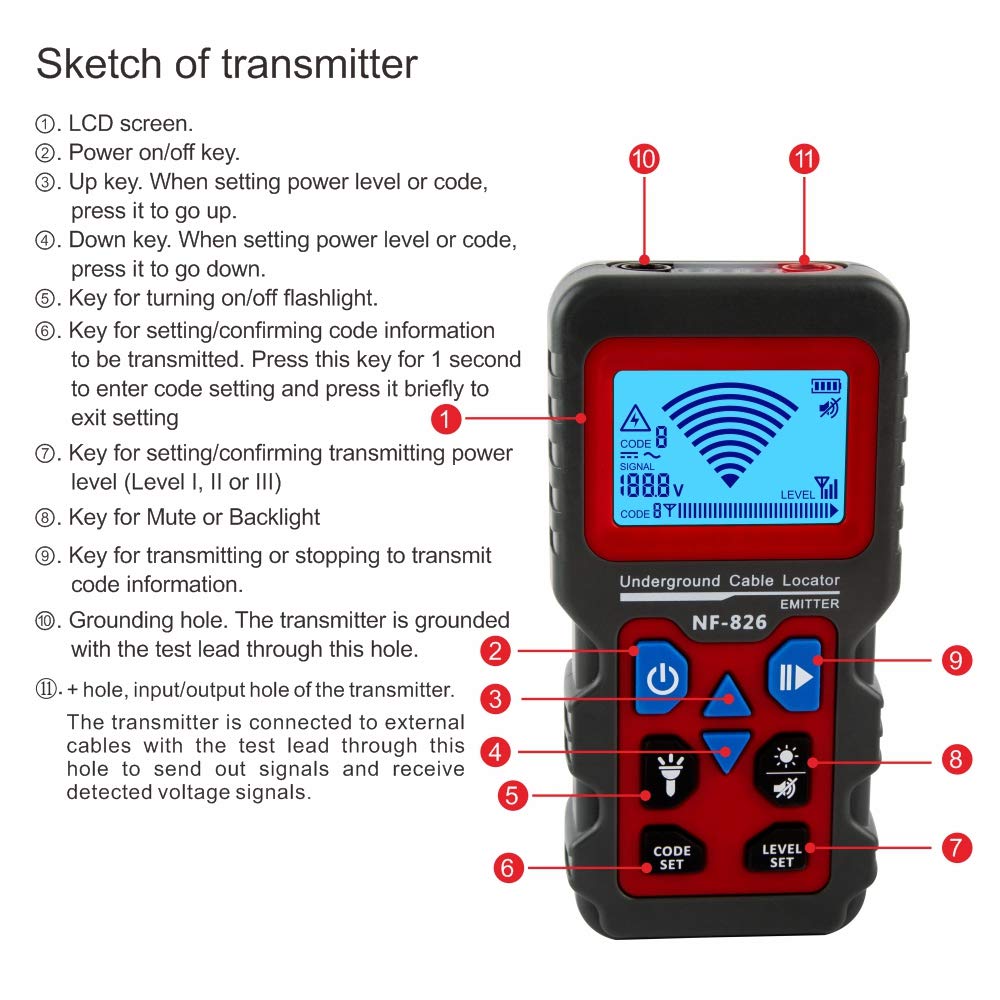

Transmitter
LCD Screen:52*35mmTN screen with backlight
transmitter signal frequency:125KHz
Signal Vp-p:transmitter self-inspection:Yes
Circuit voltage testing: AC:12~400V(50~60Hz)+/-2.5%
DC:12~400V +/-2.5%
Interface type: multimeter jack

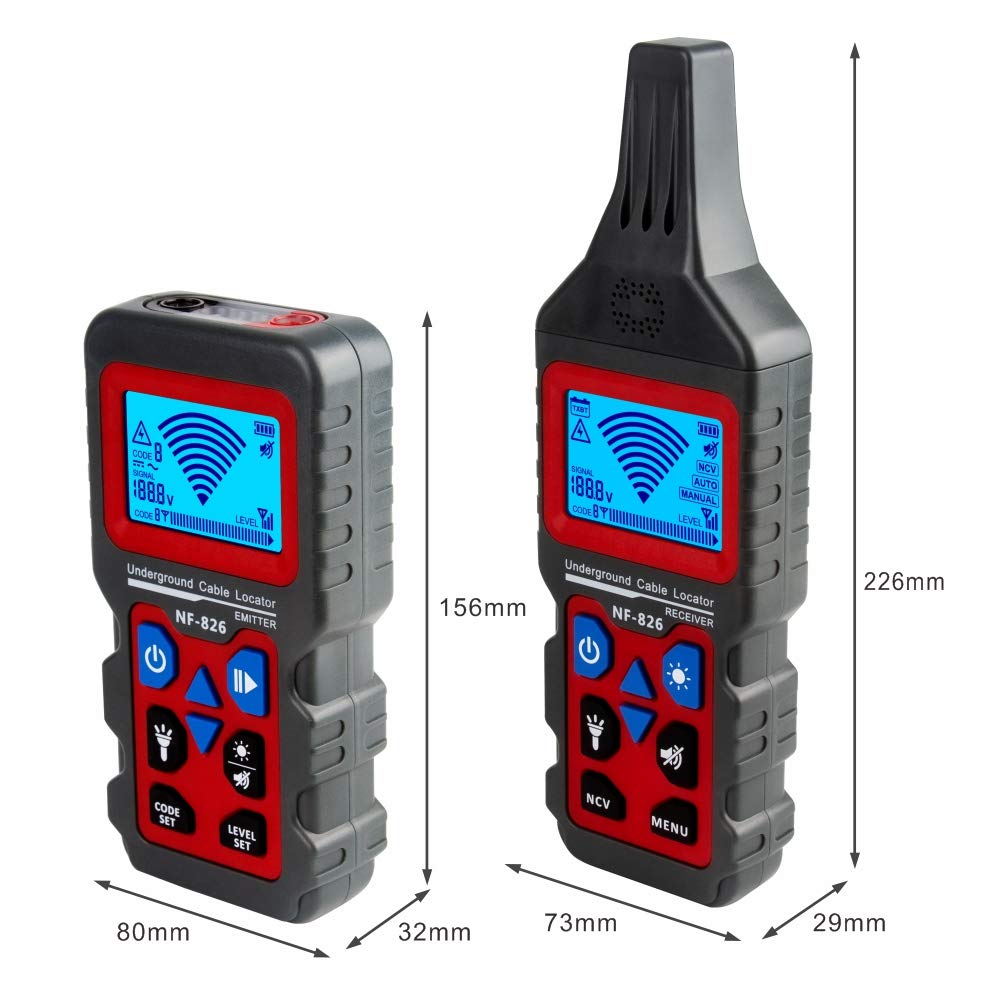

Max working current: Demension: 158*80*33mm

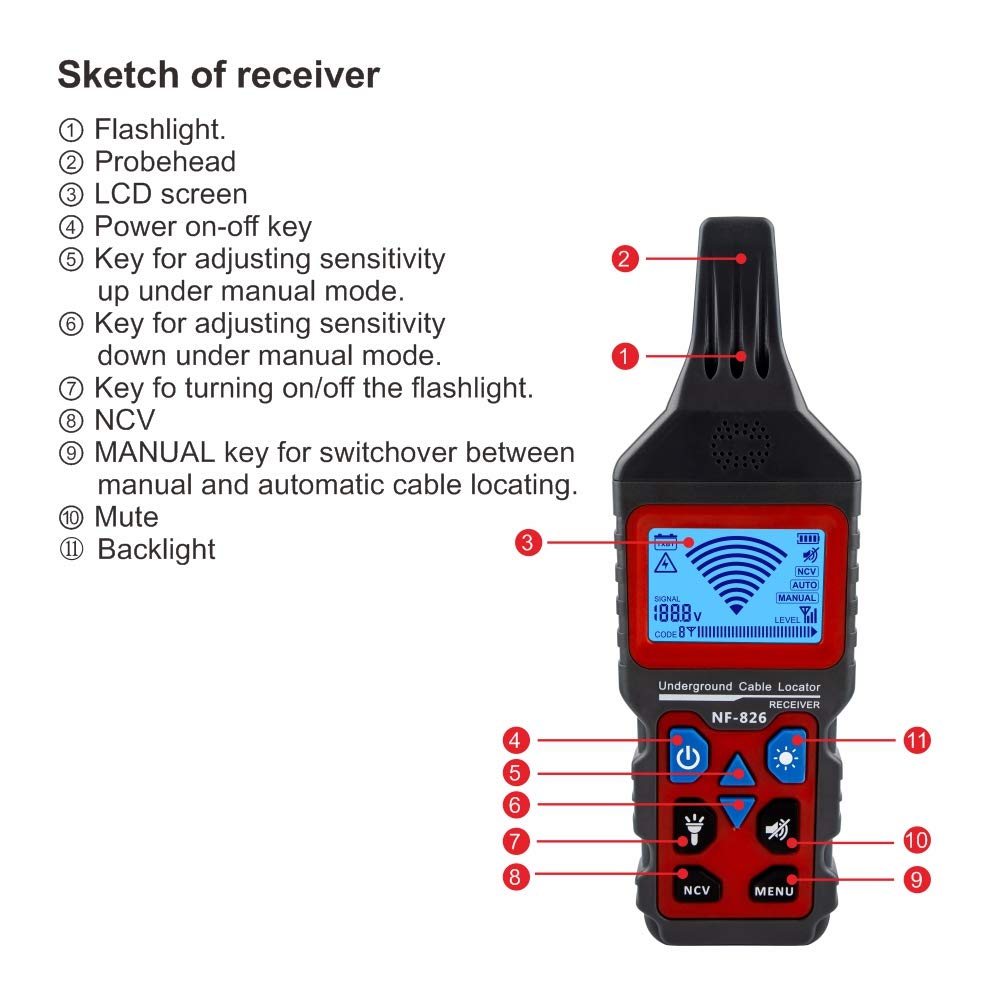

Receiver
LCD Screen: 52*35mmTN screen with backlight
Received signal strength display : √
recognize low battary warning of transmitter: √
Received signal frequency: 125KHz
Max reception range: Short circuit detection: √
open circuit detection: √
Automatic frequency sweep: √
Reception mode: Manual / Auto
NCV function: AC:50~400V(50~60Hz)+/-2.5%
Auto-off time: 10 mins
Max working current: Demension: 228*74*28mm
General
Key: silicon keys * 8
Accpetable transmitter signal codes : 6 types
Acceptable transmitter signal amplitude: 3 degrees
Buzzer: √
Mute: √
Lamp: √
LCD backlight : on/off

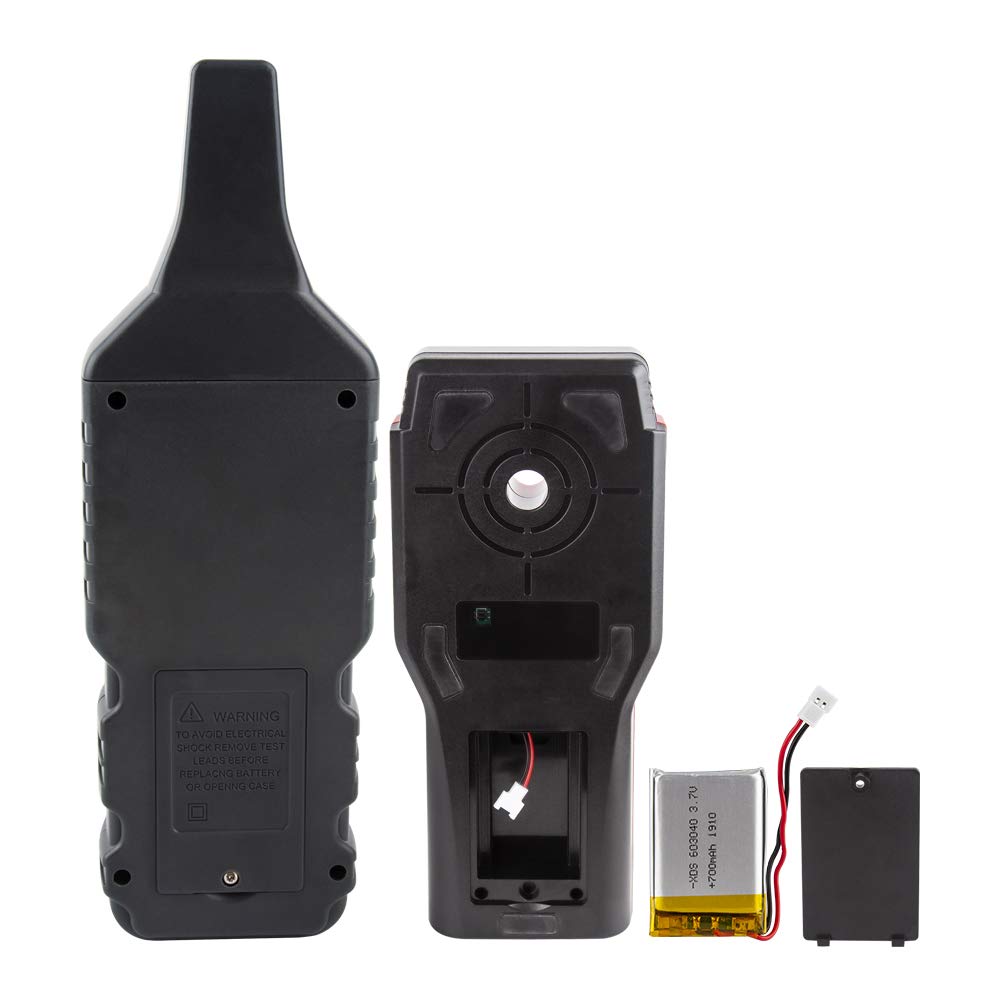

Power supply: 3.7V 1400mAh Lithium battary
Battary indicator: √
Charging voltage : DC5V
Charging current: <600mA
