Experience instant relief the moment you enter your room with Pioneer’s latest Diamante series high-wall ductless mini-split heat pumps with Inverter technology that achieves an incredible 22 SEER/12.5 EER efficiency. The variable-speed inverter technology and high-efficiency 22 SEER average rating guarantee substantial savings from your monthly energy bill. A dual-swing louver system ensures both horizontal and vertical sweeping air throw, perfectly reach all directions of the room.
All systems in this series come equipped with an auxiliary strip heater in the condensing unit, to provide hyper-heating even in frigid -13°F temperatures. And with noise measurements as low as 27 dB, you can sleep peacefully with air conditioning quieter than even an empty library. In addition, all systems come pre-packed with a full 16 ft. installation kit, so your ductless mini-split heat pump system is ready to be up and running in a single afternoon.
Features
- Cooling capacity: 12,000 BTU/H with 22 SEER/12.5 EER efficiency
- Heating capacity: 12,000 BTU/H with 10 HSPF/3.5 COP efficiency
- Voltage: 110/120V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Low Ambient Unit (-13F)
- Wireless Internet Access Included (Via Free Smartphone App)
- Energy-Star Certified

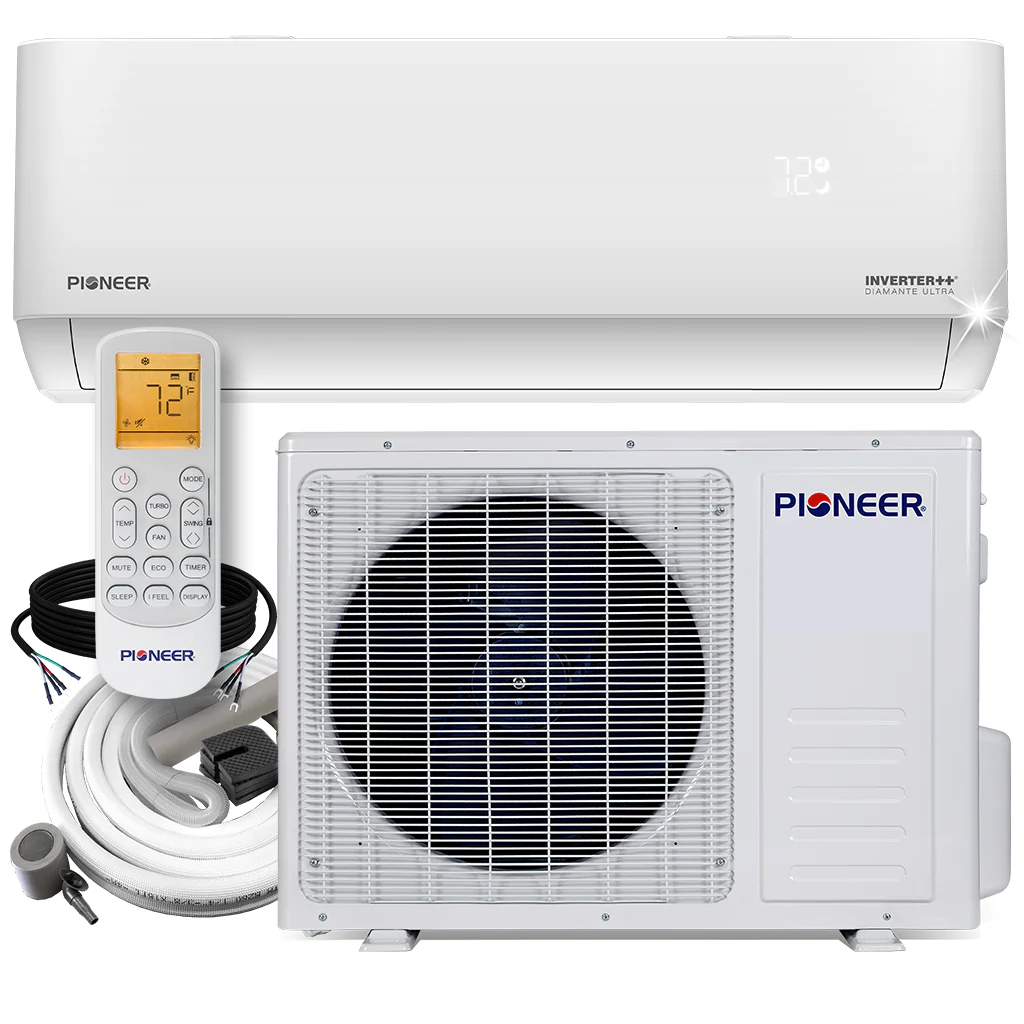

What's Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control (with wall holder and batteries)
- R410A Pre-Charged Outdoor Unit
- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
What's Not Included and Required for Installation
- Electrical Requirements, such as Disconnect Box or Electrical Whip
- Vacuum Pump or Vacuum Set (alternatively, you can use the Pioneer Flush Kit)
PRODUCT SPECIFICATIONS:
Condenser
| Product Dimensions | 28 5/8'W x 12'D x 21 5/8'H |
| Cooling Capacity | 12,000 BTU |
| Heating Capacity | 12,000 BTU |
| Zone Capacity | 1 |
| Low Ambient Unit | -13F |
| SEER | 22
|
| Voltage | Requires a minimum of 110V-120V/60HZ/1Ph (please check your home meets this electrical requirement prior to purchase) |
| Warranty | 5 Years for Compressor |
Air Handler
| Product Dimensions | 36 1/4 'W x 7 5/8'D x 12'H |
| Mount Type | Wall |
| Cooling Capacity | 12,000 BTU |
| Heating Capacity | 12,000 BTU |
| Coverage Area | Up to 450 Square Feet |
| Warranty | 5 Years on Parts |
