Plasma Cutter, Touch Metal get arc starting, 45Amps cutting current in voltage 220V, 35Amps Cutting current in voltage 110V. Machine with current display, range from 15 to 45Amps. Post time can be adjust from 2 to 15 seconds. Machine easy cut stainless steel, Carbon steel, Alloy, etc.

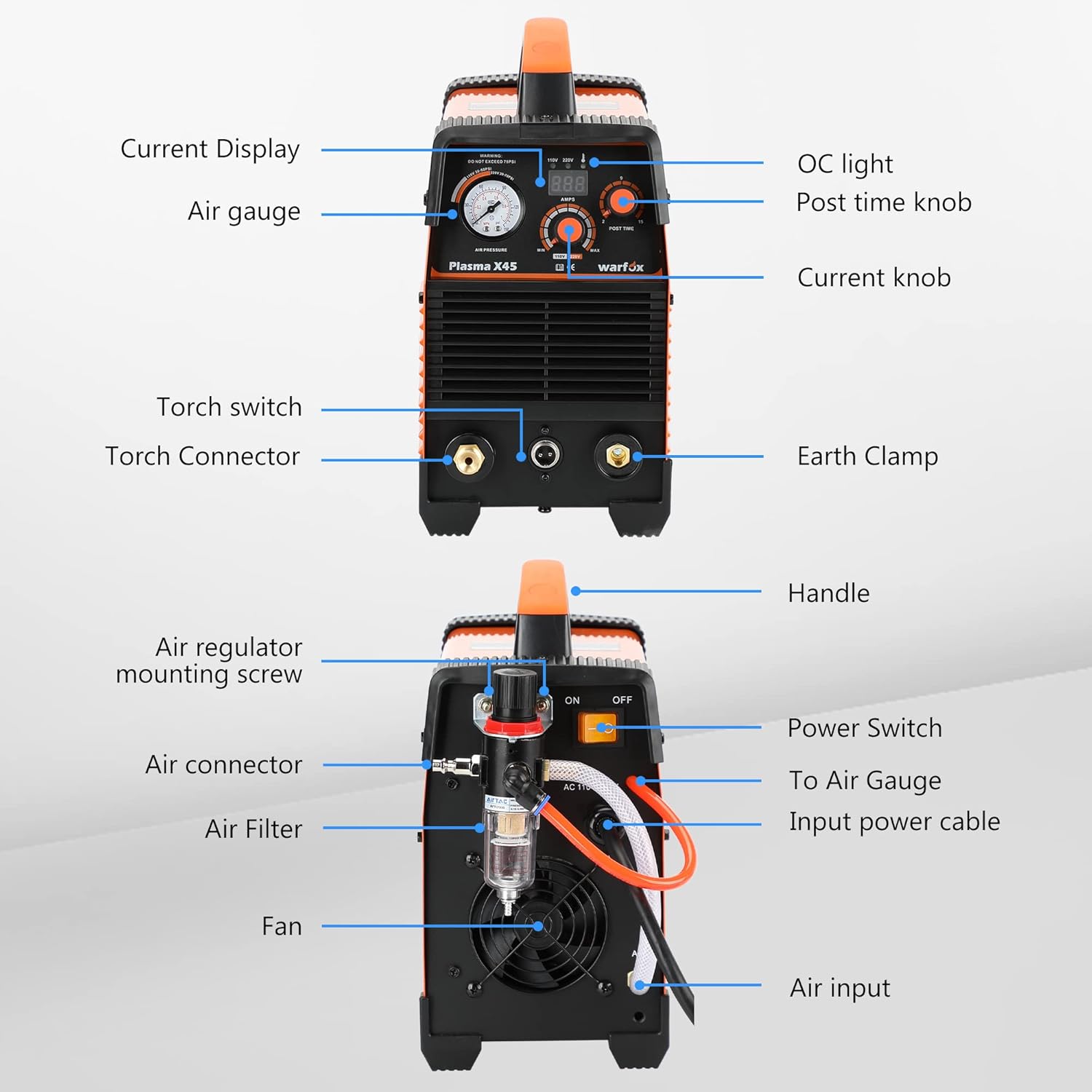

The air compressor we suggest it can supply the air 30L/min, Better 40L/min. Air gauge pre-fixed at front panel of machine, The user easy read air pressure through it. Machine also with post time function can adjust post air cooling the torch head.
We suggest the power breaker more than 35Amps If plug to 110V, Need breaker more than 30Amps if plug machine to 220V. The fan will work when needed, Means the fan only start to work if temperature reach the point. This function will reduce the dust into machine, In this way to protect the electronic parts.
This air plasma cutter is dual voltage 110/220V, It is auto indicate the input voltage, no need to switch the voltage by handle on side of machine, But still need to plug machine by hand to different power source.

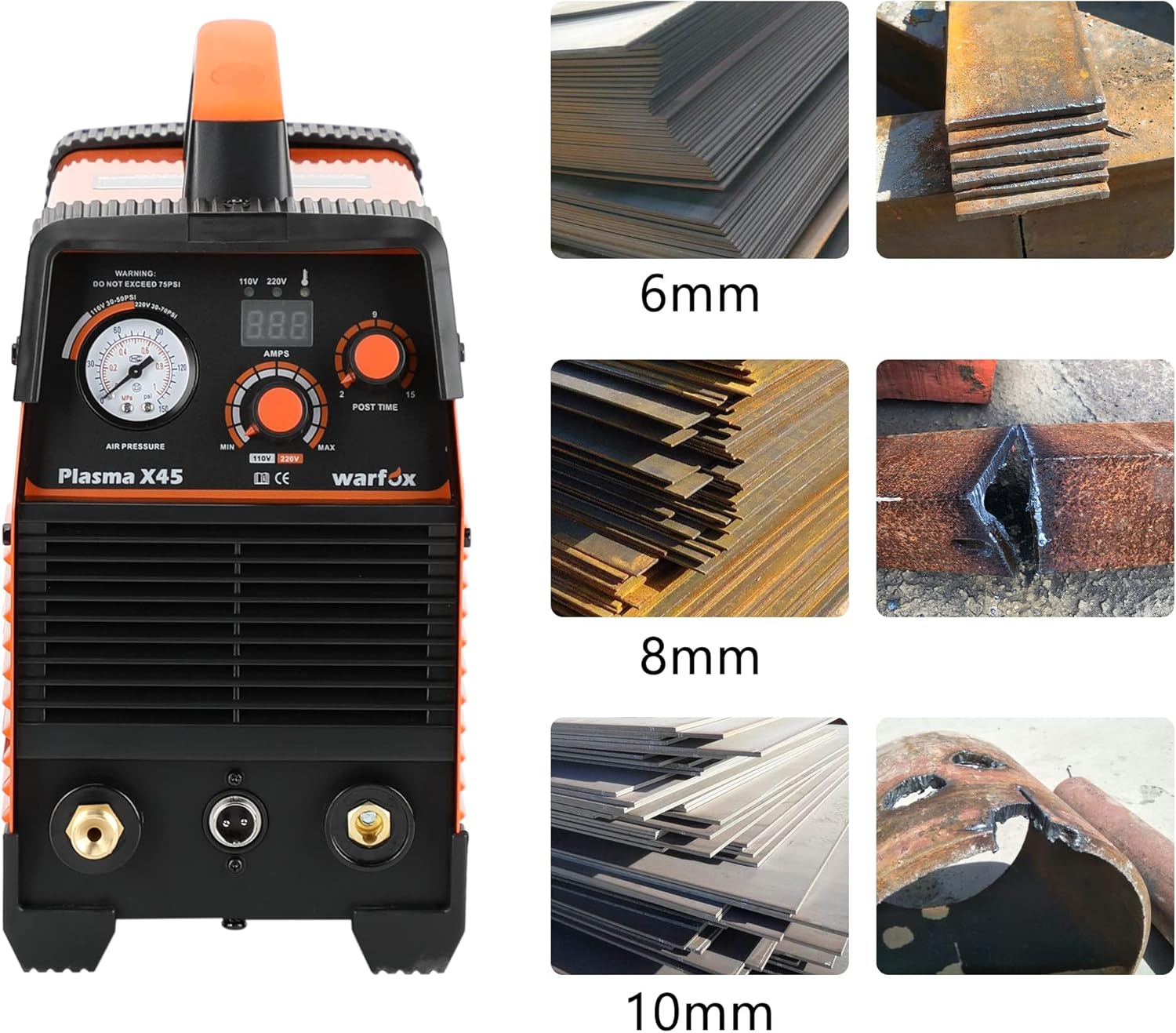

Under voltage: 220V, The cutting quality cutting thickness is 6mm at 65PSI, Severance cutting thickness is 10mm at 65PSI. Under voltage: 110V, The cutting quality cutting thickness is 6mm at 65PSI, Severance cutting thickness is 8mm at 65PSI

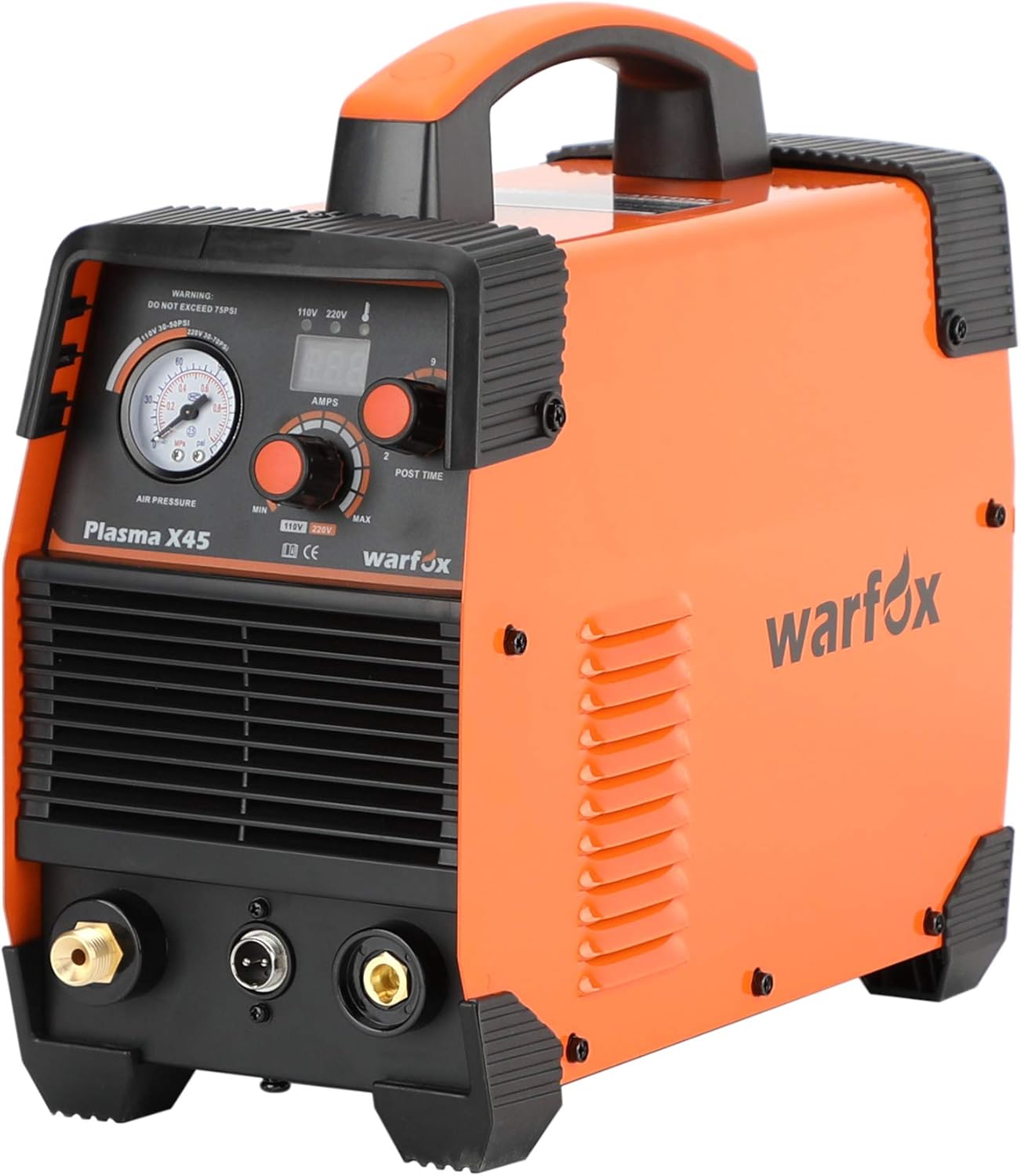

Plasma warfox, Warfox Plasma X45, 45Amps Plasma Cutter
This plasma cutting machine is dual Voltage 110/220V (Auto indicate).

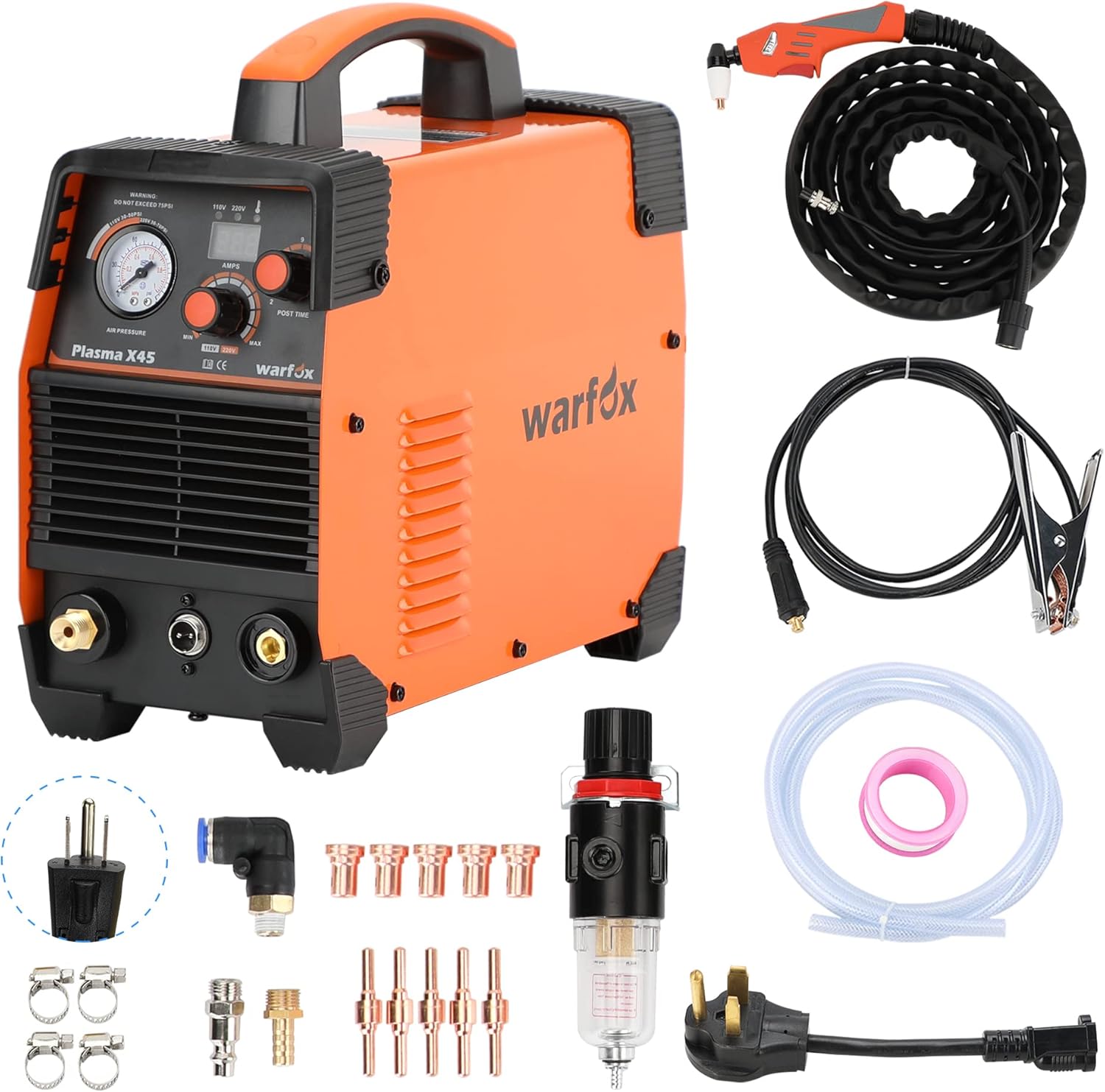

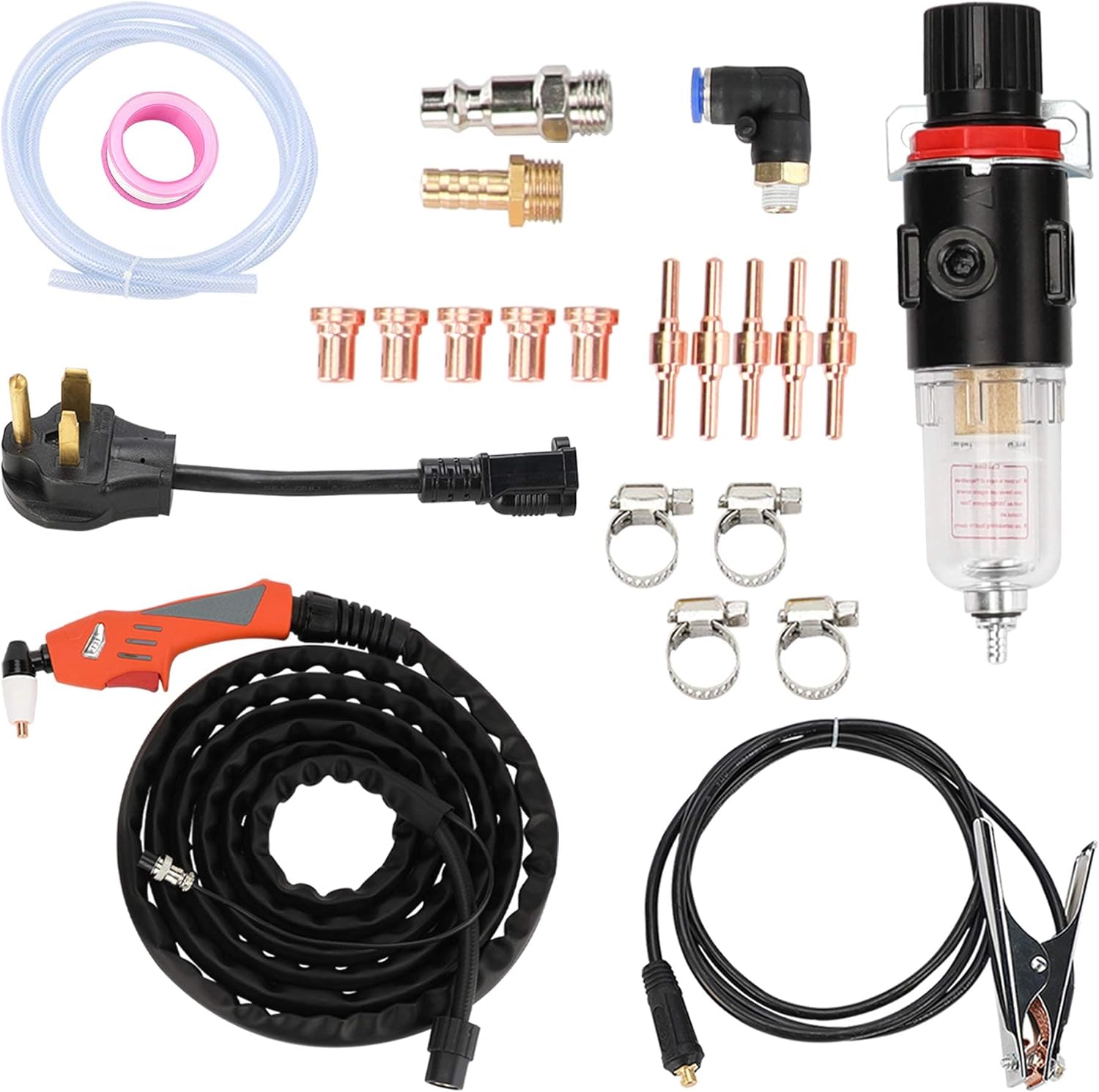

Following Accessories Come With Machine:
1 x Plasma Cutter (fixed 110V power plug)
1 x 4M Cutting torch PT31(use PT31 consumables)
1 x Air Regulator (Air gauge fixed on front panel)
1 x 110V to 220V power plug adaptor conversion cord
1 x 2M earth clamp
5 x electrodes for cutting torch
5 x tips for cutting torch
1 x 2M air hose
4 x Hose clamp
1 x manual
Specifications
Input voltage: AC 110/220V+/-10%
High Frequency: 50/60Hz
No Load Voltage: 280V
Rated input capacity: 5.4 KVA
Rated duty cycle: 60% at 45A, 100% at 35A
220V Cutting current range: 15A-45Amps
110V Cutting current range: 15-35Amps
Post time adjust range: 2-15 Seconds
Arc starting；Touch metal (no pilot arc function)
Quality cutting thickness: 6mm at 110v 60PSI.
Max Cutting thickness: 10mm at 220V 65PSI
Insulation Class: B
Cutting torch length: 4M
Earth cable length: 2M
Packing dimension: 14.2*6.1*13 Inch
