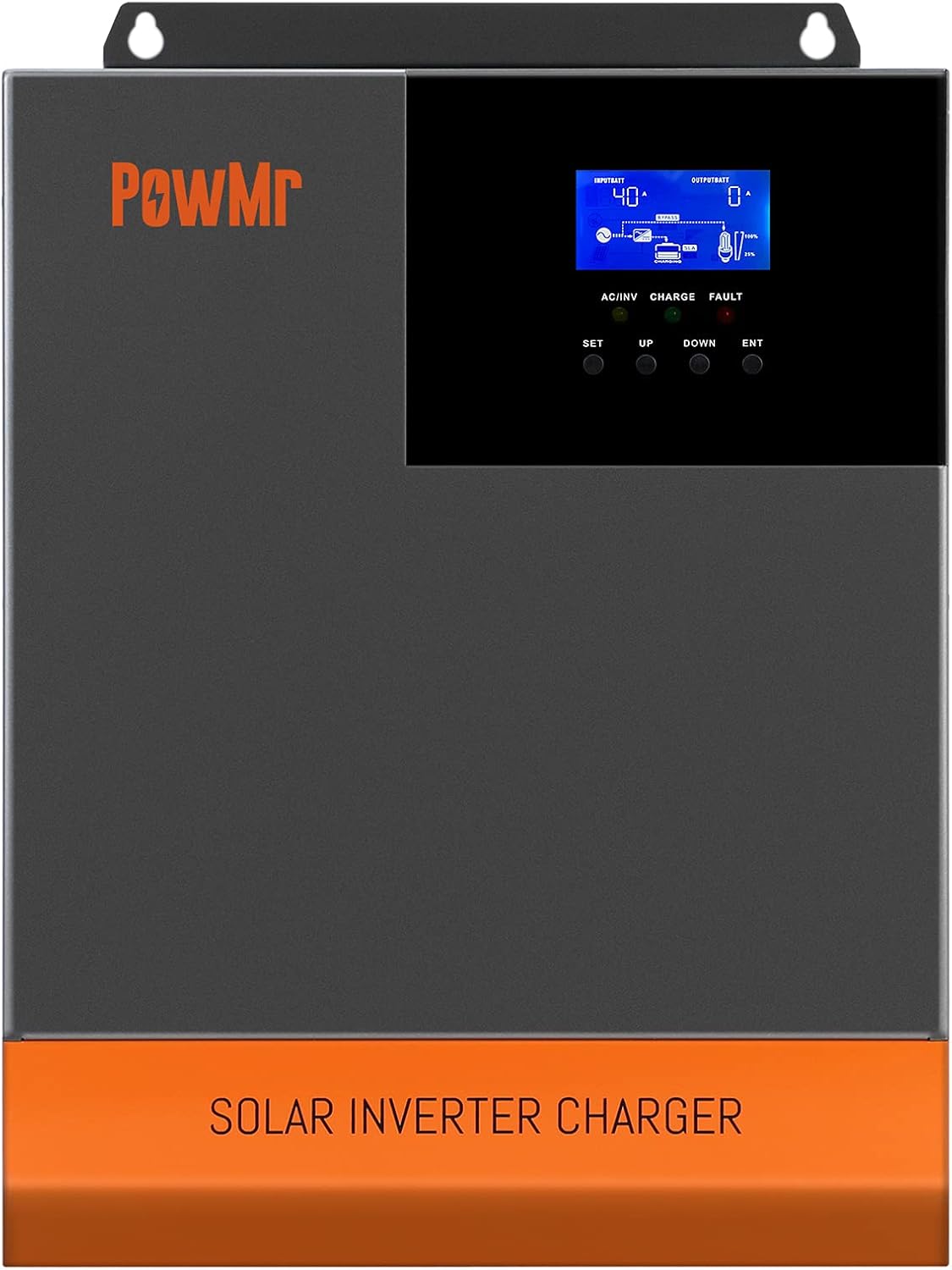

5000W Hybrid Inverter 48V DC to 110V/120V AC, built in 80A Mppt charge controller, is a new all-in-one hybrid solar inverter charger, fit for 48V Lead-Acid(seal, AGM,Gel,Flooded) and Lithium battery. Support Utility/Generator/Solar Charge.Pure sine Wave mppt Inverter Max Input Power: 5500W, Voltage range:120-500Vdc, Max input solar current:16A and Max.Power output: 5000W, max charge current: 80A. AC input Voltage range: 90-140V, Output 100/105/110Vac ±5%.Solar Inverter 5000 Watt 110V Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.Two output modes: mains bypass and inverter output; uninterrupted power supply.110V All in One Solar Inverter Charger will have Four charging modes are optional, i.e. PV priority, Utility Priority, Hybrid Charging, and Only Solar Charging; and two output modes are available, i.e. Inverter and Mains, to meet different application requirements.LCD display designand 3 LED indicators for dynamic display of system data and operating status, Intelligent variable speed fan to efficiently dissipate heat and extend system life. Can be accessed to a variety of household and office loads, including refrigerators, lamps, televisions, fans, air conditioning and other AC loads
|
| 5000W Solar Inverter 110V | 3000W Solar Inverter 110V | 5000W Solar Inverter 220V | 3500W Solar Inverter 220V | 5000W Solar Inverter 220V |
| Output AC Voltage | 110V | 110V | 230V | 230V | 230V |
| Battery support | 48V Lead-acid&Lithium | 48V Lead-acid&Lithium | 48V Lead-acid&Lithium and no battery | 48V Lead-acid&Lithium and no battery | 48V Lead-acid&Lithium |
| Max.PV input | 5500W | 1600W | 6000W | 4500W | 4500W |
| Max.PV open circuit voltage | 500VDC | 100VDC | 450VDC | 450VDC | 145VDC |
| Start-up Voltage | 120V | 34V | 150V | 150V | 60V |
| Max. PV Input Current | 16A | 40A | 18A | 18A | 31A |
| Max. PV CBuilt in Charge Controller | 80A MPPT Controller | 60A MPPT Controller | 100A MPPT Controller | 80A MPPT Controller | 80A MPPT Controller |
| Output Power | 5000W | 3000W | 5000W | 3500W | 5000W |
