220V Pure sine wave inverter: combining functions of inverter, 60A MPPT solar charger(Advanced MPPT technology Charging with an Peak Efficiency 93%) and battery charger to offer uninterruptible power support with portable size.

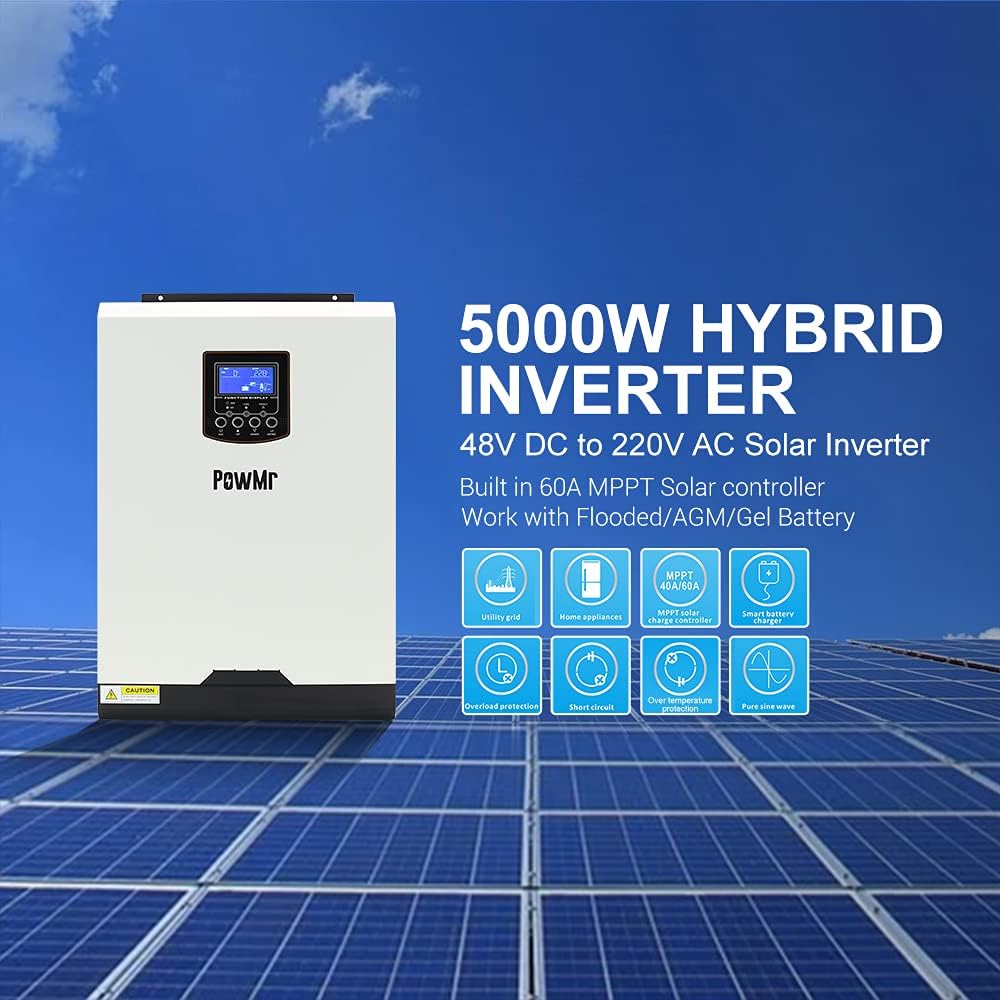

5000watt 48v Pure sine wave inverter:The comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.4 charging modes support: Utility first, Solar first,Solar& Utility and Battery & Solar.
Not support Parallel 5kw Charger solar inverter: Smart battery charger design for optimized battery performance,for 48V Lead-acid battery,compatible with the electrical grid or generator power.
Not support split phase Hybrid inverter with Cold start function solar mppt multiple protection: Overload / Over temperature/ short circuit protection, with automatic restart while AC is recovering to well protect your system.

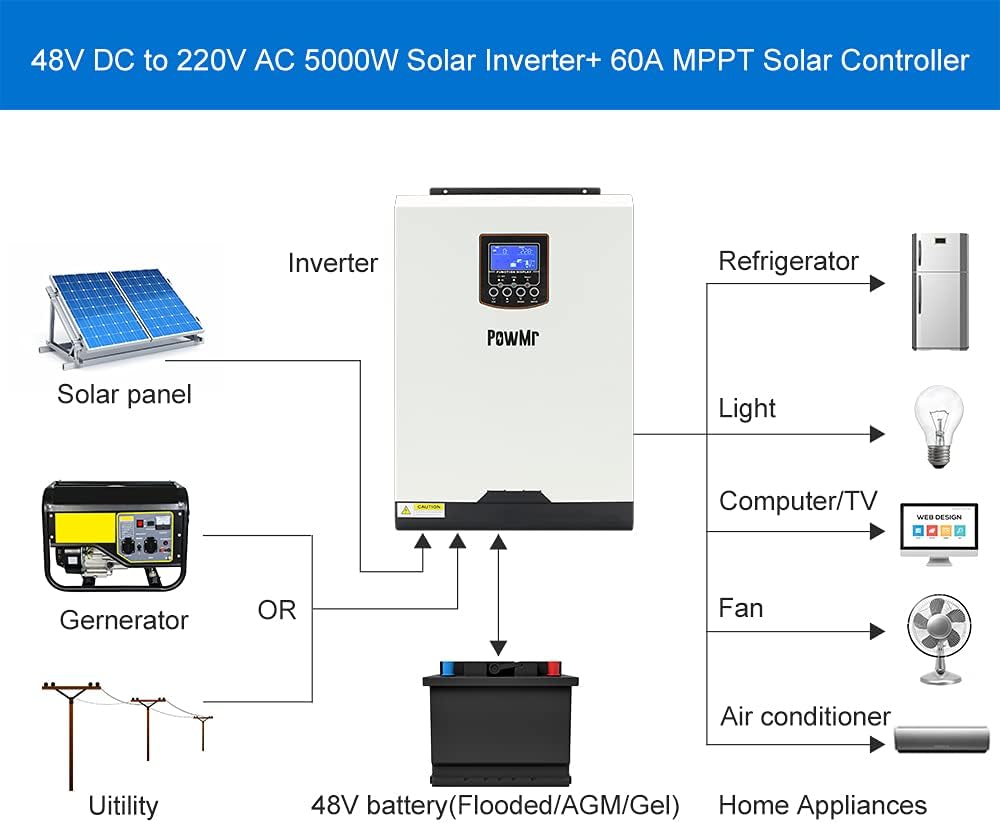

Perfect backup power supply for off-grid system like home appliances and personal computers. including motor-type appliances such as tube light, fan, refrigerator and air conditioner.
| |
| | 3kw solar inverter 220v | 5kw solar inverter 220v | 5kw solar inverter 220v | 5kw solar inverter 220v | 5.5kw solar inverter 220v | 5.5kw solar inverter 220v support 9 inverters in parallel |
| AC Output power | 3000VA/3000W | 5KVA/5KW | 5000W | 5000W | 5.5KVA/5.5KW | 5.5KVA/5.5KW |
| Support running without battery | | | | ✓ | ✓ | ✓ |
| AC voltage output | Pure Sine Wave 230Vac | Pure Sine Wave 230Vac | Pure Sine Wave 230Vac | Pure Sine Wave 230Vac | Pure Sine Wave 230Vac | Pure Sine Wave 230Vac |
| Max PV voltage support | 80Vdc | 105Vdc | 105Vdc | 500Vdc | 500Vdc | 500Vdc |
| Max charging current | 60A | 120A | 110A | 80A | 80A | 80A |
| Built in Charge Controller | 40A MPPT Controller | 60A MPPT Controller | 50A PWM Controller | 80A MPPT Controller | 80A MPPT Controller | 80A MPPT Controller |
| Battery support | 24V Lead-acid battery | 48V Lead-acid battery | 48V Lead-acid battery | 48V Lead-acid and Lithium battery | 48V Lead-acid and Lithium battery | 48V Lead-acid and Lithium battery |
| Support Parallel | | | | | ✓ | |
