About this item

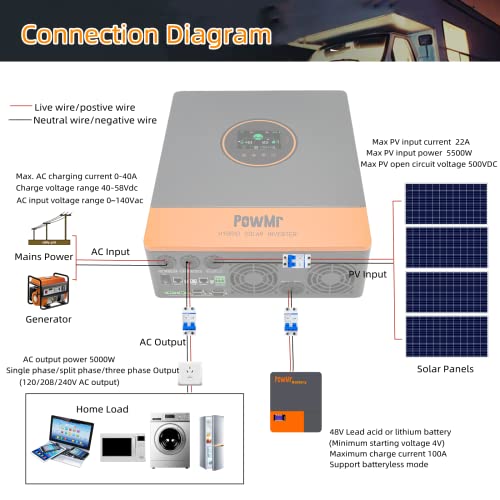

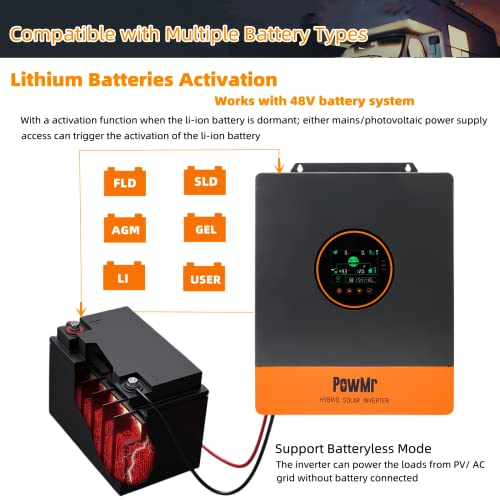

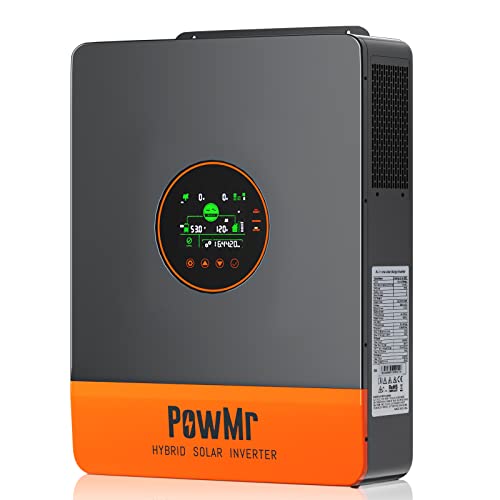

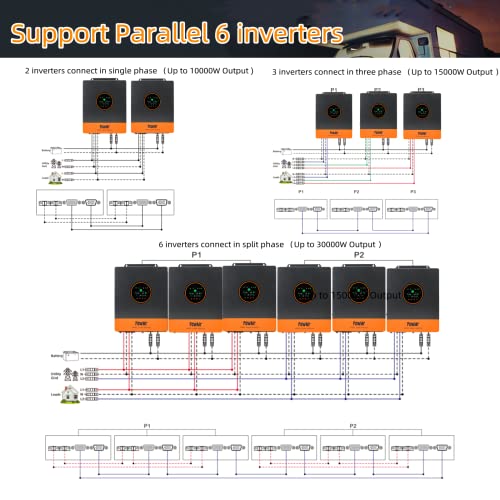

• 【Pure Sine Wave All-in-One Inverter】5000W DC 48V hybrid solar inverter, single-phase,split Phase and three-phase 120/208V/240Vac Output pure sine wave inverter( JUST ONLY TWO INVERTERS ARE NEEDED TO OUTPUT 240V/208V IN SPLIT PHASE, UP TO 10000W ), Built-in 100A MPPT solar charge controller,Max.PV Power：5500W, Max.PV Input VOC: 500V DC, Max PV Charging Current: 100A , support 48V Lead acid or lithium battery or batteryless mode; support Parallel up to 6 inverters.

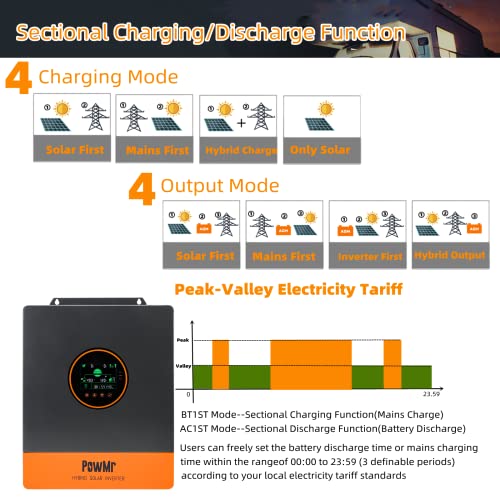

• 【Peak-Valley Electricity Tariff】Through sectional charging/discharge function, users can freely set the battery discharge time or mains carging time within the rangeof 00:00 to 23:59(3 definable periods) according to your local electricity tariff standards; BT1ST Mode--Sectional Charging Function(Mains Charge); AC1ST Mode--Sectional Discharge Function(Battery Discharge).
• 【Intelligent Power Saving】Power saving mode available to reduce no-load loss, when the ECO mode is enabled, if the load is below 50W, the inverter output is delayed for 5 mins and then the output is turned off. When the hull switch is pressed to the ""OFF"" State, and then pressed to the ""ON"" State, the inverter will resume the output.
• 【4 Charge/ 2 Discharge Modes】Support 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging; mains bypass and inverter output two output mode, uninterrupted power supply; Anti-backflow grid connection function, support for use without battery, can be set up for on-grid power generation.
• 【Multiple Protection】Dual Cooling fan design,efficiently dissipate heat;Durable finish with high anti-corrosion,dust-proof design prevent dust from coming inside the inverter, prolong lifespan of the inverter; Designed with a LCD screen and 3 LED indicators for dynamic display of system data and operating status, and complete protections, including short circuit protection, over voltage and under voltage protection, overload protection, reverse protection, etc.
