The product is manufactured in chinaThe product is highly durable and easy to useEasy installation and easy handling4 stroke air cooled OHV engineDelivers 9480 gphLightweight aluminum outer casing and carbide sealsIncludes heavy duty role frameCompact design allows convenient installation
Product Description

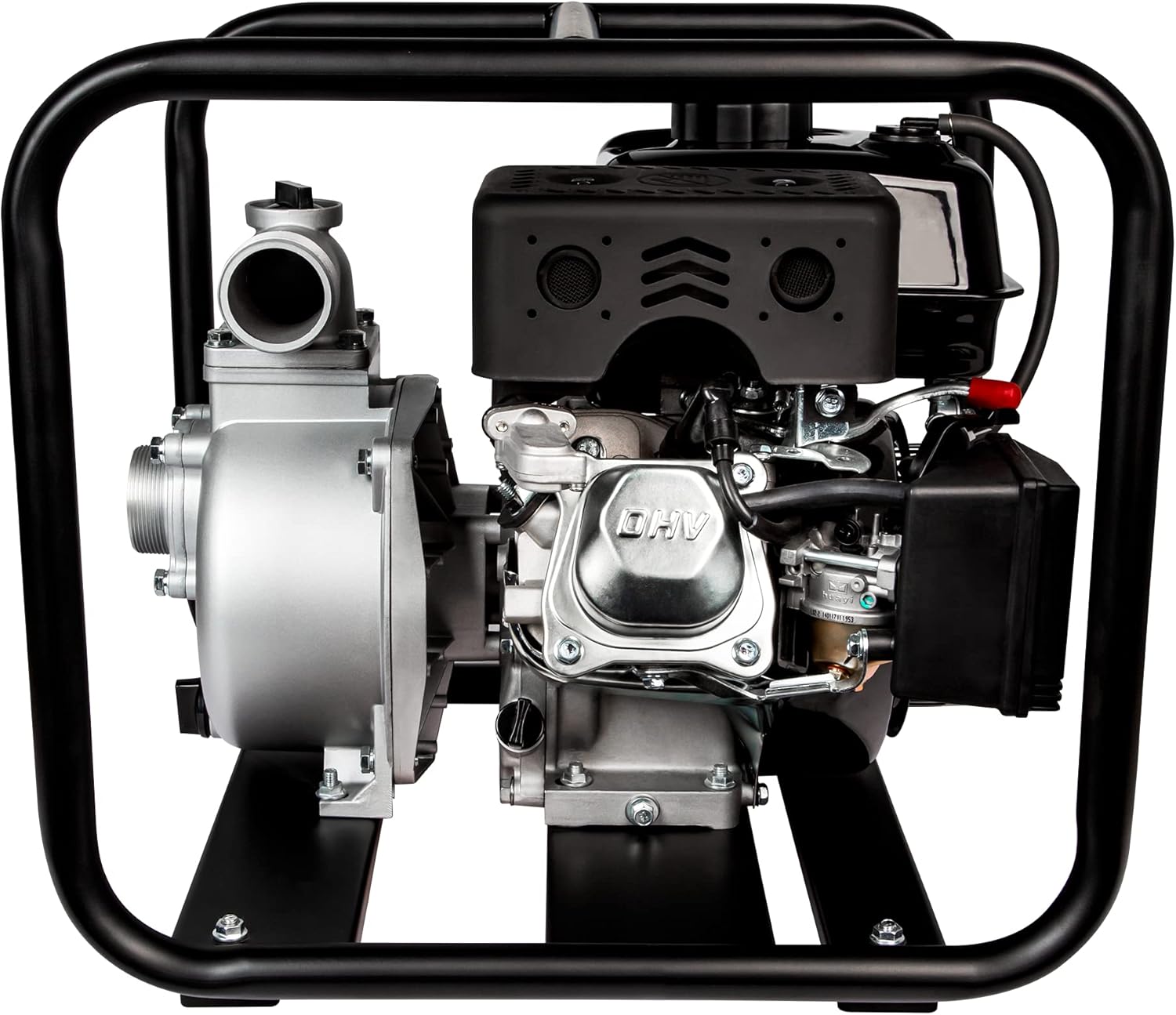

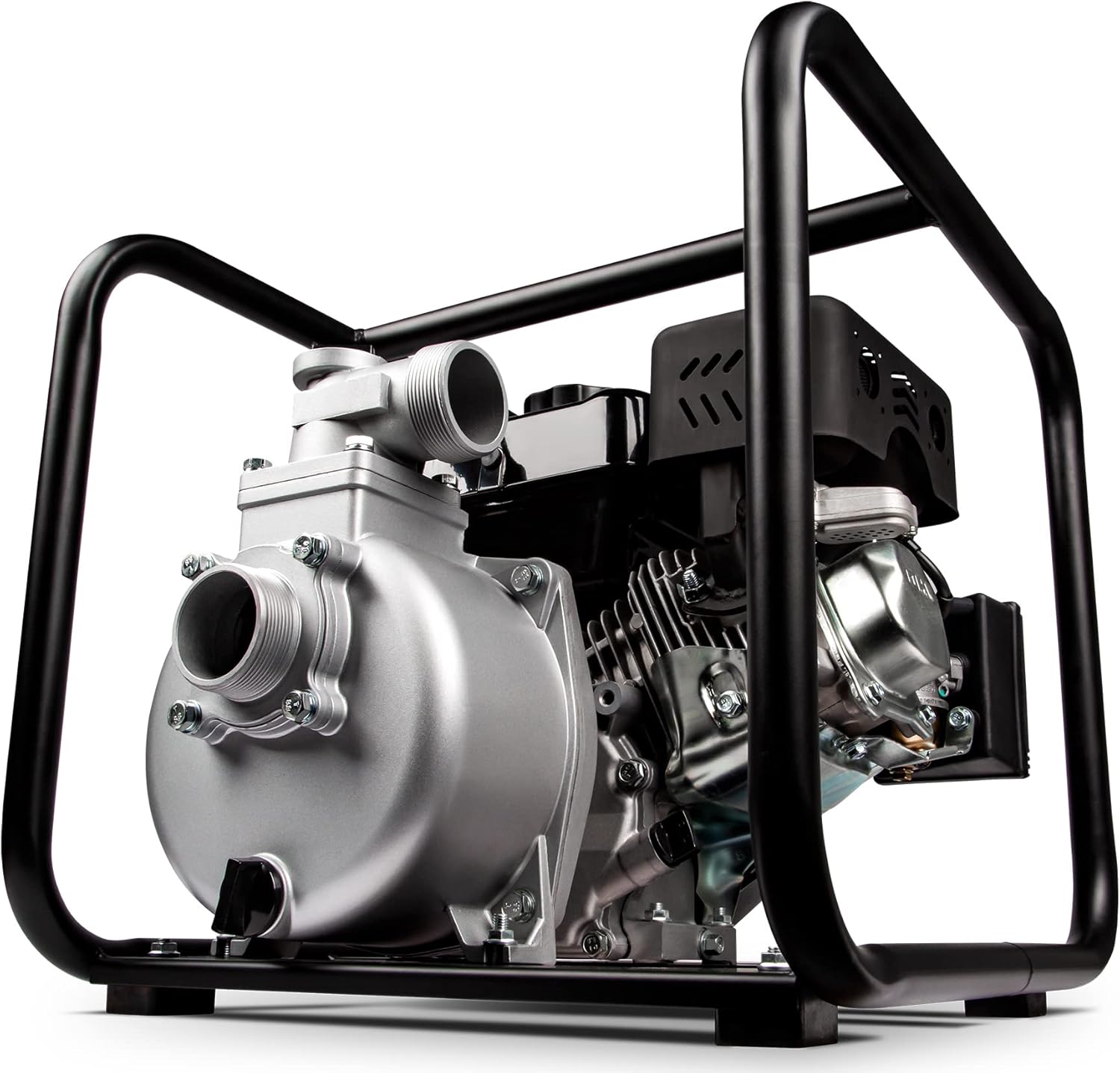

6Rlag-2lst, 150 gpm, gas, semi-trash pump, 6 hp ohv engine driven, 2 inch NPT, ideal for a wide variety of pressure boosting, liquid agricultural chemical sprayer & lawn & turf irrigation applications, rugged cast iron pump body & handle, primes down to 20' suction lift, compact design allows convenient installation, 3 inch diameter cylinder pulls more water per stroke, cylinder is tapped for 1-1/4 inch NPT suction pipe. The product is manufactured in china. Easy installation and easy handling.
From the Manufacturer

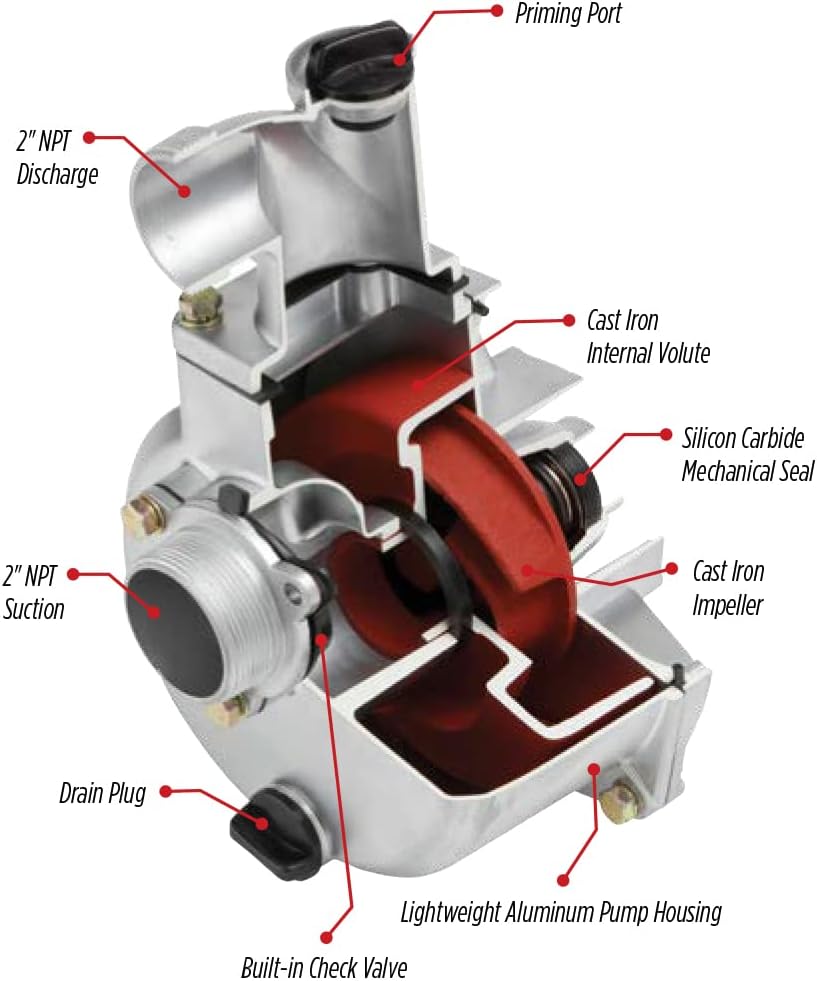

Ideal for a wide variety of pressure boosting, liquid agricultural chemical sprayer and lawn and turf irrigation applications. Pump features a rugged cast iron pump body and handle. Primes down to 20 foot suction lift and has a compact design allows convenient installation.
|
| Red Lion 2RLAG-1L, 617031 | Red Lion 6RLAG-2LST, 617034 | Red Lion 6RLAG-3LTT, 617038 | Red Lion 6RLPG-2U, 617070 | Red Lion 6RLAG-2LKIT, 617044 | Red Lion 5RLGF-8KRF |
| Pump Description | Aluminum Water Transfer | Aluminum Semi-Trash | Aluminum Trash | Thermoplastic Agriculture Chemical | Aluminum Water Transfer | Cast Iron Agriculture Chemical |
| Max. Flow | 60 GPM | 150 GPM | 285 GPM | 195 GPM | 150 GPM | 170 GPM |
| Max. Head | 79-ft. | 92-ft. | 75-ft. | 135-ft. | 92-Ft. | 95-ft. |
| Suction/Discharge | 1.5-in. MNPT | 2-in. MNPT | 3-in. MNPT | 2-in. FNPT | 2-in. MNPT | 2-in. FNPT |
| Fuel Tank Capacity | 1.7 qt. | 3.8 qt. | 3.8 qt. | 3.8 qt. | 3.8 qt. | 3.8 qt. |
| Engine Type | 79cc air cooled, 4 stroke OHV, LCT engine | 208cc air cooled, 4 stroke OHV LCT engine | 208cc air cooled, 4 stroke OHV LCT engine | 212cc air cooled, 4 stroke, OHV RATO engine | 208cc air cooled, 4 stroke OHV LCT engine | 196cc air cooled, 4 stroke, OHV KOHLER engine |
| Solids Handling | | 1/2-in. solids handling | 1-1/4-in. solids handling | | Pump is able to handle 1/2-in. solids, however hoses haven't been tested for solids handling | 5/8-in. solids handling |
| Chemical Handling | | | | ✓ | | ✓ |
| Extras Included | two 1-in. MNPT aluminum adapters, integrated check valve | integrated check valve | Two 3-in. to 2-in. MNPT aluminum reducers, integrated check valve | Integrated check valve | 12-ft. reinforced suction hose, strainer, 50-ft. lay-flat hose; quick connect adapters | |
| Weight | 41 lbs. | 58.5 lbs. | 85.50 lbs. | 48.5 lbs. | 84 lbs. | 81.8 lbs. |
