Shallow well jet pump - ideal for use in pumping at depths of 25' or less
Heavy-duty cast iron construction - for years of service and reliability
Includes factory pre-set 30/50 pressure switch - produces up to 50 psi with automatic shut-off
115/230 volt heavy-duty motor - TEFC design with simple connection to existing power source
1-1/4 inch FNPT intake, 1 inch FNPT discharge, repair kits are now available - for additional information Please see owner's manual
Product Description

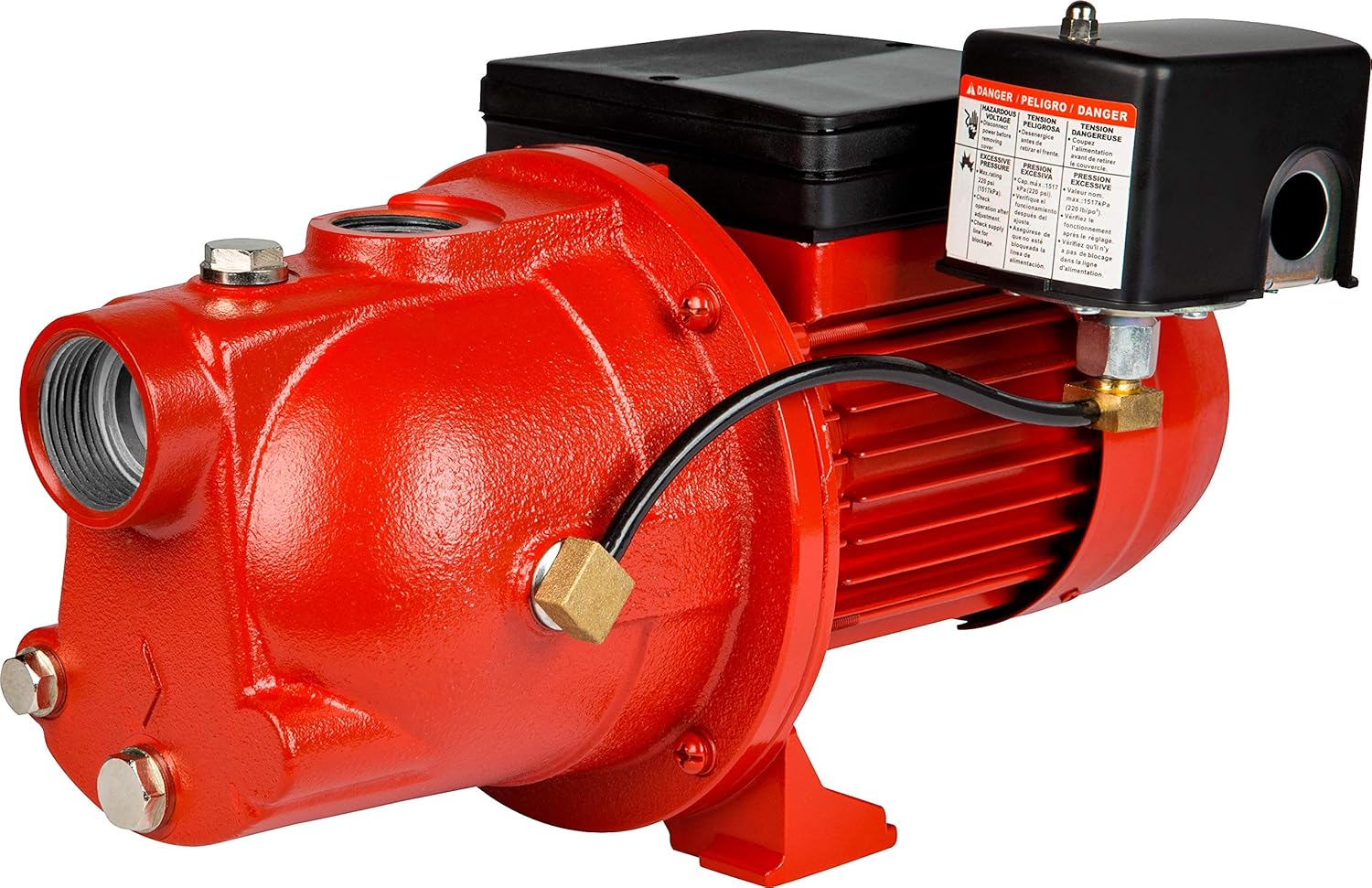

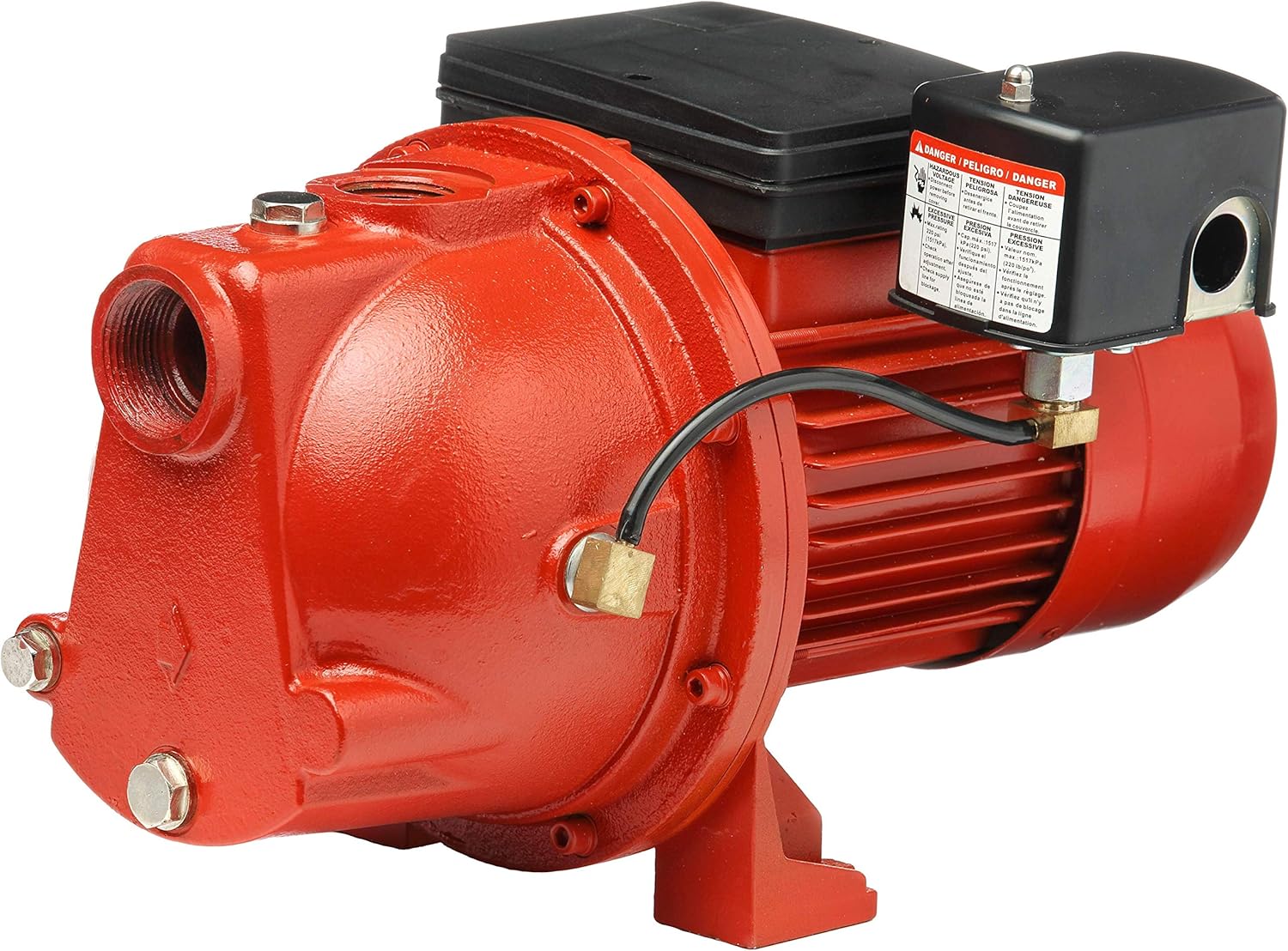

This 1/2 HP jet pump is ideal for the supply of water to rural homes, farms or cabins with suction lifts up to 25 feet. It features a rugged cast iron casing with 1-1/4 inch suction and 1-inch discharge. It produces up to 50 psi with automatic shut off. TEFC design with simple connection to existing power source. 8.4 amps at 115 volts and 4.2 amps at 230 volts. If, after 30 days, you are having a problem with your Little Giant, Franklin, or Red Lion product. The Tech Support Team is available M-F from 7:00am-4:30pm CST.
From the Manufacturer
This jet pump is ideal for the supply of water to rural homes, farms or cabins with suction lifts up to 25 feet. It features a rugged cast iron casing with 1-Inch suction and 1-Inch discharge.
| |
| | Red Lion RL-SWJ50, 97080502 | Red Lion RL-SWJ75, 97080701 | Red Lion RL-SWJ100, 97081001 |
| 115/230 Volts | ✓ | ✓ | ✓ |
| Amps | 8.4A at 115V; 4.2A @ 230V | 9A at 115V; 4.5A @ 230V | 13.2A at 115V; 6.6A at 230V |
| 1-1/4-inch FNPT Intake | ✓ | ✓ | ✓ |
| 1-inch FNPT Discharge | ✓ | ✓ | ✓ |
| Flow at 5 Ft. Lift at 30 PSI | 12.6 GPM | 13 GPM | 17 GPM |
| Horsepower | 1/2 HP | 3/4 HP | 1 HP |
| Max Head | 148 Ft. | 161 Ft. | 172 Ft. |
| Max Pressure | 64 PSI | 70 PSI | 74 PSI |
