[DIMENSION]:(L x W x H)12.4'×4.73'×4.17''.Mounting bolt pattern :4.8' X3'.Ideal for ATV,UTV,Car,Boat,Trucks,Jeeps, modified vehicles and multi-purpose trailers.
[PREMIUM SYNTHETIC MATERIAL]: Specially made hi-tech polyethylene material with heat treated 12 strand construction，lightweight construction，synthetic rope is more than 10 times solide than conventional ones.

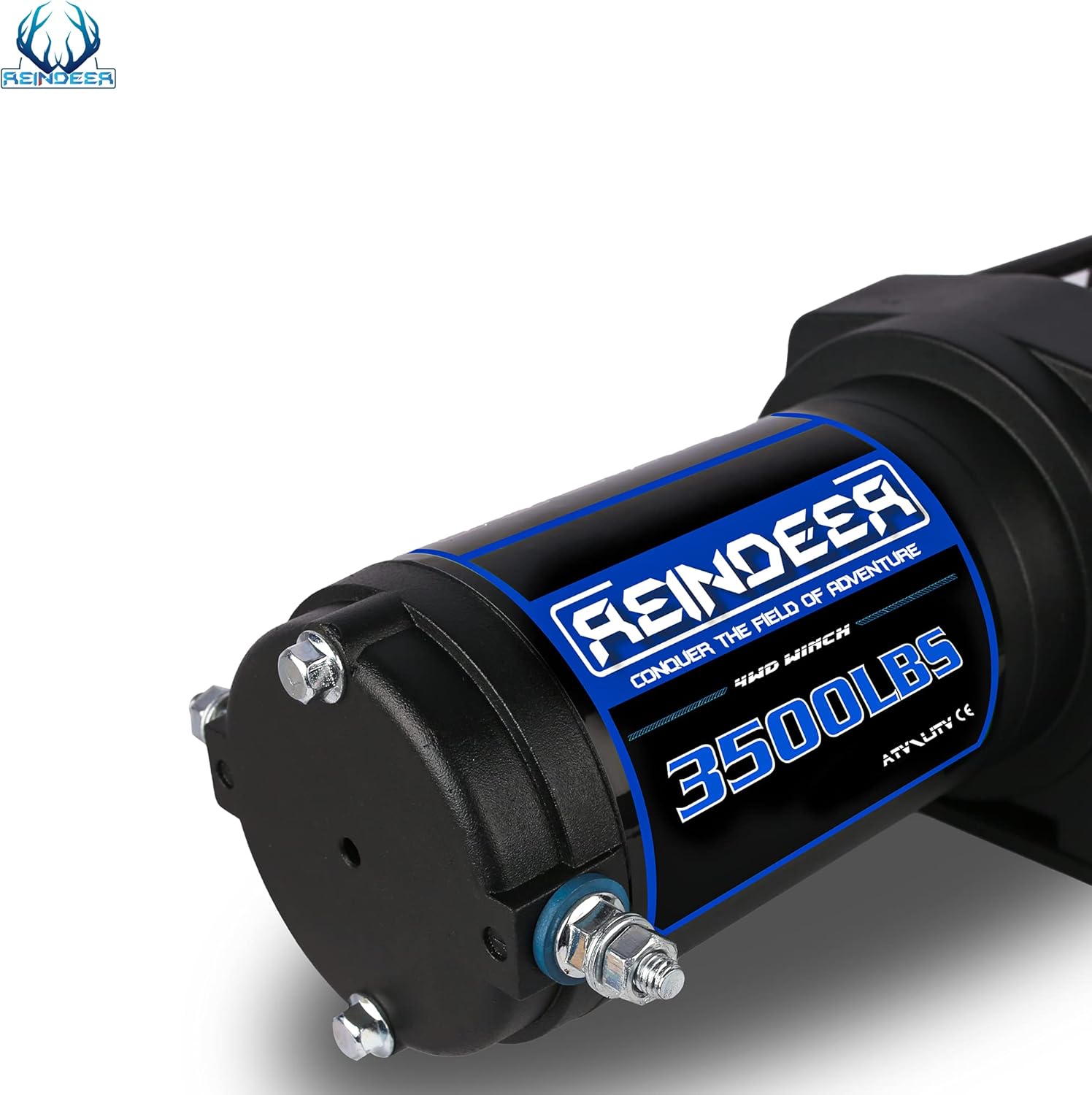

[POWERFUL WINCH]:Durable satin-black cast-aluminum housing and sealed engine effectively isolates rain and moisture. The REINDEER winch has a 198:1 reduction ratio and differential planetary gear system for greater traction capability.Fast line speeds, quiet, and reliable pulling power, corrosion resistance,waterproof,tough and capable enough to tackle anything you will.

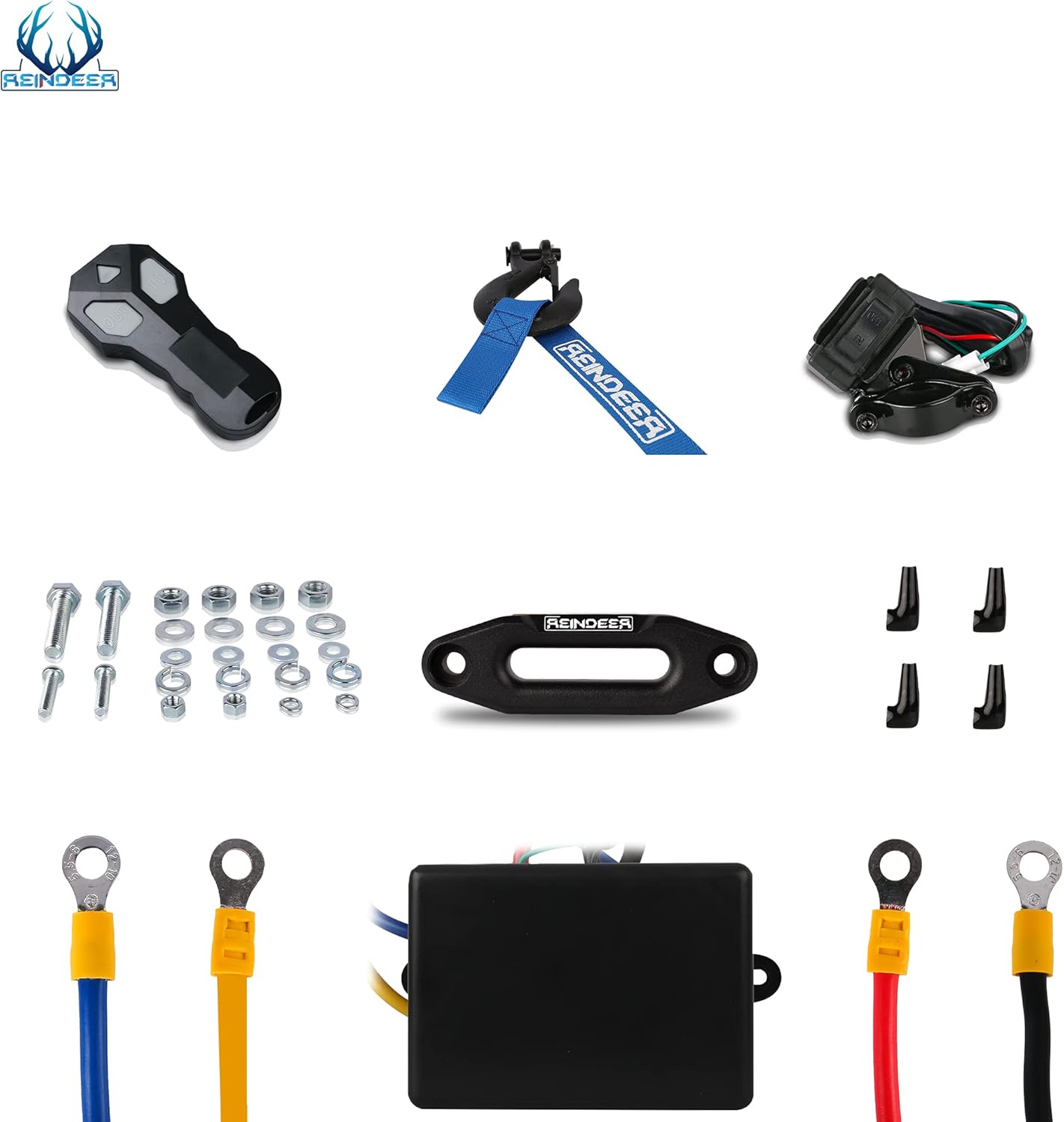

[EASY TO INSTALL]: Dependable and complete winch kits, all of the wires and connections are color-coded and can fit together ,detailed instructions and with wireless remotes control,we can operate the winch from anywhere within a 50-foot radius.
[WARRANTY]:Lifetime technical support and one-year limited warranty.If there is any problem during the purchase period, please feel free to contact us, and we will provide the most professional and timely service.
|
| 3000lbs Steel Cable Winch | 3000lbs Synthetic Rope Winch | 3500lbs Steel Cable Winch | 3500lbs Synthetic Rope Winch | 4500lbs Steel Cable Winch | 4500lbs Synthetic Rope Winch |
| Rope | 5mm x 30ft Steel Cable | 5mm x 30ft Synthetic Rope | 5.3mmx32 ft Steel Cable | 5.3mm x 32ft Synthetic Rope | 5.5mmx50ft Steel Cable | 5.5mmx50ft Synthetic Rope |
| Weight | 16 lbs | 14 lbs | 18 lbs | 16 lbs | 25.3 lbs | 22 lbs |
| Drum Size：1.97''x3'' | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Mounting bolt pattern | 3.13'∅8.5 | 3.13'∅8.5 | 3.13'∅9 | 3.13'∅9 | 3.13'∅8.5 | 3.13'∅8.5 |
| Motor | 12V motor with 1.0kw/1.3hp output | 12V motor with 1.0kw/1.3hp output | 12V motor with 1.1kw/1.5hp output | 12V motor with 1.1kw/1.5hp output | 12V motor with 1.9hp/1.5kw output | 12V motor with 1.9hp/1.5kw output |
| Gear reduction ratio | 153:1 | 153:1 | 198:1 | 198:1 | 198:1 | 198:1 |
| Fairlead TYPE | 4-way roller fairlead | Aluminium Hawse Fairlead | 4-way roller fairlead | Aluminium Hawse Fairlead | 4-way roller fairlead | Aluminium Hawse Fairlead |
| Wire and Wireless Remotes Control | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Gear Train：3 Stage Planetary | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |

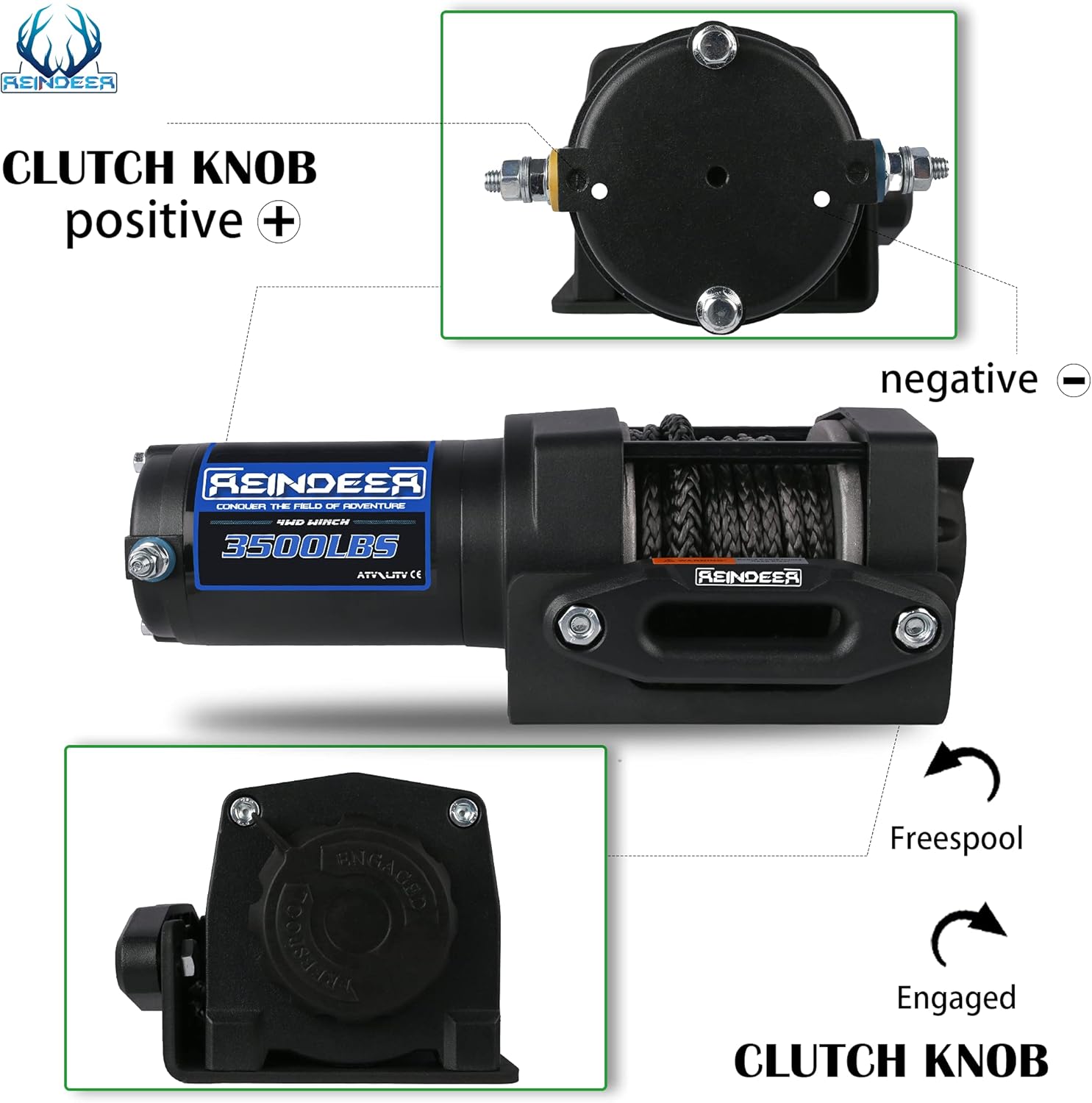

| Cluth Type：Free Spooling | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
