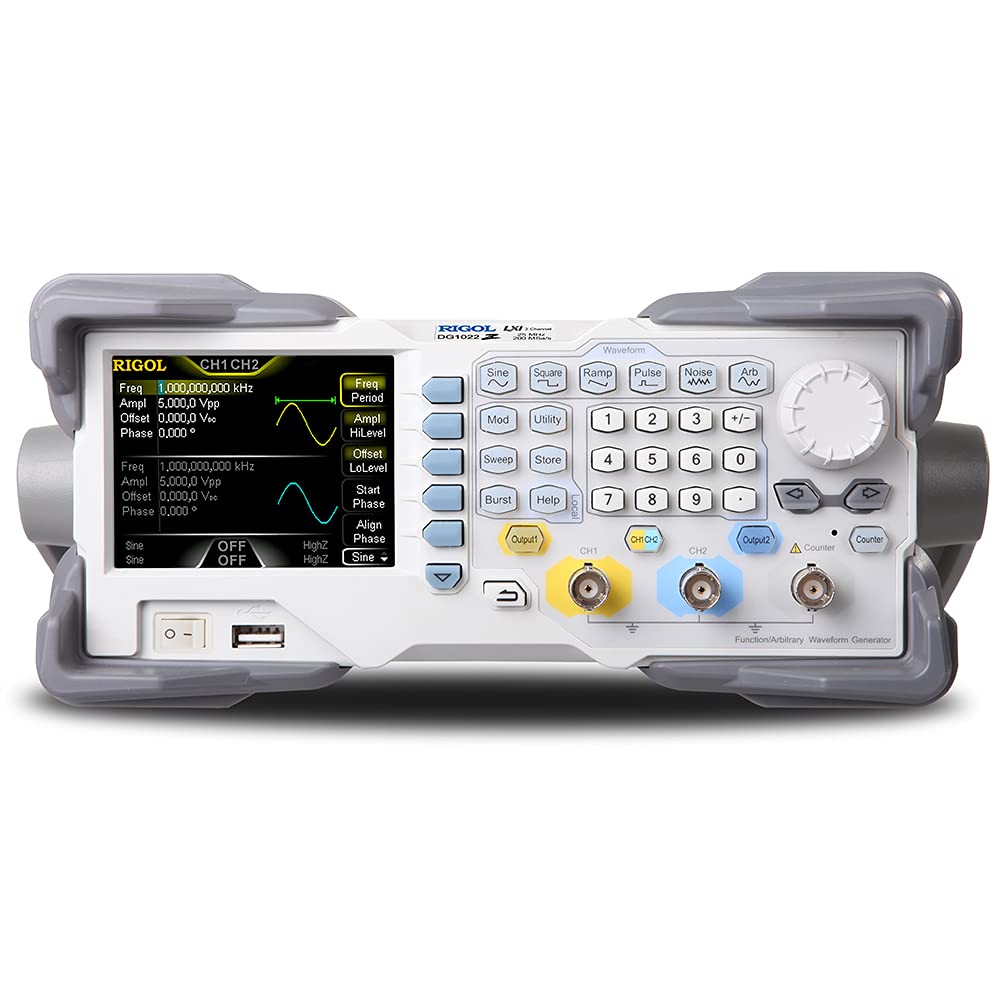

RIGOL DG1022Z Function/Arbitrary Waveform Generator,25MHz 2 Channels

SiFi (Signal Fidelity) for 100% waveform replication;2Mpts or 8Mpts/CH(std.), 16Mpts/CH (opt.) arbitrary waveform lengthStandard 2 full functional independent channels;±1ppm frequency stability, -125dBc/Hz phase noise, 200ps low jitterBuilt-in 8 orders harmonics generatorBuilt-in 7 digits/s counter up to 200MHz;160 built-in pre-edited waveformsIntuitive arbitrary waveform editing software;Full modulation supported: AM, FM, PM, ASK, FSK, PSK and PWM

	DG1022Z	DG1032Z	DG1062Z
Channel	2	2	2
Max Frequency	25 MHz	30 MHz	60 MHz
Sample Rate	200 MSa/s	200 MSa/s	200 MSa/s
Basic Waveform	Sine, Square, Ramp, Pulse, Noise	Sine, Square, Ramp, Pulse, Noise	Sine, Square, Ramp, Pulse, Noise
Built-in Arbitrary Waveform	160 kinds, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, Dual-Tone, etc.	160 kinds, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, Dual-Tone, etc.	160 kinds, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, Dual-Tone, etc.
Harmonic Distortion	Typical (0 dBm) DC-10 MHz (included): <-65 dBc 10 MHz to 30 MHz (included): <-55 dBc 30 MHz to 60 MHz (included): <-50 dBc	Typical (0 dBm) DC-10 MHz (included): <-65 dBc 10 MHz to 30 MHz (included): <-55 dBc 30 MHz to 60 MHz (included): <-50 dBc	Typical (0 dBm) DC-10 MHz (included): <-65 dBc 10 MHz to 30 MHz (included): <-55 dBc 30 MHz to 60 MHz (included): <-50 dBc
Total Harmonic Distortion	<0.075% (10 Hz to 20 kHz, 0 dBm)	<0.075% (10 Hz to 20 kHz, 0 dBm)	<0.075% (10 Hz to 20 kHz, 0 dBm)
Spurious (non-harmonic)	Typical (0 dBm) ≤10 MHz: <-70 dBc >10 MHz: <-70 dBc + 6 dB/octave	Typical (0 dBm) ≤10 MHz: <-70 dBc >10 MHz: <-70 dBc + 6 dB/octave	Typical (0 dBm) ≤10 MHz: <-70 dBc >10 MHz: <-70 dBc + 6 dB/octave
Phase Noise	Typical (0 dBm, 10 kHz offset) 10 MHz: <-125 dBc/Hz	Typical (0 dBm, 10 kHz offset) 10 MHz: <-125 dBc/Hz	Typical (0 dBm, 10 kHz offset) 10 MHz: <-125 dBc/Hz
