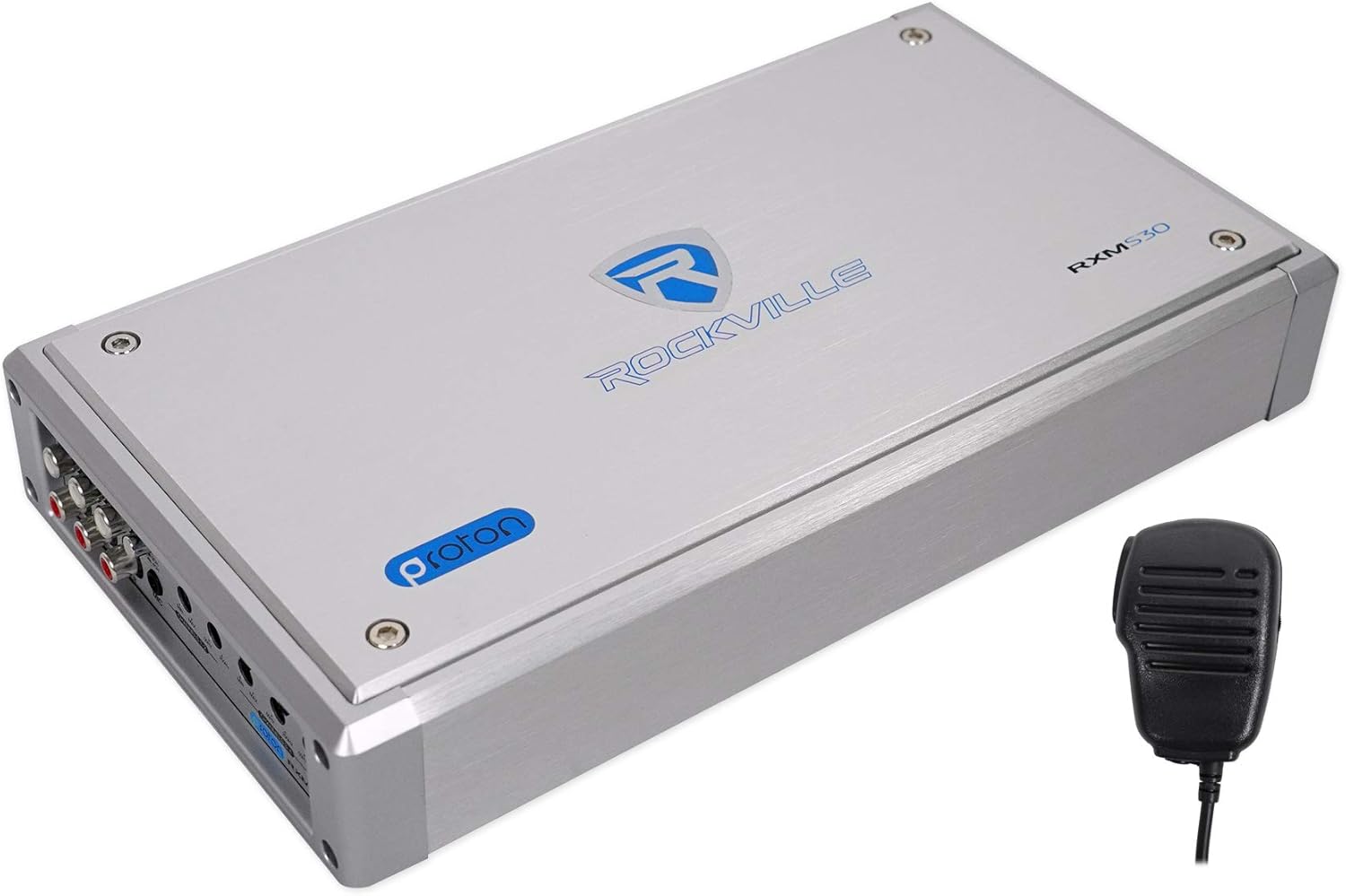

Rockville RxM-S30 2400w / 600w Dyno-Certified RMS 4 Channel Proton Micro Marine Car Amplifier.Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc). 400 Watts (4 x 90 Watts) at 4 ohms and 1% THD+N. 600 Watts (4 x 150 Watts) at 2 ohms < 1% THD. 600 Watts (2 x 300 Watts) bridged @ 4 Ohms < 1% THD. Peak: (Use these ratings when comparing with the top budget brands such as Boss, Power Acoustik, etc): 2400 Watts (2 x 1200 @ 2 ohms or 1 x 2400 @ 4 Ohms).Marine amplifier with conformal coated PCB board. High-Speed MOSFET Power Supply. Studio-Grade Bipolar Output Stage Transistors. Double Sided Surface Mount (SMD) PCB Design. Selectable +6dB/+12dB Bass Equalizer @ 45hz. Channel Separation: 50 dB. Current drawn @ MAx RMS output: 27A @ 4ohm, 40A @ 2ohm. Efficiency @ MAx RMS output: 65% @ 4ohm, 60% @ 2ohm. 2-Ohm Stable Stereo. 4-Ohm Mono Bridgeable. 3 Channel Mixed-Mono Capable.Input sensitivity: 20mV-6V. Mute and Delay Soft Start System. Full IC-Controlled Protection Circuitry. 2 CH / 4 CH Input Mode Switch. RCA Preamp Line Output. 8 Volt Preamp Circuitry. Status Mode LED Indicator. 4 Gauge Lucite Encapsulated Power/Ground Terminals. 12 Gauge Lucite Encapsulated Speaker Terminals. THD+A: 0.01%. Frequency Response: 15Hz - 20KHz. Continuously Fully Adjustable 12dB / Octave Crossover with Differential Circuitry. Continuously Fully AdjustableHigh Pass Crossover: 50HZ - 250HZ. CH1 & CH2 High Pass 50Hz - 250Hz. CH3 & CH4 Low Pass 50Hz - 250Hz. CH3 & CH4 High Pass 50Hz - 250Hz. Full Adjustable Crossover Controls: low pass, high pass, and full pass. Sensitivity: 100dB @ 1w / 1m. S/N Ratio: >90dB. Damping Factor: > 200 @ 100Hz. 2 x 30A Fuses. 7 LBS. Dimensions: (W x H x L) 6.7" x 1.98" x 12.28"
Description: The RxM-S30 is a marine amplifier that is perfect for many applications. This amplifier is water resistant so you can use it in a car or boat or any other application! The micro size of the amplifier also allows for installation in tight spots. The RSM-S30 is a 4 channel amplifier with 2,400 Watts peak output, 400 Watts Dyno Certified RMS power (4 x 90 @ 4 Ohms). You can also bridge the amplifier and get 2 x 600 Watts RMS @ 4 Ohms. Here at Rockville we offer the best value in car audio. We therefore want to make it easy for you to compare our products to any brands on the market. The peak rating can be used to compare with brands who use peak ratings such as Boss and Power Acoustik while the Dyno Certified RMS rating can be used to compare with top brands such as Kicker, Rockford, Alpine, etc.
