About this item

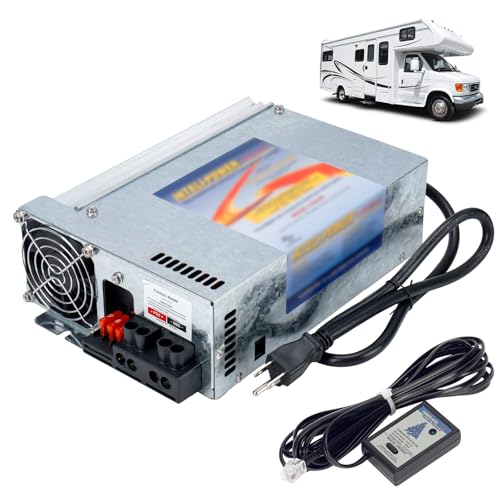

• 9200 Series RV Power Converter: The PD9280AV is a 12-volt, 80-amp 9200 Series RV power converter. with a built-in charging wizard, the PD9280A is designed to meet the needs of RVs and enhances the RV experience with reliable power management for all your travel needs.

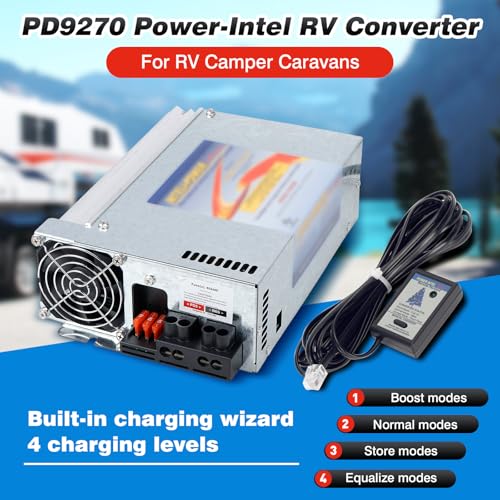

• Provides 4 Levels of Charging Modes: The PD9280AV features an integrated charging guide that provides 4 different modes: Boost Mode for fast charging, Normal Mode for standard use, Storage Mode to keep the battery healthy and Equalize Mode to ensure optimal battery performance over time.

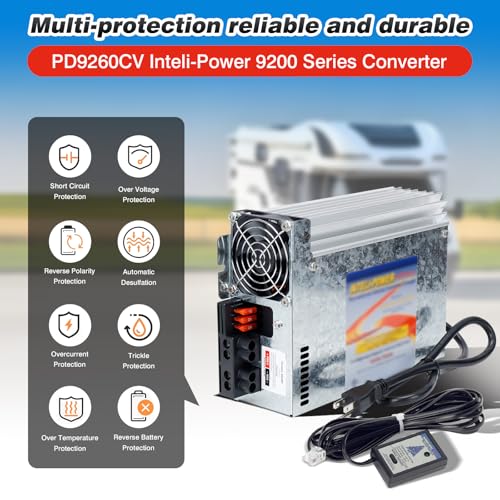

• Power converter with powerful protection: 9200 Series; converts 105 to 130 volts AC to 13.2 to 14.4 volts DC; 1300 watts peak power; 80 amps DC output with comprehensive safety measures including short circuit, reverse polarity, overcurrent, overheat, and overvoltage protections for your RV and its electrical system

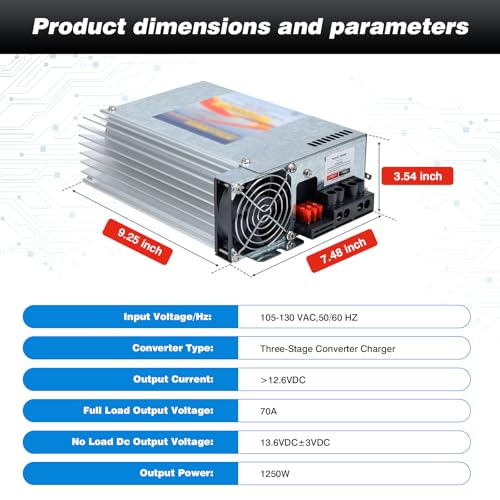

• Specifications: ① MTS Part No.: ELE01403, ② Mfg. No.: PD9280AV, ③ Input: 105-130 volts AC, 1,300 watts (Note: 20 amp rated outlet required), ④ Output: 13.6 volts DC, 80 amps, ⑤ Approximate dimensions: 3.6” x 11.5 “ x 9”, ⑥ Approximate weight: 7.5 lbs.
• Advantages of the rv power inverter: ① Built-in charging wizard; ② Battery reverse connection protection prevents damage caused by improperly connected battery leads; ③ Filtered DC power supply provides safe and reliable service. ④ Electronic current limiting device automatically reduces the output voltage when the maximum capacity is reached; ⑤ Low line voltage protection prevents damage to appliances due to abnormal low voltage; ⑥ Cooling fan operates only when needed to ensure quietness; ⑦ Can be turned off when not needed.
