GOOD QUALITY SOUND CAVITY -- Good Quality Sound Cavity: The screen backlight can be controlled, using good quality sound cavity with a bass diaphragm, and adopt SMA antenna socket
IMPEDANCE MATCHING -- The main board PCB uses four layer circuit board process, and perform impedance matching on the circuit
3.5INCH TOUCH SCREEN -- 3.5InCH IPS display with touch screen, screen display bandwidth is 160kHz, and support zoom display
0.3μV SENSITIVITY AT 250MHz -- Due to using the for msi001 chip used, the dynamic blocking range is about 85dB, and the sensitivity is 0.3μV at 250MHz
TRANSMIT CAT IQ AND AUDIO -- The operation mode includes two EC11 pulse encoders and capacitive touch screen. Connect to the computer via USB, can transmit CAT, IQ and audio
Feature:

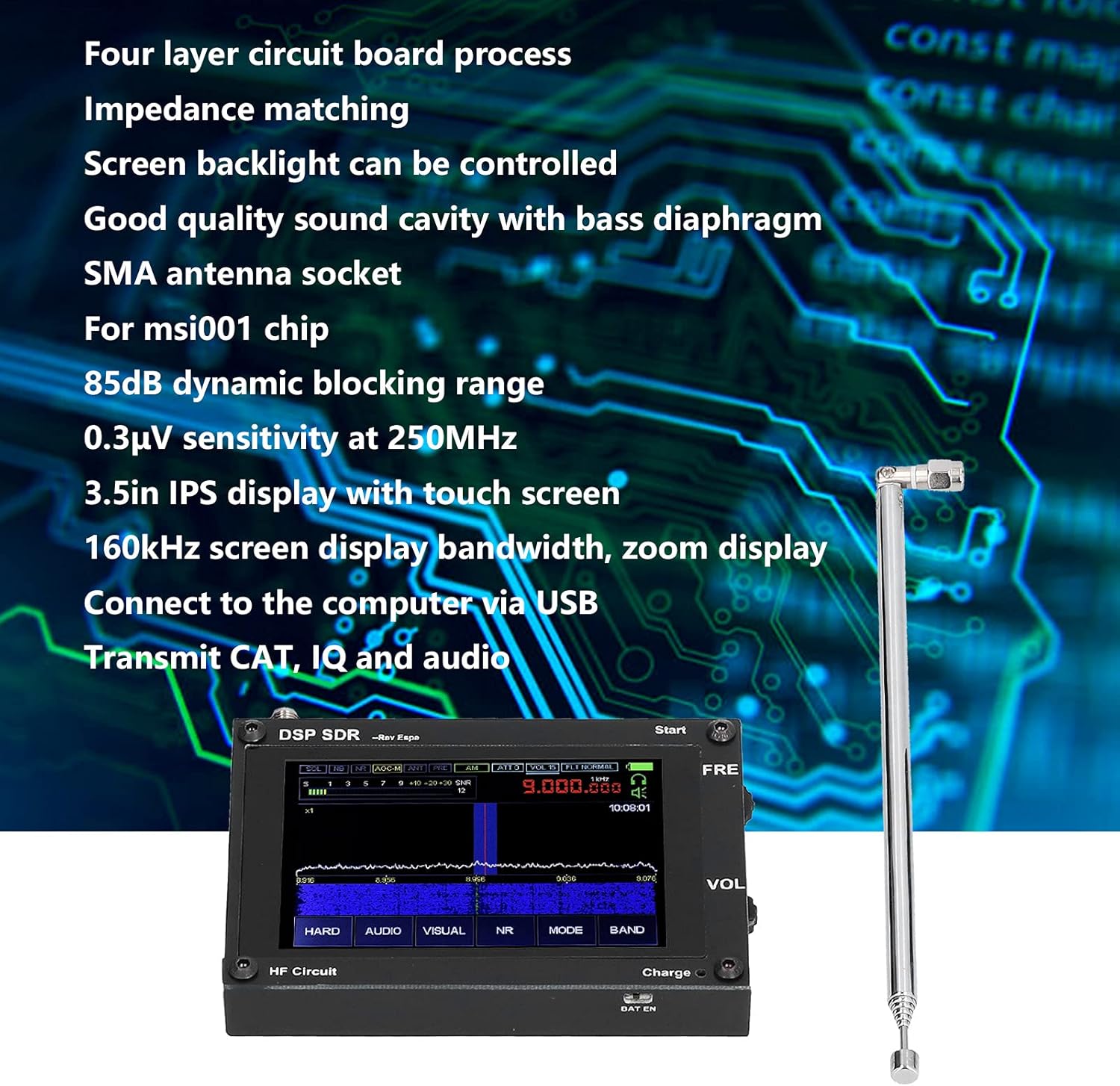

1. Impedance Matching: The main board PCB uses four layer circuit board process, and perform impedance matching on the circuit
2. Good Quality Sound Cavity: The screen backlight can be controlled, using good quality sound cavity with a bass diaphragm, and adopt SMA antenna socket
3. 0.3μV Sensitivity at 250MHz: Due to using the for msi001 chip used, the dynamic blocking range is about 85dB, and the sensitivity is 0.3μV at 250MHz

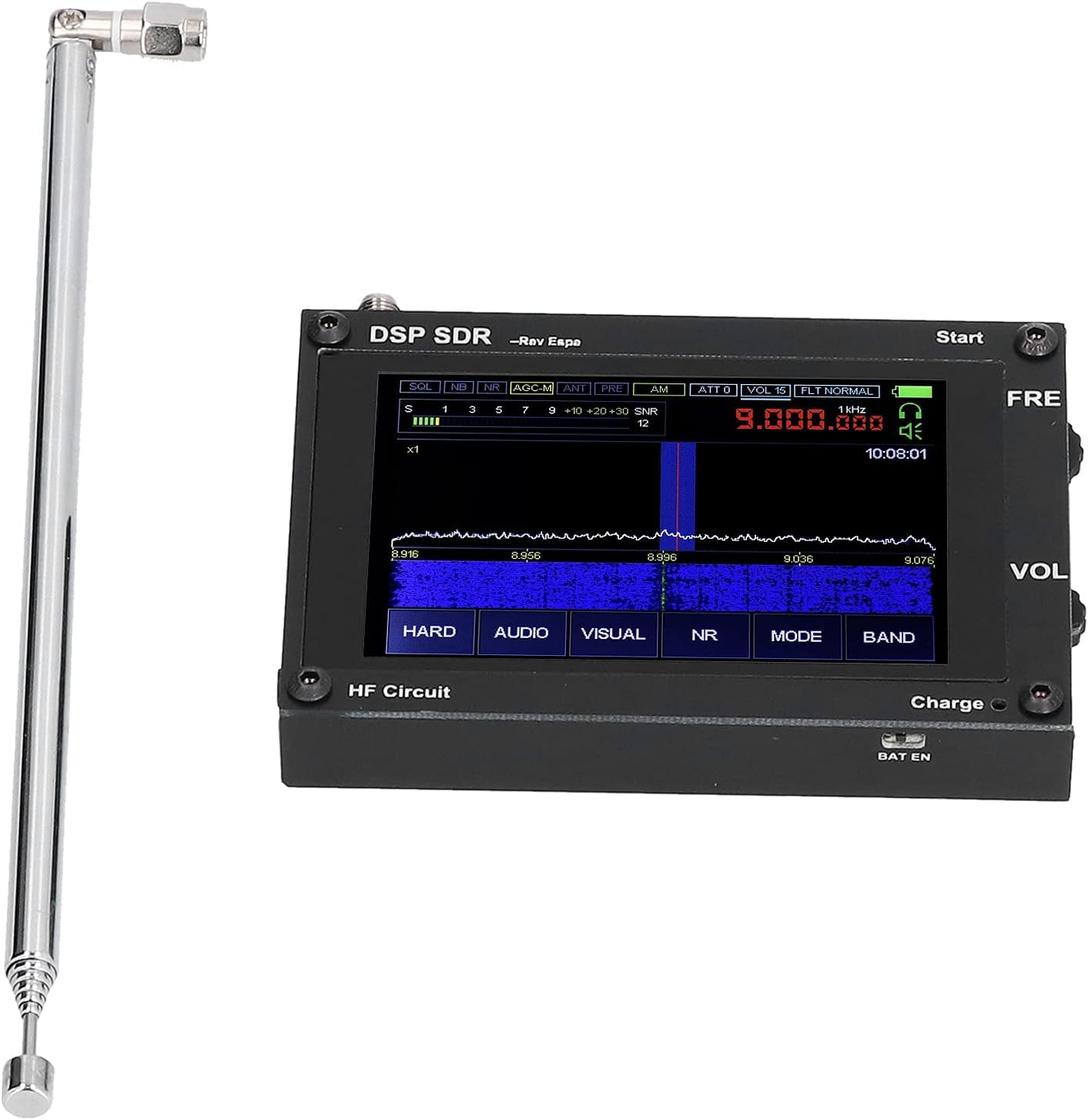

4. 3.5in Touch Screen: 3.5in IPS display with touch screen, screen display bandwidth is 160kHz, and support zoom display
5. Transmit CAT, IQ and Audio: The operation mode includes two EC11 pulse encoders and capacitive touch screen. Connect to the computer via USB, can transmit CAT, IQ and audio
Specification:
Item Type: SDR Receiver
Material: PCB
Frequency Range: 50kHz-2GHz
RF Front End: For msi001
Battery Capacity: 2000mA/h
Battery Model: Lithium battery
Receiver Power Consumption: 300mA
Package List:

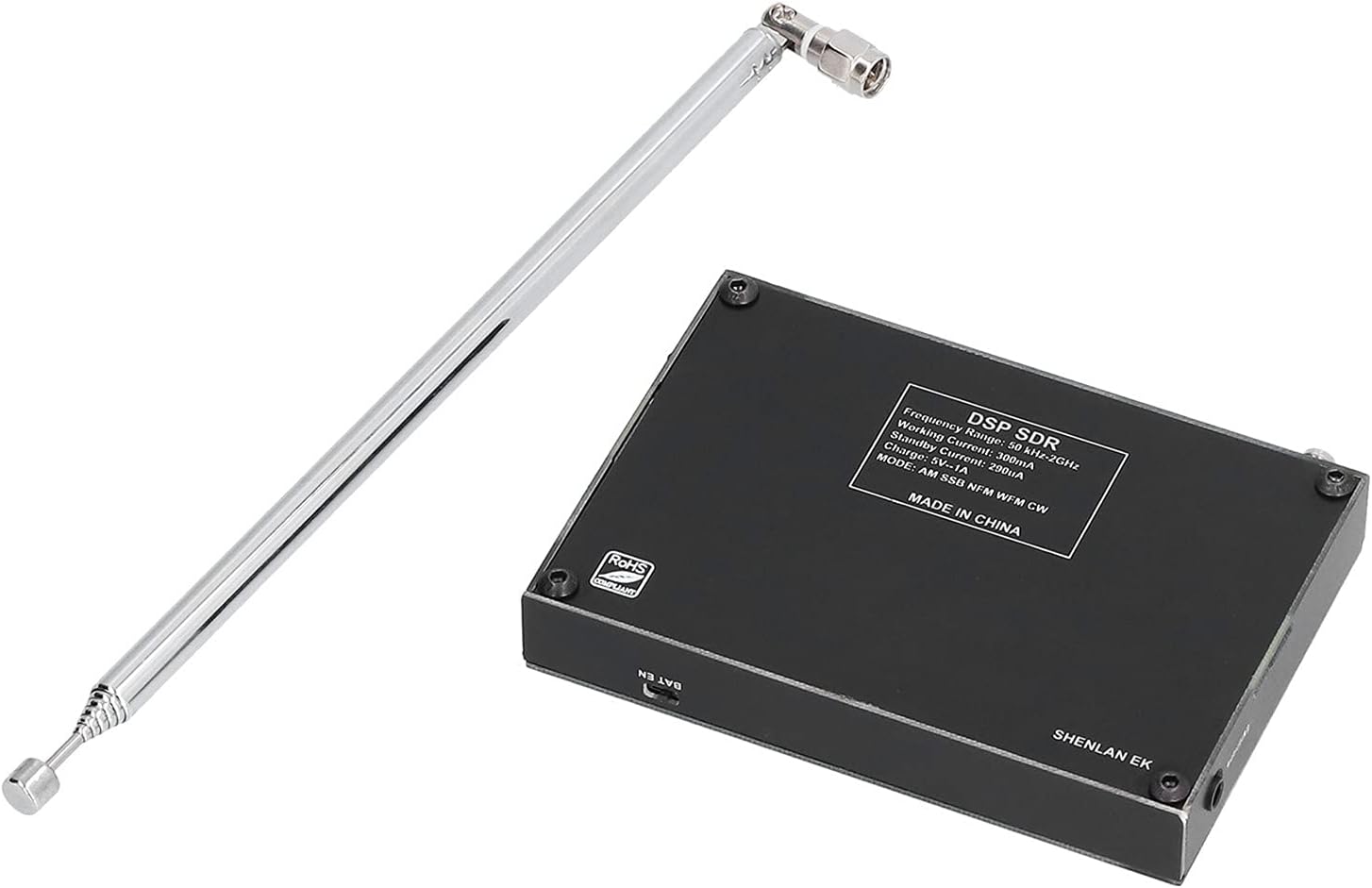

1 x SDR Receiver
1 x Antenna
Note:
The receiver is based on the SDR principle structure, and the function is determined by the loaded software.
