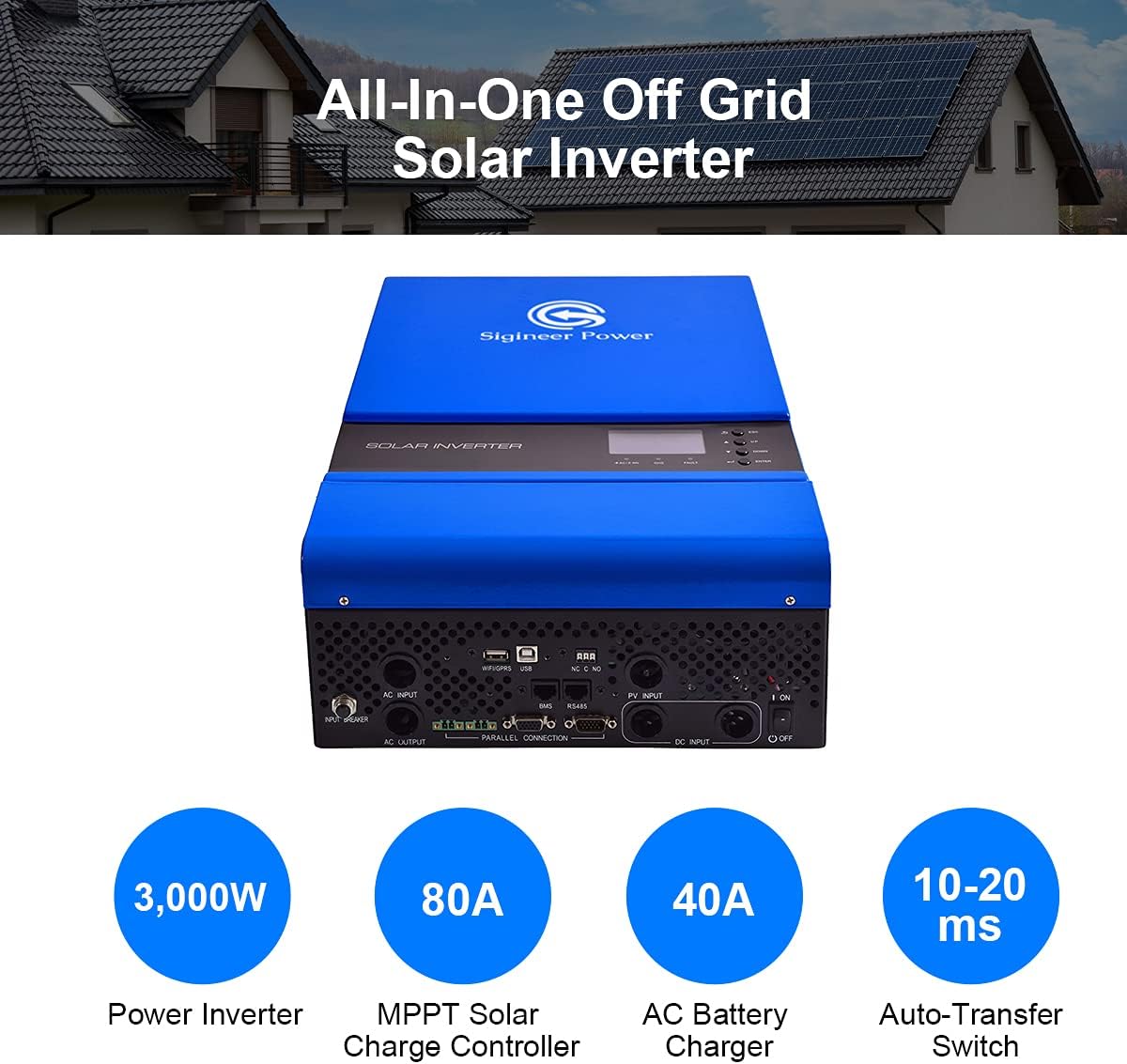

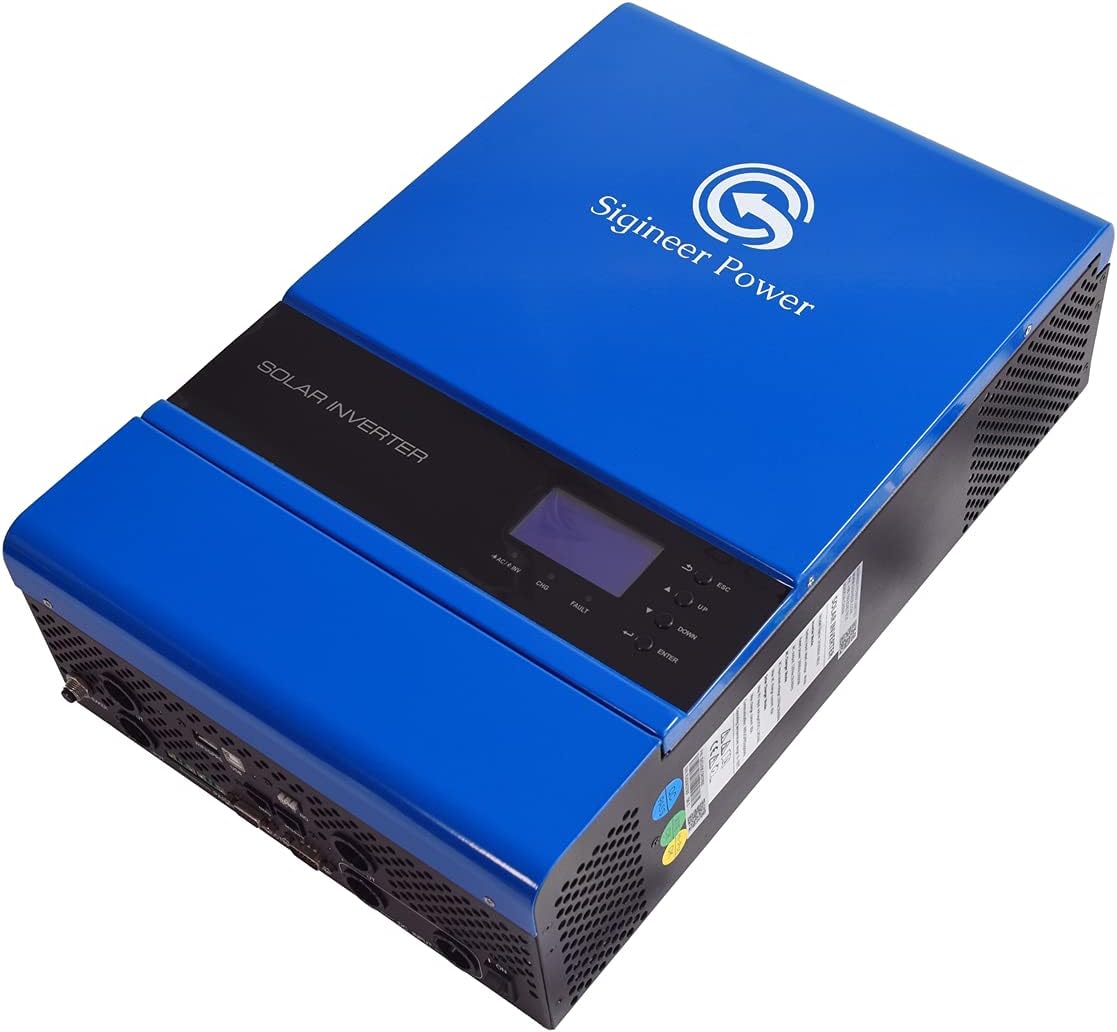

ALL-IN-ONE: Technically electrical combination of 3,000 watts DC 48V to AC 120V pure sine wave inverter, 80A MPPT solar charge controller, 40A AC to DC battery charger and automatic transfer switch, 6,000 watts surge for 5 seconds, compact and lightweight

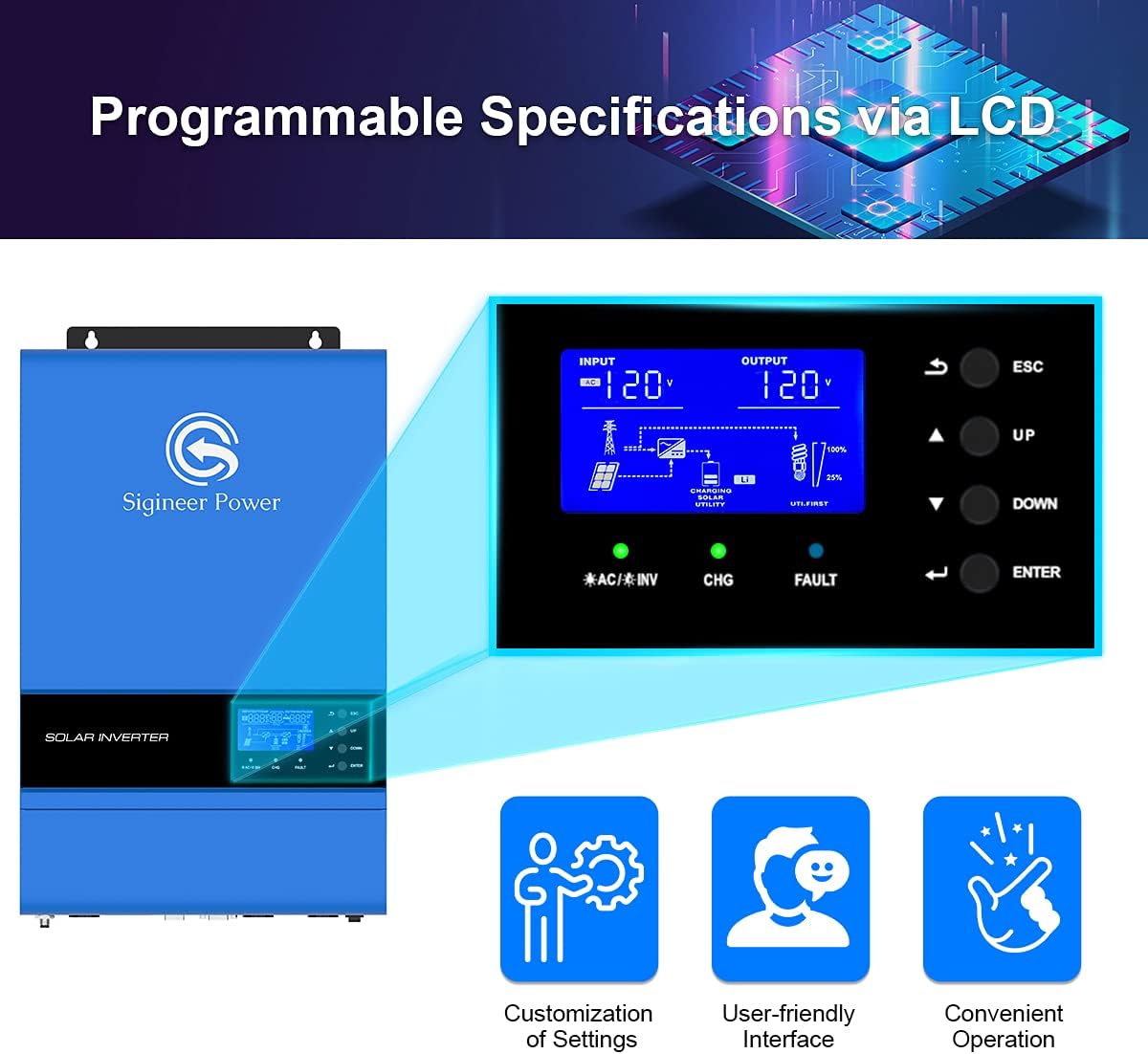

INTELLIGENT: Auto-wakeup MPPT charge controller, automatic over-load bypass, auto-recovery from over-load/over-temperature/low-battery cut-off, programmable LCD menu, 4 charging modes, 3 output power priorities, switchable frequency (50Hz or 60Hz), remote monitoring and control
STACKABLE: Stacking capability for large system scaling, single phase 120Vac in PARALLEL up to 6 inverters; split phase 120/240Vac by stacking 2/4/6 inverters; three phase 120/208Vac by stacking 3/6 inverters

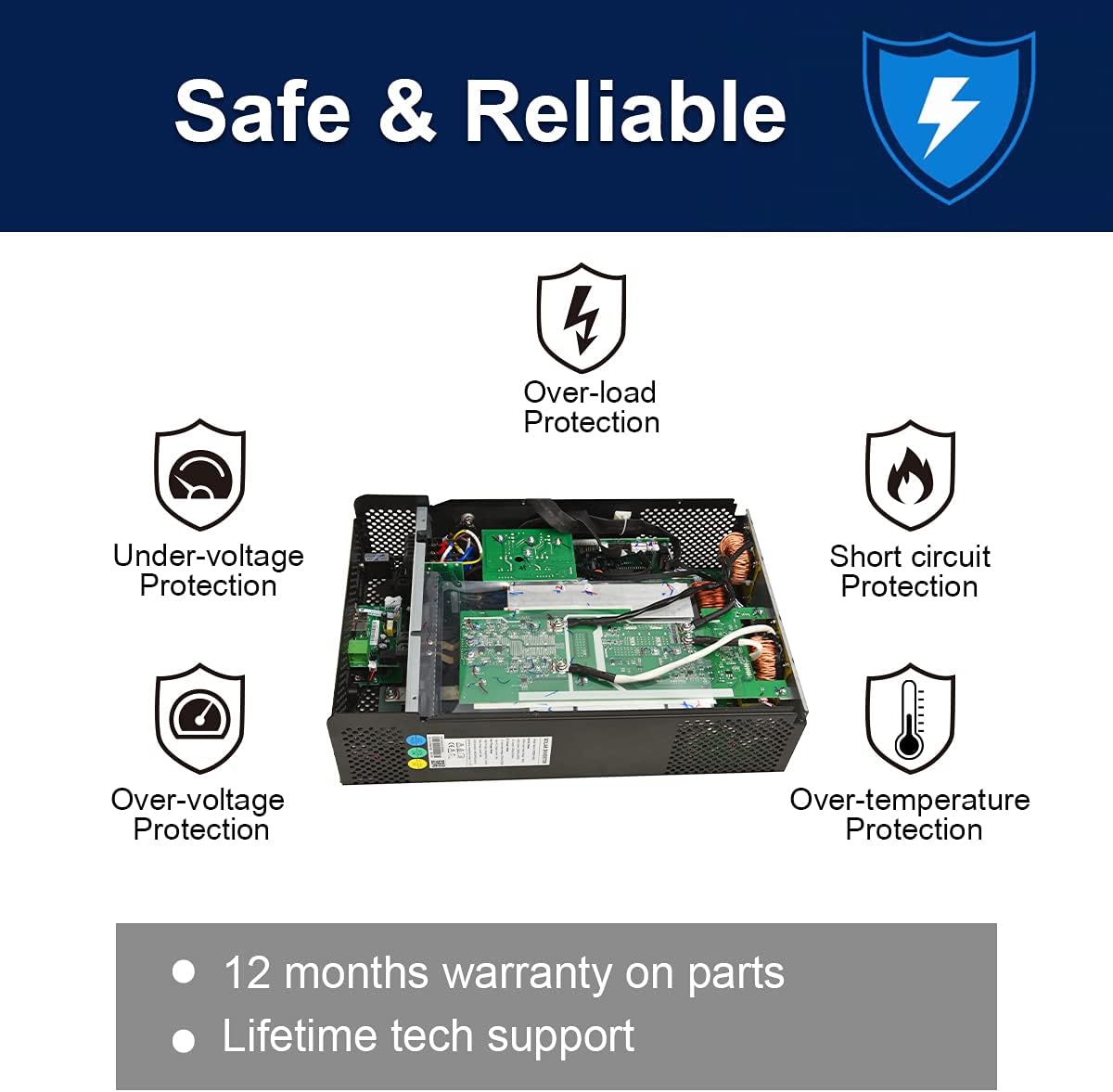

RELIABLE: Compatible with lead-acid and lithium battery types, multi-stage smart charging, BMS port supports RS485 communication, designed software protections against overload, short circuit, over-temperature, under & over voltage, over-discharge
BUY WITH CONFIDENCE: Trust Sigineer Power, a dedicated inverter brand and professional manufacturer in business for over 10 years, offering lifetime tech support with 1 warehouse and 3 contract service centers in the USA
| |
| | M3kW24V | M3kW48V | M6kW48V | M12kW48V |
| Nominal DC Input Voltage | 24V | 48V | 48V | 48V |
| Continuous Output Power | 3kW | 3kW | 6kW | 12kW |
| Surge Rate Power | 9kW | 9kW | 18kW | 36kW |
| Output AC Voltage | 110V 120V | 110V 120V | 104/208V, 110/220V, 115/230V, 120/240V | 104/208V, 110/220V, 115/230V, 120/240V |
| MPPT Solar Controller | 80A | 80A | 80A | 120A |
| AC Charger Rate | 60A | 40A | 60A | 100A |
| DC Input Range | 20-35.4V | 40-60.8V | 36-62V | 40-62V |
| Topology | High Frequency | High Frequency | Low Frequency | Low Frequency |
