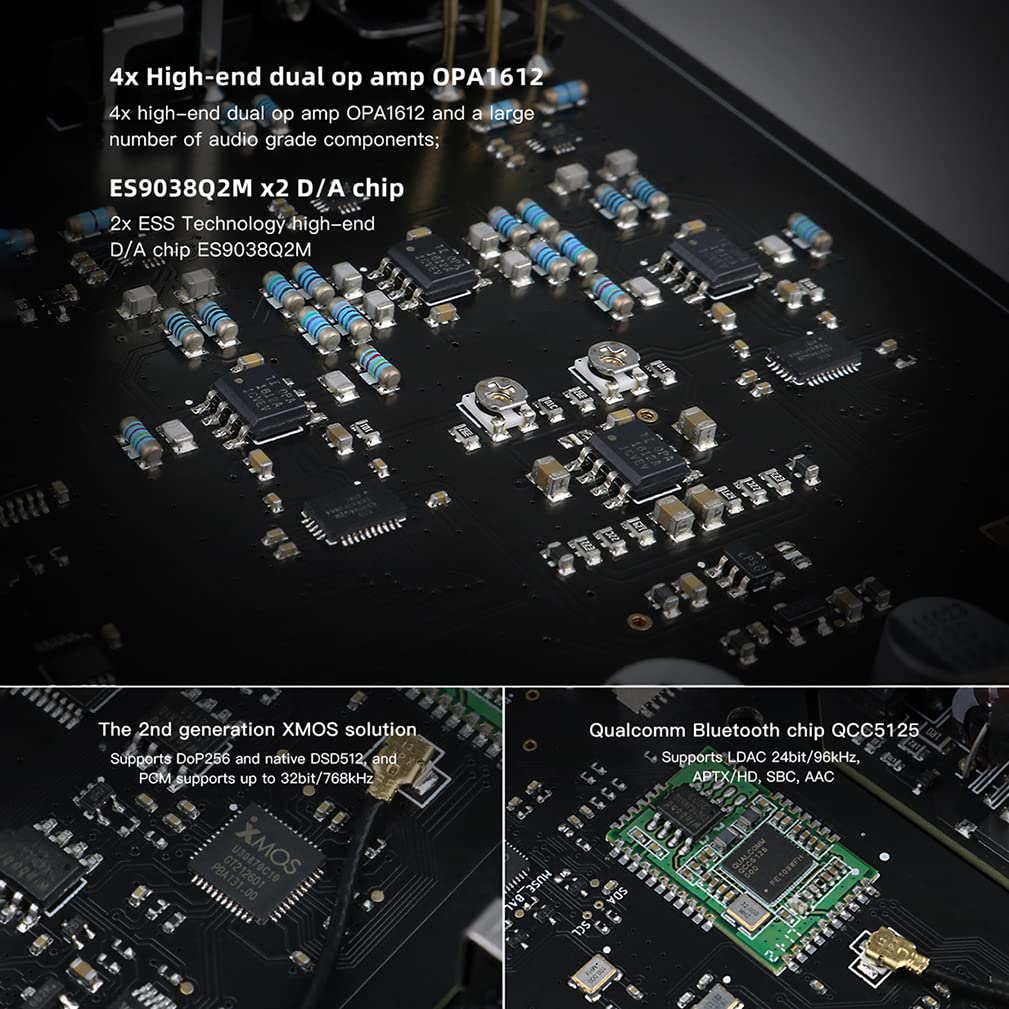

【ES9038Q2Mx2 & OPA1612x4】SMSL DO100 dac use 4x High-end dual op amp OPA1612 and a large number of audio grade components and 2x ESS Technology high-end D/A chip ES9038Q2M. The 2nd generation XMOS solution supports Dop256 and native DSD512, and PCM supports up to 32bit/768kHz.

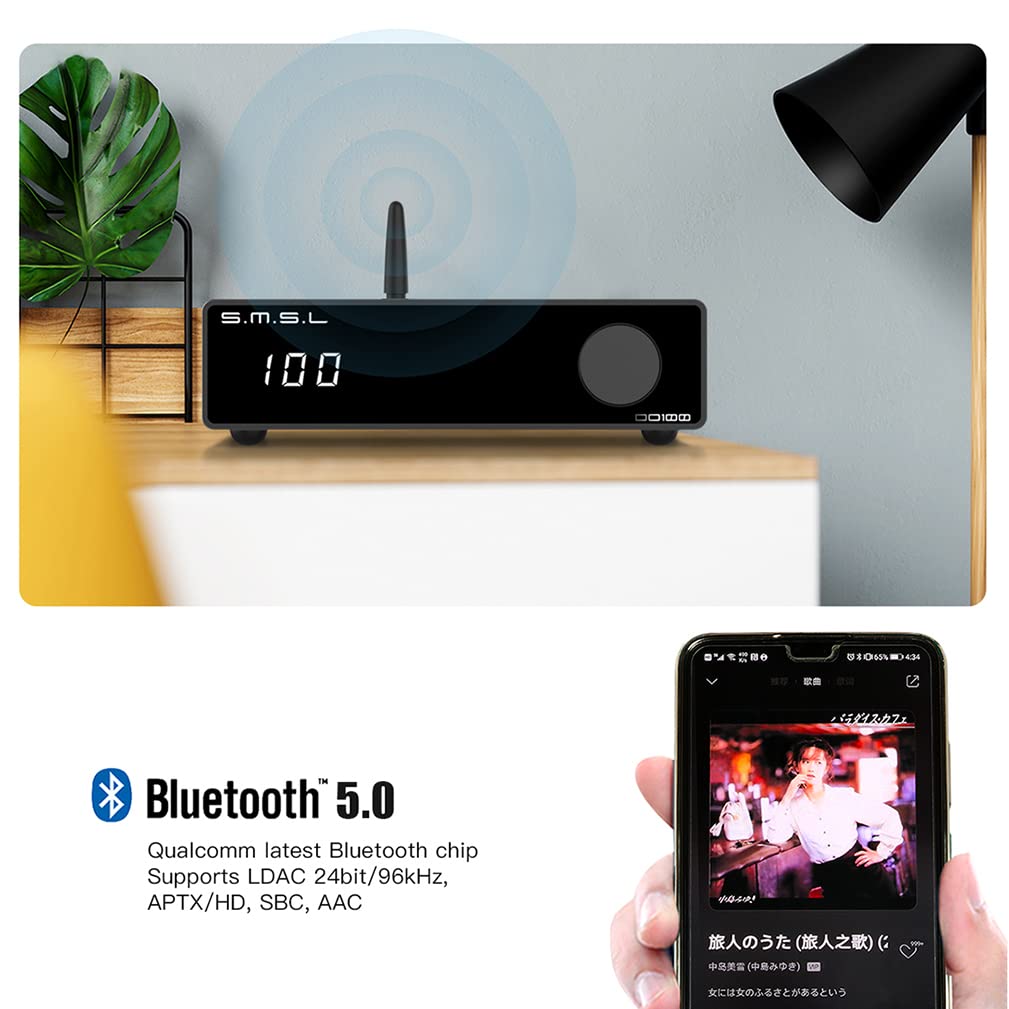

【Bluetooth 5.0 & DSD Transmission】 DO100 use Qualcomm latest Bluetooth chip QCC5125K and supports LDAC 24bit/96khz,APTX/HD,SBC,AAC. All input ports(except Bluetooth)support DSD transmission,coaxial and optical supports DOP64.
【High Quality Audio Decoder】Use advanced glass display panel, CNC processing shell, mini size design.Supports full-function remote control.

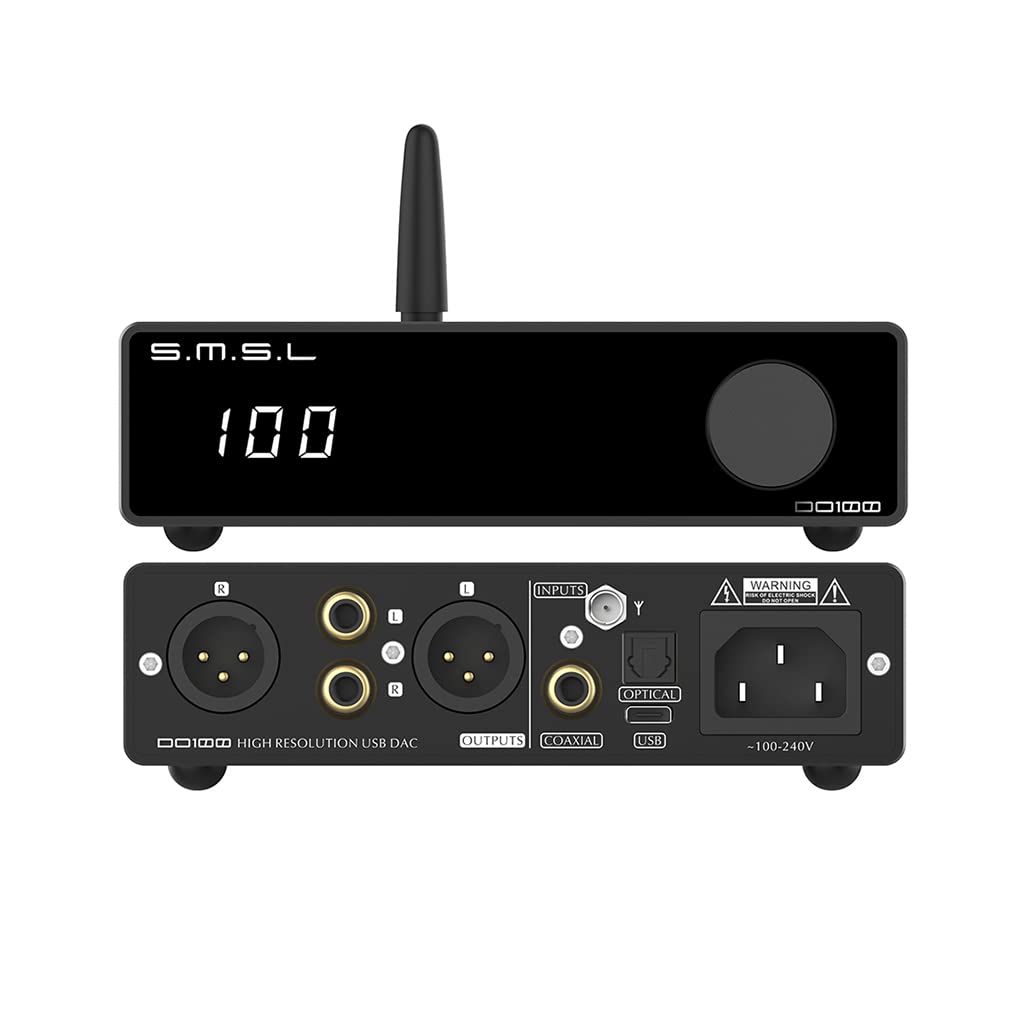

【Balanced output】DO100 supports four input modes: USB input, Bluetooth input, optical fiber input, coaxial input and two output modes: single ended line output and balanced line output to meet different needs.

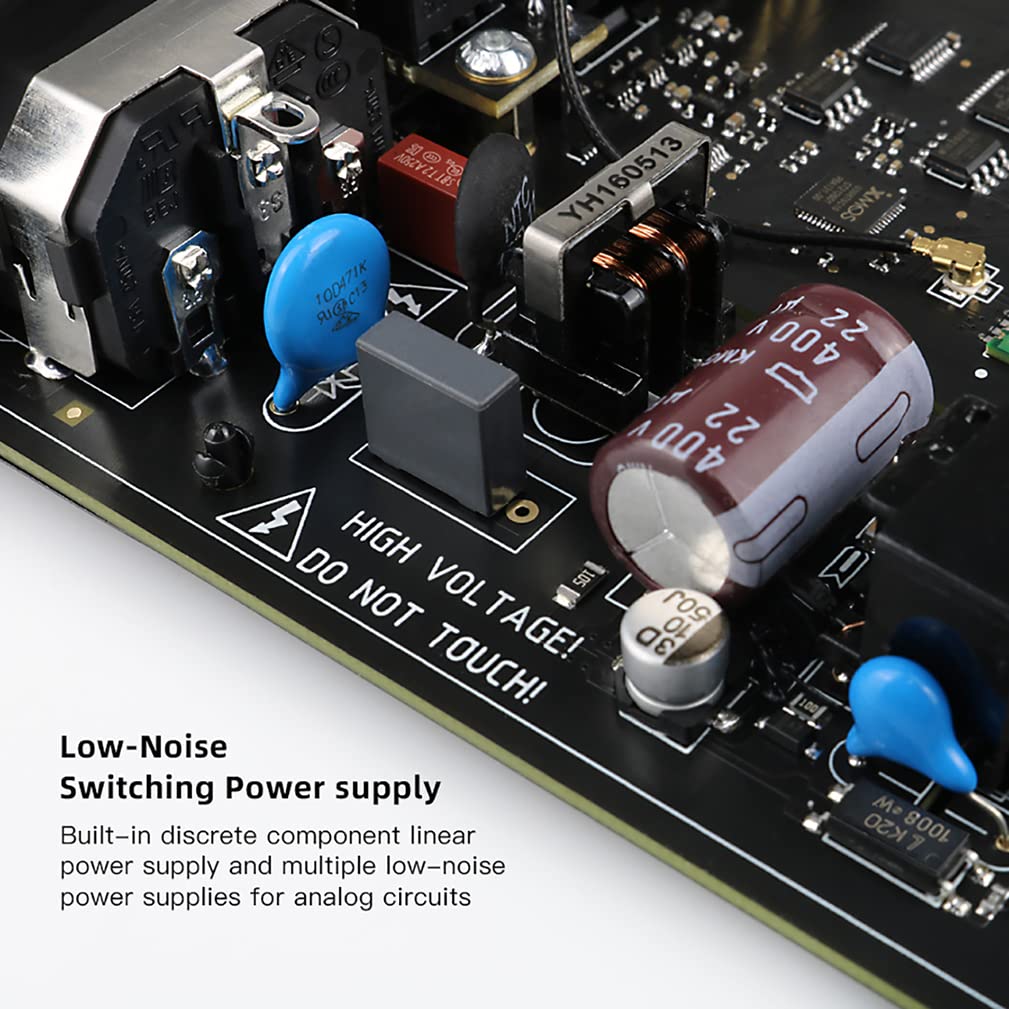

【Low-noise Switching Power supply】Built-in discrete component linear power supply and multiple low-noise power supplies for analog circuits.

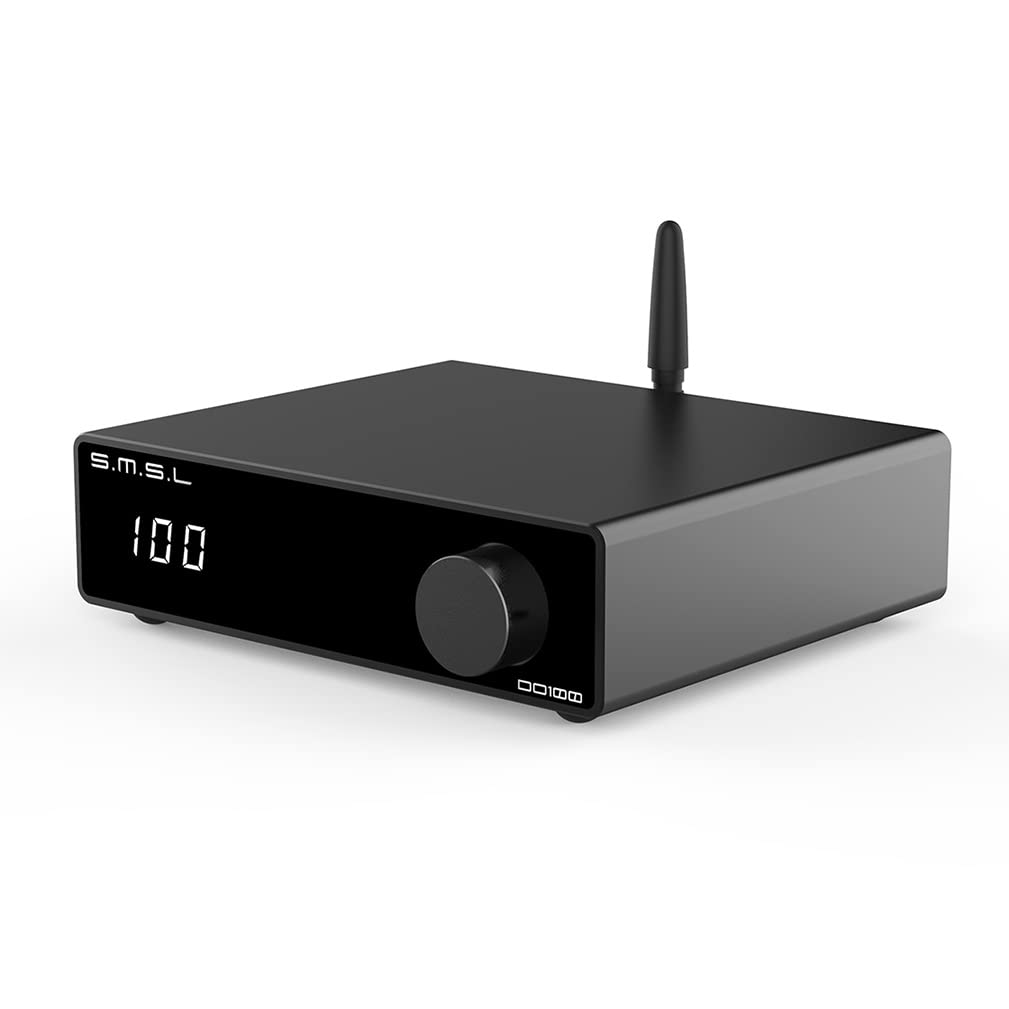

SMSL DO100 Balanced USB DAC Bluetooth5.0 Decoder with Remote Control
Feature：

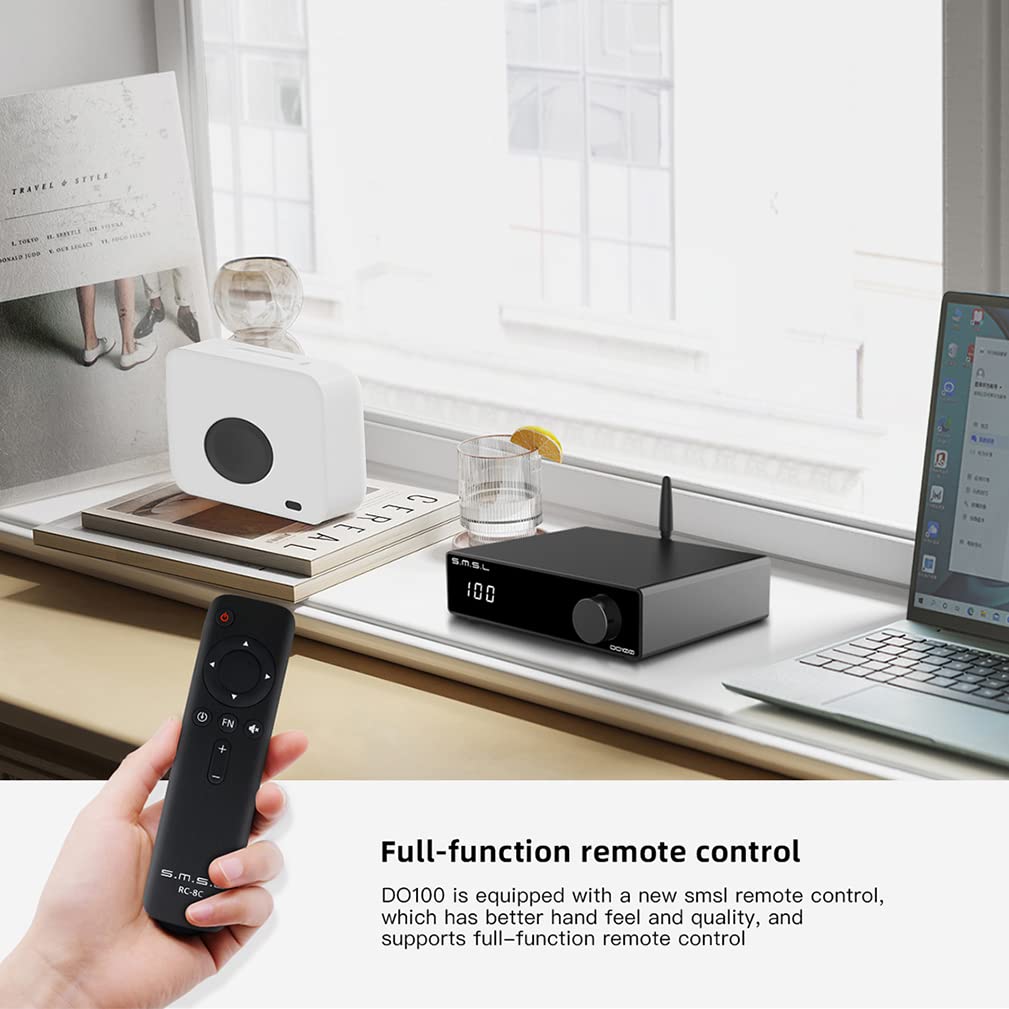

【Full-function remote control】DO100 is equipped with a new smsl remote control,which has better hand feel and quality, and supports full-function remote control.

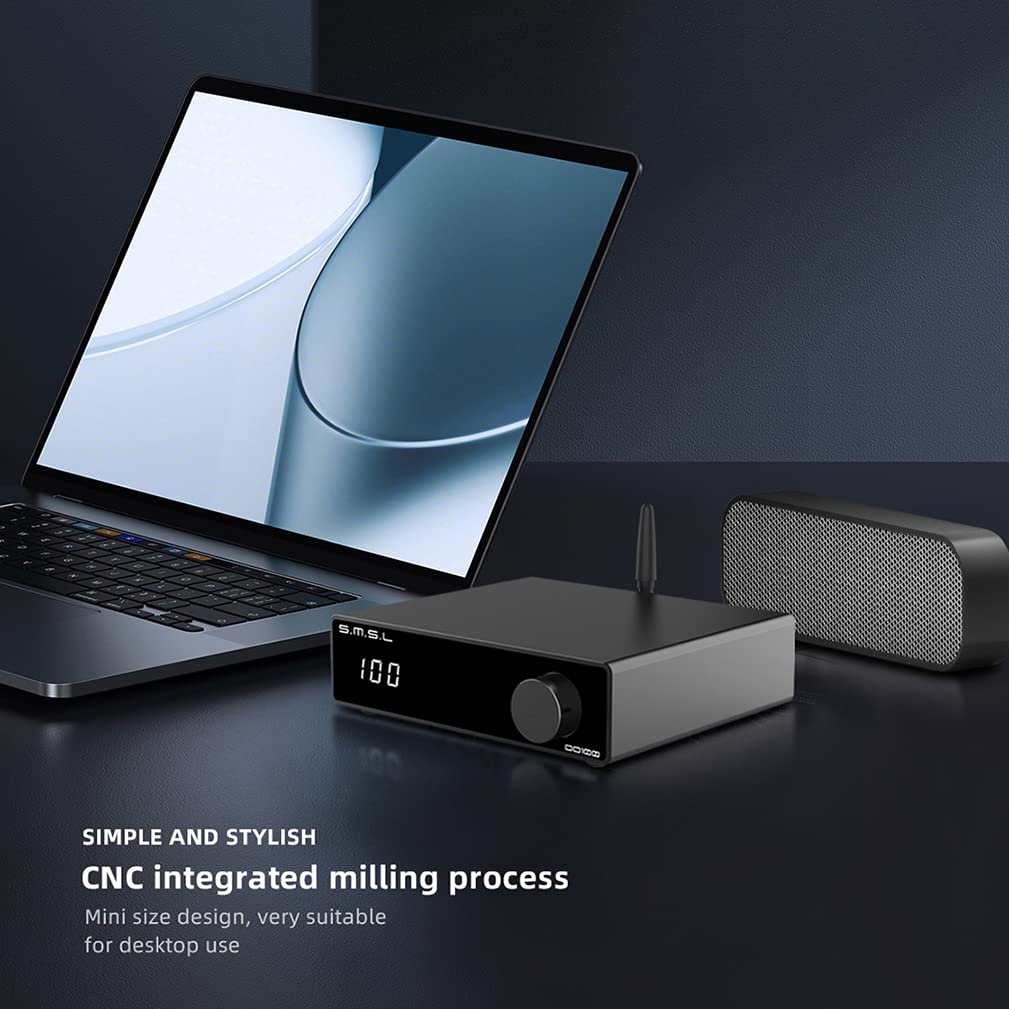

【SIMPLE AND STYLISH】CNC integrated milling process.Mini size design, very suitable for desktop use.

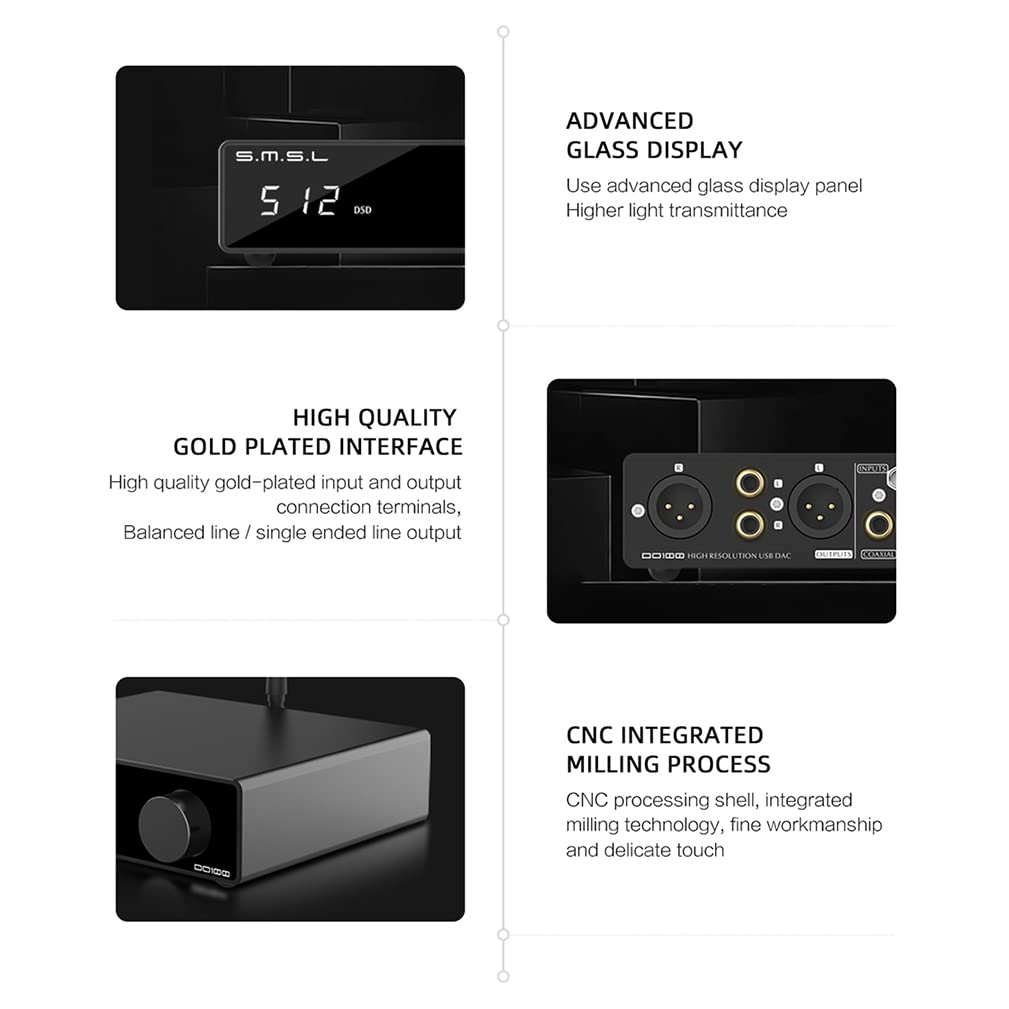

【ADVANCED GLASS DISPLAY】Use advanced glass display panel.Higher light transmittance.
【HIGH QUALITY GOLD PLATED INTERFACE】High quality gold-plated input and output connection terminals,balanced line / single ended line output.
【CNC INTEGRATED MILLING PROCESS】CNC processing shell, integrated milling technology, fine workmanship and delicate touch.
Parameter：
Model：SMSL DO100
Input：USB / Optical / Coaxial / Bluetooth
Output amplitude(volume adjustable)：
XLR：4.0Vrms
RCA：2.0Vrms
THD+N：0.00008% ( - 121dB)
Dynamic range：
XLR：127dB
RCA：125dB
SNR：
XLR：126dB
RCA：124dB
Output impedance：100Ω
USB transmission：USB1.1, USB2.0 (Asynchronization)
Bit depth：
Optical / Coaxial：1bit, 16-24bit
Sampling rate：
USB：PCM 44.1-768kHz
DSD：2.8224-22.5792MHz
Optical / Coaxial：
PCM：44.1-192kHz
DSD：DSD64(DoP)
Bluetooth specification(Bluetooth 5.0 )：
LDAC：24bit/96kHz (990kbps/660kbps/330kbps)
aptX-HD：24bit/48 kHz _576kbps
aptX：16bit/44.1 kHz _352kbps
SBC：16bit/44.1 kHz _328kps
AAC：16bit/44.1 kHz _320kbps
Power Consumption： 5W
Standby power： < 0.5W
Size：150x128x39mm(LxWxH)
USB Compatibility：
Mac OSX10.6 or Later, Linux(Driverless)
Windows 7/8/8.1/10/11(Needs Driver)
USB Transmission：
USB1.1, USB2.0(Asynchronization)
