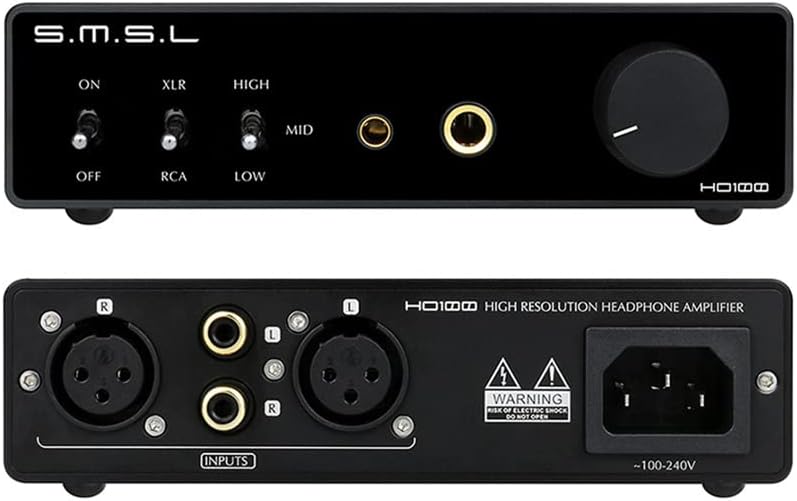

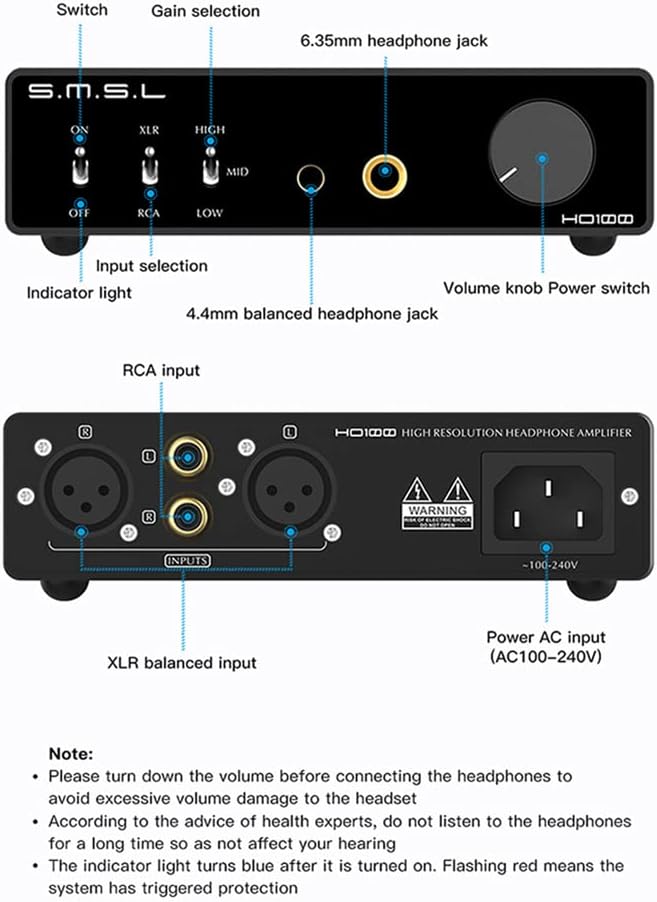

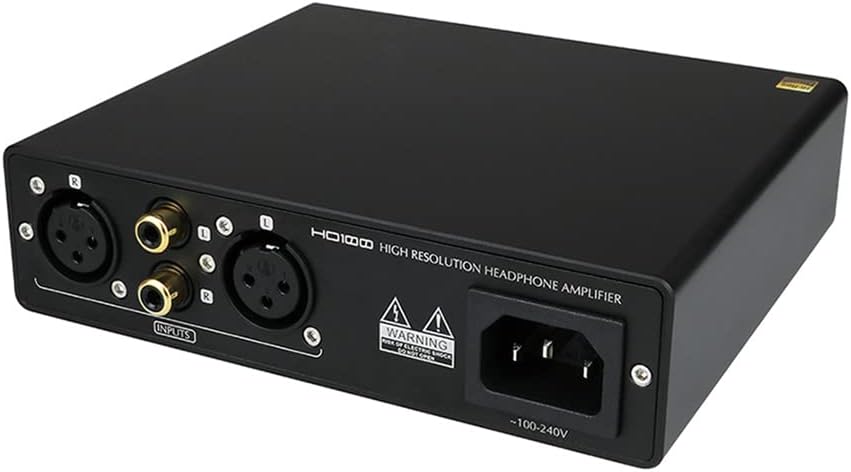

★ Selectable Inputs & Outputs: SMSL HO100 has XLR and RCA input modes; 6.35mm (Unbalanced) and 4.4mm (Balanced) headphone outputs, which meet the needs of different headphones and Hifi systems.
★ Three Gain Modes For Selection: Using the classic toggle switch rotary button, there are high, mid and low 3 gain mode for adjustment and meet different music style.
★ High Power Output: 3W into 16Ω, 1.5W into 32Ω, which meet most headphones on the market. The amp output impendance near 0Ω.

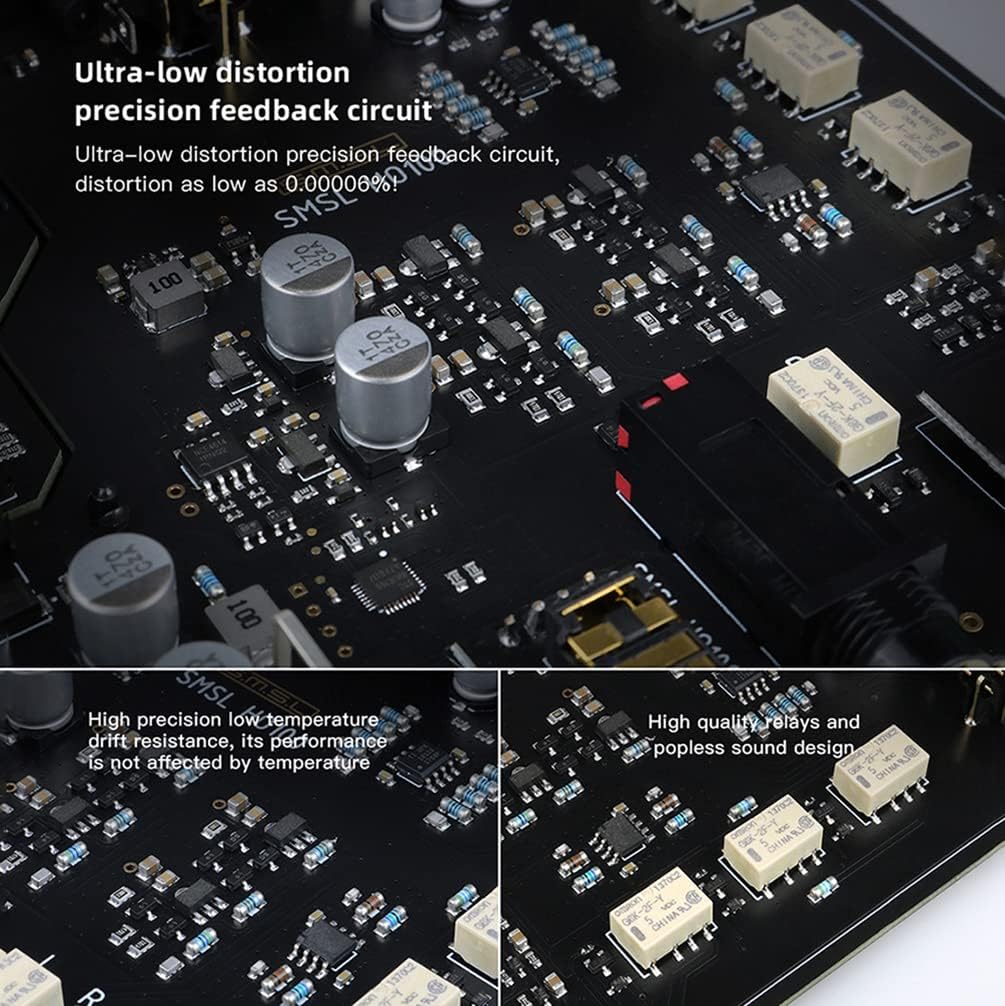

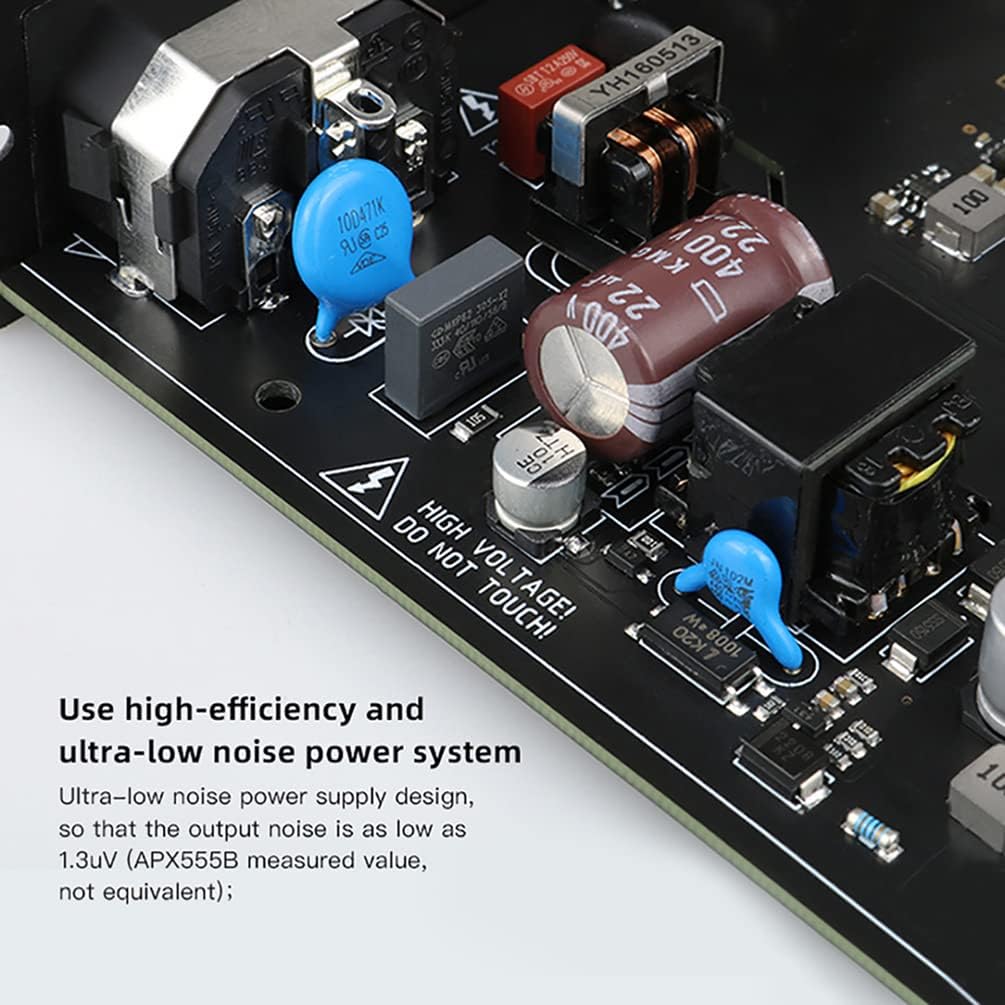

★ Ultra Low Distortion/Low Noise Design: The distortion of HO100 is as low as 0.000006%; and it is designed with low noise power supply, so that the output noise is as low as 1.3uV (APX555B measured value, not equivalent.)
★ A Perect Set with SMSL DO100 DAC: SMSL DO100 and HO100 have fully matched design languages and styles. The DO100 uses ES9038Q2Mx2 dac chips, supports PCM,DSD decoding.

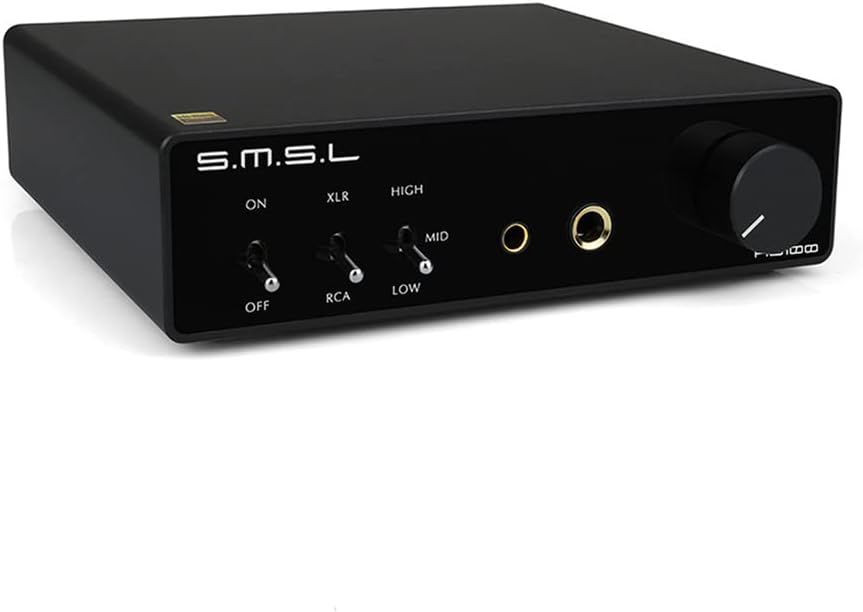

SMSL HO100 Balanced Headphone Amplifier RCA/XLR Input 6.35mm/4.4mm Balanced Headphone Output HiFi Home Audio Headphone Amp with Gain Control

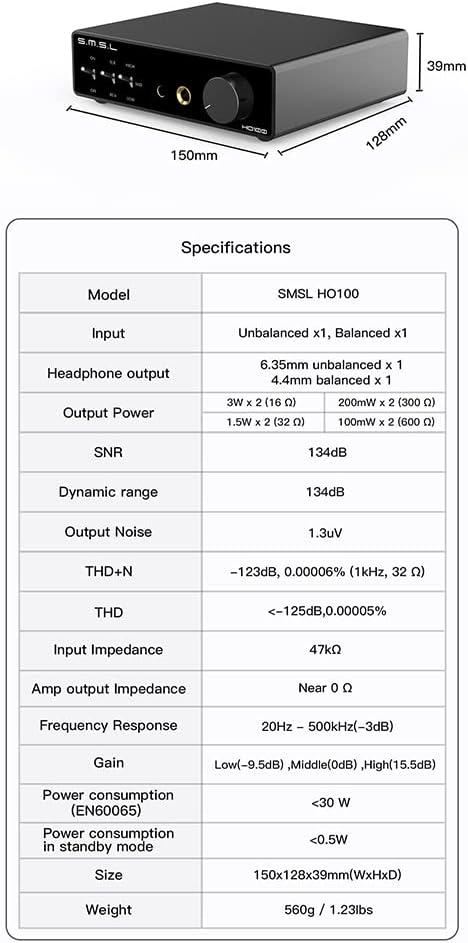

Specifications:
Model: SMSL HO100
Input: Unblanced*1,Balanced*1
Headphone Output:
6.35mm Unblanced*1
4.4mm Balanced*1
Output Power:
3W*2 (16Ω)
1.5W*2 (32Ω)
200mW*2 (300Ω)
100mW*2 (600Ω)
SNR: 134dB
Dynamic Range: 134dB
Output Noise: 1.3uV
THD+N: -123dB, 0.000006% (1kHz,32Ω)
THD: ＜ -125dB, 0.00005%
Input Impedance: 47kΩ
Amp Output Impendance: Near 0Ω
Frequency Response: 20Hz-500kHz (-3dB)
Gain:
Low: -9.5dB
Mid: 0dB
High: 15.5dB
Power Consumption(EN60065): ＜ 30W
Power Consumption in Standby Mode: ＜ 0.5W
150*128*39mm (L*W*H)
Weight: 560g / 1.23Lbs
Accessories:
1*SMSL HO100
1* Power Cord
1*User manual
1*Warranty Card
