IMPRESSIVE WIDE FREQUENCY BAND 15MHHz - 2.7GHz (3G Combo)
ASSIST YOU with examine RF frequencies, WIFI Chanels, HAM Radio And Wireless Microphones
EXTENDED FUNCTIONALITY when using free downloadable spectrum analyser rf devices software

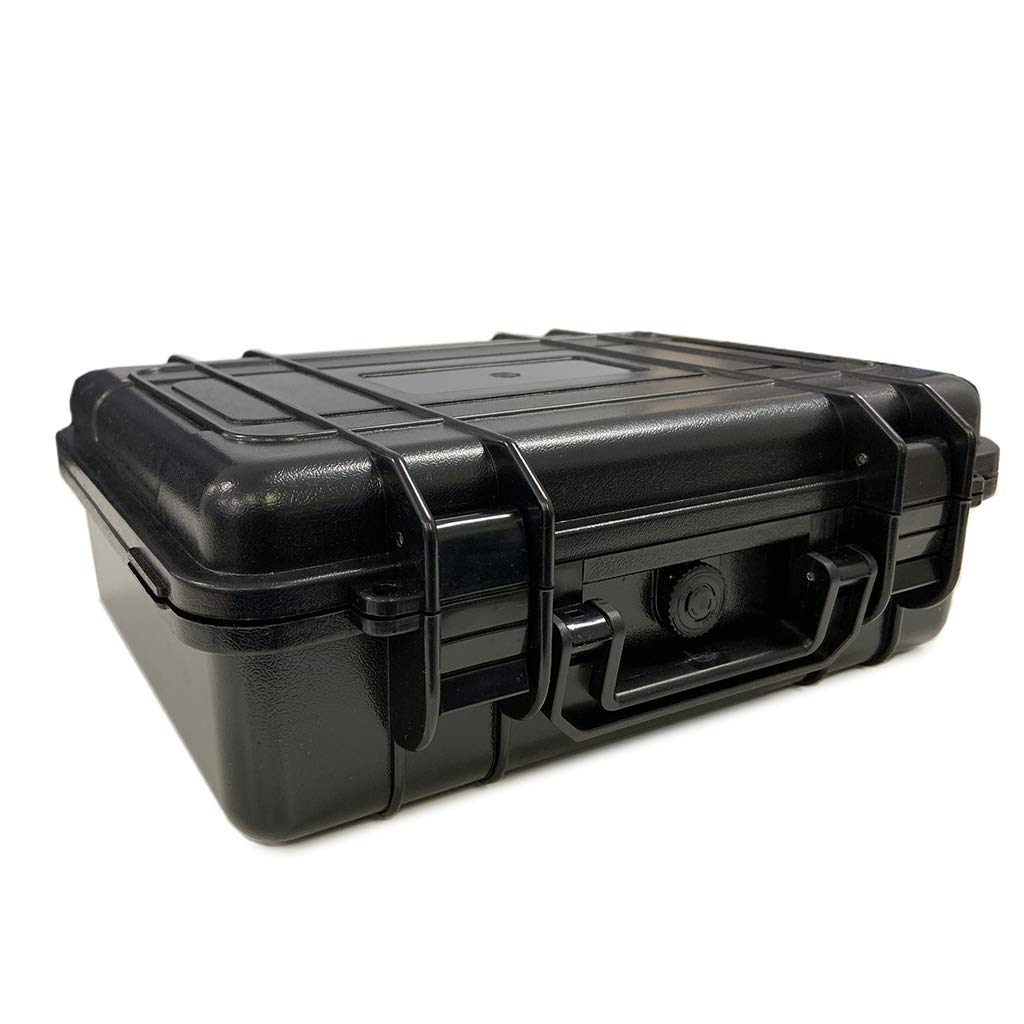

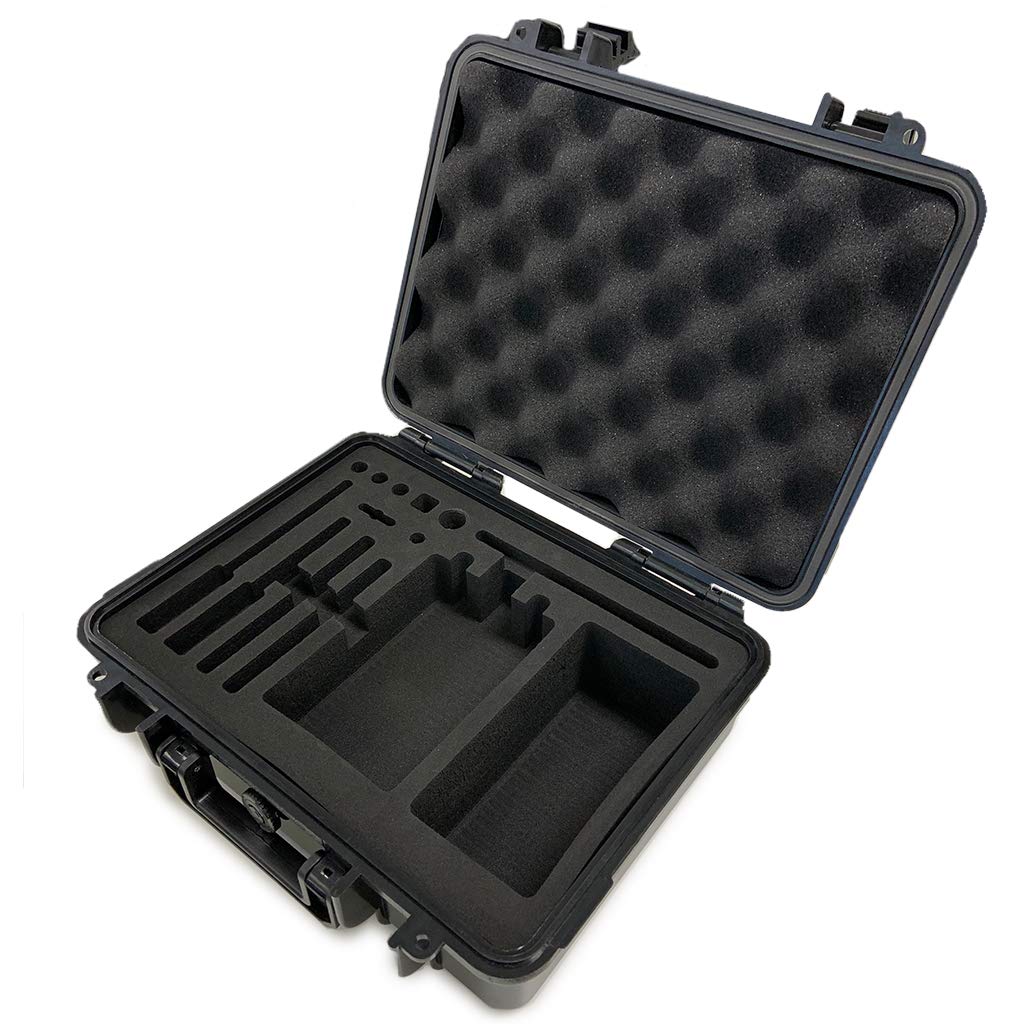

KEEP THE ACCESSORIES ORGANIZED AND PROTECTED - Heavy duty case. Crush, vibration and shock proof. Water resistance. Lockable latches protect your valuables.
2 YEARS WARRANTY AND FREE FIRMWARE UPGRADES - for the RF frequency spectrum analyzer

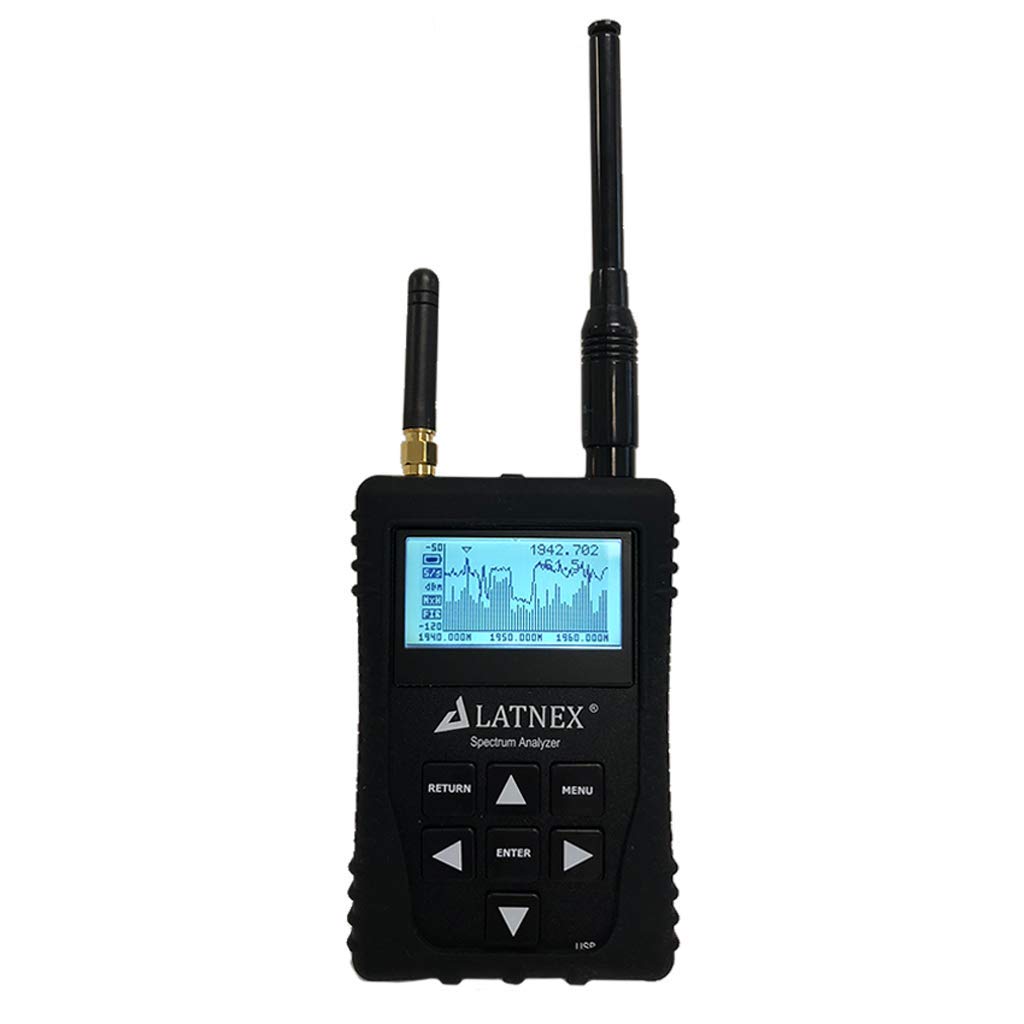

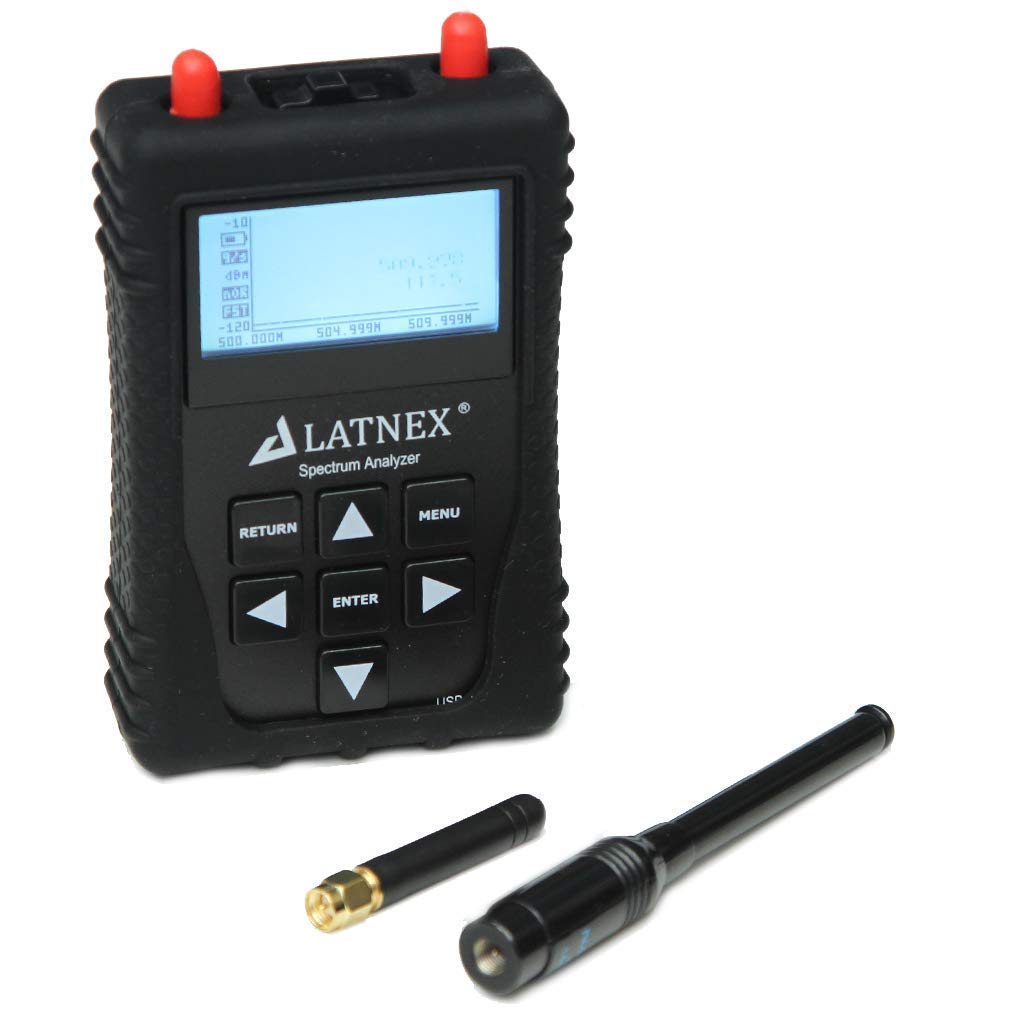

LATNEX SPA-3G Combo is a handheld digital spectrum analyzer, a very affordable tool for work in all popular frequency bands. It is based on a highly integrated frequency synthesizer and double balanced mixer which offers high performance and compact size
It has been designed to be used equally well outdoor and indoor and can be connected to a PC for extra functionality.
Offers coverage for most used communication frequency range used in modern communication technologies including WiFi, Bluetooth, Wireless Audio and Video, LTE, GSM, GPRS, Satellite, CATV, DTV, etc.
Specification
- Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
- High capacity Lipo for 16hs+ of continuous run, rechargeable by USB
- Wideband coverage to all popular RF frequencies, starting at 15MHz and going up to 2.7GHz. This includes very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc.
- Frequency band: 15-2700 MHz
- Frequency span:112KHz - 600MHz
- PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits
- Amplitude resolution: 0.5dBm
- Dynamic range:

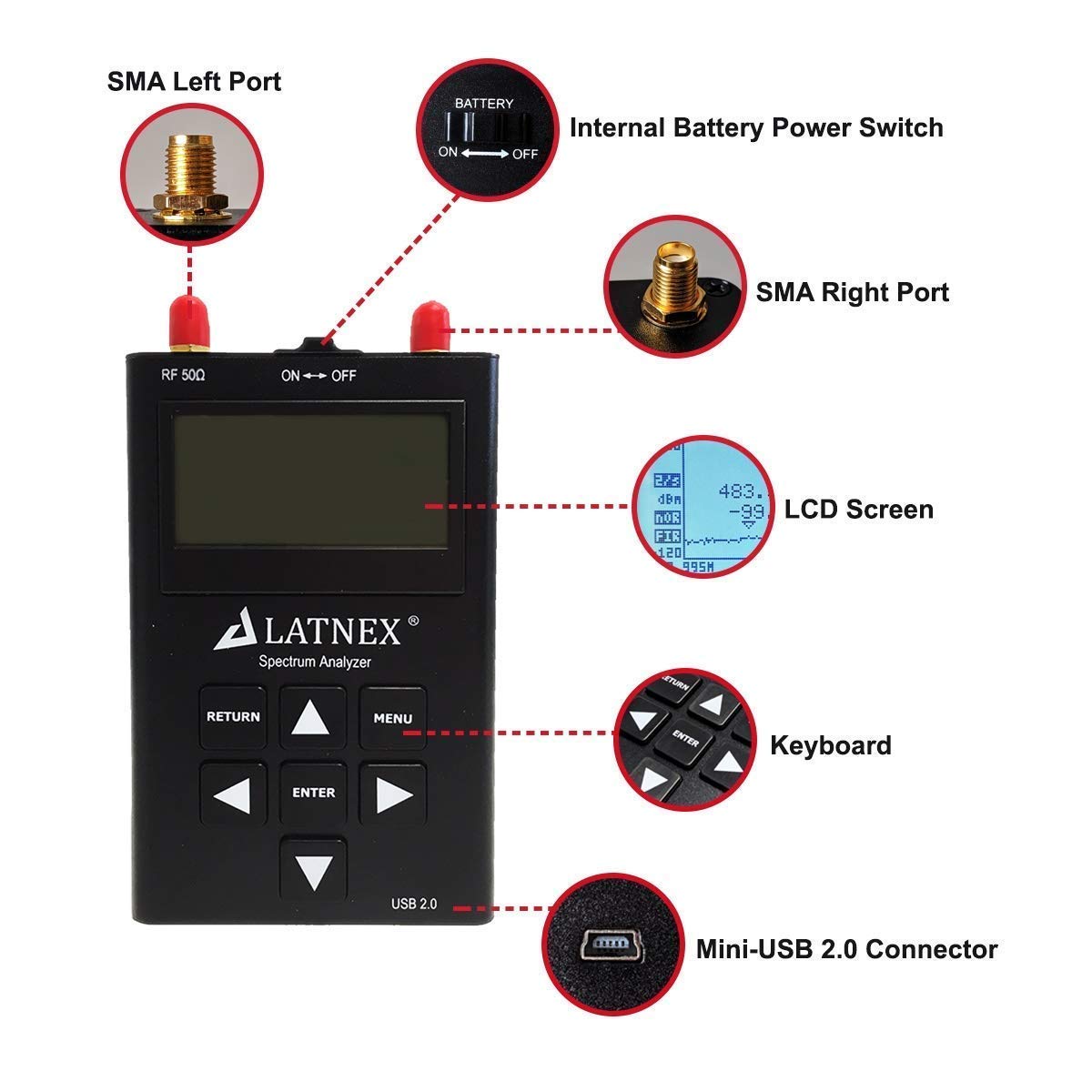

- Left SMA port (WSUB1G): -115dBm to -15dBm
- Right SMA port (WSUB3G): -110dBm to -10dBm
- Absolute Max input power (no damage):
- Left SMA port (WSUB1G): +5dBm
- Right SMA port (WSUB3G): +30dBm
- Average noise level (typical): -115dBm
- Frequency stability and accuracy (typical):+-10ppm
- Amplitude stability and accuracy (typical):
- Left SMA port (WSUB1G): +-3dBm
- Right SMA port (WSUB3G): +-6dBm
- Frequency resolution: 1Khz
- Resolution bandwidth (RBW):automatic 3Khz to 600Khz
