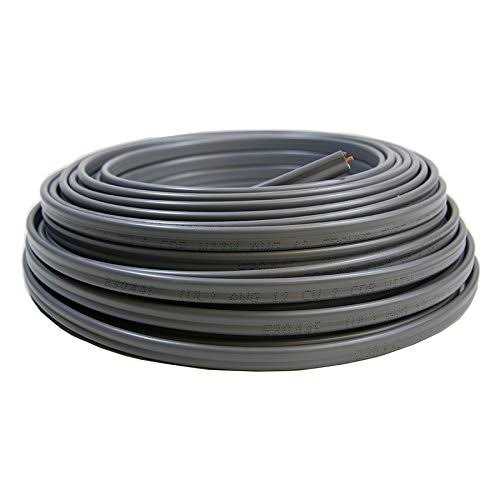

Stock Wire 12/2 UF-B Wire Underground Feeder and Direct Earth Burial Cable c - Shop Hardware Tools Online Store

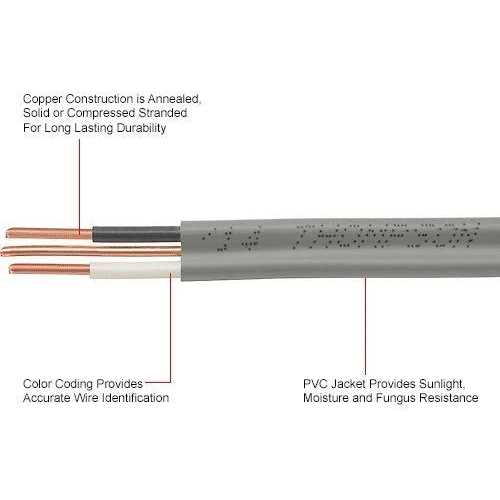

Applications:UF-B is an underground feeder and branch circuit wiring cable. It can be used as an underground feeder from an existing building to outdoor lighting fixtures, pumps, outbuildings and other equipment. Its applications are outlined in Article 340 NEC 2008 and NEC 2011. UF-B is rated at 600 volts. Although it is rated at a conductor temperature of 90C dry / wet, its ampacity is limited to 60C according to the NEC 2008 AND NEC 2011. UF-B may be directly buried or installed where exposed to sunlight. When used as an NM cable it must comply with the requirements in NEC 2008 and NEC 2011 Article 334. Standards:ASTM B3 and B-8UL Standard 83UL Standard 493Federal Specification A-A-59544National Electrical Code, NFPA 70, 2011 EditionRoHS/REACHConstruction:Insulation: Polyvinyl Chloride (PVC) with a nylon covering. Color coded phase identification.Jacket:Sunlight and moisture resistant gray PVC.Specifications:
