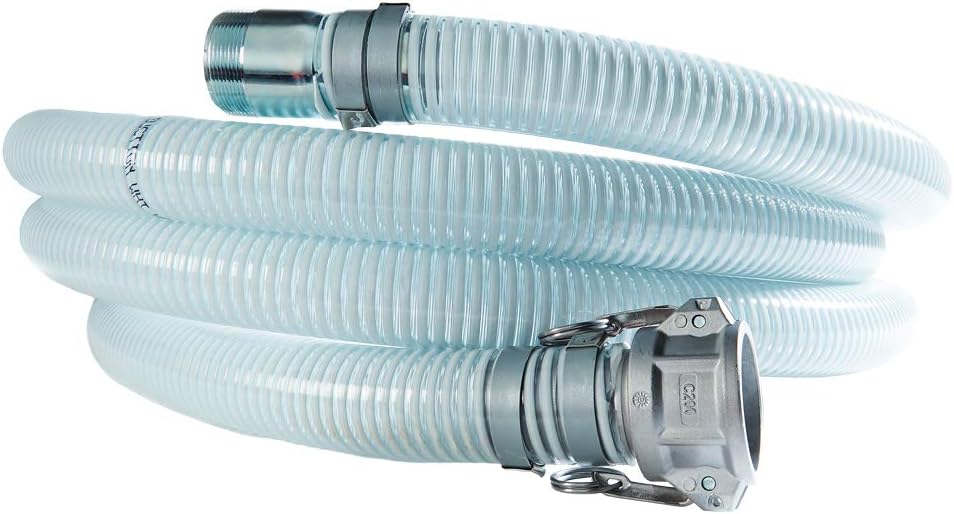

Made in the USA - Suction Hose Length - 20 feet
Hose Size - 2 inches (Inside Diameter)

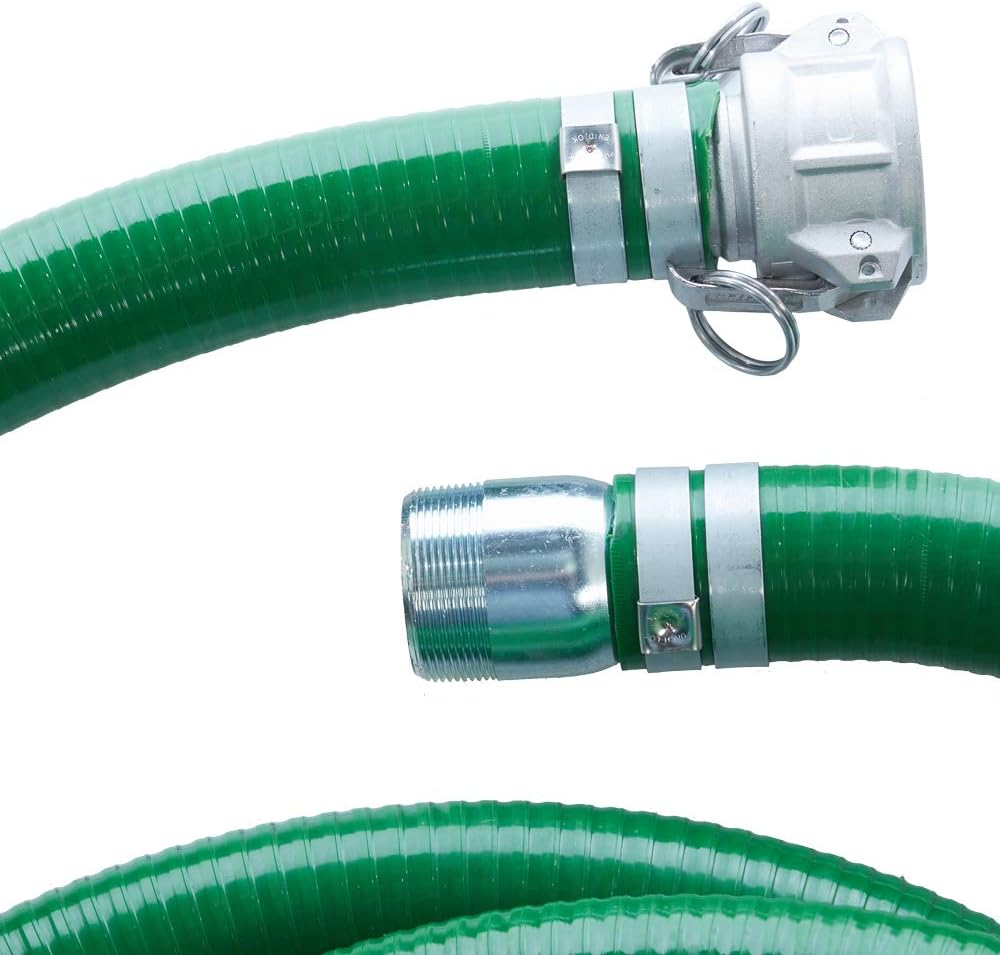

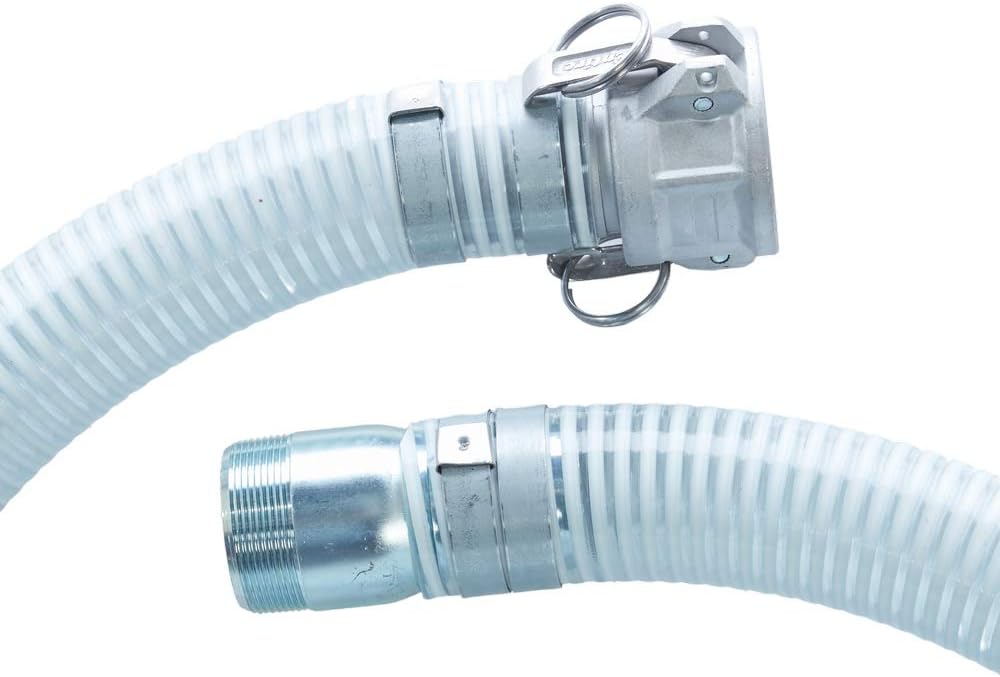

Male Coupling - Rocker Lug 2 inch Aluminum NPSH
Female Camlock Coupling with Gasket - Aluminum 2 inch Type 'C' Shank
Weight Per Foot - .55 pounds
- The Female Coupling Will Only Connect to a Male 2 inch Camlock (Type “E”)
- The Outside Diameter of a 2 inch Male Camlock - 2 1/2” (2.480)
- The Male Coupling Will Only Connect to a Female 2 inch NPT or NPSH
- The Male Coupling Will Connect to most 2 inch strainers
- Working Pressure - 30 psi
- Working Temperature - 140 degrees F to -5 degrees F
- Vacuum Rating - 29 Hg

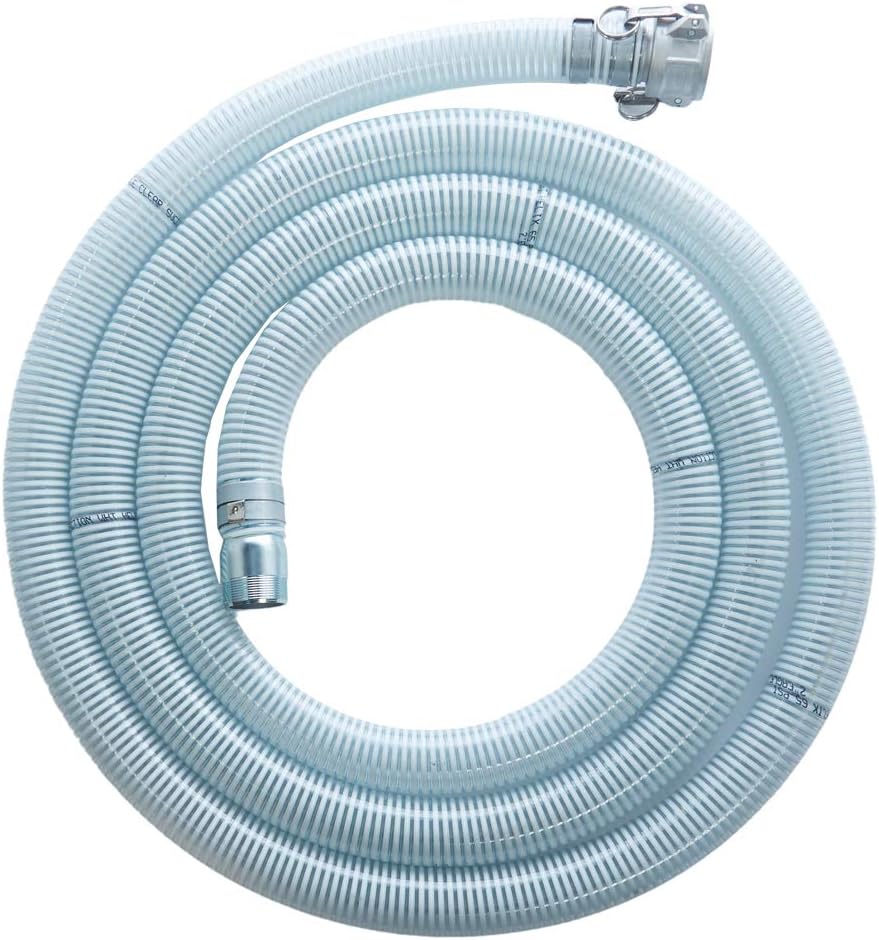

- Hose Color - White and Clear

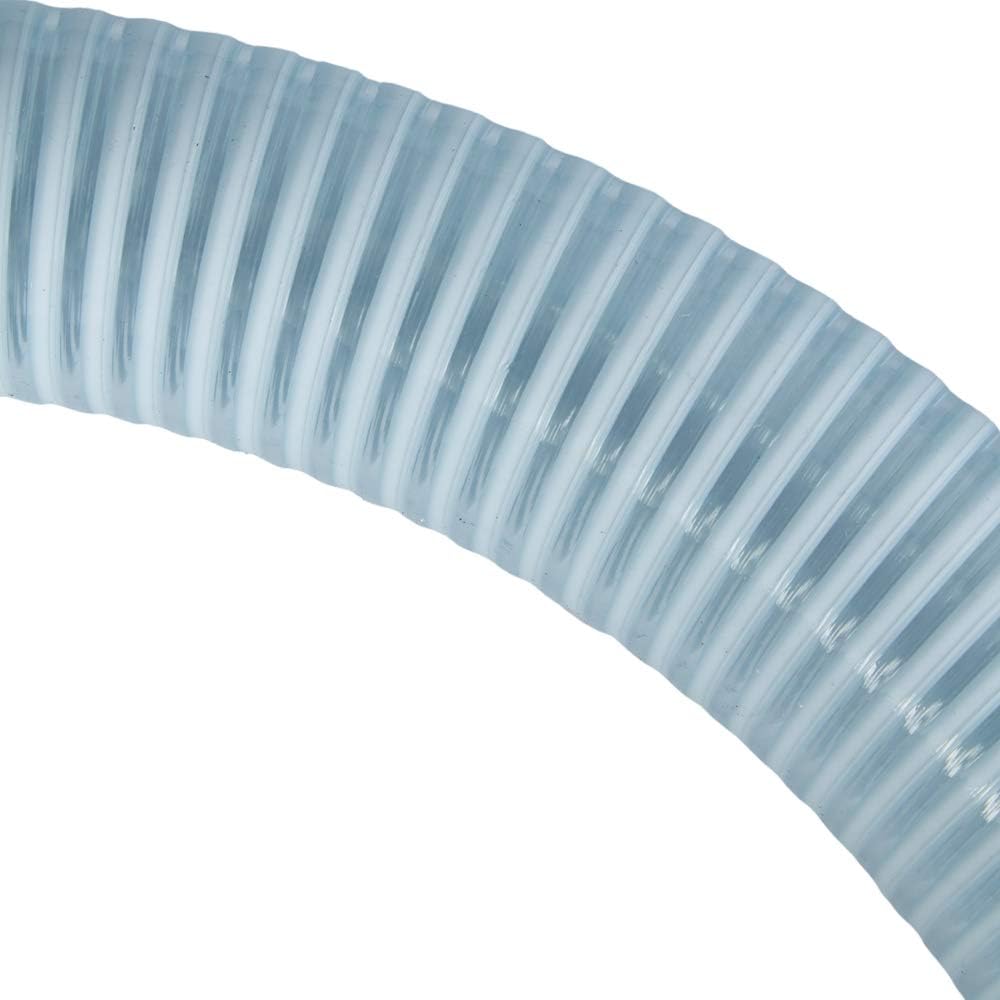

Durable PVC hard suction hose. Clear side wall allows visual check of water flow. External helix ribbing with smooth interior surface for maximum flow while drafting. The anodized aluminum hose couplings are expansion ring and they are not field repairable.
All hoses are vacuum tested before shipment.
May be used on floating strainers or below the ground holding tanks.
Warning - Not intended for hydrant pressure or head pressure from an above ground holding tanks
WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
