About this item

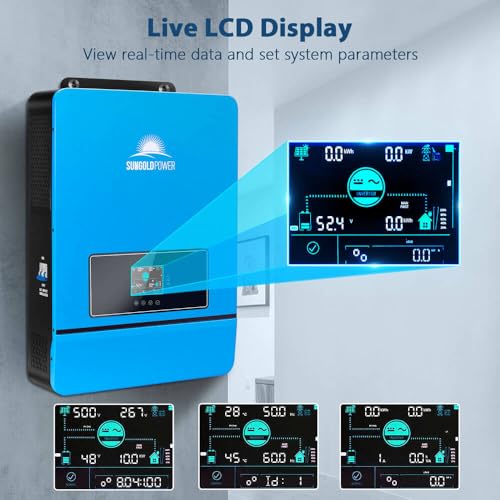

• 【All-in-one solar charge inverter】: SUNGOLDPOWER 10KW DC 48 volt UL1741 Pure Sine Wave Solar Inverter Combined with Max. 200A battery charging, 2 MPPT Solar controller inbuilt, Max.Voltage of Open Circuit : 500VDC, Split phase (120V/240V) or Single phase (120v) output. Wifi module is included, which allows the user to view the operating status and parameters of the inverter via the mobile phone APP. Parallel up to 6 units
• 【Stable AC output and Smart Protection】:Rated Output Power:10000W, Max Peak Power:20,000W, loaded motor capacity 6HP, PV input over-voltage/current protection, AC input over-voltage protection, Battery over-voltage protection,Over-load protection and so on.

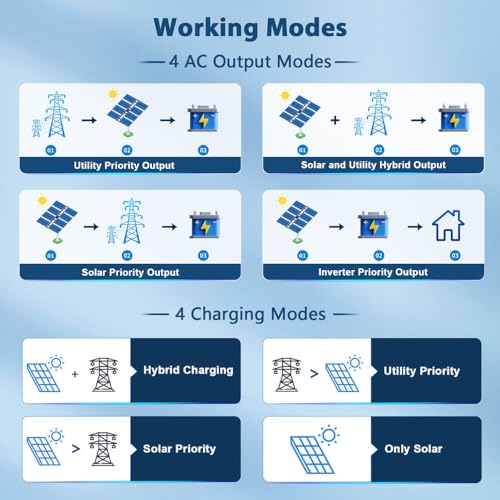

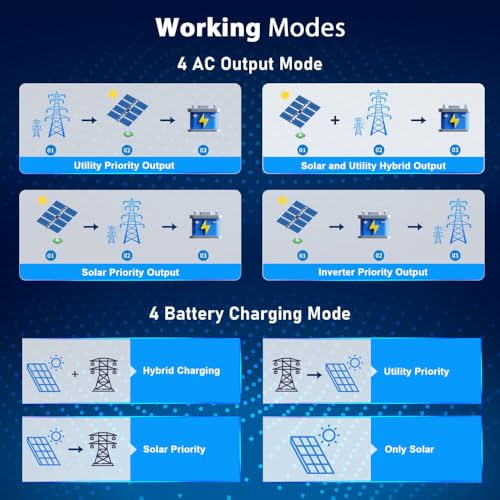

• 【Four charging / Output modes】: Hybrid Charging / Utility Priority Charging / Solar Priority Charging / Only Solar Charging, 4 output modes: Utility Priority / Solar and Utility Hybrid / Solar Priority / Inverter Priority to meet your different requirements.

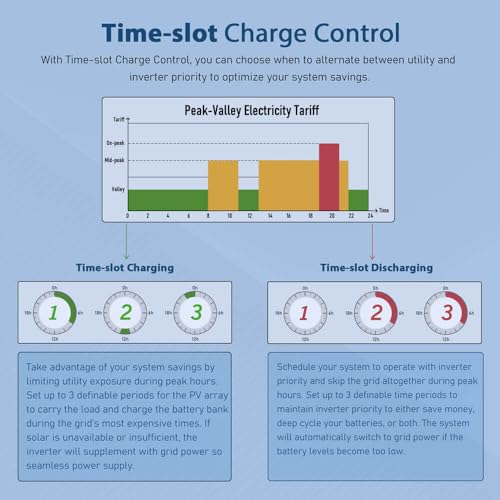

• 【Time-slot charging/discharging function】:The SPH series is equipped with a time-slot charging and discharging function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs, so that the utility power and PV energy can be used rationally.
• 【Battery type】: SUNGOLDPOWER 10000W DC 48V solar inverter is compatible with 48V AGM/Sealed,Gel, Flooded, Lithium batteries and a User Mode to work with all battery types. And supports battery-free. When the lithium battery is dormant, the mains power and photovoltaics can activate the lithium battery. Support Can, USB and RS485 communication with SunGoldPower batteries.
