Supco Sm4753 Draft Inducer Furnace Blower Motor for Carrier 318984-753

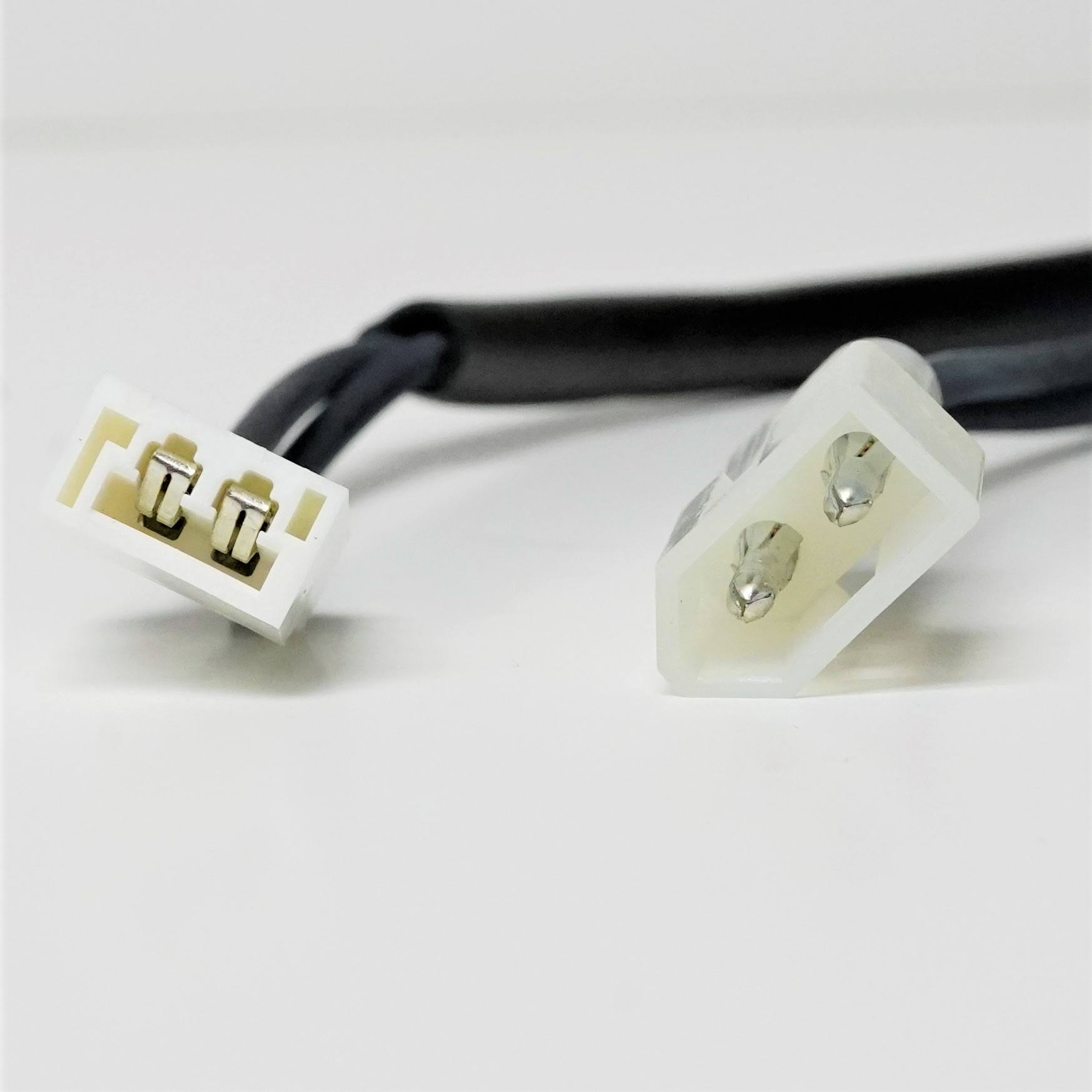

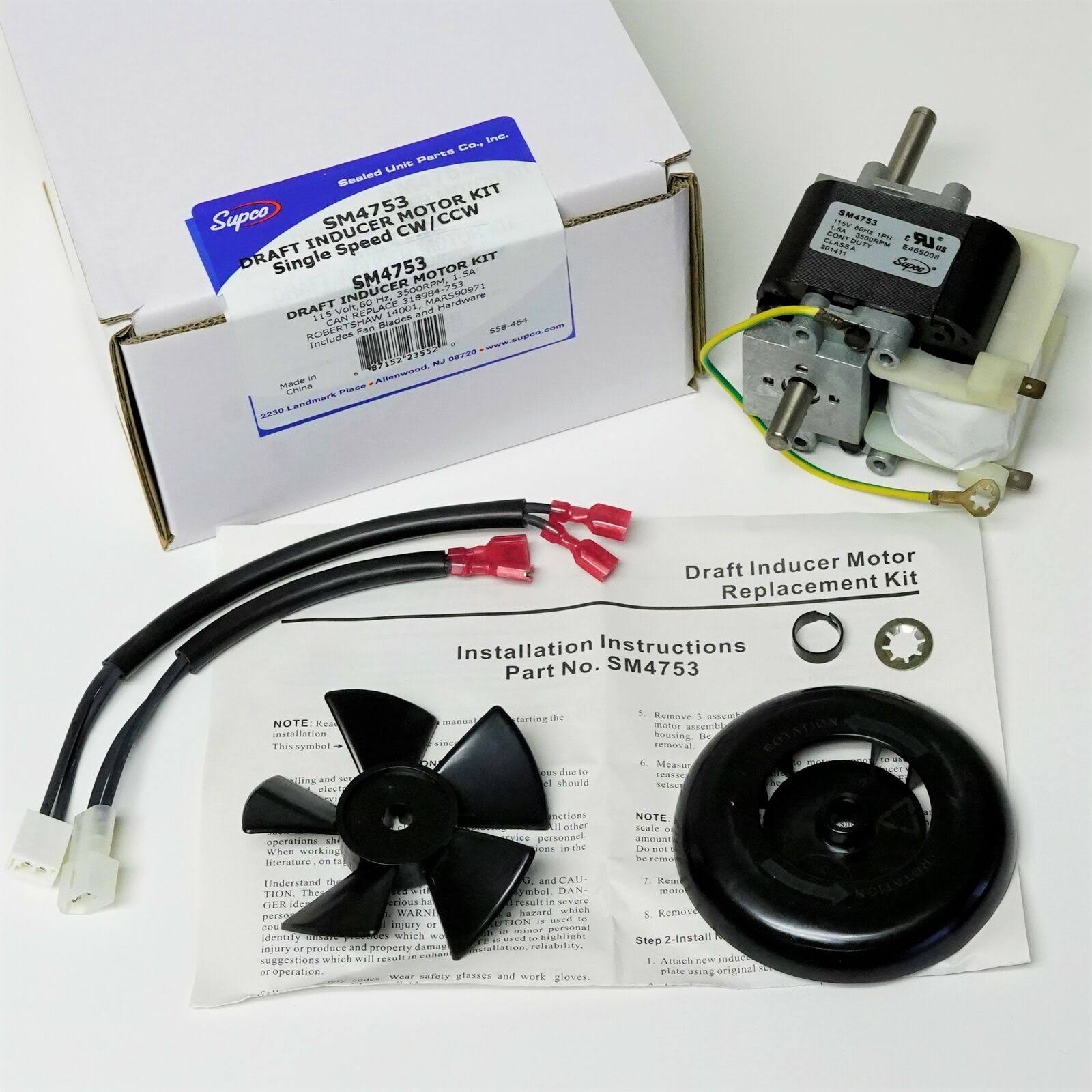

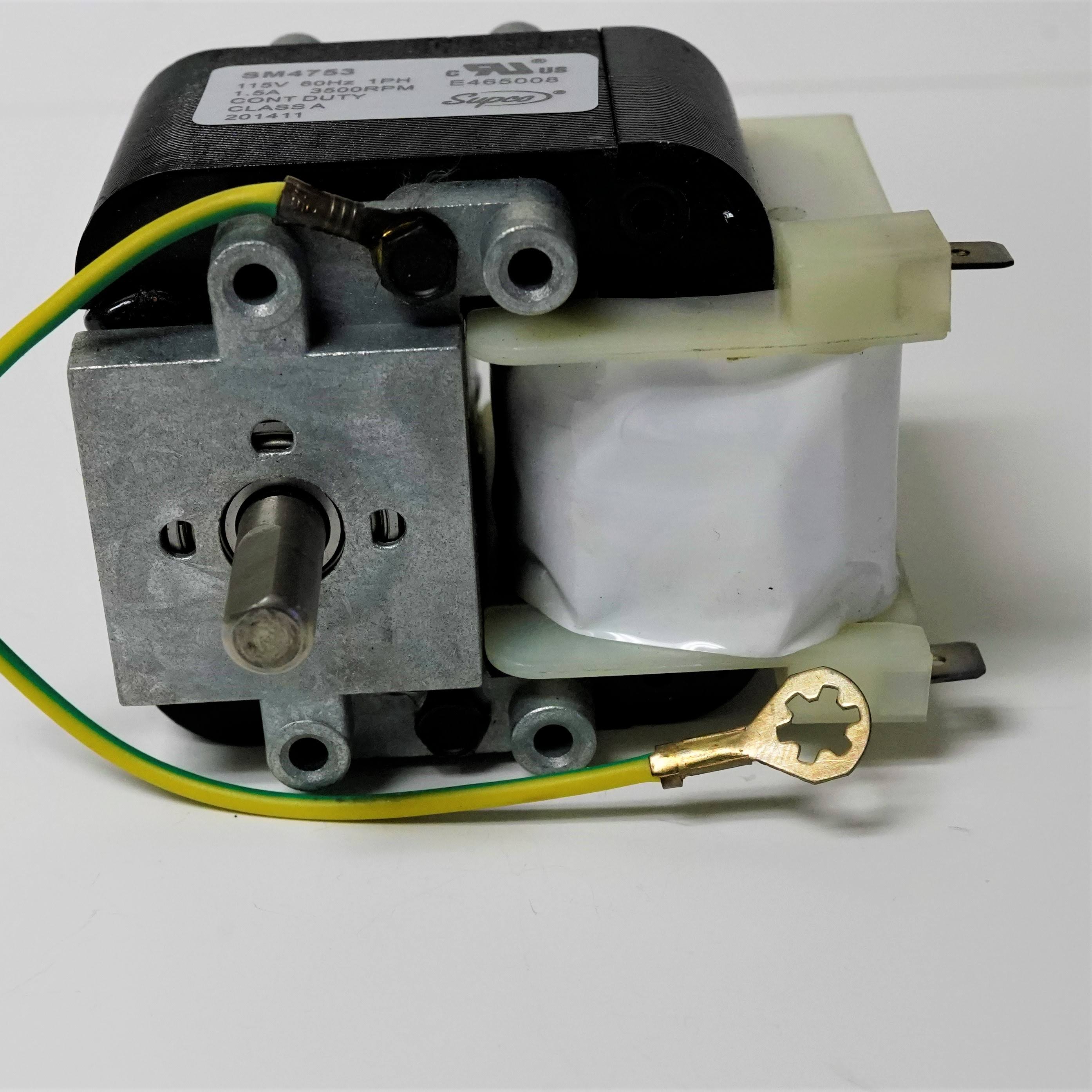

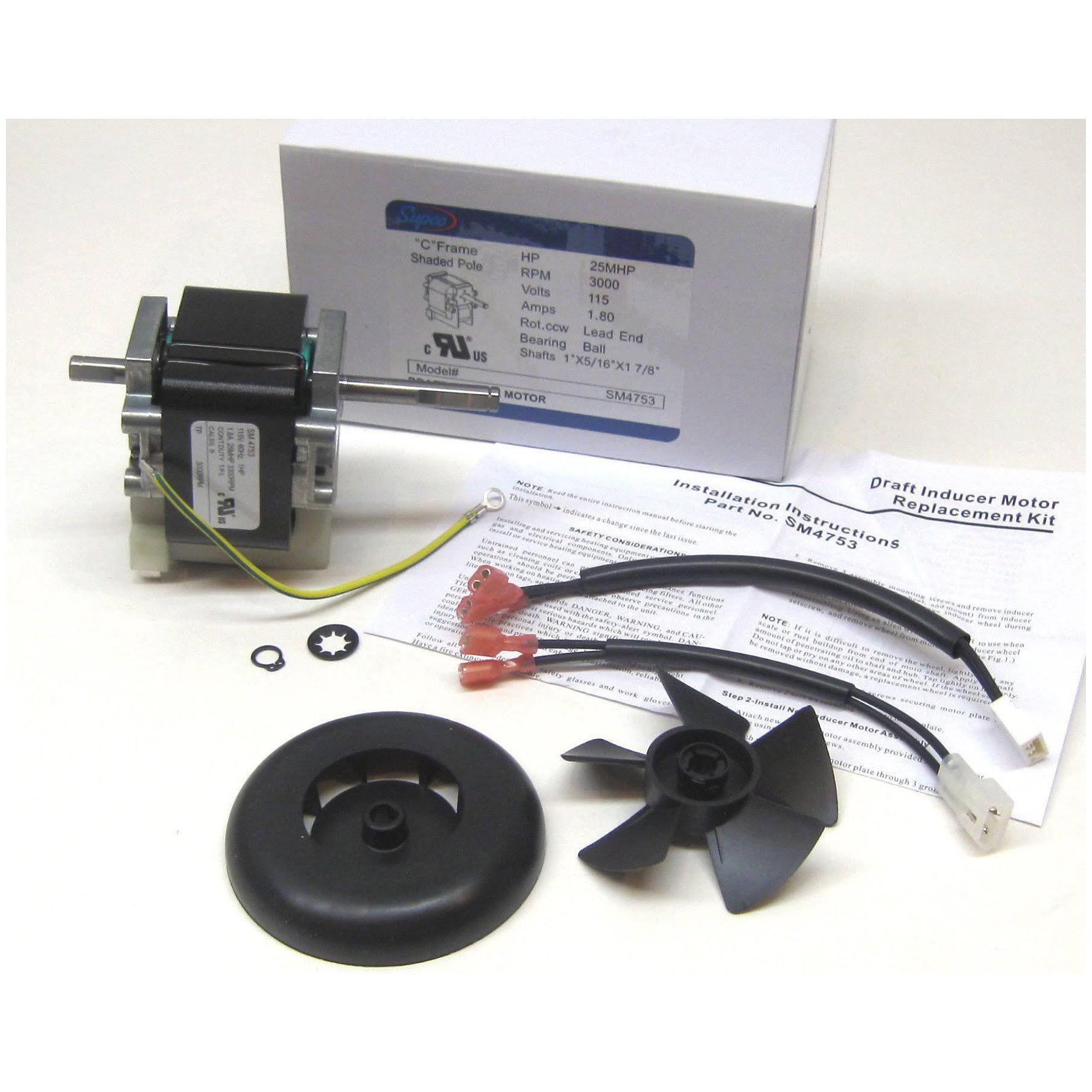

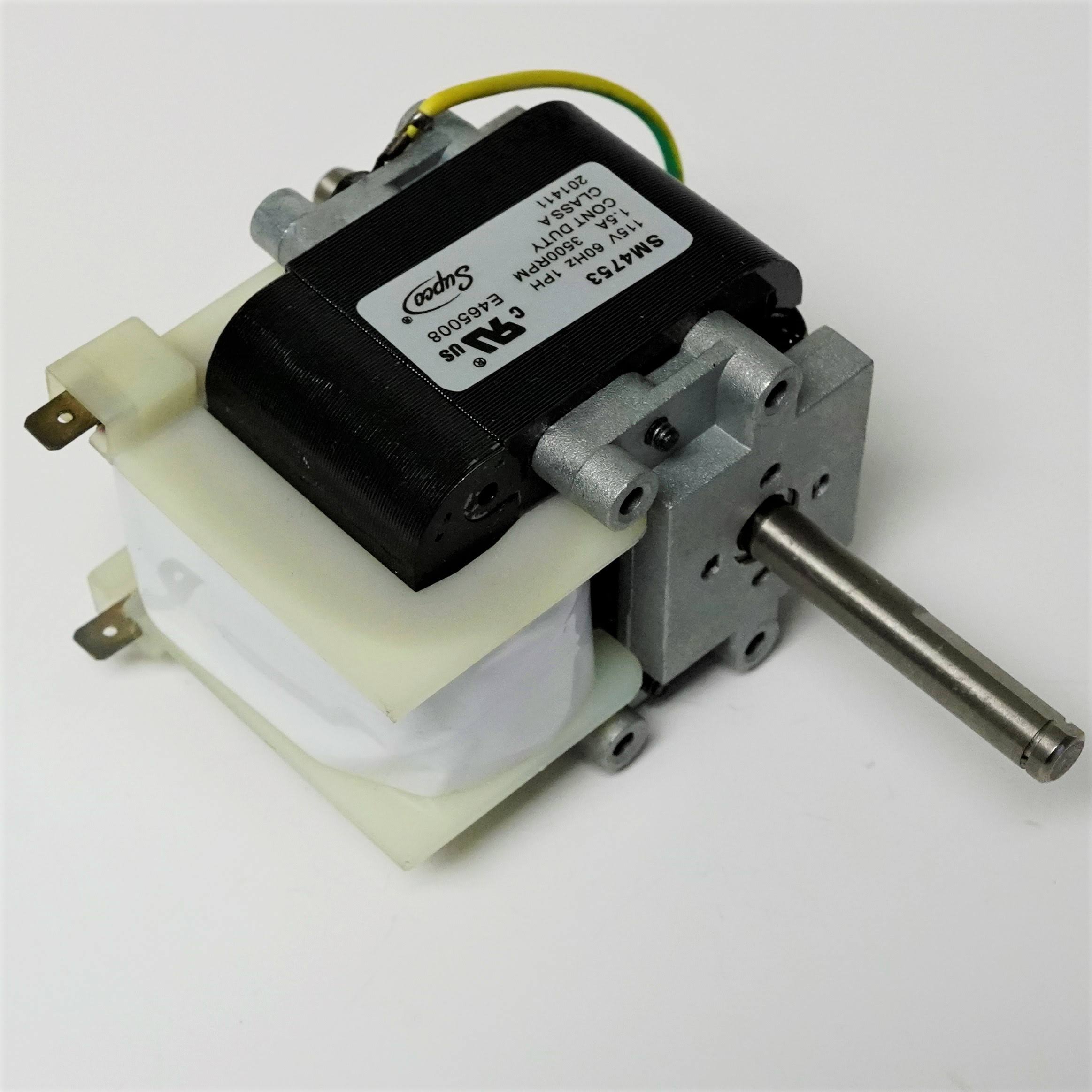

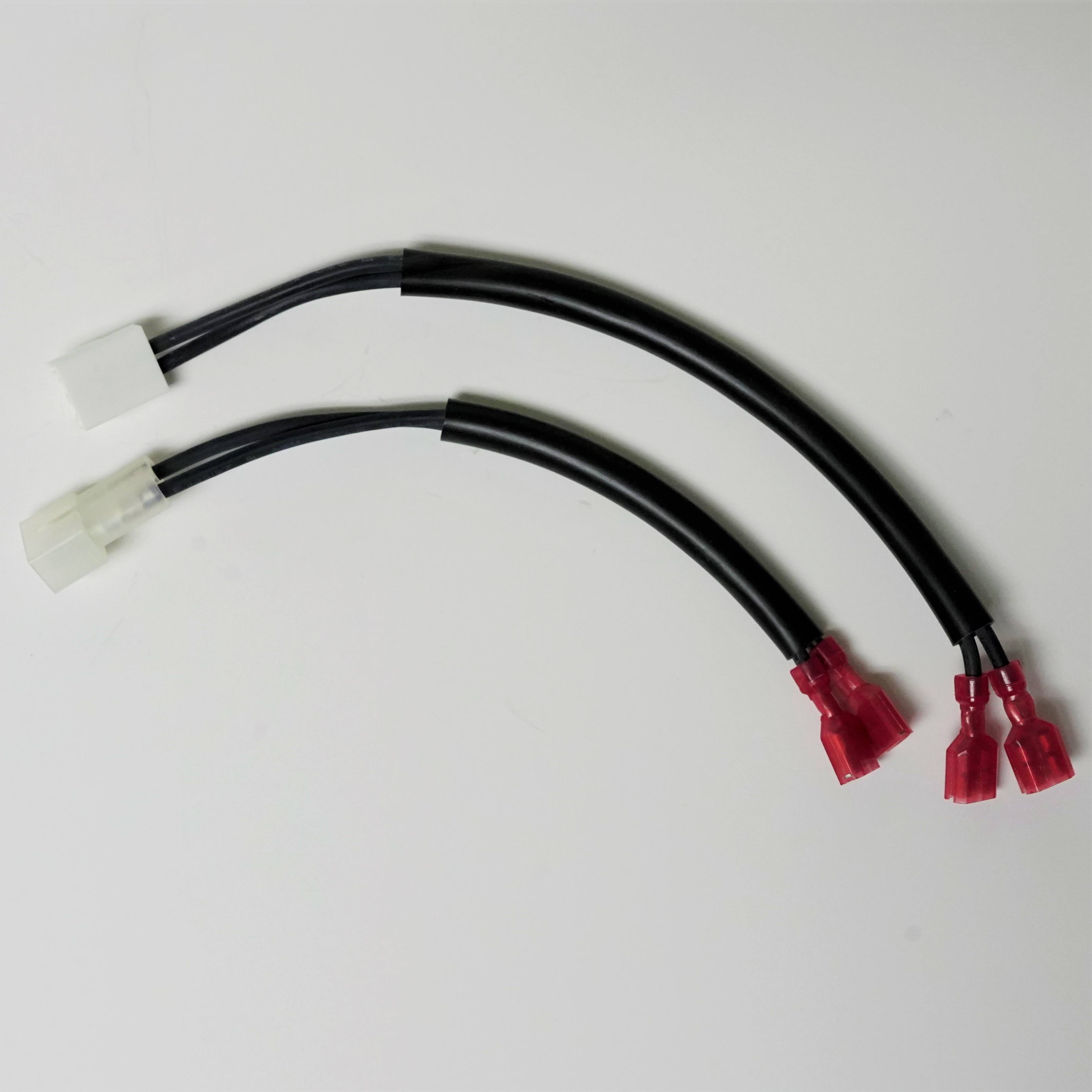

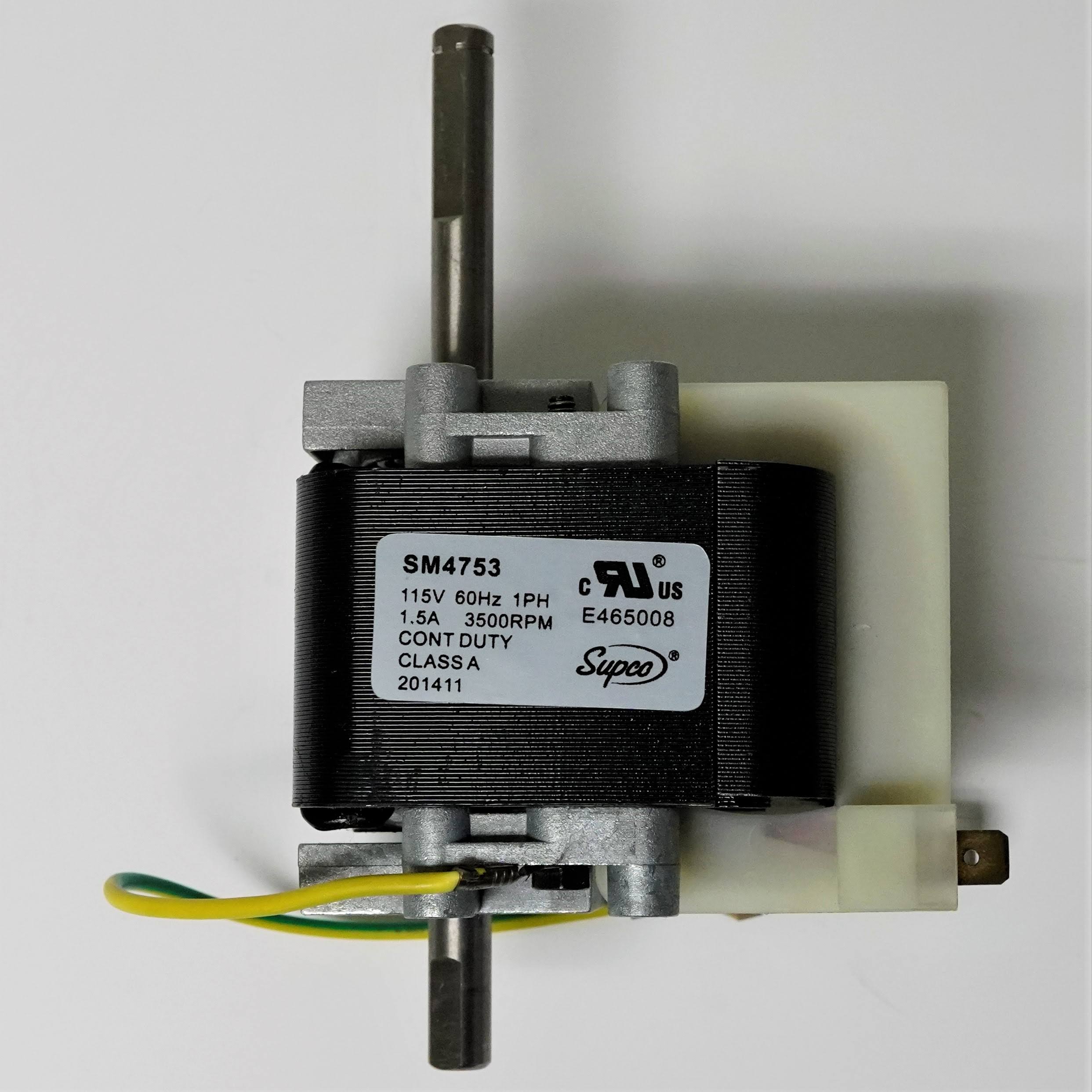

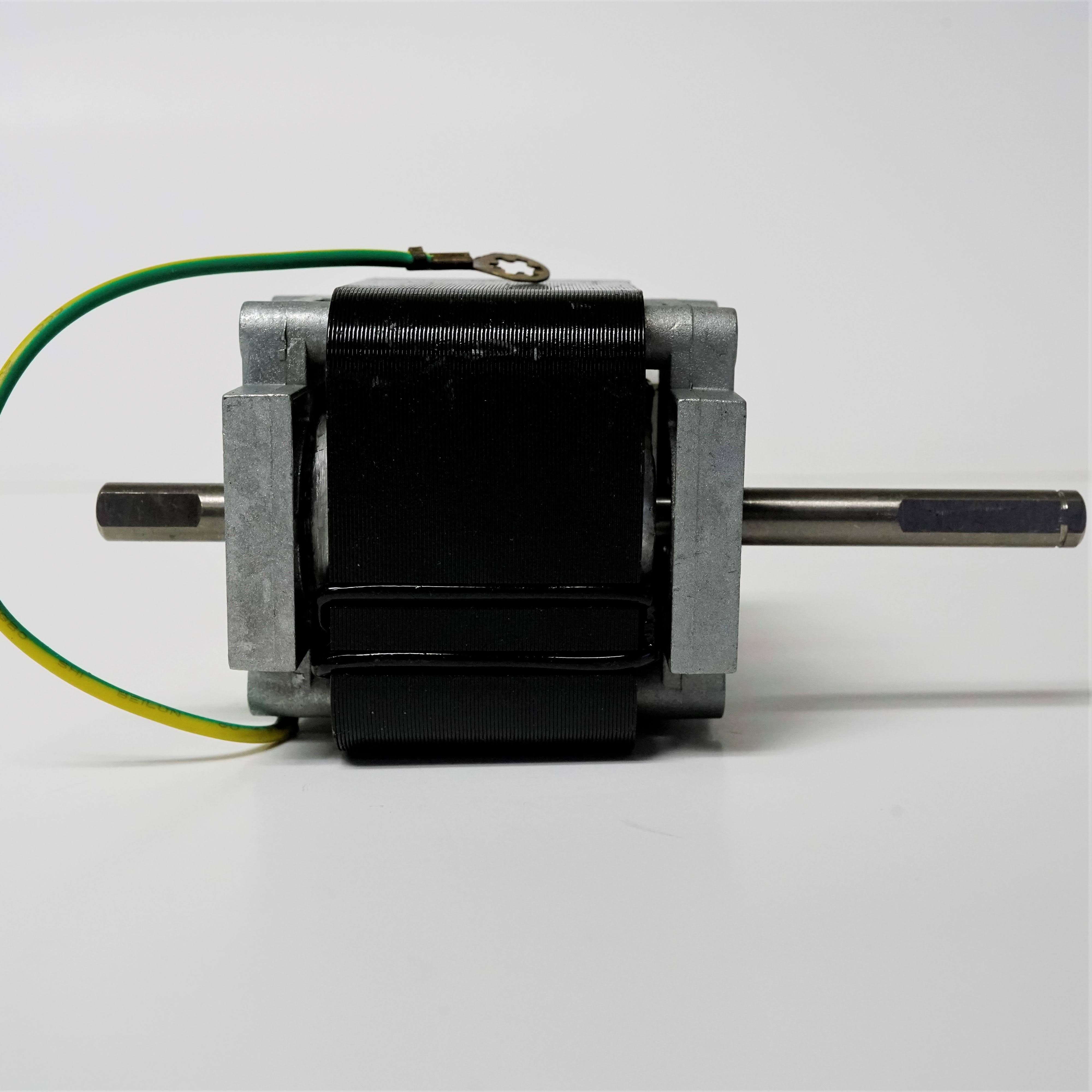

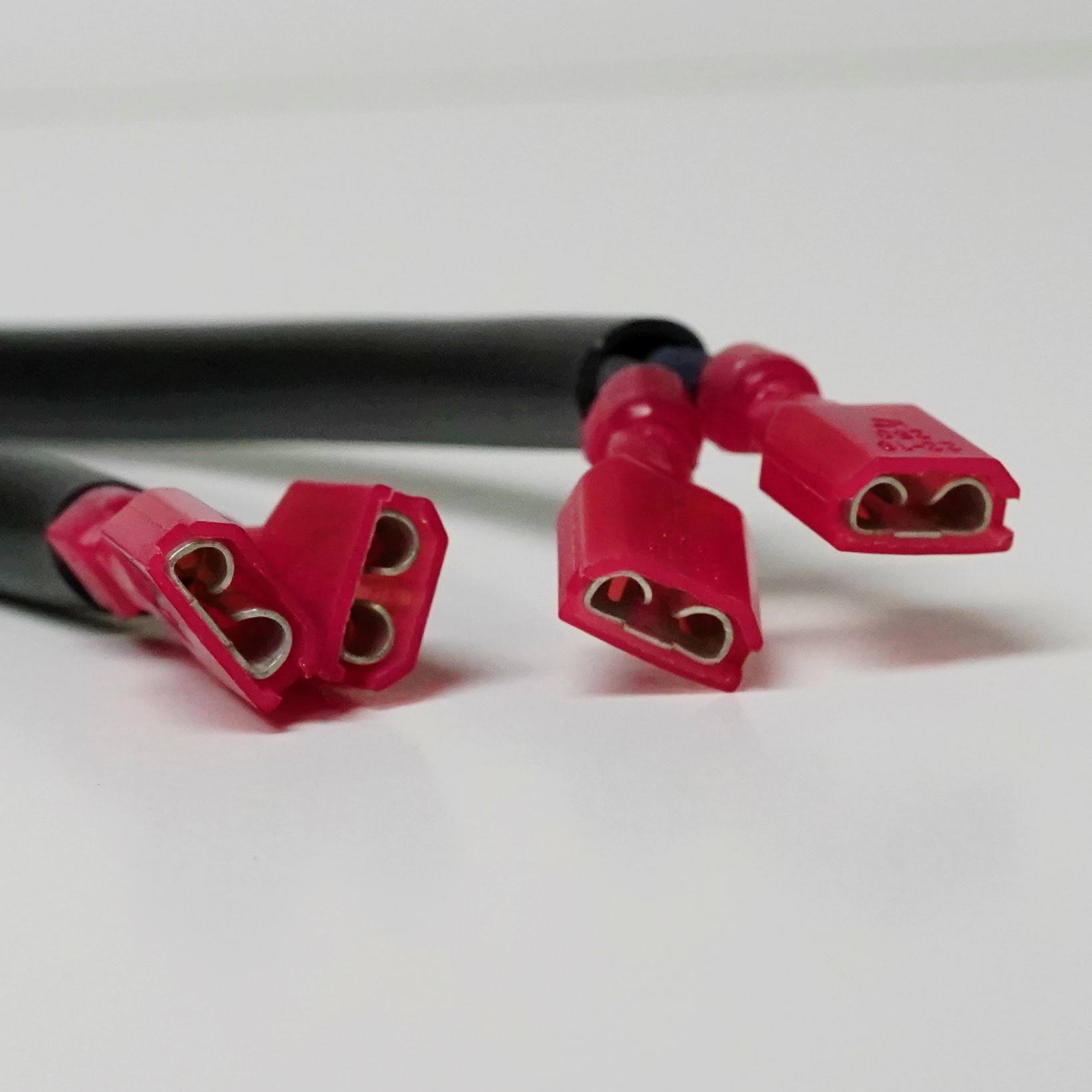

Supco draft inducer blower motor part number sm4753. This fits specific carrier units and is a replacement for carrier number 318984-753. Motor specifications are: 115 volts 1.8 Amps 3000 rpm shaded pole c frame motor ccw rotation lead end short shaft end shaft dimensions: 1in x 5/16in diameter x 1-7/8in, flat spot on both shaft ends. 2 Male spade connectors for wires to attach to on short shaft end. Included is 2 wiring harnesses, one harness has a plug w/ 2 male bullet type connectors, the other harness has 2 female clip type connector on the plug end. 1 Wheel and 1 blade included. Instructions included.
