About this item

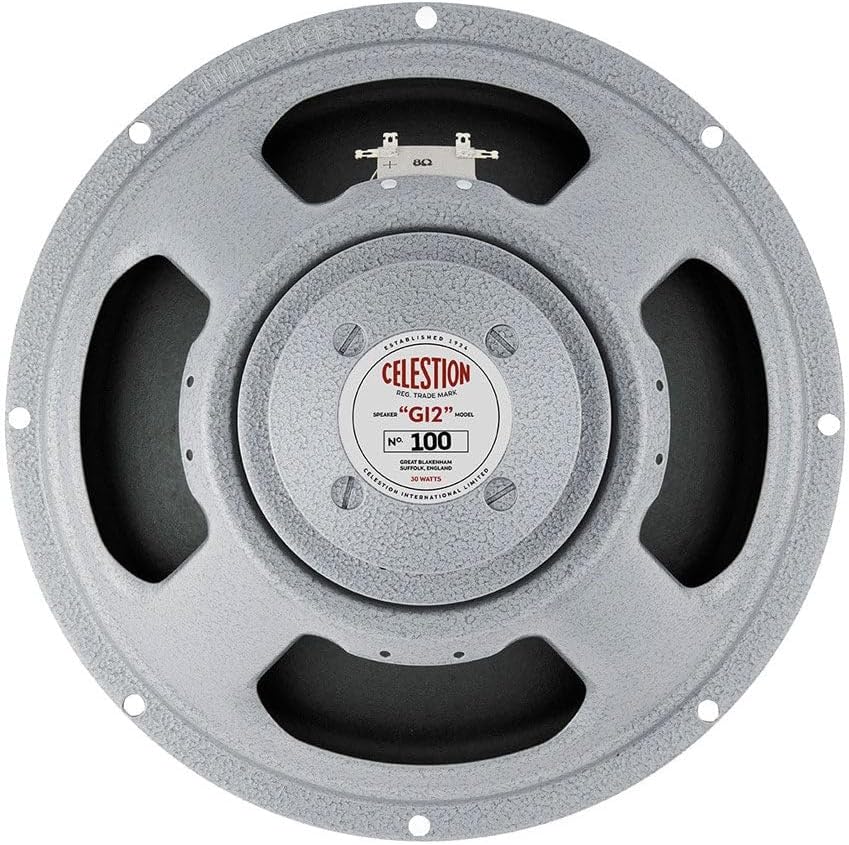

• GENERAL || Brand : CELESTION || Model Number : T100 || UPC : 739894010009 || Product type : Cone driver Reference : Celestion 100 Shape & Materials || Front Chape : Cylindrical || Magnet Type : Alnico || Basket Material : Acier ||
• SPECIFICATIONS || Nominal diameter : 305mm / 12in || Power rating : 30W || Rated impedance : 8Ω || Sensitivity : 100dB || Chassis type : Pressed steel || Magnet type : Alnico || Voice coil diameter : 1.75in / 44mm || Frequency range : 75-5000Hz || Resonance frequency, Fs : 75Hz || DC resistance, Re : 6.6Ω ||
• MOUNTING INFORMATION || Cut-out diameter : 283mm / 11.1in || Diameter : 309mm / 12.2in || Magnet structure diameter : 104mm / 4.1in || Mounting hole dimensions : 104mm / 4.1in Ø || Mounting hole PCD : 297mm / 11.7in || Number of mounting holes : 8 || Chassis depth (inc gasket) : 92mm / 3.63in || Magnet depth : 55mm / 6.5in || Unit weight : 4kg / 8.8lb ||
• Meticulously hand-crafted in the UK, the Celestion 100 celebrates the world’s first purpose-built guitar loudspeaker which, in various guises, has voiced some of the most legendary and memorable riffs and solos of all time. ||
• Referencing our own collection of early alnico speakers, the Celestion 100 is born of a painstaking research and development process, analysing, understanding and then replicating the very essence and tone of these exquisite collector’s items in a speaker that looks as great as it sounds.
