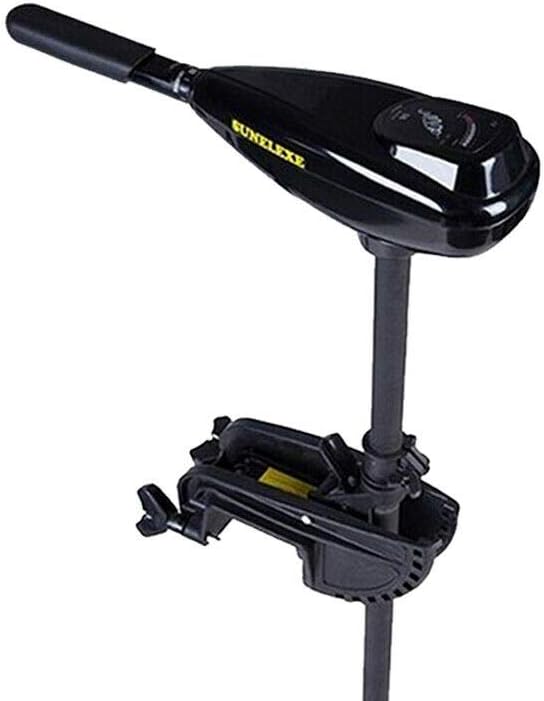

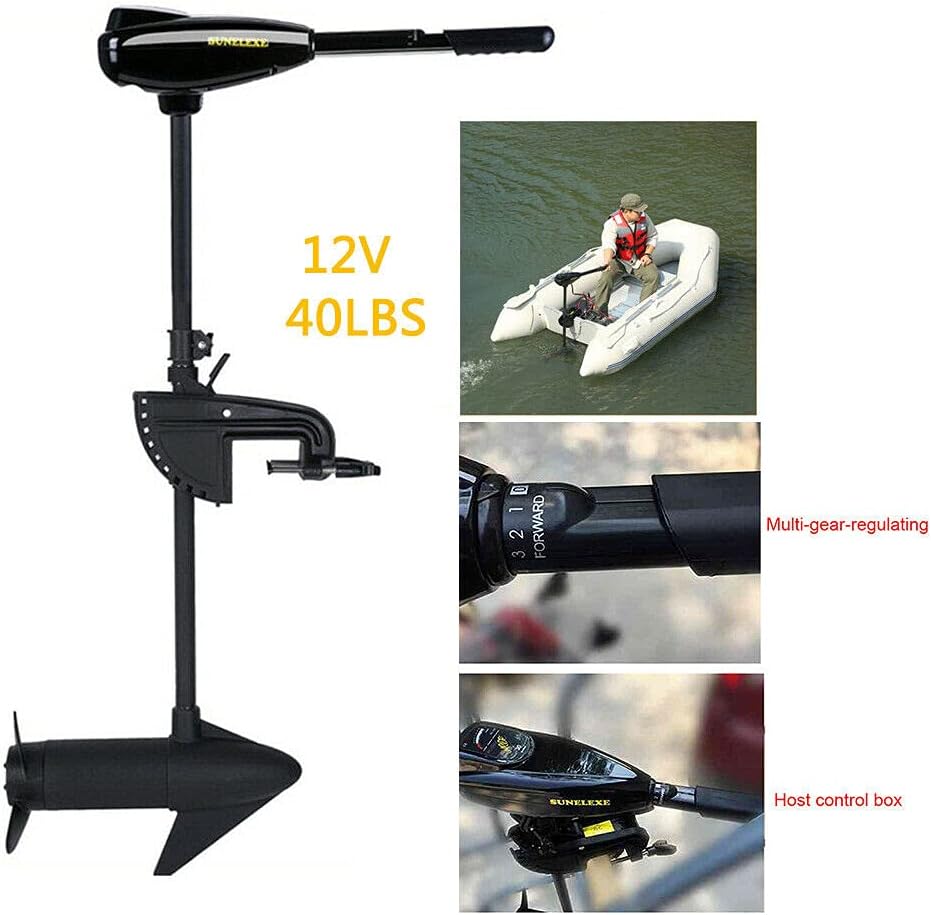

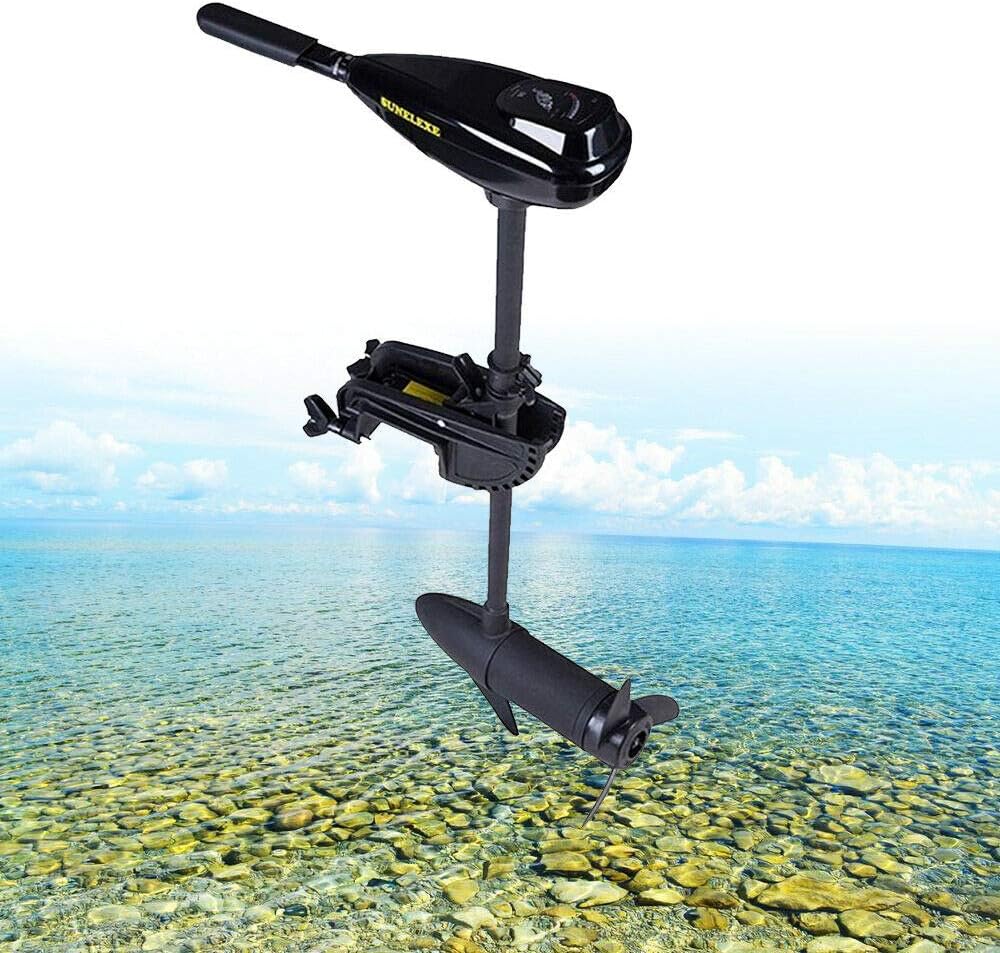

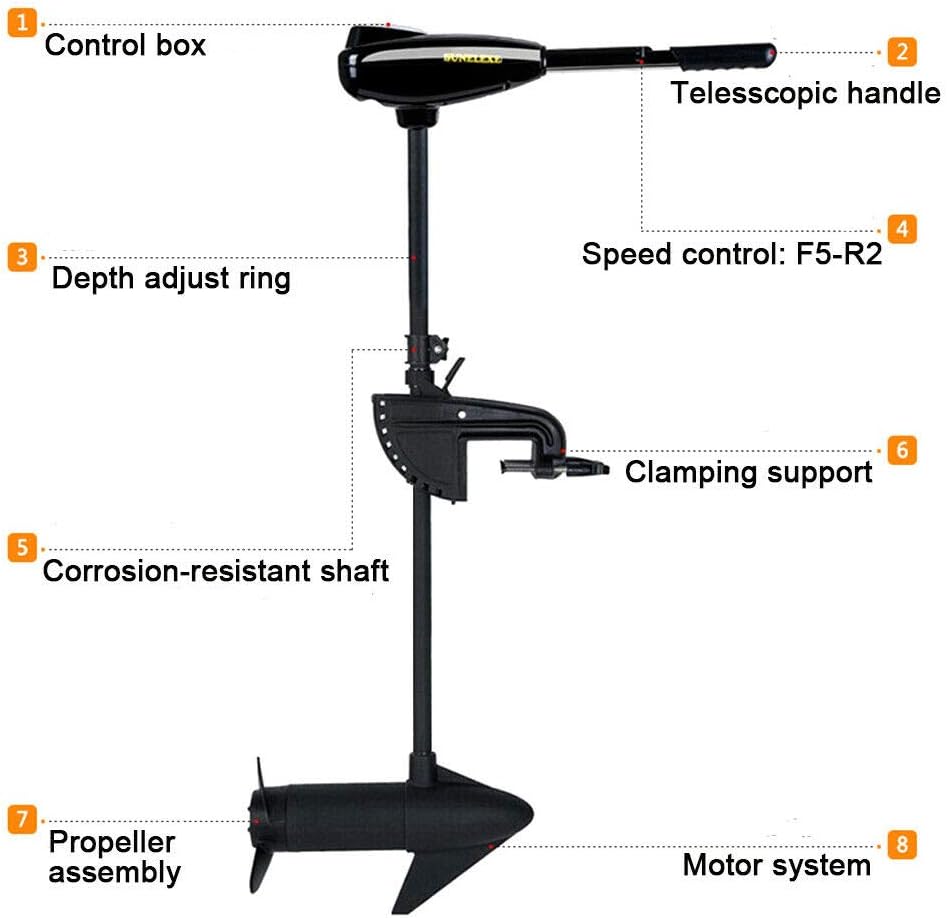

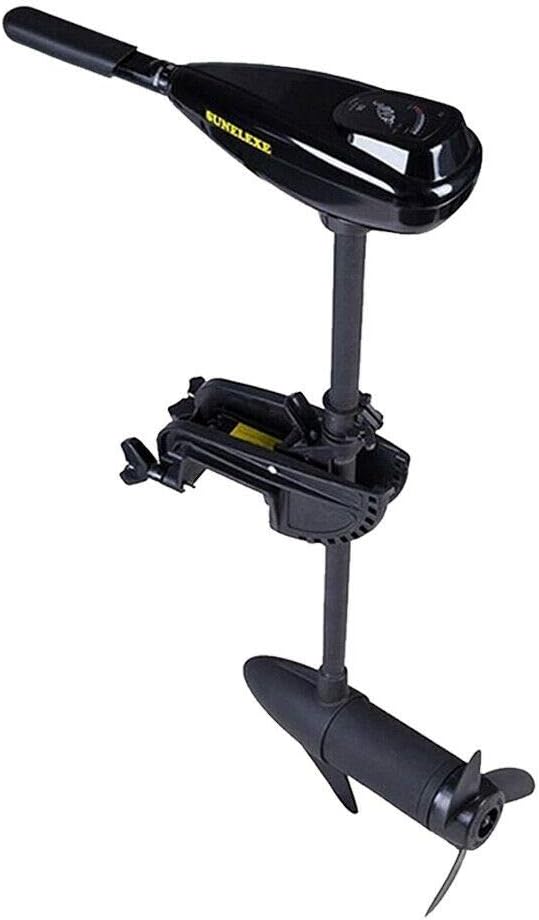

【408W Outboard Trolling Motor】 408W Outboard Trolling Motor, superior brush motor for improving engine performance. Telescopic control handle, 40LBS thrust, quick start, superior performance, durable and environmental protection. Compact structure, heavy duty and easy to carry, anti-corrosive construction, forward and neutral design.
【Features】 Strong power, Low energy consumption and Long service life because of the pure copper core brushless motor.A muffler works for the motor to decrease the noise.Omni-directional rotary joystick.Anti-winding function when Increase the thickening of the propeller.
【Main Parameters】 Model: L40; Speed control: F5-R2; Motor type: Brush motor; Rated voltage: 12V; Rated speed: 1700 R/min; Rated current: 34A; Rated power: 408W; Control handle: Telescopic type; Maximum speed: 6 km/h; Noise DB: 50db; Thrust（kg）:It is recommended to propel small boats weighing less than 200kg

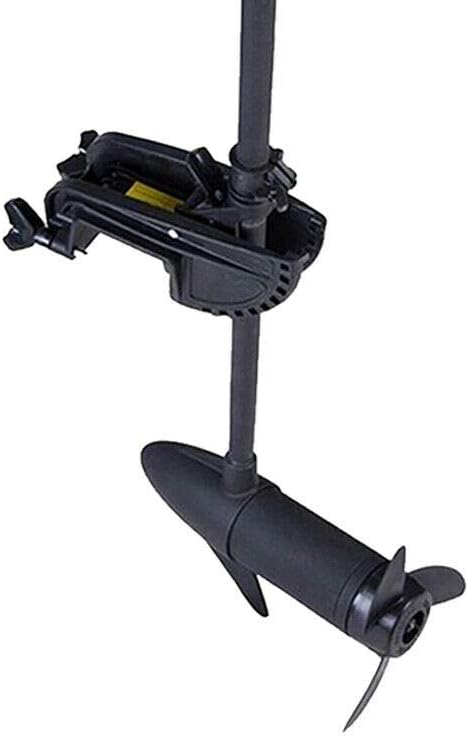

【 Unique Design】Electric Trolling Motor is equiped with three bladed propeller, which can enhance effiency and motivation. Three sharp blades make it easy to get rid of seaweed and other weeds.
【 Applications and Service】Perfect match inflatable boats, fishing boats, sailboats, and small yachts.Performance More Superior,quick start,positions the motor at several angles.We have our own overseas warehouse and a professional Customer Service Team to reply you within 24 hours. If you have any questions, please feel free to contact us. We promise you that we will do our ultmost to solve it for you firstly.
Note：
The battery is not included！
Please Read The Instruction Before You Use It
Do not shift too fast, you need to switch one by one.
Specifications：
Model：L40
Thrust（kg）:It is recommended to propel small boats weighing less than 200kg

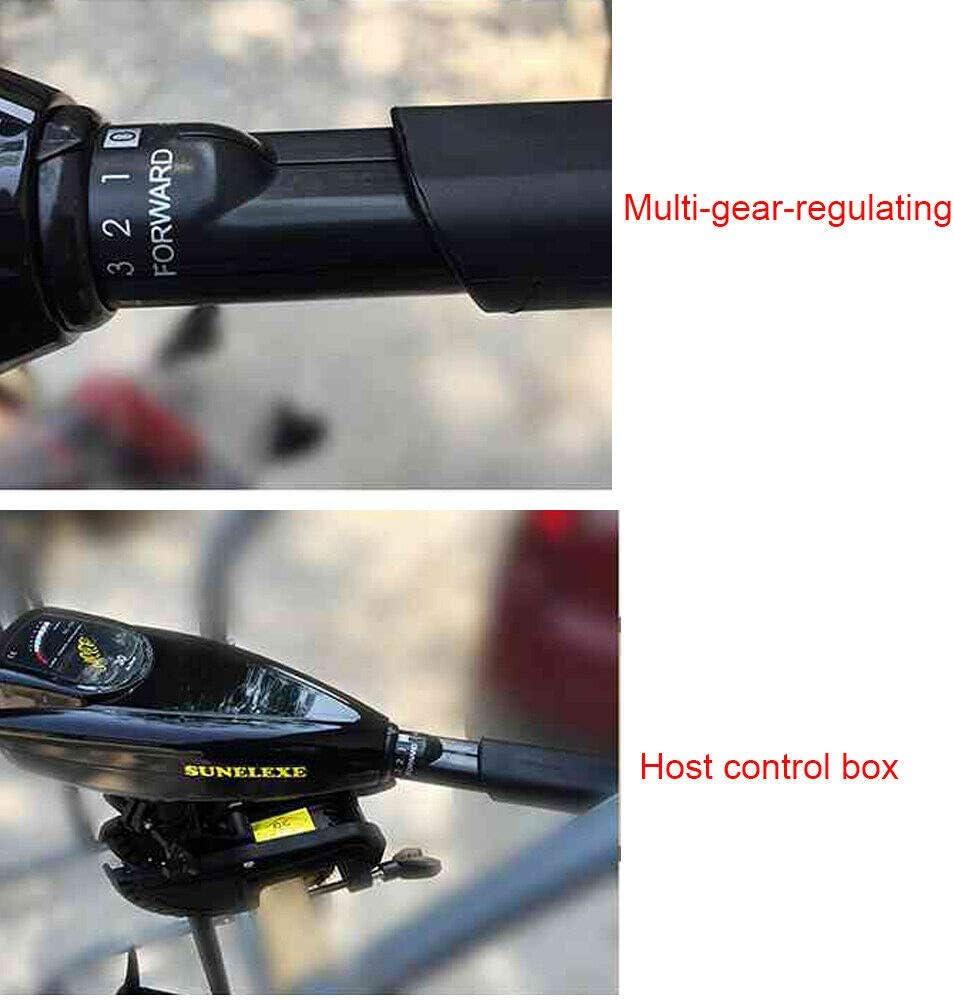

Speed control: F5-R2
Motor type: Brush motor
Rated voltage(V):12
Rated speed(R/min):1700
Rated current(A):34
Rated power(W):408
Control handle: Telescopic type
Maximum speed(km/h):6
Noise DB:50db
N.W./G.W.(kgs)7.8/9.3（17.2/20.5lb）
Propeller model(in):3 leaves/9

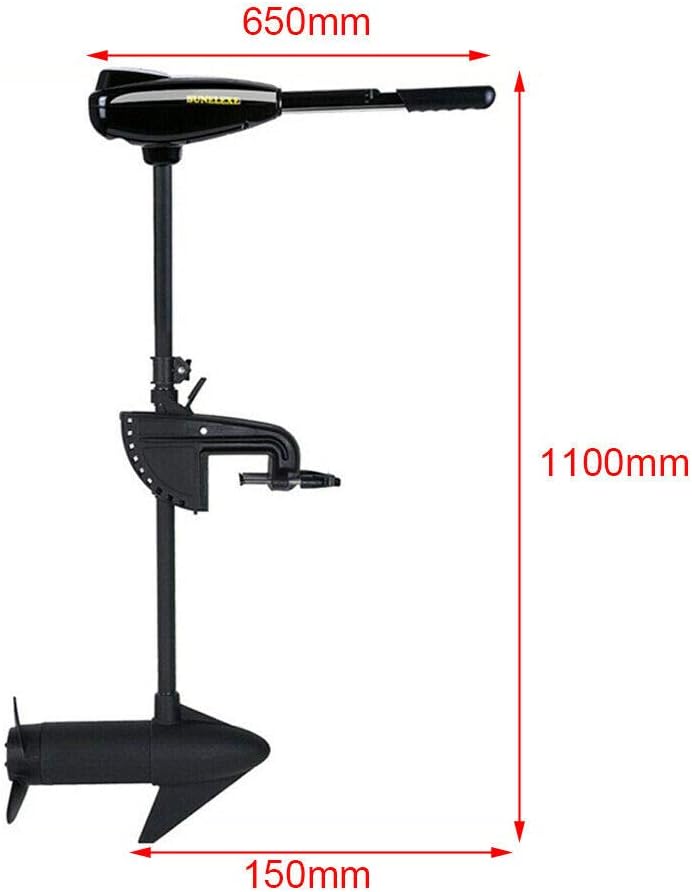

Packing size(cm):102*41*16（40.16*16.14*6.30inch）
Battery model recommendation:
Choose 12V 100A batteries, the maximum power of 3 hours of sustainable operation.
Package Include:
· 1x Trolling Motor
· 1x Operation Manual
Cylinder Scoring is a serious damage,which caused by improper use and will cost you a lot of money to repair the motor.
Don't do the following will avoid cylinder Scoring:
1，start the motor on bank
2, use the motor when it stop coming out of water
Even if you want test the motor, it should be done in the river!
When there is no water coming out from the motor,please stop using it immediately ,then check the impeller of Water pump or check if the water outlet has been blocked.
