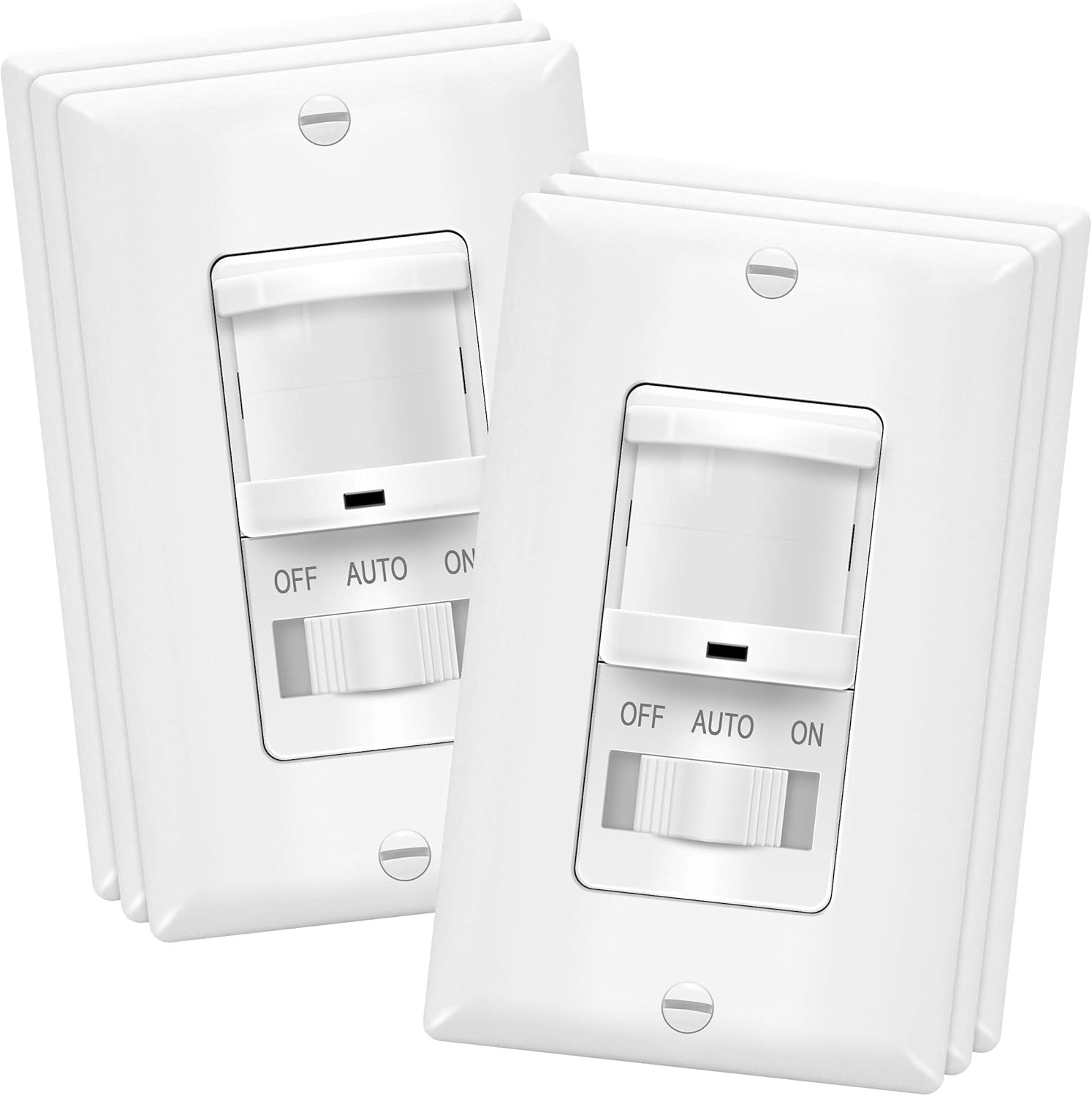

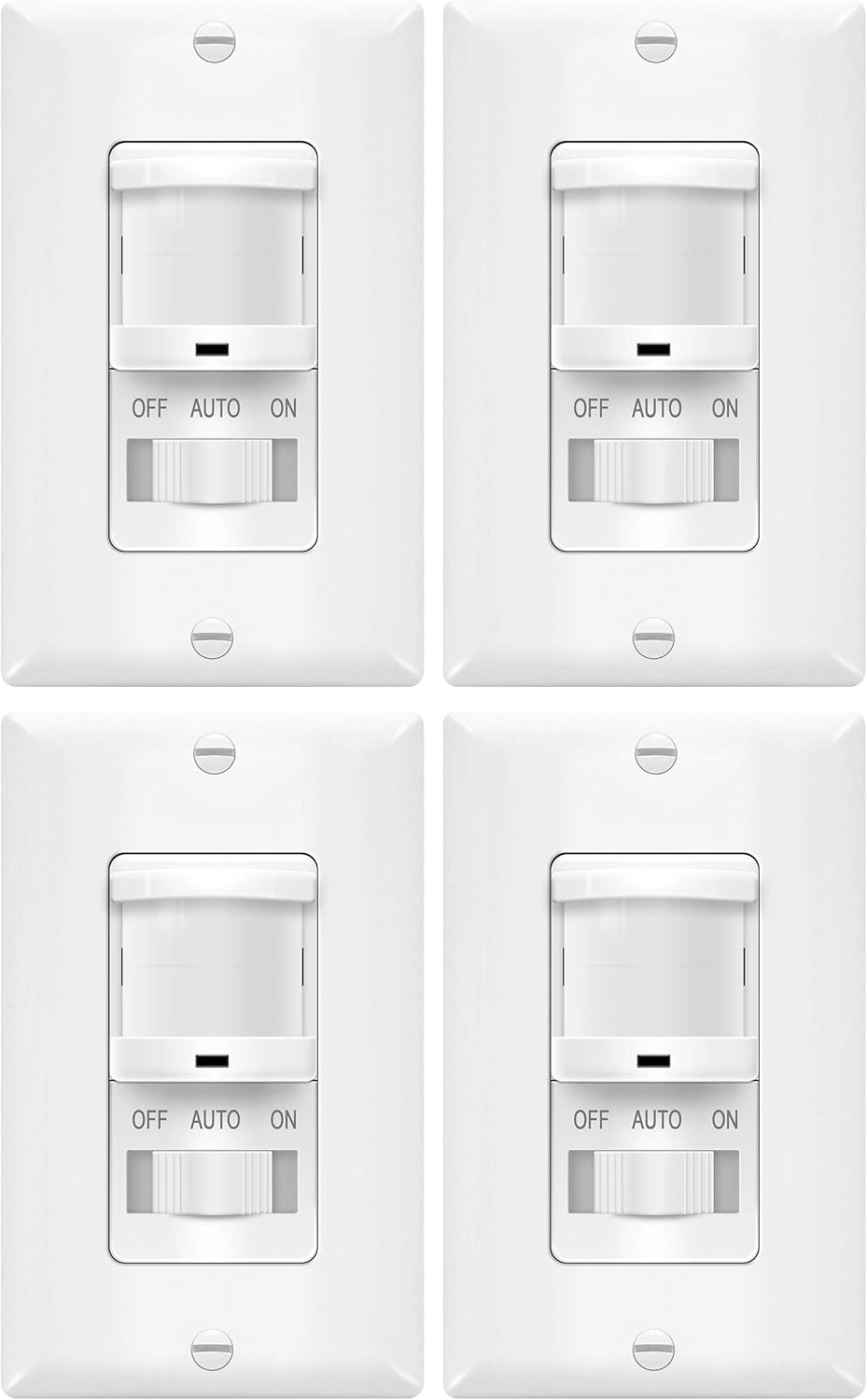

4-pack motion sensor switches automatically turn lights, fans, and motors on/off based on the occupancy and vacancy detected in a room
AUTO mode works as an occupancy sensor (Auto ON, Auto OFF). ON and OFF modes allow you to override the sensor and use the sensor switch as a regular light switch
Max sensor coverage area 707 sq ft, 180º field of view. Motion sensor wall switch features adjustable range and sensitivity from 30% to 100%
Occupancy sensor light switch variable time delay from 15 sec (test mode) to 30 min
*PLEASE CHECK WITH A QUALIFIED ELECTRICIAN TO DETERMINE IF YOU HAVE THE PROPER WIRING*
Style:4 Pack Motion Sensor Switch
| |
| | TSOS5-4PCS | TDOS5 | TDOS5-J | TDOS5-JM | HMOS-J | TDOS5-JD |
| Sensor Technology | PIR | PIR | PIR | PIR | PIR | PIR |
| Modes | Auto On/Auto Off | Auto On/Auto Off, Manual On/Auto Off | Auto On/Auto Off, Manual On/Auto Off | Auto ON/Auto OFF, Manual ON/Auto OFF | Auto On/Auto Off, Manual On/Auto Off | Auto On/Auto Off, Manual On/Auto Off |
| Load Specifications | CFL/LED: 150W, Incandescent/Halogen: 500W, Motor: 1/8Hp | CFL/LED: 250W, Incandescent/Halogen: 500W, Motor: 1/8Hp | CFL/LED: 250W, Incandescent/Halogen: 500W, Motor: 1/8Hp | CFL/LED:360W, Incandescent/Halogen: 1500W, Motor: 1/6HP | CFL/LED:150W, Incandescent/Halogen: 500W, Motor: 1/8HP | CFL/LED: 500W, Incandescent/Halogen: 800W, Motor: 1/4HP |
| Voltage | 120VAC | 120VAC | 120VAC | 120VAC | 120-277VAC | 120VAC |
| Time Delay | 15 sec (Test)-30 min Variable | 15 sec (Test)-30 min Variable | 15 sec (Test), 5 min, 10 min, 20 min, 30 min | 15 sec (Test), 5 min, 10 min, 20 min, 30 min | 15 sec (Test), 15 min, 30 min | 15 sec (Test), 5 min, 10 min, 20 min, 30 min |
| Neutral Wire Required | Required | Required | No, Ground Wire Required | No, Ground Wire Required | No, Ground Wire Required | No, Ground Wire Required |
