[Electrical specifications]Frequency: 144/430mhz(136-174mhz/400-470mhz); Impedance:50 ohm; Gain: 4.5dBi(VHF)/7.2dBi(UHF); Polarization:Vertical; Lighting Protection: Direct Ground; VSWR:<1.5; Horizontal Beam Width: 360º; Vertical Beam Width: 30º/19º; Maximum input power:200W

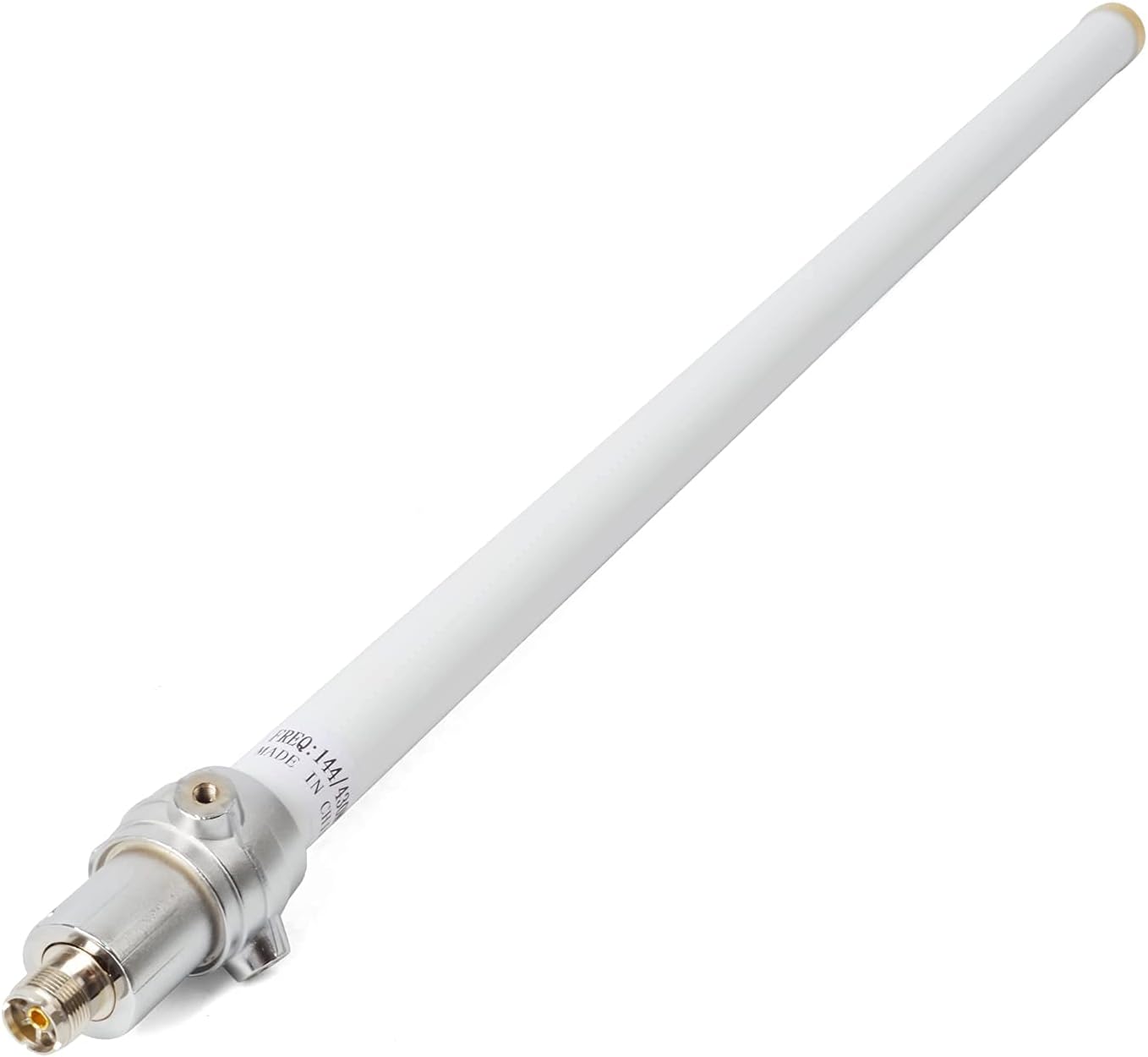

[Mechanical specifications]Material: Fiberglass; Connector: SL-16K (SO-239); Length: 1750mm; Weight: 1.0Kg

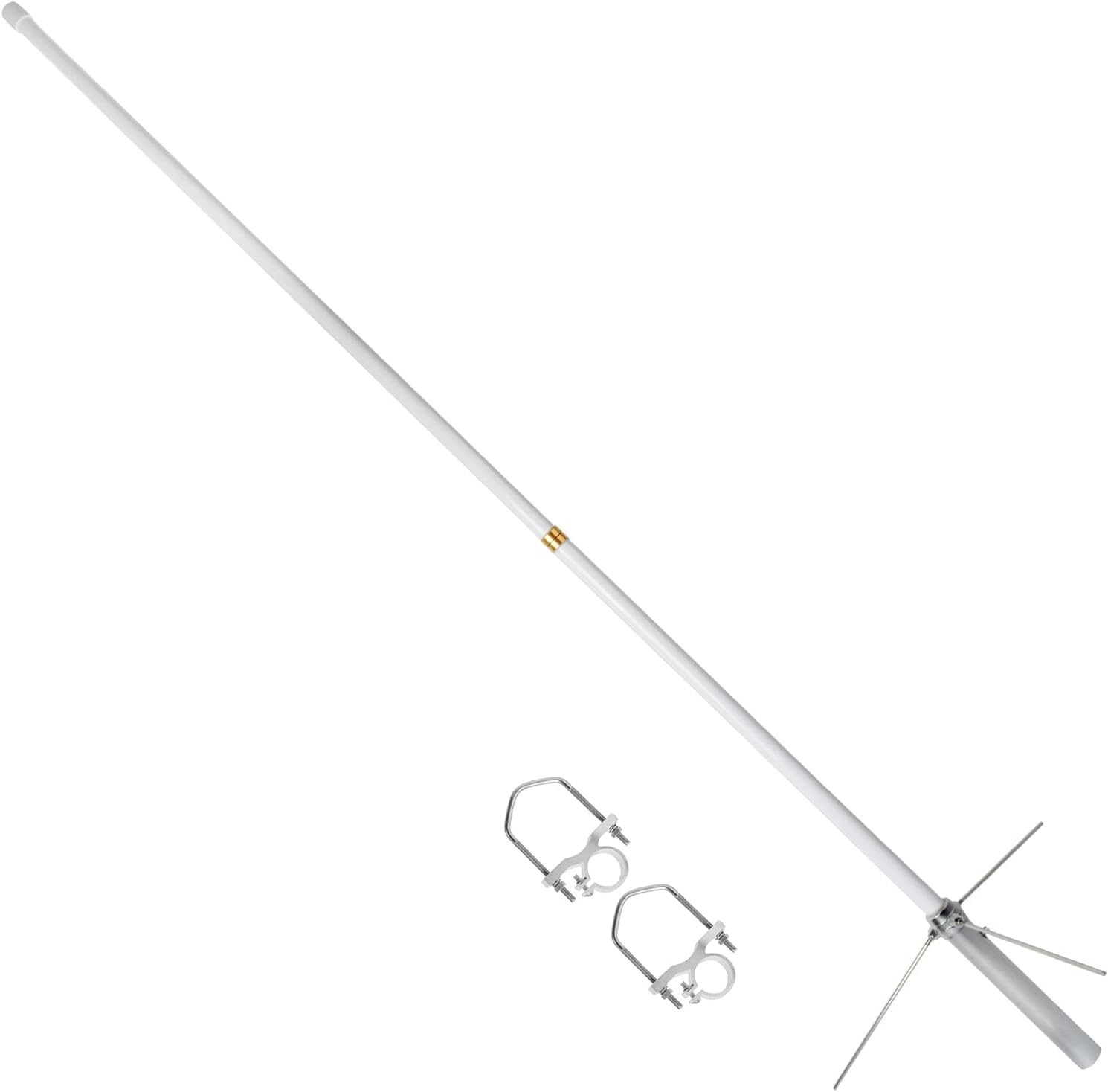

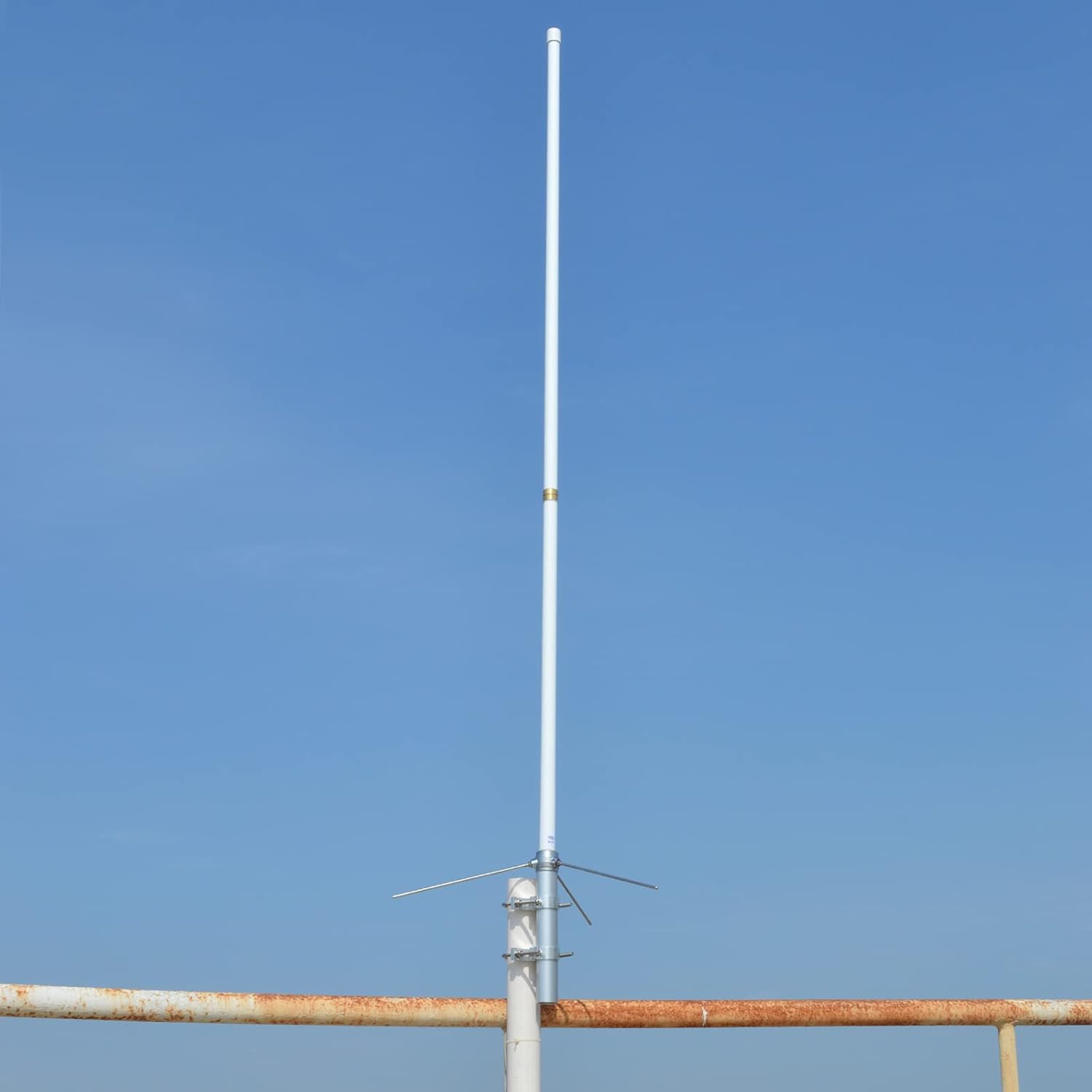

[Heavy-duty Fiberglass base antenna] Corrosion resistant,waterproof,strong wind resistance;good environmental adaptability.

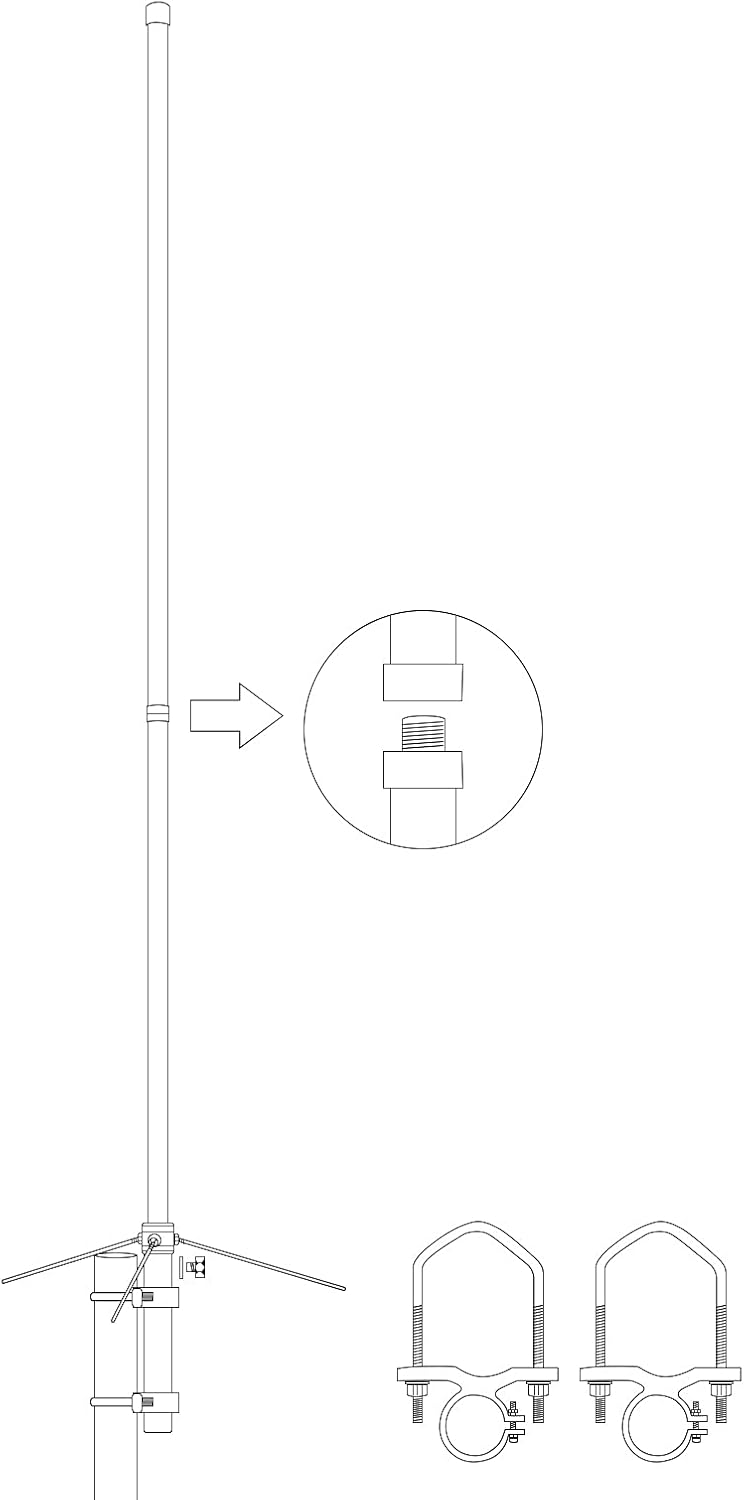

[Aluminum Alloy Mounting Bracket] Hold Pole Diameter:Ø30～Ø62 mm; Comes with two U-bolt which can be used with the attached plate for pole mounting; You need to use coaxial cable (PL259)to connect your device(not include the coaxial cable)
[Integrated ground plane]With three GP antennas,strong anti-jamming,improve the quality of reception and transmission,provides stable signal.
[High Gain antenna]Excellent receive and transmit,greatly extend the range of your communication,hit your repeater easily.

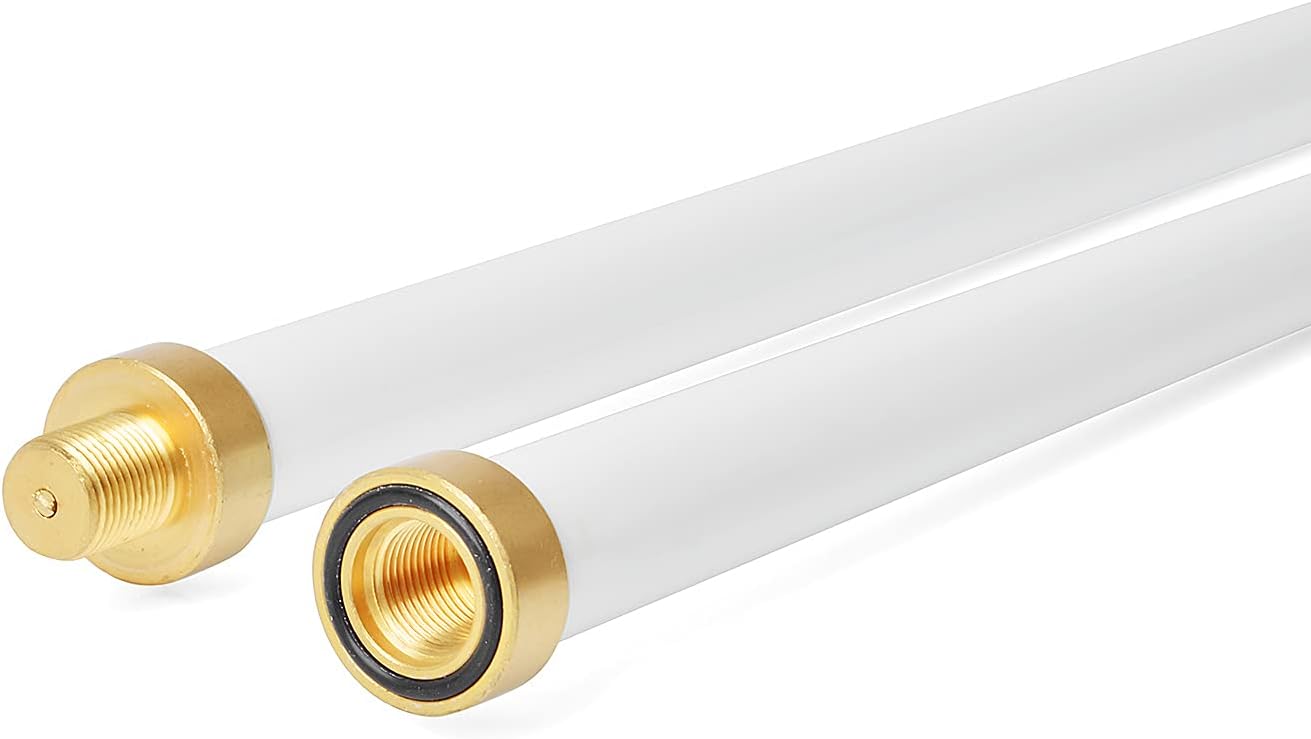

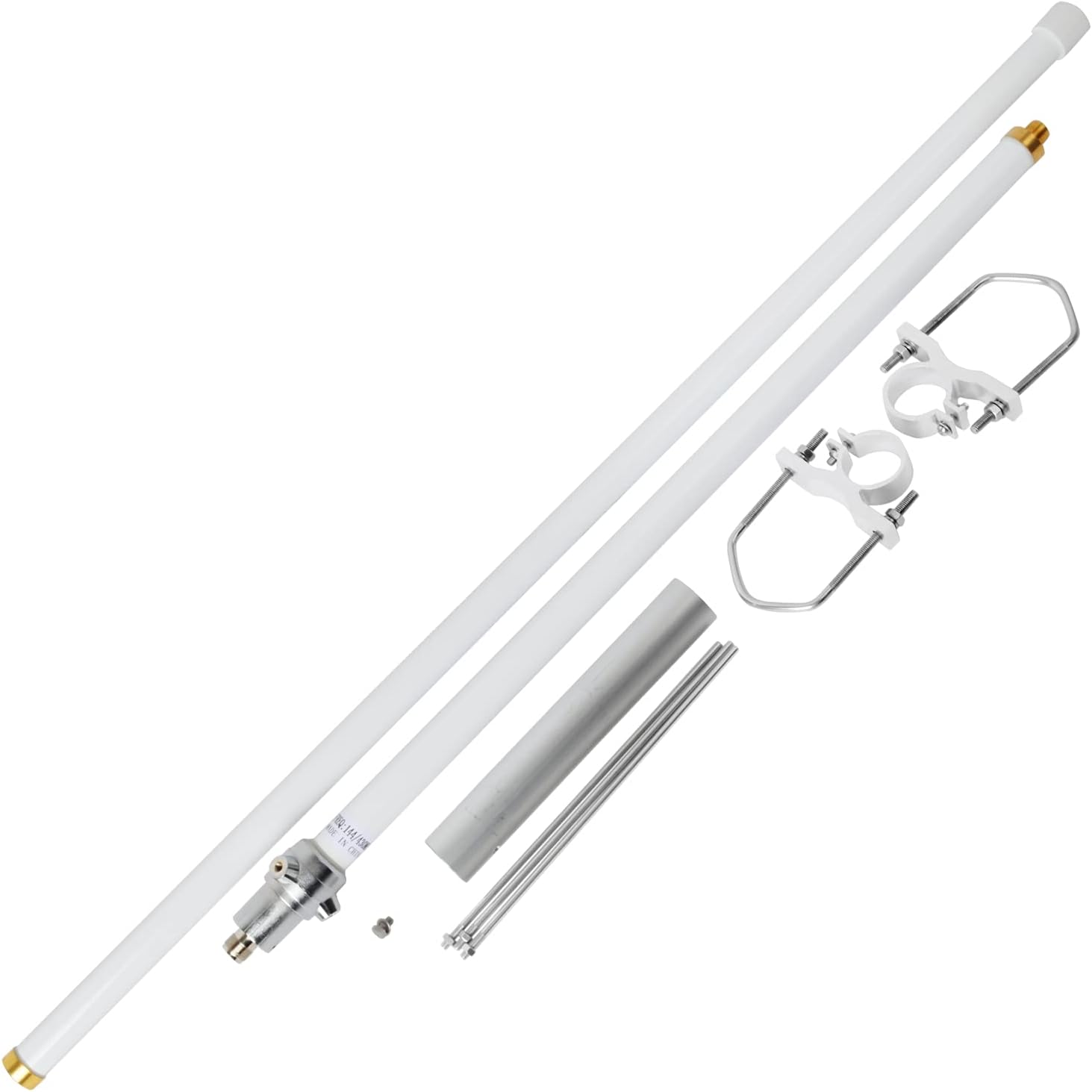

2 sections Portable design,easy to carry and install.
Widely used in Amateur two way Radio;mobile transceivers;GMRS Repeater System;police scanner;433mhz radio system;data radio, etc.
|
| Lightning Arrestor | YG08 | YG05 | KD400 | QZ771 |
| Type | - | YAGI | YAGI | Tunable base antenna | Inflatable antenna |
