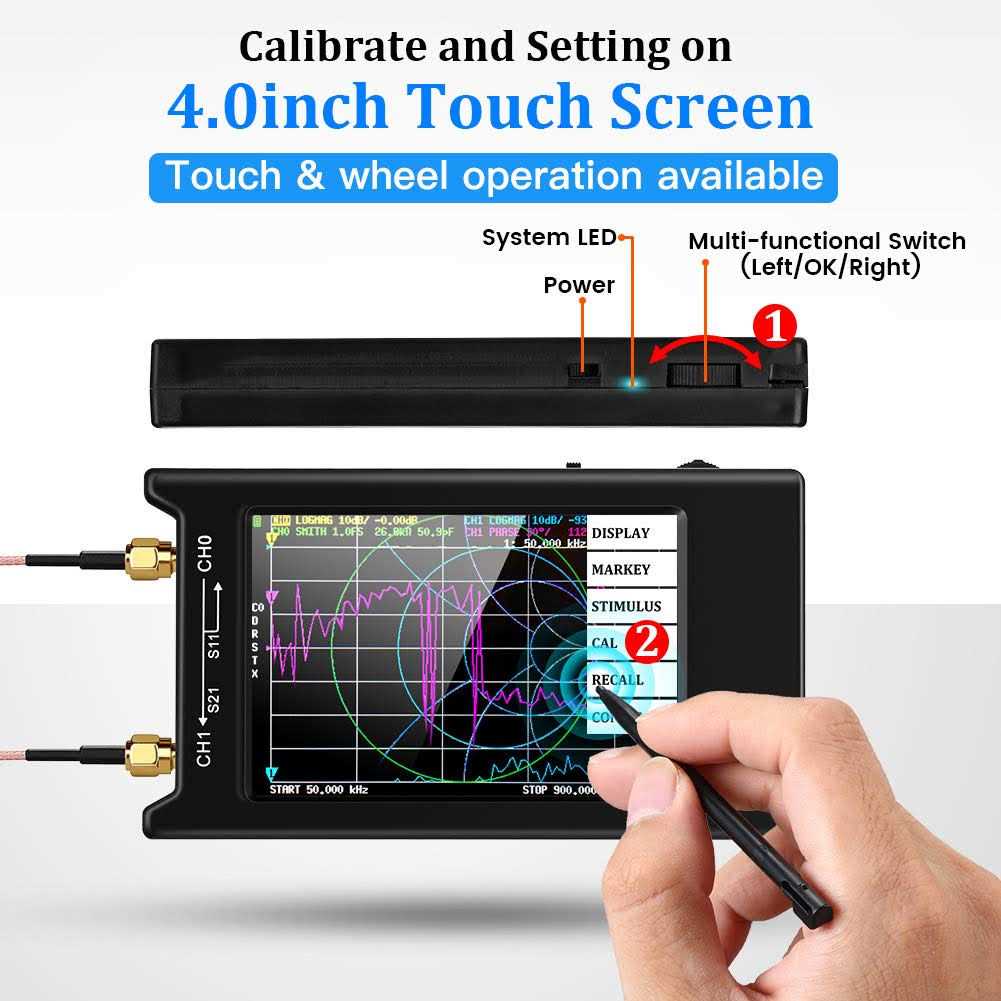

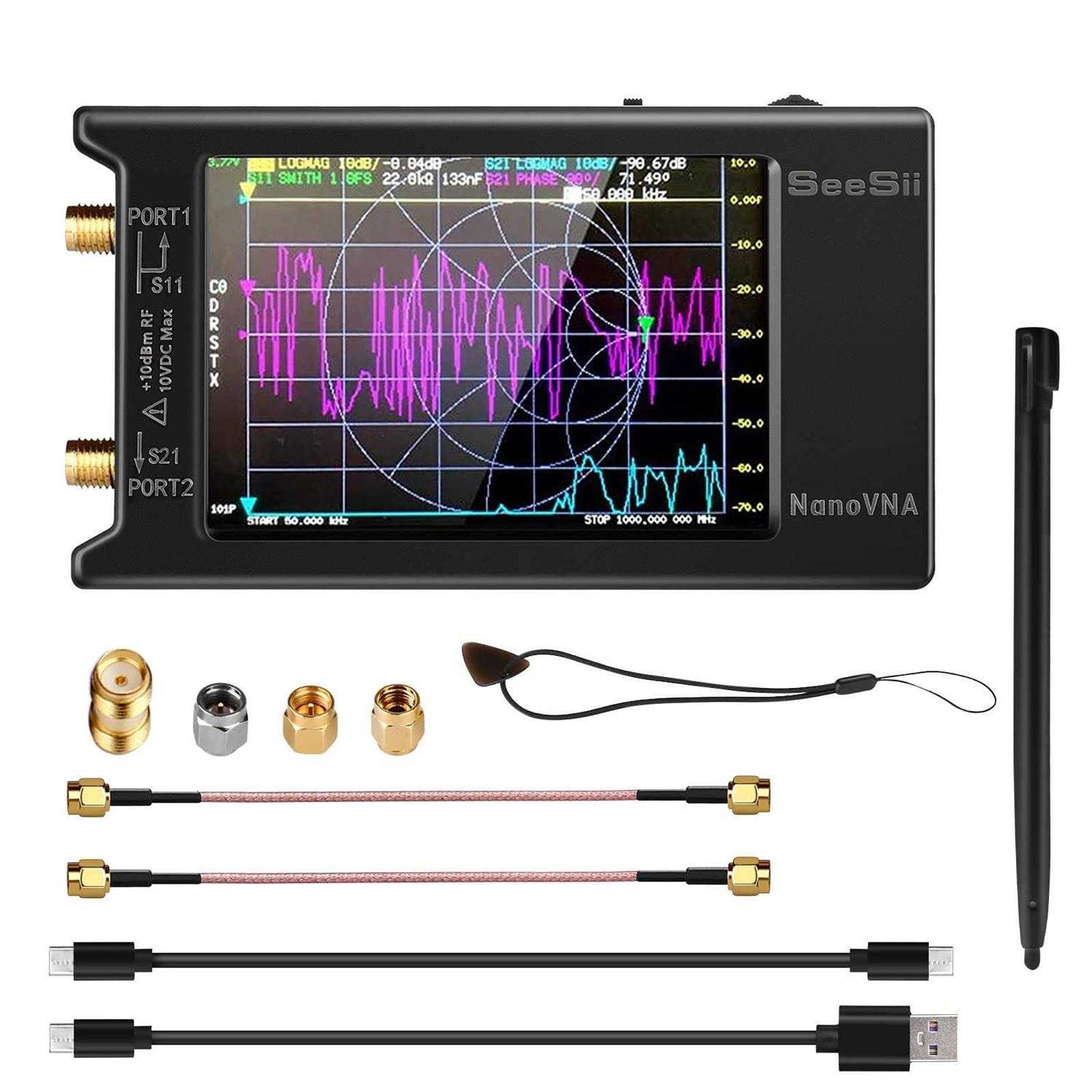

Return Return Payment Pay If you do not have a Pay Select Pay – Pal as the payment method you then will be given the chance to enter your card details in to Pay – Pal account to make paying for your items in the future very easy. Feedback – Feedback Feedback Nano – VNA-H4 Vector Network Analyzer Kit 10KHz-1.5GHz HF VHF UHF Antenna Analyzer Measuring S Parameters, Voltage Standing Wave Ratio, Phase, Delay, Smith Chart with 4″ LCD Touch Screen 4.2 Version- [ IMPROVED ACCURACY ] The metal shield is designed to reduce the external interference and improve the measurement accuracy. – Use strong and secure power supply at the same time. – Enhanced performance in all aspects- [ PC CONNECTION ] Using PC software Nano – VNASaver, it can connect to a NanoVNA and extracts the data for display on a computer, and for saving to Touchstone files. – The default firmware main function is used for antenna performance measurement. The TX/RX method can measure the complete S11 and S21 parameters (you need to manually replace the transceiver port wiring)- [ IMPROVED FREQUENCY ALGORITHM ] The Vector Network Analyzer can use the odd harmonic extension of si5351 to support the measurement frequency up to 1.5GHz. The 50K-300MHz frequency range of the si5351 direct output provides better than 70d – B dynamic, The extended 300M-900MHz band provides better than 60d – B of dynamics, and the 900M-1.5GHz band is better than 40d – B of dynamics.- [ LASTEST UPGRADED VERSION ] This Nano – VNA-H4 with 4-inch LCD touchscreen,portable with 1950m
