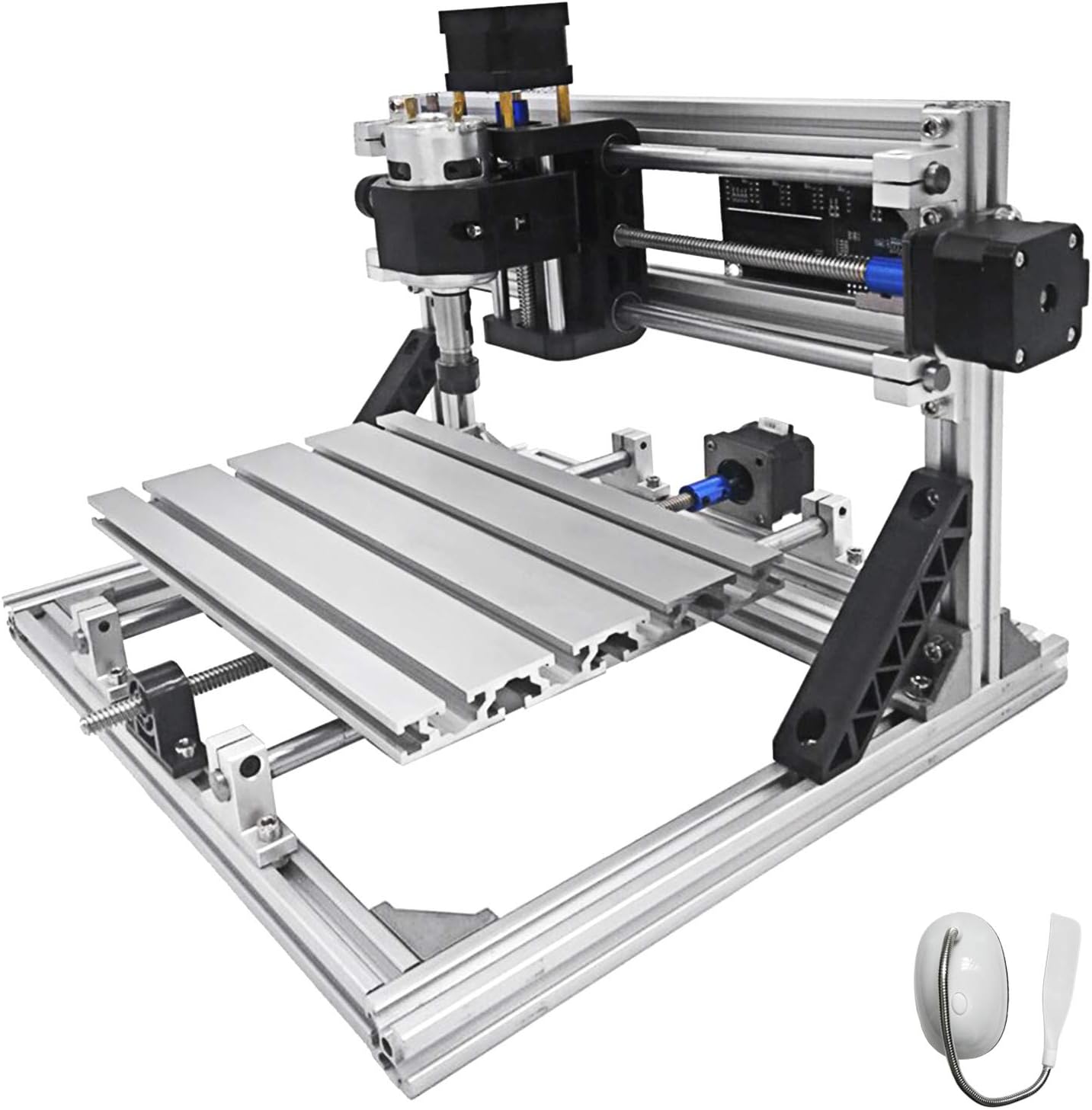

Premium Quality: CNC 3018 PRO is an upgraded version of 3018 CNC. The components do not need to be positioned, which reduces the difficulty of equipment and improves the work accuracy and stability. The frame and fixed parts are made of aluminum and bakelite. Effective working area: 300 (X) x 180 (Y) x 45 (Z) mm (11.8 "x7.1" x 1.77 ").

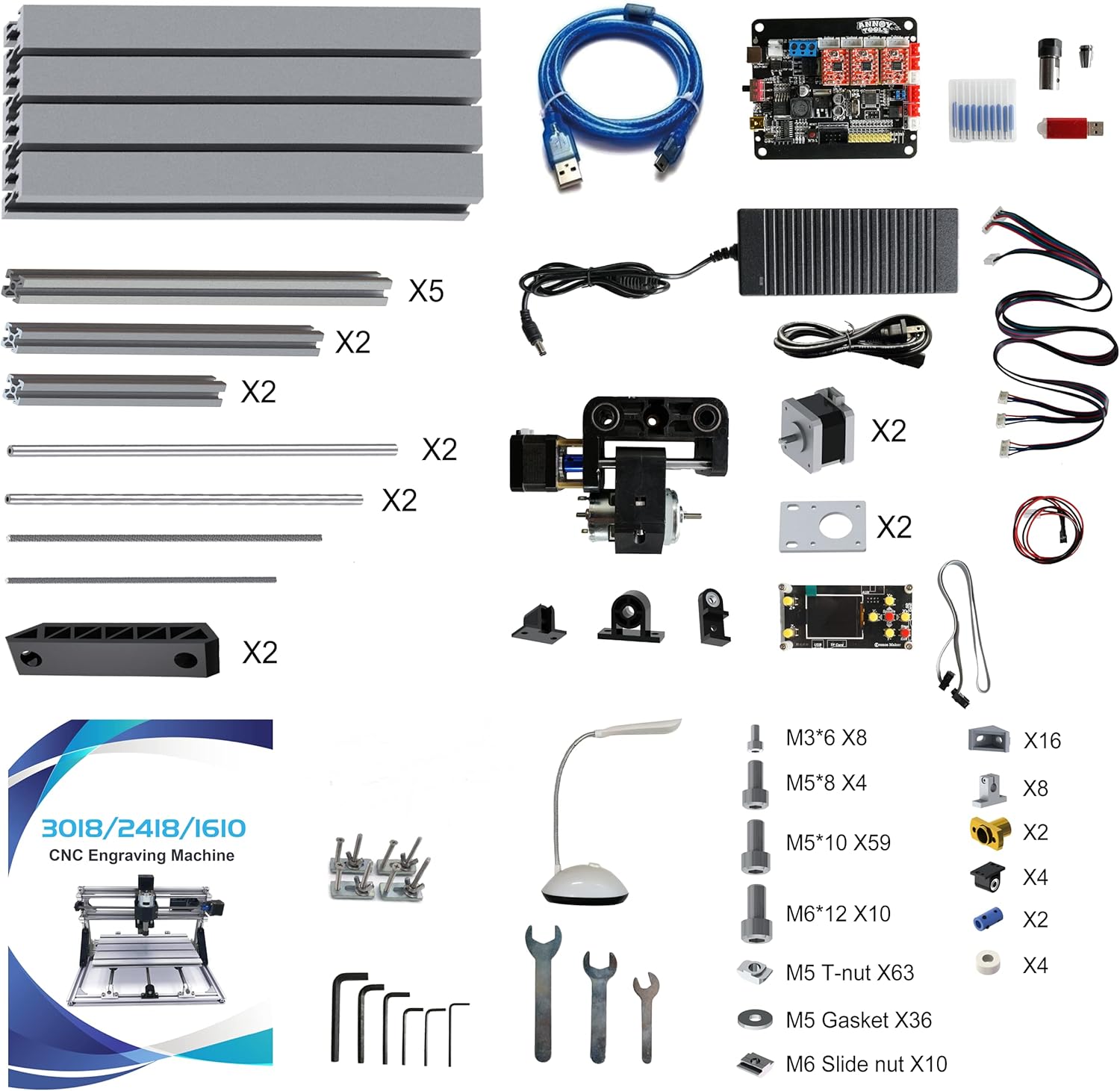

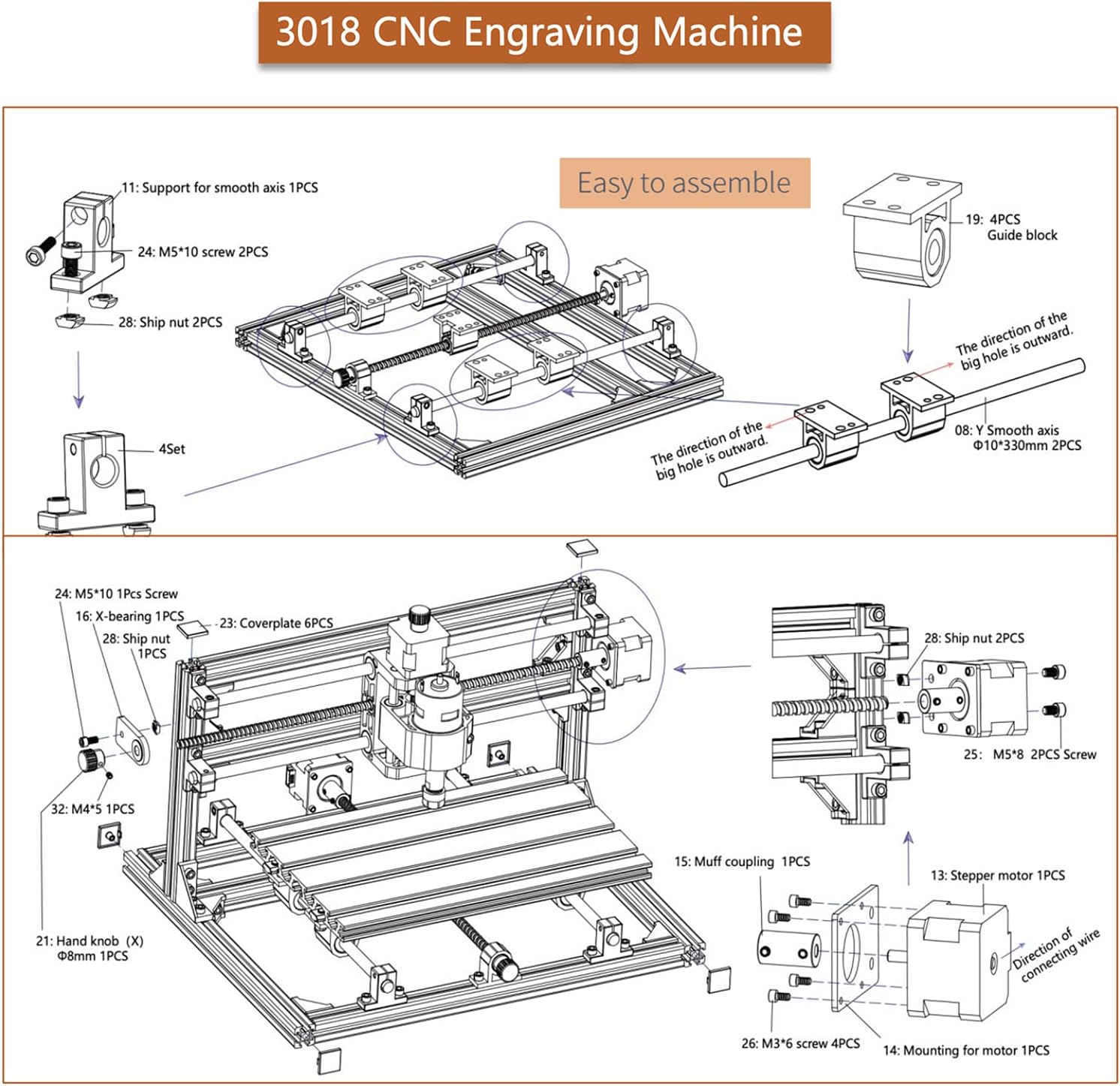

Ease of Use: According to the instructions, the mini laser engraver is easy to assemble. Supports MAC OS, Windows XP, win7, win8, win10, (32/64 systems. The instructions are in the USB flash drive.

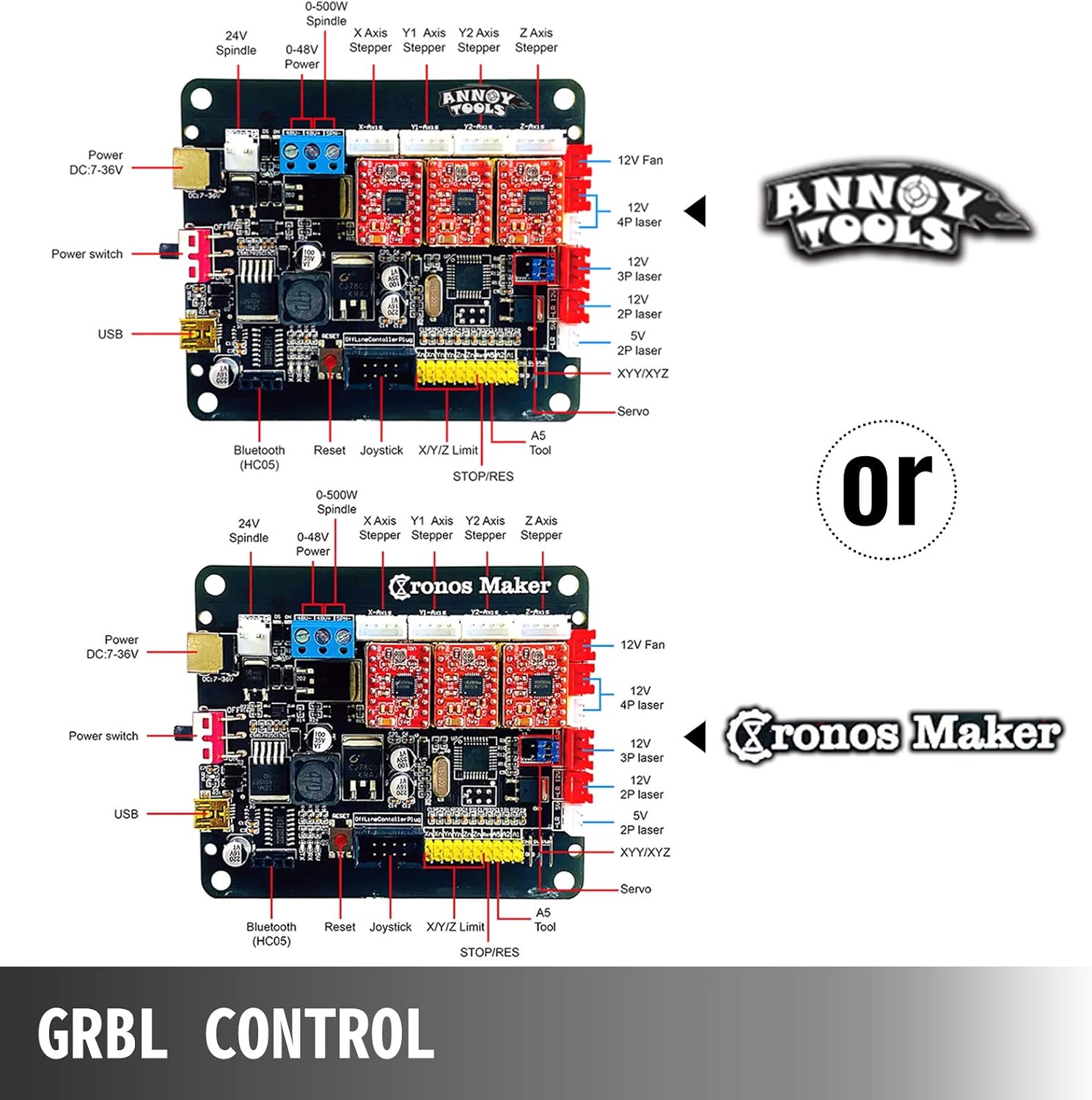

Convenient Control: Connect to the computer via the USB port and be controlled by GRBL. An offline controller of the CNC router is also included for easy remote control without a computer. Three advantages of the offline controller: 1. No need to connect to a computer; 2. No need to download files. 3. Manually adjust the X, Y, Z-axis position to the starting point of engraving, and manually turn the spindle on or off.

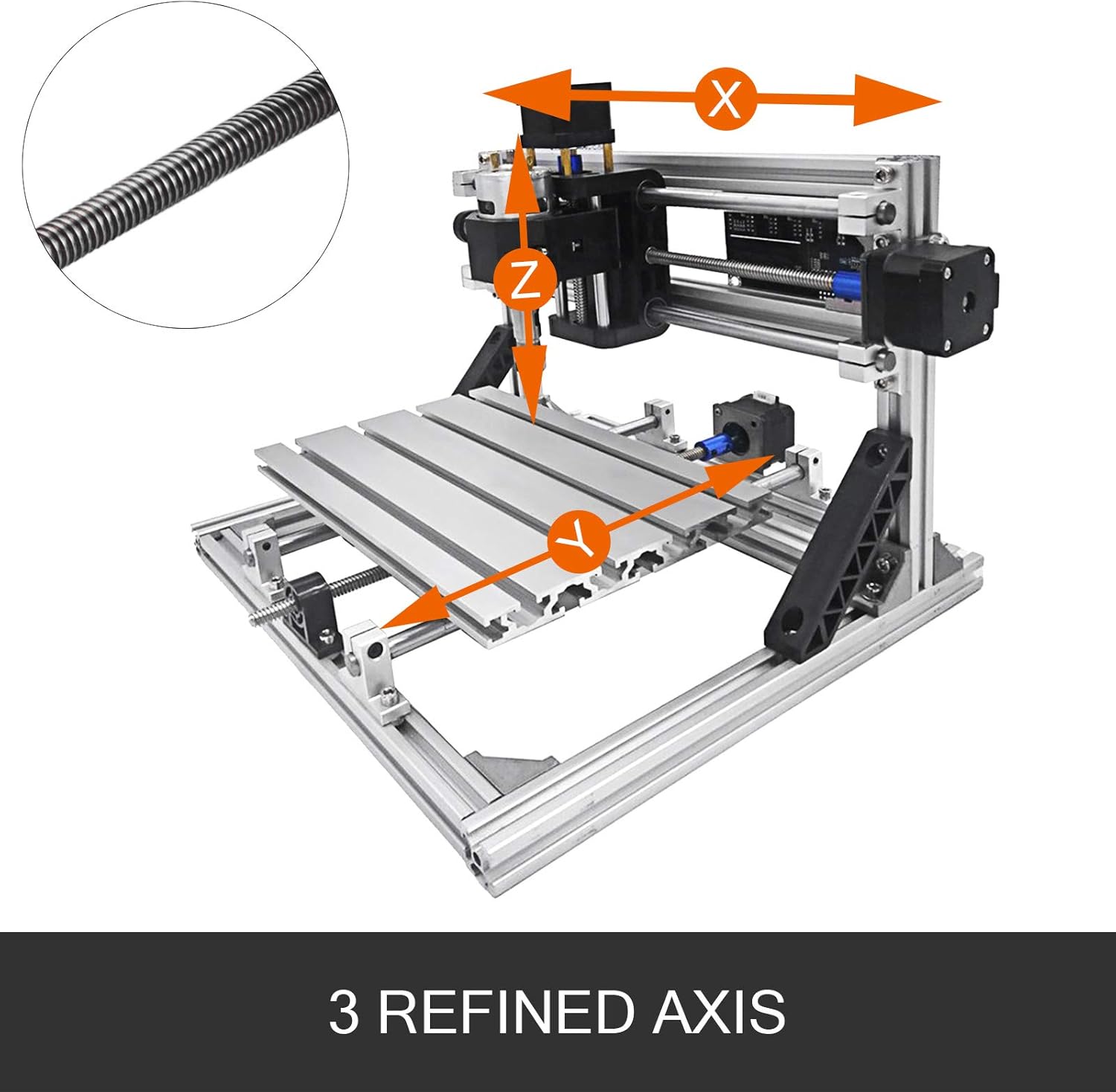

High Performance: The 3018 pro comes with T8 screw rods driving units, three 42 stepper motors, and a 775 24V spindle motor with the rotational speed of 10000r/min, providing the more efficient engraving.
| |
| | CNC 1610 with 500mW Laser Power | CNC 1610 with 2500mW Laser Power | CNC 2418 with 5500mW Laser Power | CNC 2418 with 2500mW Laser Power | CNC 3018 | CNC 3018 with 500mW Laser Power |
| Effective Working Travel: | 160(X)x100(Y)x40(Z)mm (6.3"*3.9"*1.6") | 160(X)x100(Y)x40(Z)mm (6.3"*3.9"*1.6") | 240(X)x180(Y)x40(Z)mm (9.4"*7.1"*1.6") | 240(X)x180(Y)x40(Z)mm (9.4"*7.1"*1.6") | 300(X)x180(Y)x45(Z)mm (11.8"*7.1"*1.8") | 300(X)x180(Y)x45(Z)mm (11.8"*7.1"*1.8") |

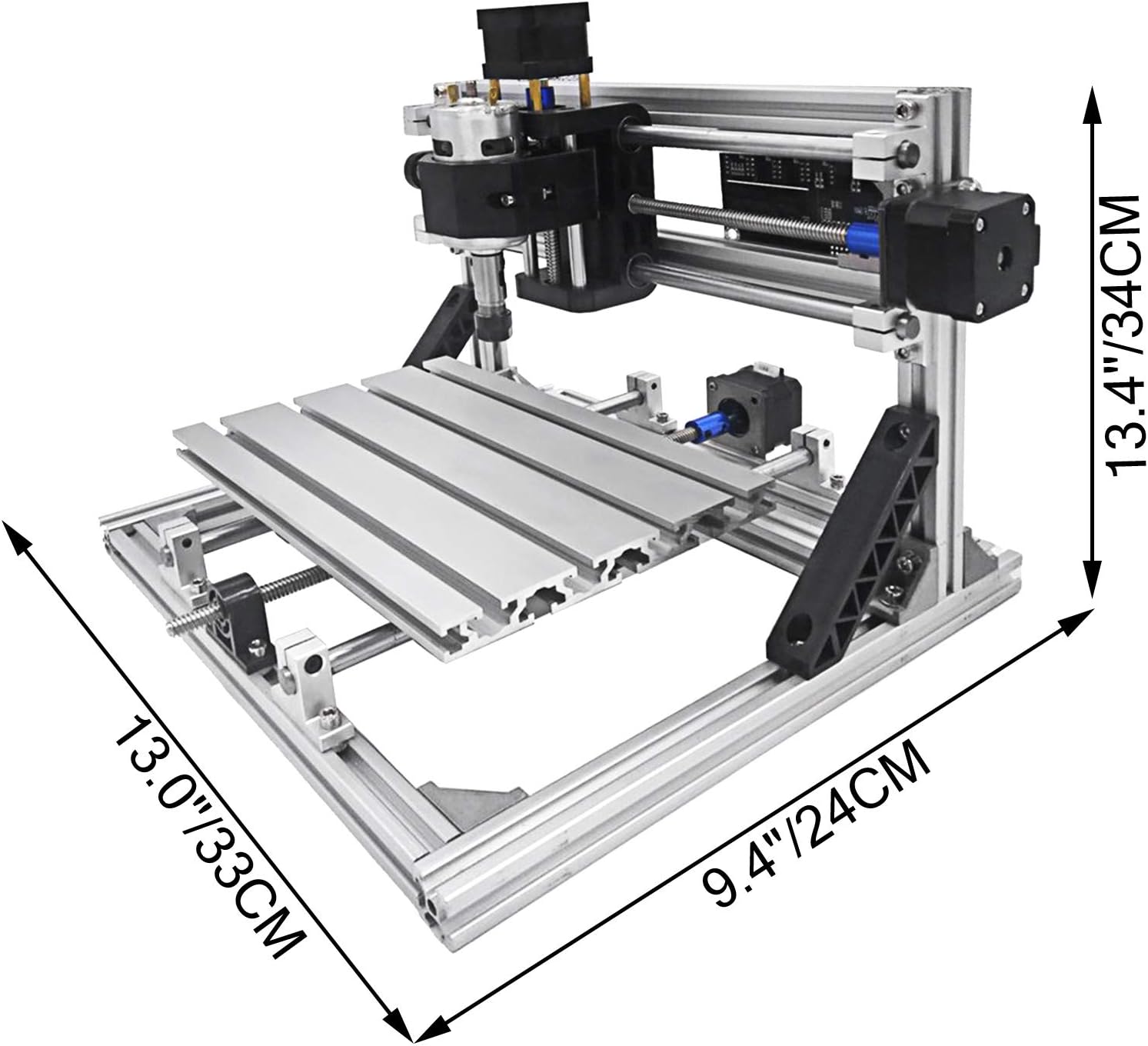

| Shape Dimension | 260*240*220mm (10.2"*9.4"*8.7") | 260*240*220mm (10.2"*9.4"*8.7") | 330x340x240mm (13"*13.4"*9.5") | 330x340x240mm (13"*13.4"*9.5") | 400x300x240mm (15.7"*11.8"*9.4") | 400x300x240mm (15.7"*11.8"*9.4") |

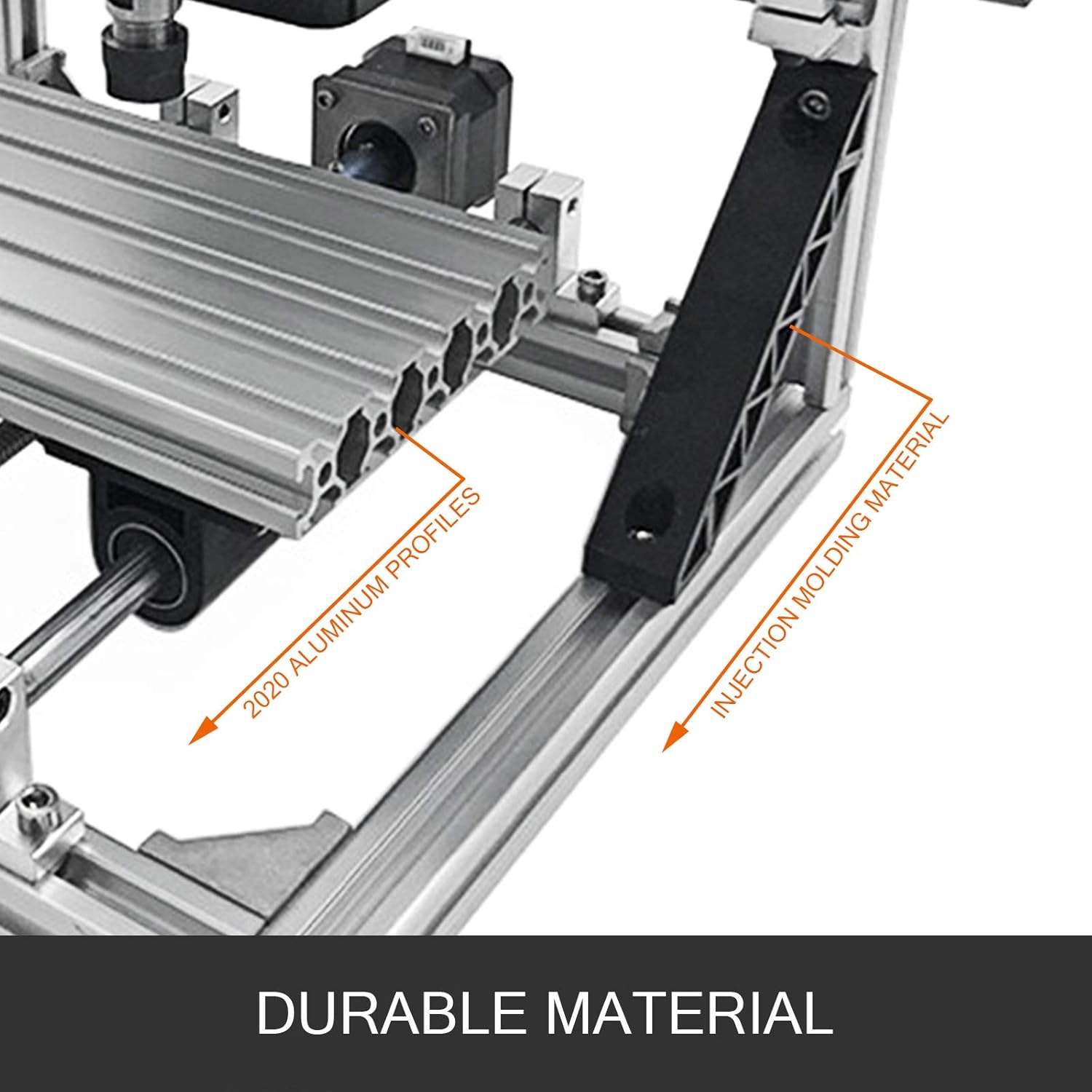

| Materials | 2020 Aluminum Profile & Injection Molding Material | 2020 Aluminum Profile & Injection Molding Material | 2020 Aluminum Profile & Injection Molding Material | 2020 Aluminum Profile & Injection Molding Material | 2020 Aluminum Profile & Injection Molding Material | 2020 Aluminum Profile & Injection Molding Material |
| Driving Units | T8 Stainless Steel Screws | T8 Stainless Steel Screws | T8 Stainless Steel Screws | T8 Stainless Steel Screws | T8 Stainless Steel Screws | T8 Stainless Steel Screws |
| Spindle Speed | 10000 rpm/min | 10000 rpm/min | 10000 rpm/min | 10000 rpm/min | 10000 rpm/min | 10000 rpm/min |
| Laser Power Head | 500mW | 2500mW | 5500mW | 2500mW | X | 500mW |
