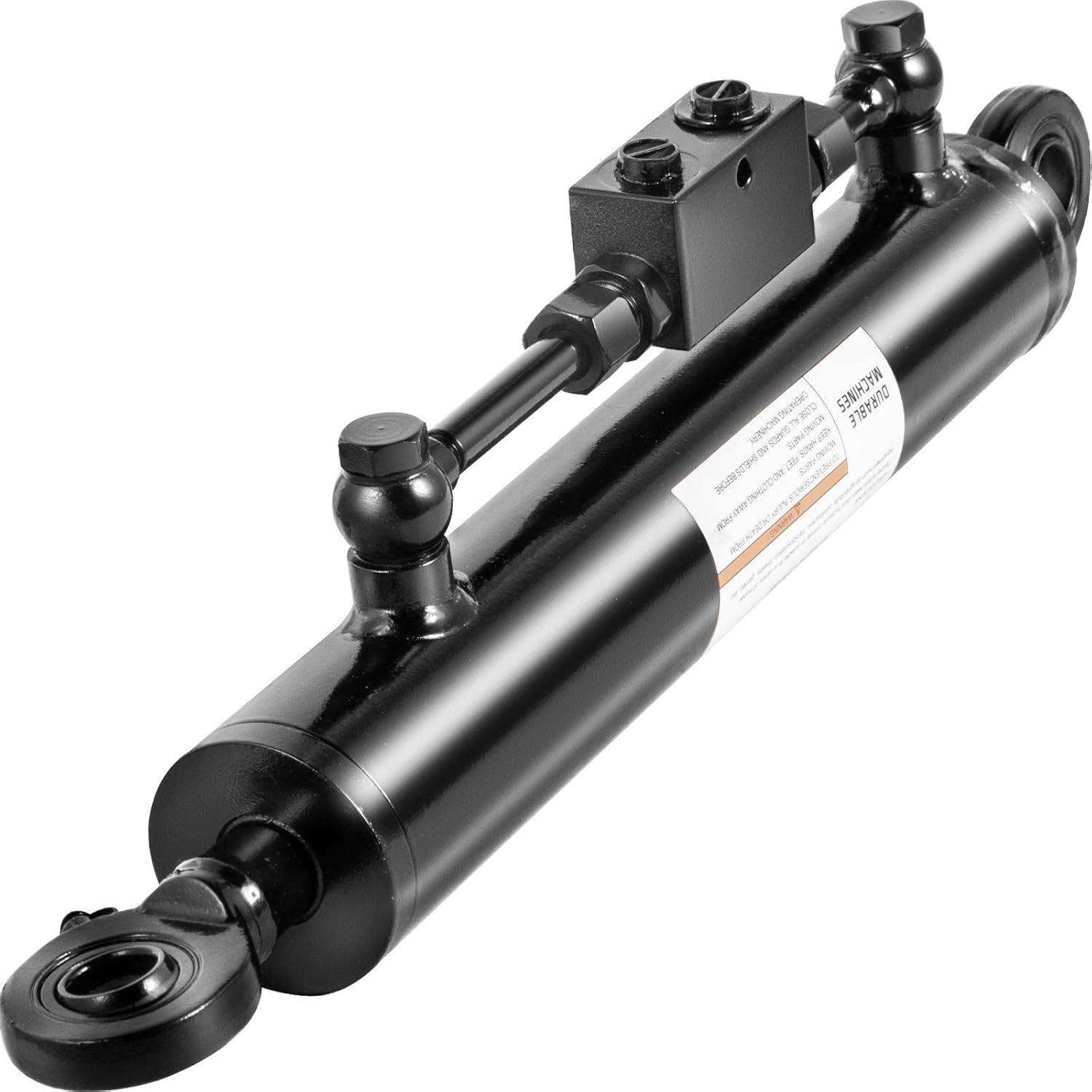

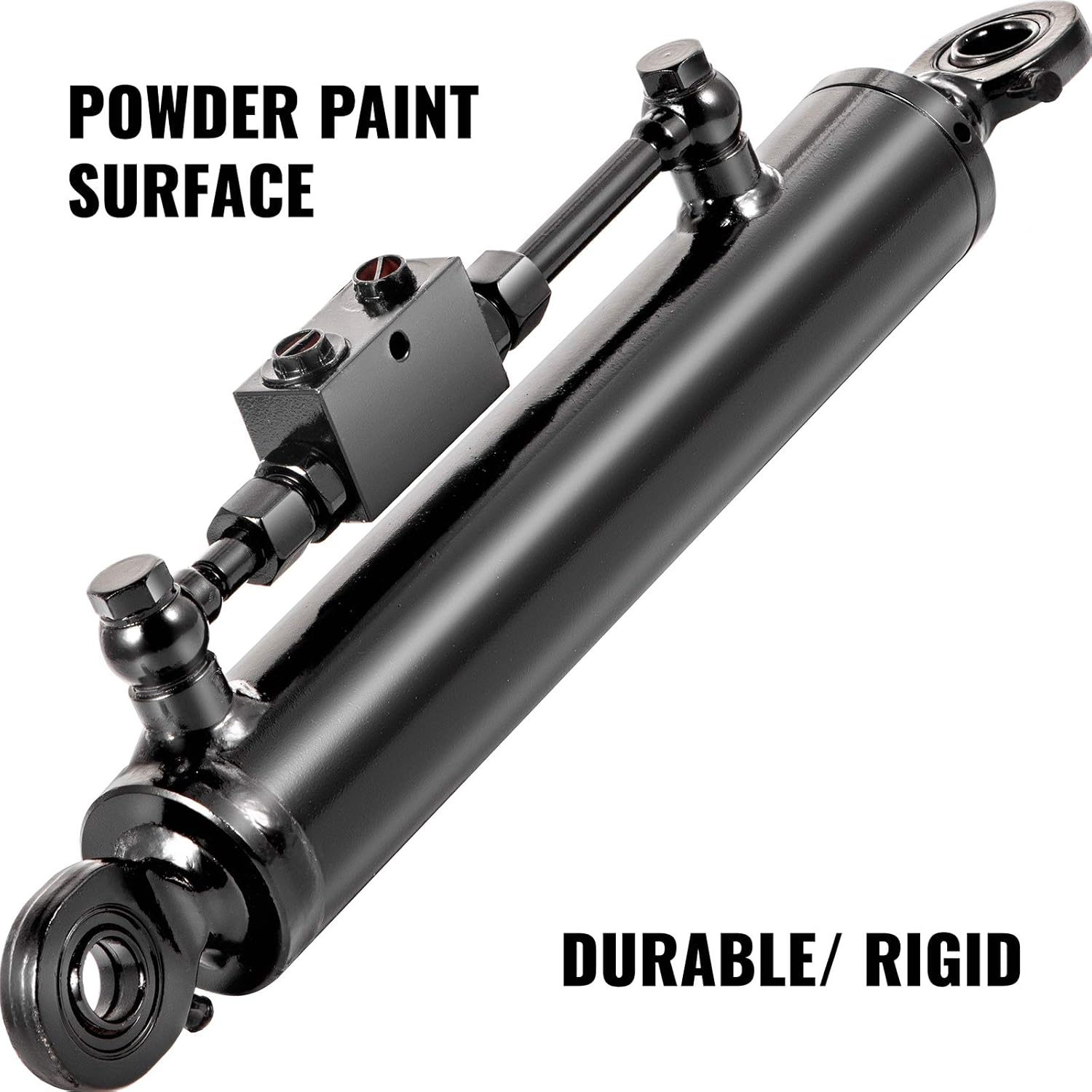

High Tensile Steel Structure: This hydraulic lifting cylinder is a welded double acting cylinder. It has a high tensile honed cold drawn hydraulic tube, a polished piston rod, and sturdy threaded glands. With bearing design on base ends. Carbon steel construction ensures its longevity and features a max 6700 lbs pushing force and 4500 lbs pulling force.

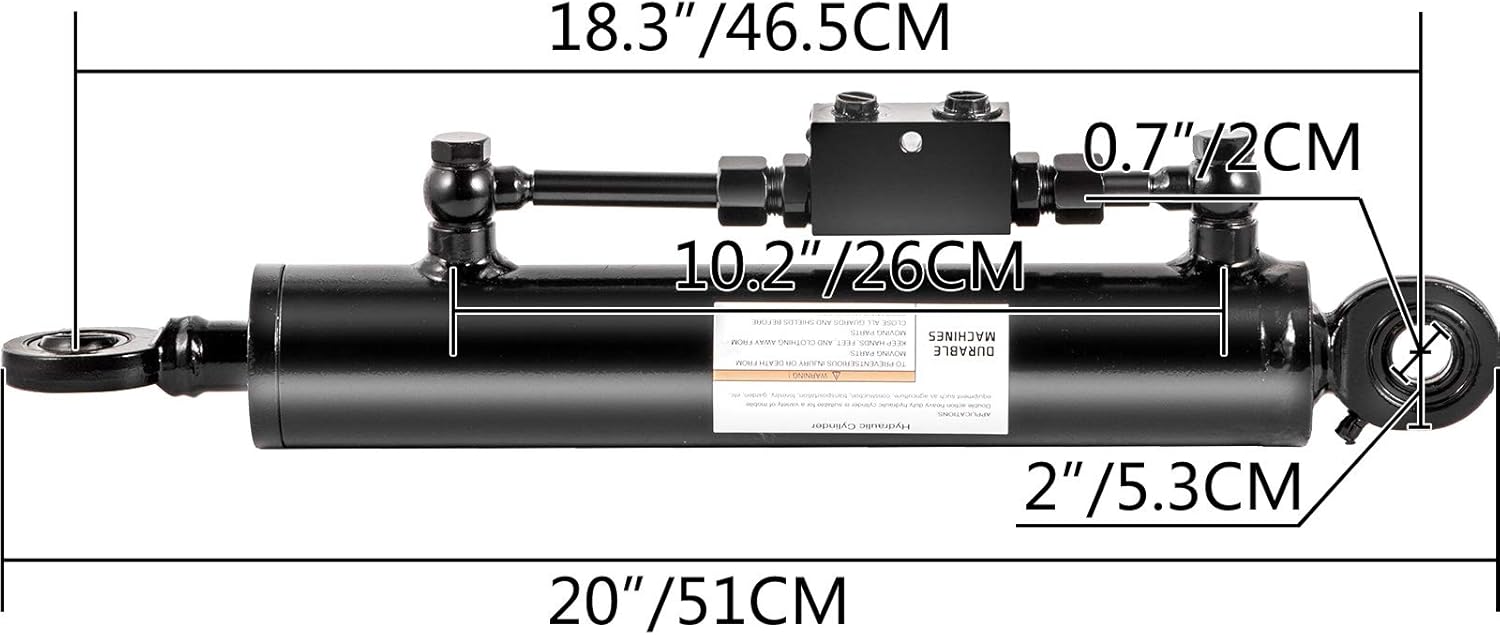

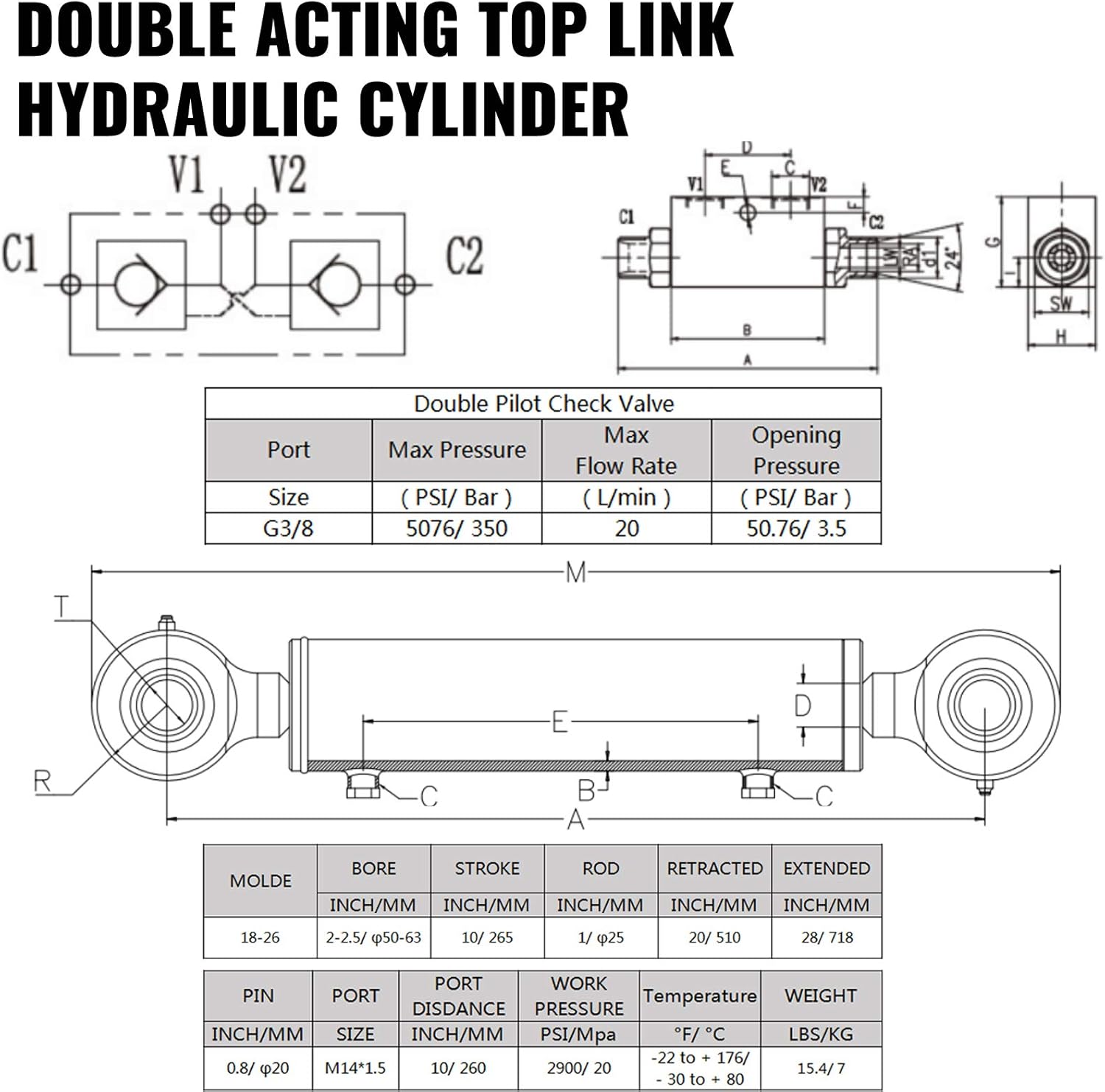

2'-2.5' Bore 10' Stroke Top Link: The top link cylinder is built under specific dimensions. Bore: 2'-2.5'. Stroke Length: 10'. Rod Size: 1'. Pin Size: 0.8'. With retracted min length 20' and extended max length 28'. Double Pilot Check Valve Port Size: G3/8. Max Pressure: 5076PSI. Max Flow Rate: 20 L/ min. Opening Pressure: 50.76 PSI.
Swivel Eye Bearing Design: There is a spherical swivel eye bearing design on both ends. Due to the sturdy and flexible bearings, you can quickly fix and install the cylinder on your tractors or min excavators. Joint Bearing Width: 2'. Thickness 0.8'. Durable enough to hold a lot of force.

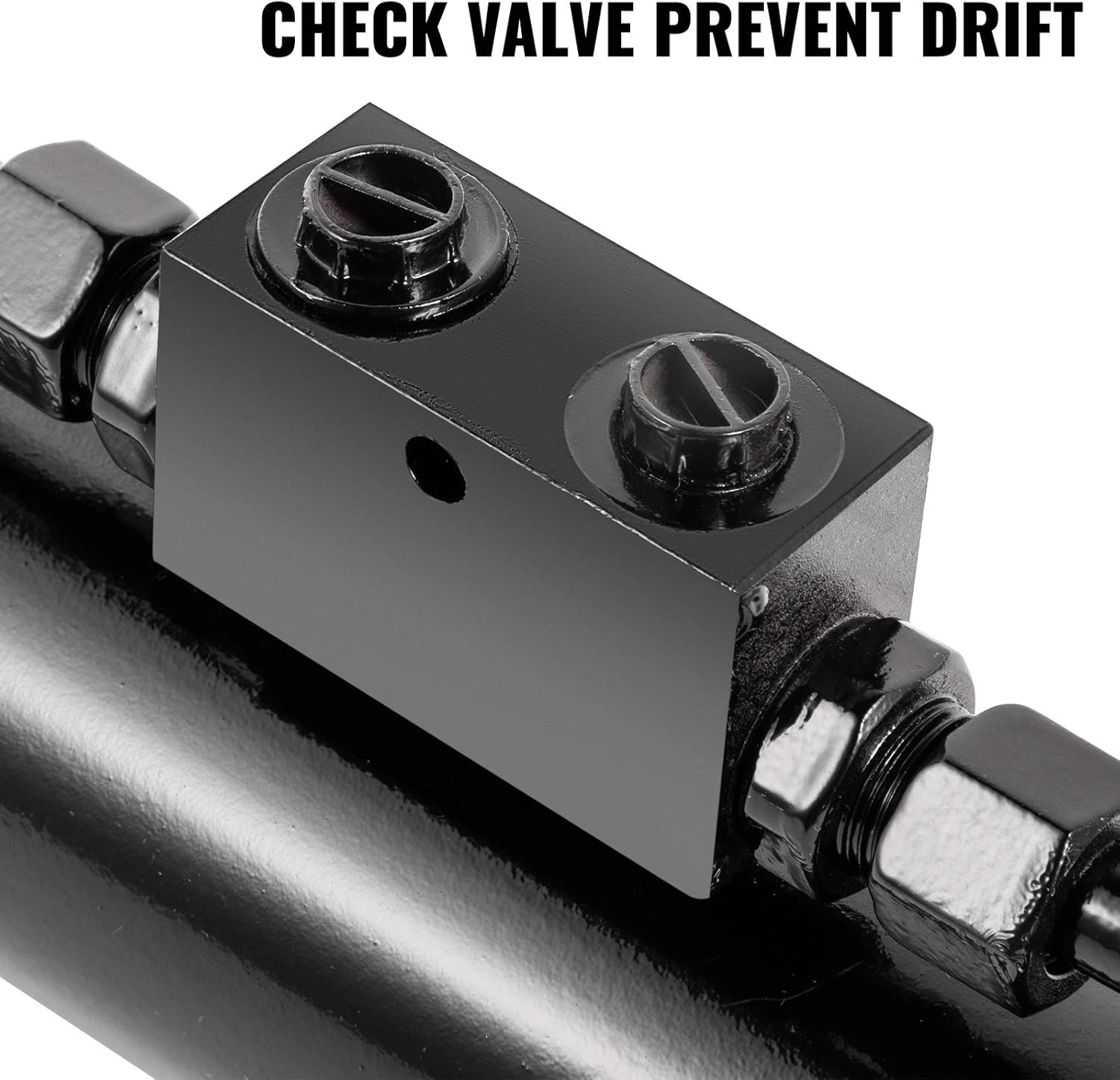

With Check Valve & Fully Tested: The well-assembled and thoroughly tested tractor top link hydraulic cylinders also come with a double pilot operated check valve to help hold the cylinder and prevent drift. The assembled inside sealing rings guard the high performance of sealing, accessible maintains, and safer use.
Various Application: Our hydraulic top link cat cylinder is the ideal tool for various mobile equipment types in industries like wastes, recycling, constructions, transportations, agriculture, material handling, etc. It works excellently in tractors, excavators, and categories 1 and 2.
|
| Retracted 18' Extended 24” Double Acting Hydraulic Cylinder w/Check Valve | Retracted 20' Extended 28”Double Acting Hydraulic Cylinder w/Check Valve | Retracted 22 4/5' Extended 34”Double Acting Hydraulic Cylinder w/Check Valve | Retracted 23' Extended 34”Double Acting Hydraulic Cylinder w/Check Valve | Retracted 20' Extended 28”Double Acting Hydraulic Cylinder w/2 Hydraulic Hoses |
| Cylinder Bore | 1.5'-2'/ 40-55 mm | 2' -2.5'/ 50-63 mm | 2'-2.5'/ 50-63 mm | 2' -2.5' / 50-63 mm | 2' -2.5' / 50-63 mm |
| Stroke | 8'/ 205 mm | 10' / 265 mm | 13'/ 331 mm | 13' / 337 mm | 10' / 261 mm |
| Retracted Length | 18'/ 460 mm | 20'/ 510 mm | 22.8'/ 580 mm | 23' / 585 mm | 20' / 505 mm |
| Extended Length | 24'/ 610 mm | 28' / 718 mm | 34'/ 861 mm | 34' / 862 mm | 28' / 703 mm |
| Port Distance | 8'/ 205 mm | 10' / 260 mm | 13'/ 330 mm | 13' / 335 mm | 10' / 260 mm |
