1/4' Sensor, High Performance Color Optics, IR Low Light Assist
Built-in Microphone, NTSC Video Output Signal Format
Mirror (Reversed) Image Orientation
12V Power, Waterproof IPX7

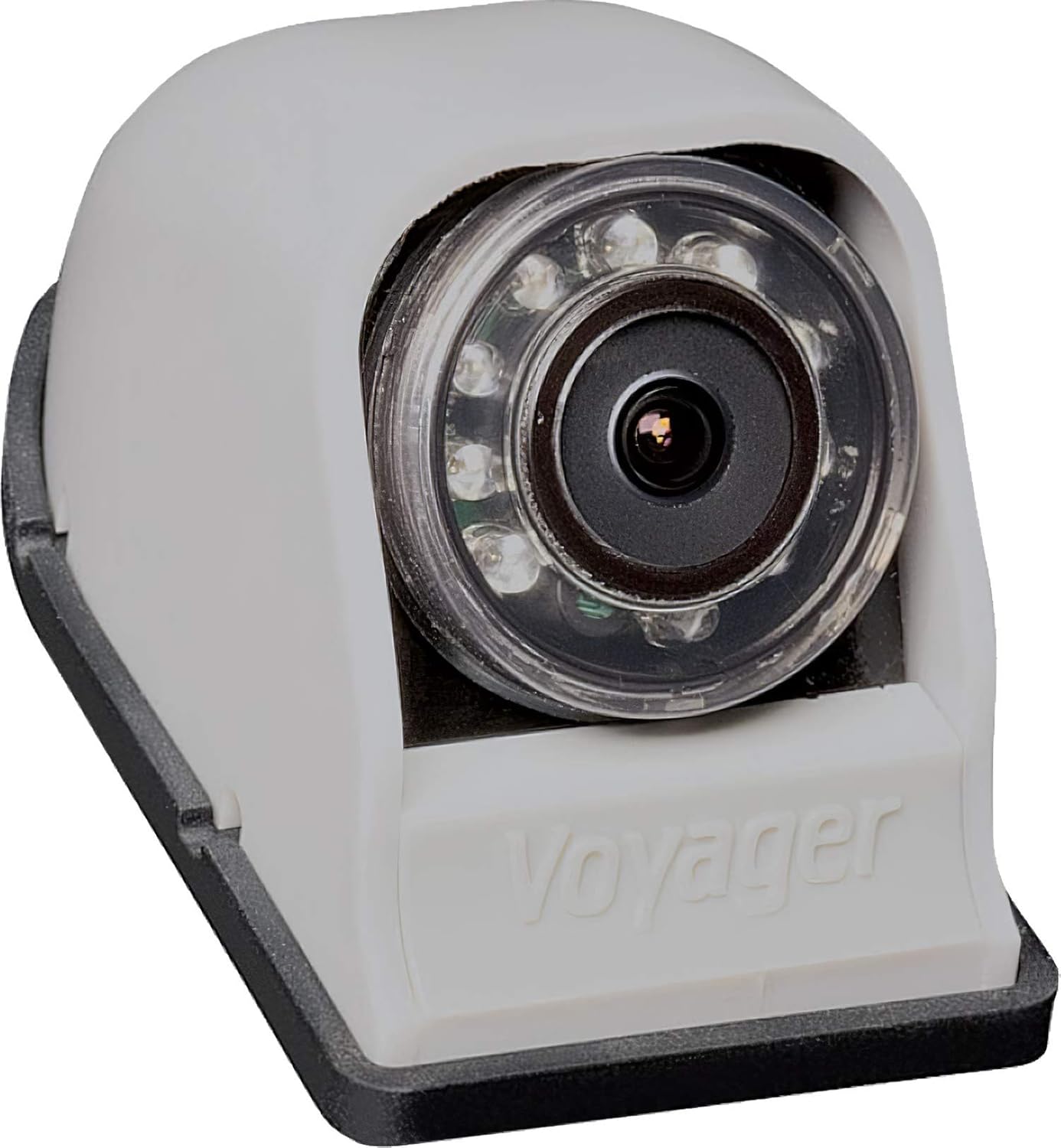

Voyager VCMS36RGP Model VCMS36 Right Side View Super CMOS Color Observation Backup Camera with IR LED Low Light Enhancement, Grey Housing (Paintable)

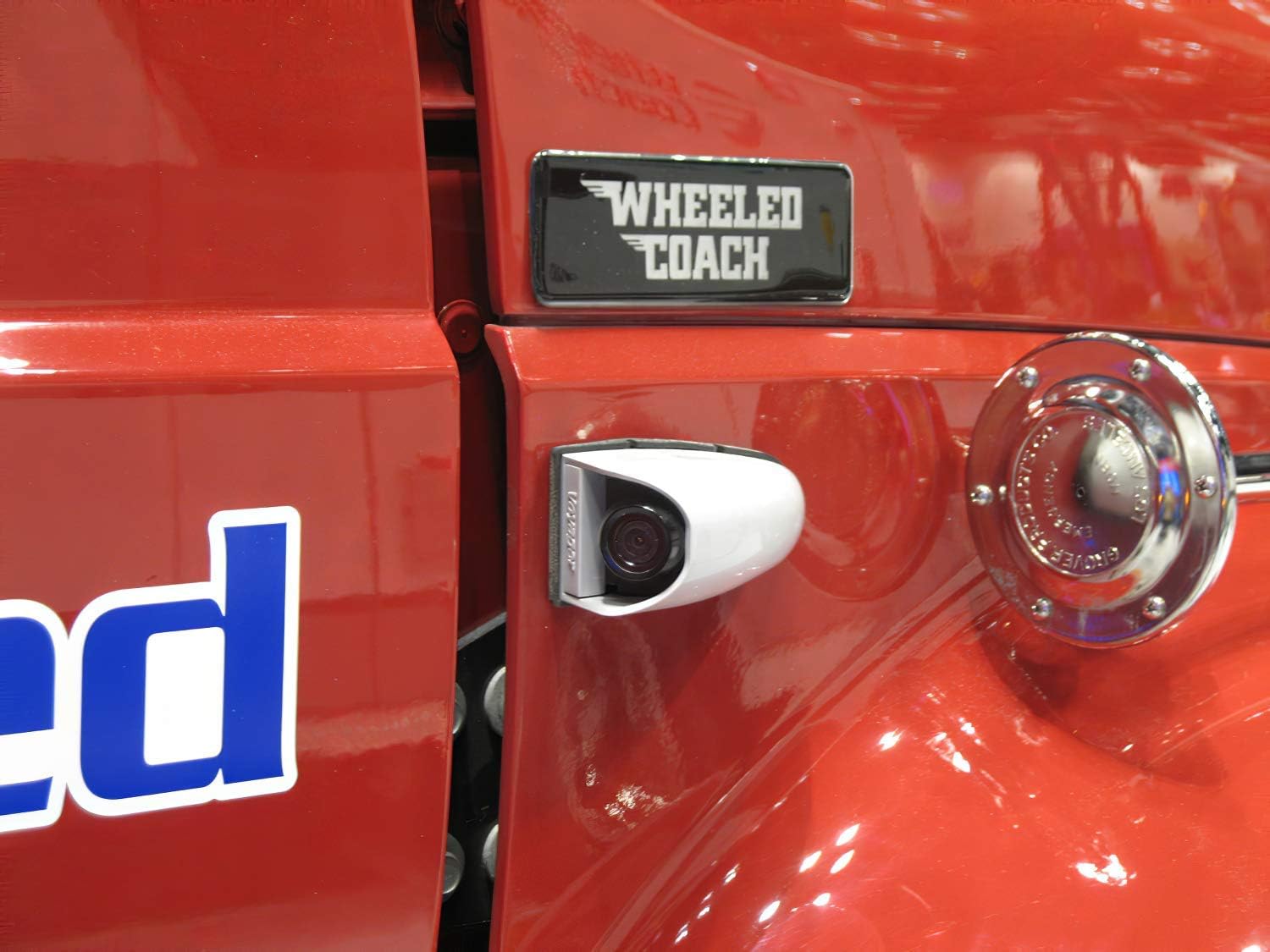

Working with our multi-camera monitors, the Voyager VCMS36R Right Side View Super CMOS Color Cameras deliver real time images of the vehicle's surroundings that aid drivers in changing lanes, merging, and making wide turns. It also allows drivers the ability to see beyond the normal scope of vision provided by conventional mirrors. This CMOS Camera is 'anti-blooming', which means the bright areas that can appear around images are eliminated, thus making the Super CMOS cameras more effective in high bright (daytime) and low light (night time) environments! Designed for maximum aerodynamics, this camera is easily mounted to any flat surface. NOTE: VCMS36R Side View Cameras are for the Vehicle's Right Side.
Key Features - High Resolution Color Camera
- Grey Primer Housing (Paintable)
- Right Side View Super CMOS Color Camera
- 1/4” Color C-MOS with Automatic Electronic Iris
- IR LED Low Light Enhancement
- Mirror (Reversed) Image Orientation
- Power System: 12 Volt DC
- Viewing Angle (degrees): 101°H
- Waterproof (IPX7)
- Built-in Microphone
- NTSC Compatible
- Lightweight/Rugged Aluminum Body
- Overall Dimensions: 1.65' W x 1.83' H x 3.32' D
Specifications - Rear or Side: Side
- Video Output Signal Format: NTSC
- Image Sensor: 1/4” Color C-MOS with Automatic Electronic Iris
- IR LED Low Light Enhancement: Yes
- Shutter: Electronic Iris
- Image Orientation: Mirror (Reversed)
- Power: 12VDC
- Waterproof: IPX7
- Viewing Angle: 101° Horizontal
- Impact Resistant Plastic Housing: Yes
- Machined Aluminum Body: Yes
- Outer Dimensions: φ26.5(W) X 32(D) mm φ1.04(W) X 1.26(D) Inch
