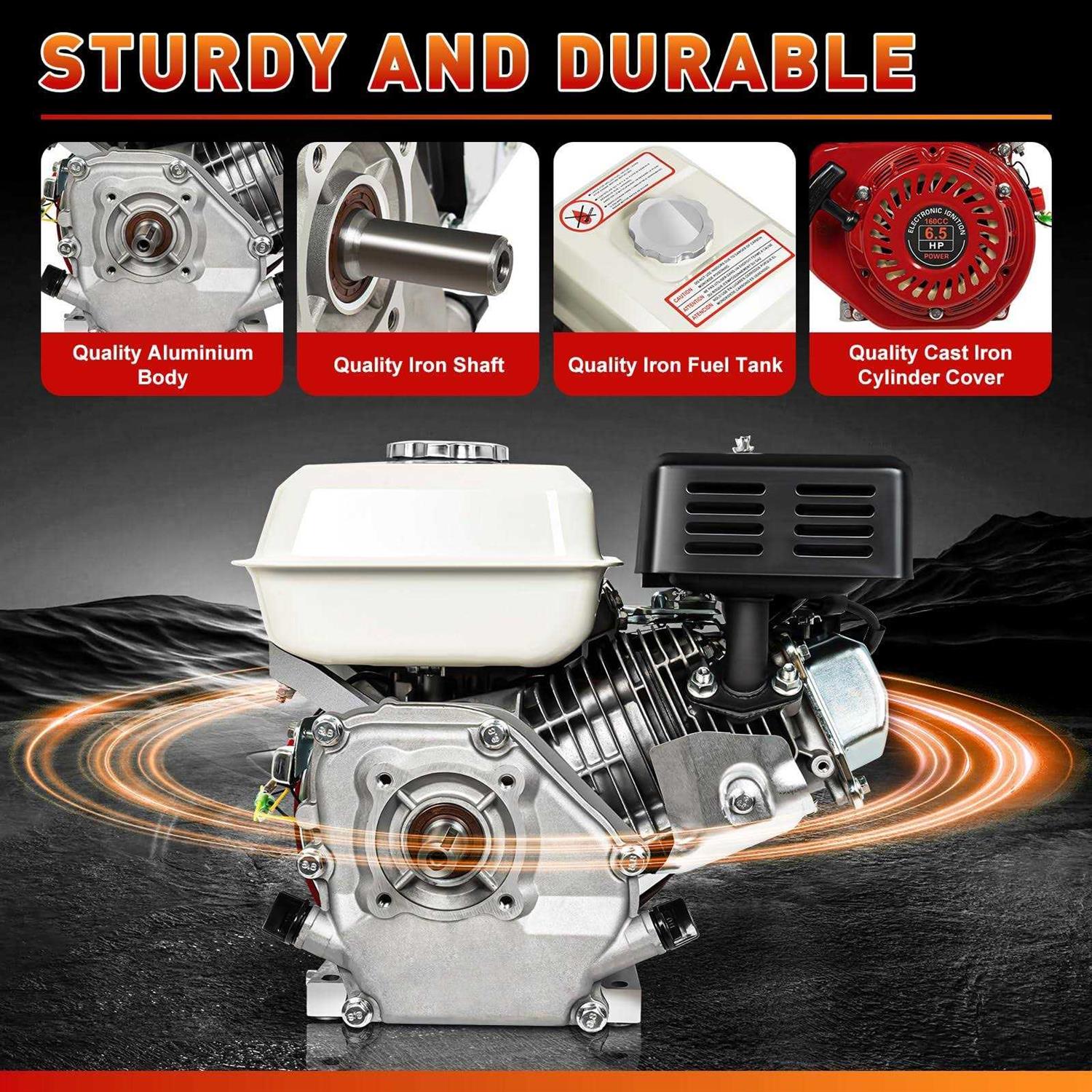

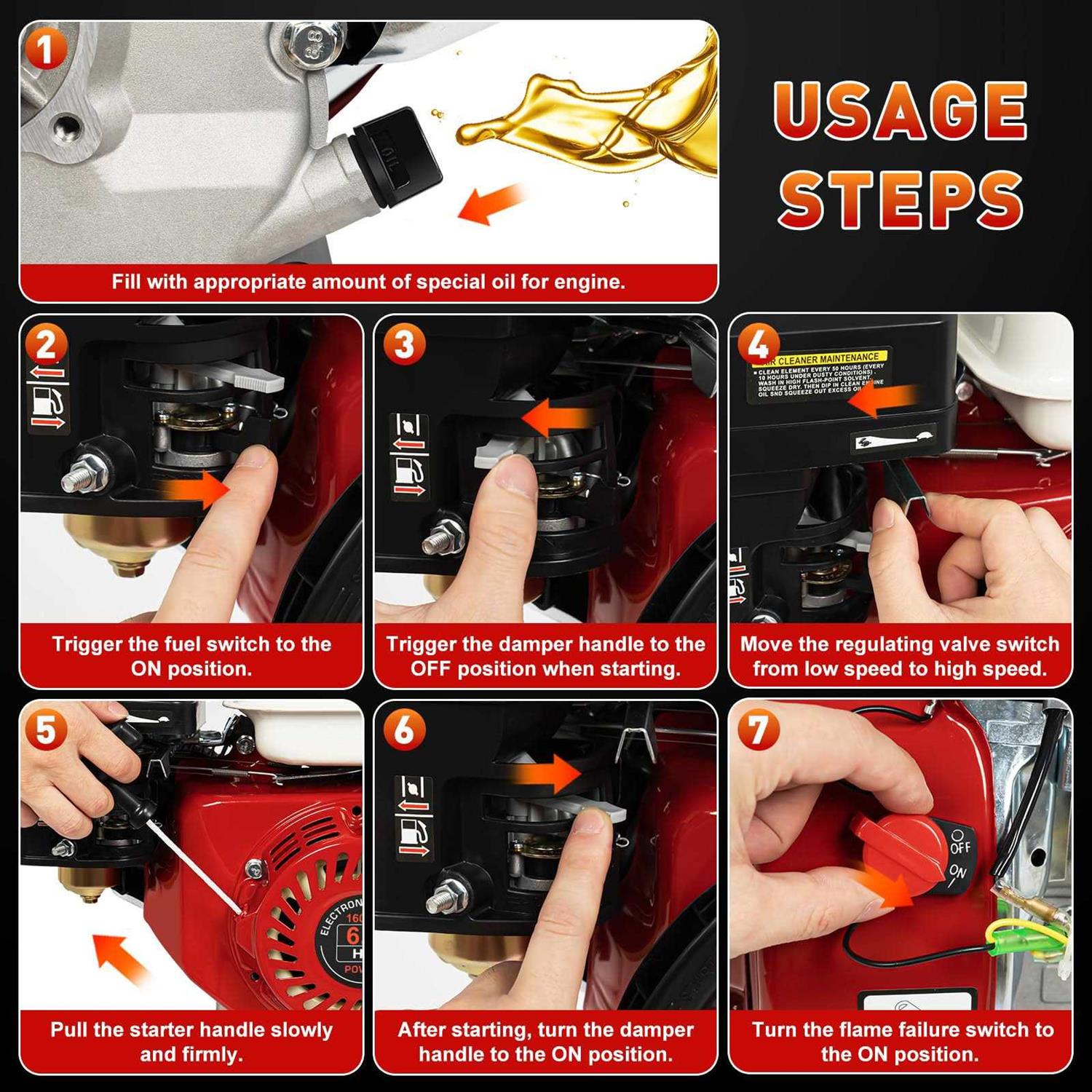

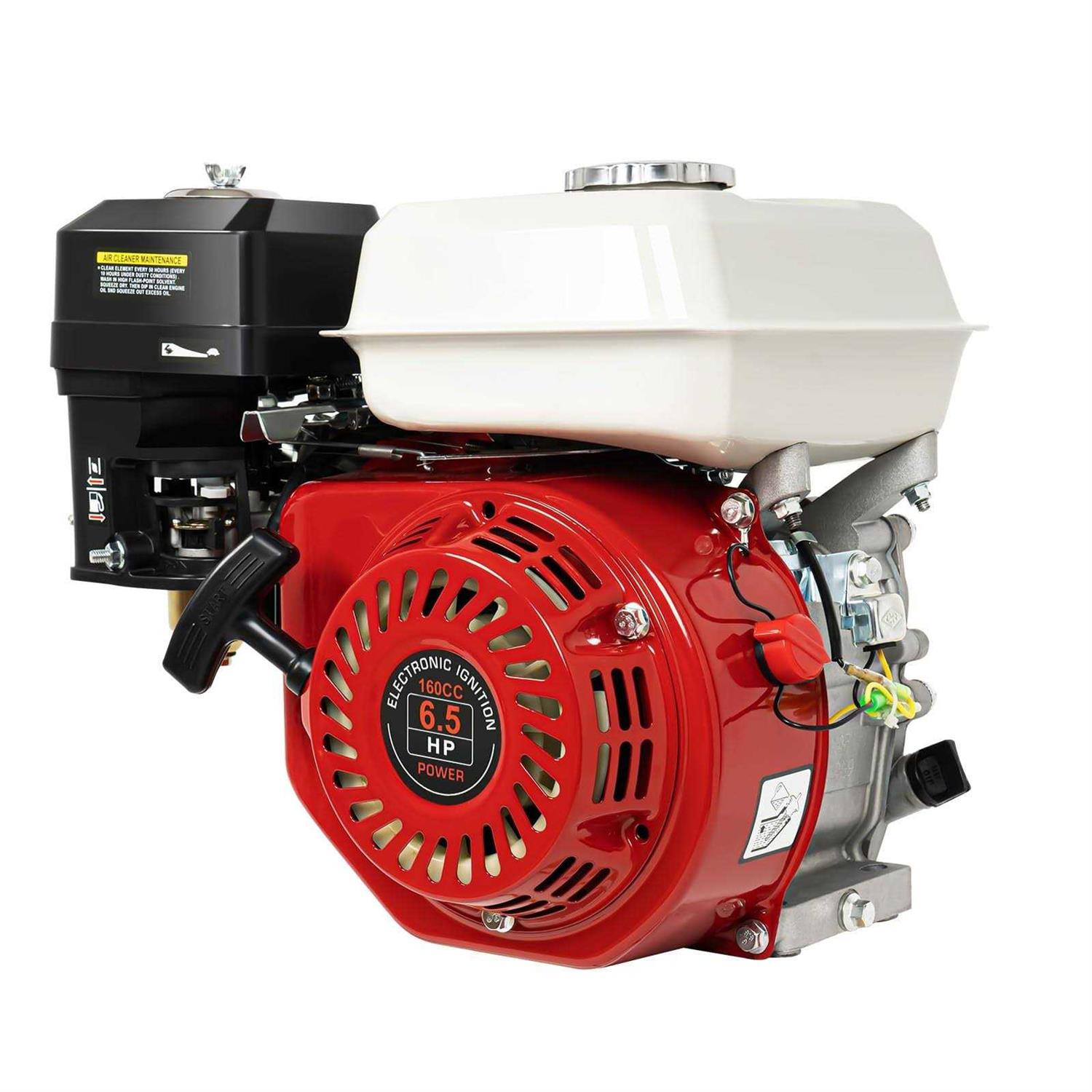

Details Pulling Wire: The pulling wire is made of nylon and iron, which is more wear-resistant, durable and uneasy to pile up for easy starting. Ergonomic Handle: The hand-pull starter features an ergonomic plastic handle that is non-slip and easy to use. Air Filter: It can improve the air filtration performance of the machine, reduce wear and tear, and increase its service life. How to Use 1. Fill with appropriate amount of special oil for petrol engine. 2. Trigger the fuel switch to the ON position. 3. Trigger the damper handle to the OFF position when starting. 4. Move the regulating valve switch from low speed to high speed. 5. Pull the starter handle slowly and firmly. 6. After starting, turn the damper handle to the ON position. 7. Turn the flame failure switch to the ON position. Specification Material: Aluminum, Iron, Cast Iron, Plastic Fuel Type: Gasoline Lube Oil Capacity: 0.6L/0.16gal Engine Oil Capacity: 3.6L/ 0.95gal Max. Torque: 10.8N-m Bore Stroke: 70*45mm/2.76*1.77inch Displacement: 160cc Engine Type: 4-strokes, Single Cylinder, Air-cooled Horsepower: 6.5HP Speed: 3600rpm Fuel Consumption Rate: 360g/kw.h Max Power: 3kw Rated Power: 2.8kw Shaft Diameter: 20mm/0.79inch Rotation: Clockwise Starting System: Pull Start Packing Size: 48*38*37cm/18.9*14.96*14.57inch Product Size: 36*25*32cm/14.17*9.84*12.6inch Gross Weight: 14.45kg/31.86lbs Net Weight: 12.35kg/27.23lbs Package Included 1 * Petrol Engine 1* English Manual Other Accessories for Installation Notes 1. Please read the instructions carefully before use. 2. Please note that do not use indoors due to danger of carbon monoxide poisoning.
