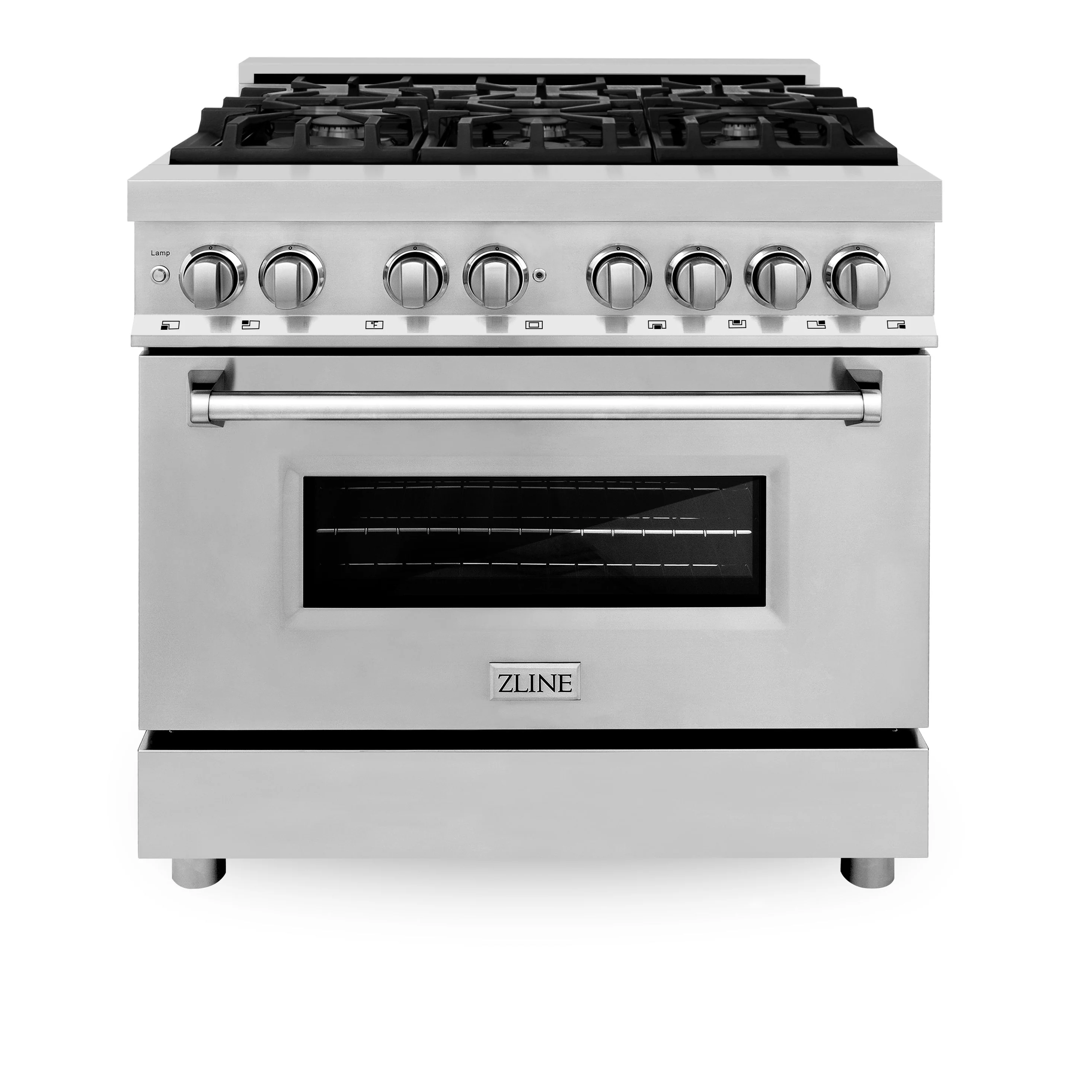

ZLINE Kitchen and Bath 36 in. Professional Gas Burner/Electric Oven Stainless Steel Range, RA36

ZLINE Kitchens's Premium 36' Dual Fuel Range, RA36 is complete with a 6 burner gas cooktop for energy-efficiency, temperature control, and easy even-cooking. The 4.6 cu.ft. of deep oven capacity provides a large cooking area that's perfect for multiple dishes at once and easily handles large baking sheets, like an 18' pizza.

THREE-LAYER GLASS OVEN

• An oven with three layers of glass and dual lighting.
• Professional aluminum mesh seal for optimum insulation.
• Oven light controlled by a light switch located on the front control panel.
• Crystal clear visibility to see inside your oven while cooking.

STAY-PUT HINGES

• ZLINE Kitchens's proprietary stay-put hinges.
• Designed to support the full weight of oven door and stop at any place.
• Durable and effective, with a smooth action.

PORCELAIN COOKTOP

• Heavy Duty Italian made porcelain one-piece cooktop.
• 6 burners provide the perfect range of cooking power from 4,200 to 18,000 BTU's.
• One-piece cooktop allows for an easy to clean surface - no crevices that can hold residue.
• No-scratch porcelain designed to handle every cooking environment.

CAST IRON GRILL

• Solid-piece cast iron grill - heavy duty and built to last.
• Extremely durable, with an exceptional strength-to-weight ratio.

ITALIAN BURNERS

• Handcrafted, high-quality Italian burners imported directly from Italy.
• Premium alloy to ensure efficient and clean-burning flames.
• Durable and easy to clean. Italian burners easily detach for a simple clean.

STAINLESS STEEL KNOBS

• Heavy duty stainless steel knob controls with smooth action turn.
• 5 oven settings.

ADJUSTABLE LEGS

• ZLINE ranges feature stainless steel, easy-to-install adjustable legs
• Twist legs to adjust total range height anywhere from 36' to 38.5'

OVEN FUNCTIONS

• High Bake
• Low Bake
• Broil
• Convection Bake
• Convection Broil

Convection Fan can be turned on or off by the oven knobs.

Note: ZLINE Range does not come with a wok ring (pictures to be updated).

Appliance Academy - Learn More:

• Are ZLINE Ranges Any Good?
• ZLINE vs. Viking Range - Which Range Should You Buy?

• Is ZLINE a Good Brand?

• Who Makes ZLINE Appliances?

PRODUCT SPECIFICATIONS:

Dimensions:	36' W x 27.38' (29' w/handle) D x 36'H
Oven Dimension:	30.5' W x 18.5' D x 14' H
Lighting:	Dual Lighting, controlled by a light switch on the front control panel
Voltage:	*Requires a minimum of 220V-240V/60HZ/20-50A (please check your kitchen meets this electrical requirement prior to purchase) NEMA-14-50 4 wire plug system
Control Type:	Durable Front Control
Material:	- Stainless Steel frame with porcelain Top - Italian made hinges and burners
Warranty:	1 Year Full Warranty
Certifications:	ETL Certified
Product Weight:	253 lbs
Cooktop:	- Cooktop: (6) Burners with porcelain Cook Top with electronic spark ignition for all burners - Type: Gas or Propane - This range is shipped for use with natural gas. It also has an LP conversion kit for propane use included.
Oven:	- Convection Electric - 4.6 cu.ft. deep oven - Triple Glass Window - Dual Lighting - Professional Aluminum mesh Seal - Number of Oven Racks: 2
BTU Ratings:	- Dual Burn - 18,000 BTU - Rapid Burner (x2) - 13,000 BTU - Semi-Rapid Burner (x2) - 8,500 BTU - Auxiliary Burner - 4,200 BTU
Fuel Type:	- Cooktop: Gas or Propane - Oven: Convection Electric
