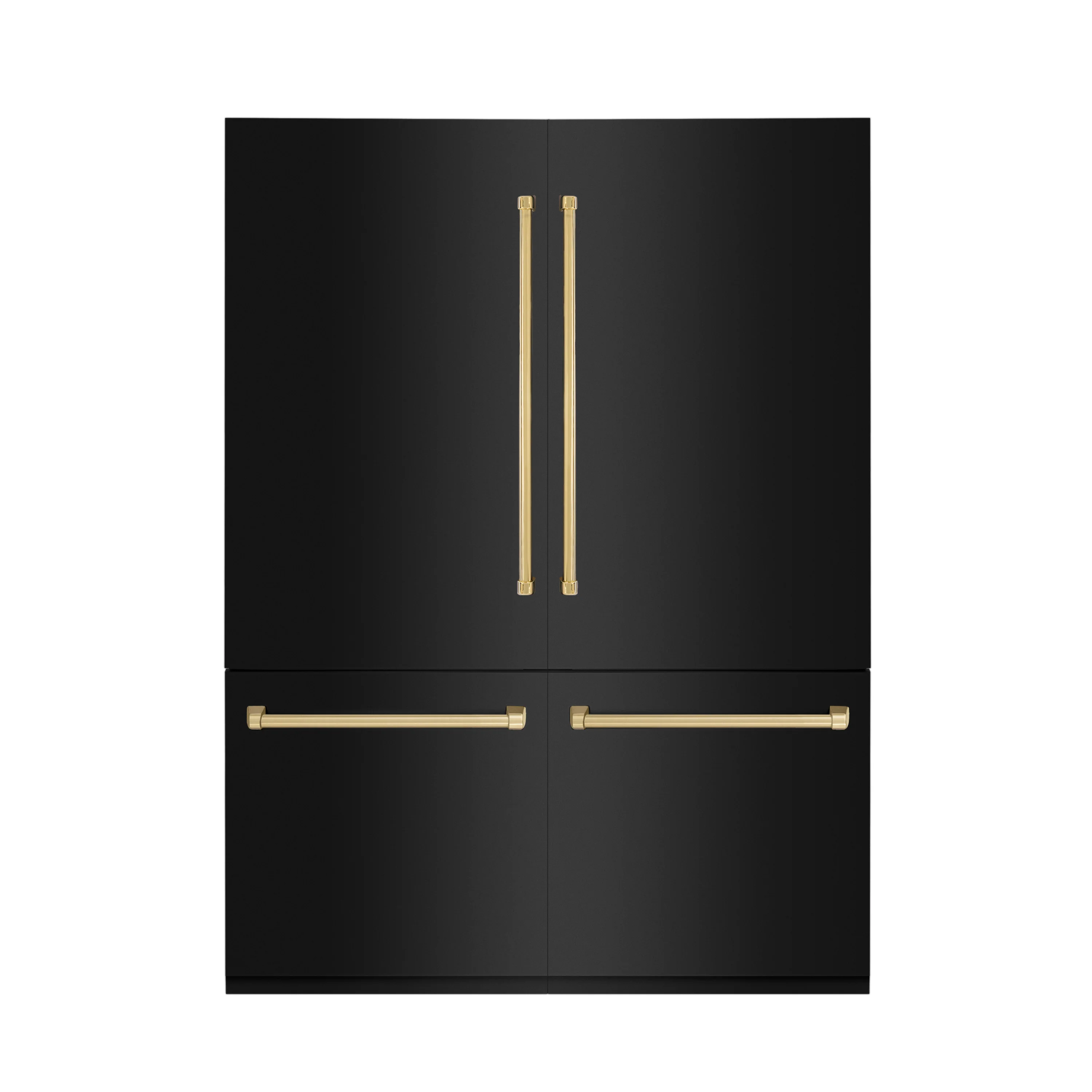

Luxury isn't meant to be left desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 60' Autograph Edition 32.2 cu. ft. Built-in 4-Door French Door Refrigerator with Internal Water and Ice Dispenser in Black Stainless Steel with Gold Accents provides a professional culinary experience by pairing best-in-class freshness with a modern style. Achieve ZLINE Attainable Luxury® excellence with innovative technology designed to enhance your kitchen's capability.
Features
- Autograph Edition Series. Autograph Edition Series - Enjoy a timeless look in your kitchen with a Black Stainless Steel finish paired with Gold accent handles, giving your kitchen an elegant, unmatched style
- Spacious Interior. A large 32.2 cubic ft. space provides maximum storage capacity for all your necessities
- Built-In Design. Create an integrated look in your kitchen with a true flush installation designed to provide a professional, seamless look
- Assembly Required. This refrigerator and its door panels will ship in multiple boxes and requires assembly upon installation
- Adjustable Refrigerator Temperature. Create the perfect cooling environment for your items with temperatures ranging from 35°F to 46°F
- Adjustable Freezer Temperature. Achieve the perfect cooling environment for your frozen items with temperatures ranging from -11°F to 5°F
- Digital ChillControl. Easy-to-use LED display allows you to quickly change temperatures for the refrigerator, crisper drawer, and freezer and navigate menu options to change the refrigerator to vacation, sabbath or eco modes
- Soft-Shut Technology. Smooth-closing refrigerator doors and drawers seamlessly open and close ensuring heavily used fridge components are enjoyed for years to come
- Twin Cooling Plus. Separate refrigerator and freezer cooling systems ensures air and odors are not mixed between compartments and provide fast and efficient cooling
- Internal Water Dispenser and Ice Maker. Delivers fresh, filtered water discreetly within the refrigerator and up to 7.8 lbs of ice per day with an automatic ice maker in the freezer
- ENERGY STAR® Rated. Enjoy energy savings while maintaining professional power with superior insulation and an energy-reducing cooling system
- Manufacturing Warranty. 2-year parts and labor warranty, 5 years sealed system parts and labor
Installation Details: This refrigerator consists of two separate 30 inch units that require installation. Upon arrival, both refrigerators will have a right-hinged door, two 15 amp outlets, and two water lines connected together with the included handles and trim kit.
Important Note: To achieve the French door style, the hinge of one refrigerator door will need to be relocated to the left side during the installation process.
PRODUCT SPECIFICATIONS:
Dimensions
| 59.75''W x 24.25''D x 83.56''H
|
| Cutout Dimensions | 60'W x 25'D x 84'H |
| Depth | Including Handles - 25.125'
Excluding Handles - 24.25'
Door Open - 55.1' |
| Weight | 815 lbs
|
| Type | Built-In |
| Finish | Black Stainless Steel with Gold Handles |
| Decibels | 43 dBa |
Total Capacity |
32.2 cu. ft. |
Refrigerator Capacity |
23.2 cu. ft. |
Freezer Capacity |
9 cu. ft. |
| Flex Drawer Capacity | 5.4 cu. ft. |
| Flex Drawer Temp Controls | 30°F (-1°C) - 41°F (5°C) |
| Performance | Compressor |
| Shelves | 6 Door Bins
6 Fridge Shelves |
| Lighting | 8 LED (6 Fridge, 2 Freezer) |
Freezer | Pull-Out Door Style
4 Freezer Drawers |
| Ice-Maker | Yes |
| Ice Amount / Day | 7.8 lbs |
| Ice Tray Storage | 16.8 lbs |
| Water Dispenser | Yes |
| Flow Rate for Water Dispenser | 0.5 GPM |
| Filter Water | NSF. ANSI 42 |
| Freezer Type | Pull Out
|
| Door Features | French Door
Door Alarm
|
| Electrical | 120V / 60Hz / 15 Amps |
| Warranty | 2 Years Parts and Labor, 5 Years sealed system parts and labor |
| Certifications | ETL Listed, ENERGYSTAR
|
| Energy Consumption | 1,102 kWh/year |
Replacement Filter Model Number: RBIV-205A
Installation Manual
